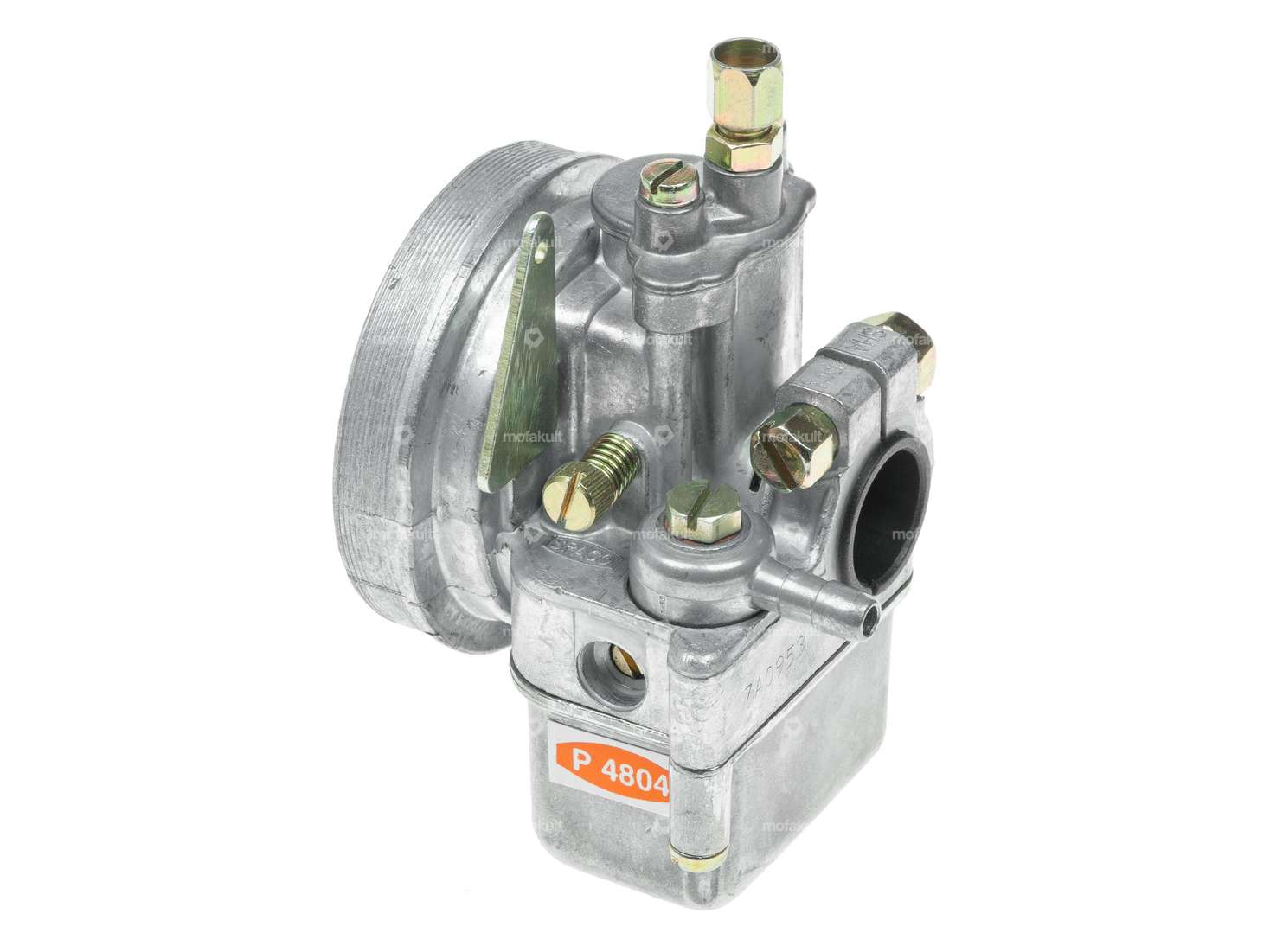

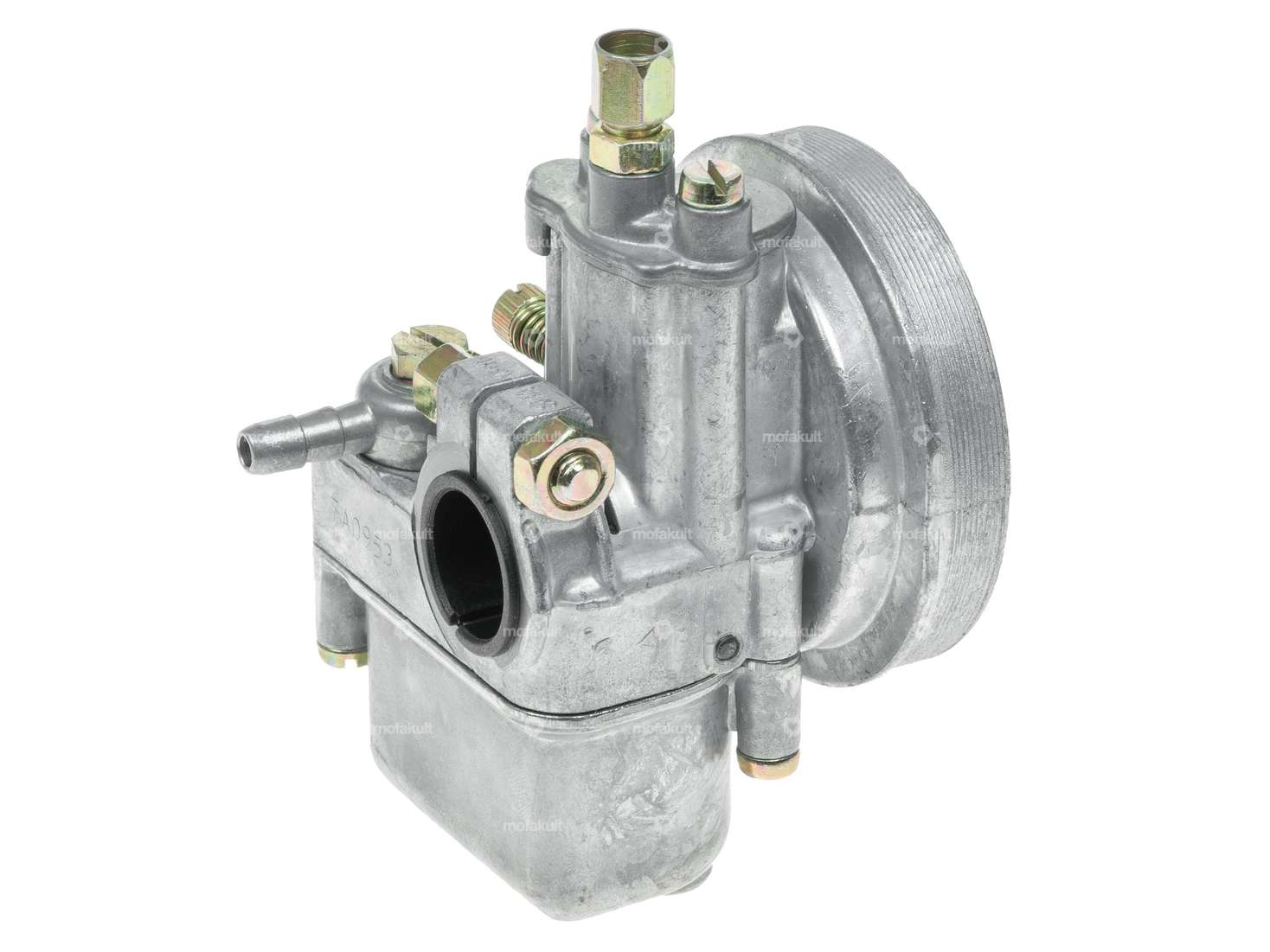

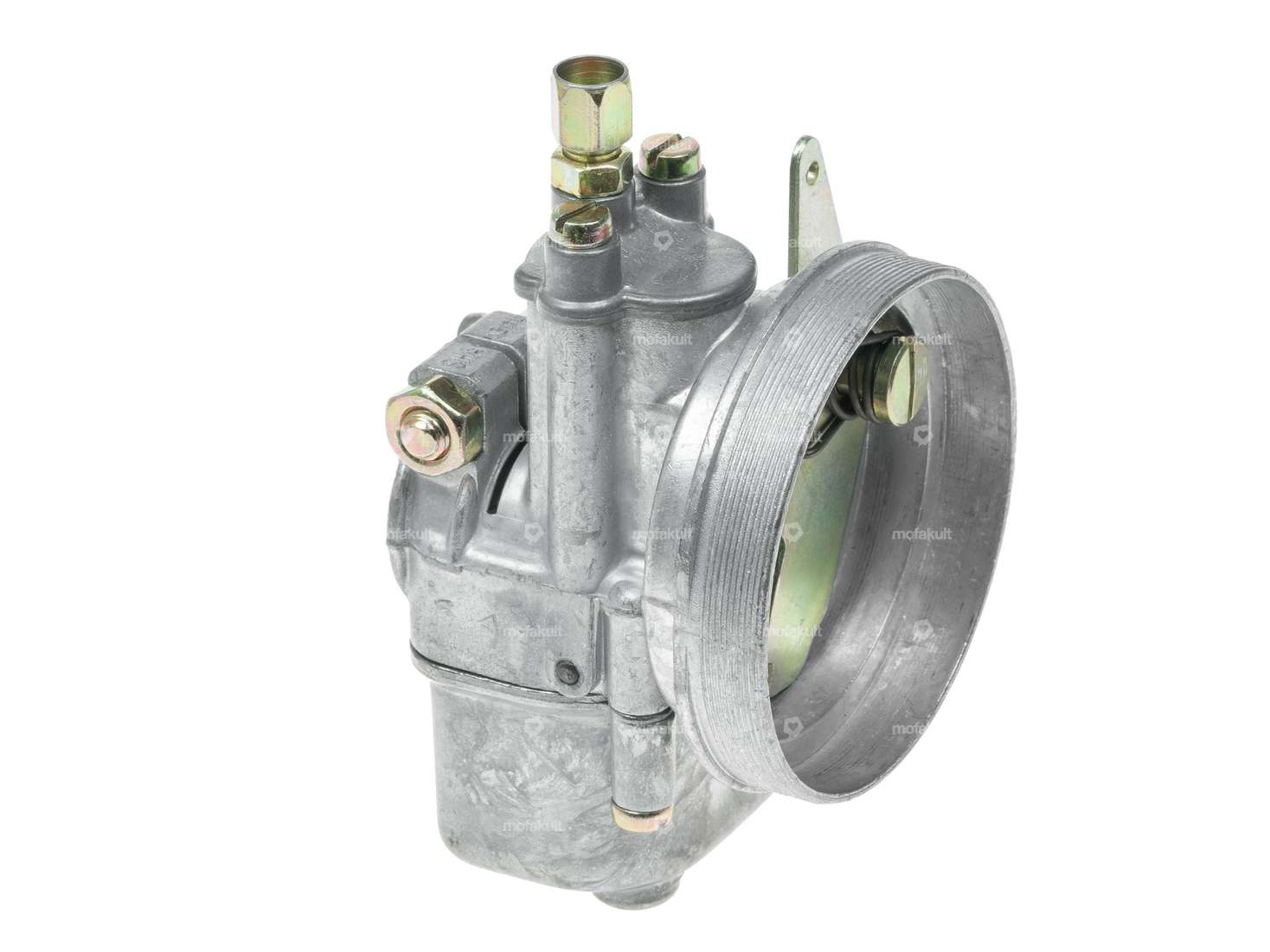

The Dell'Orto 13 / 11 SHA Spaco carburetor impresses with its compact design and can be used universally for various mopeds, mopeds and small motorcycles.

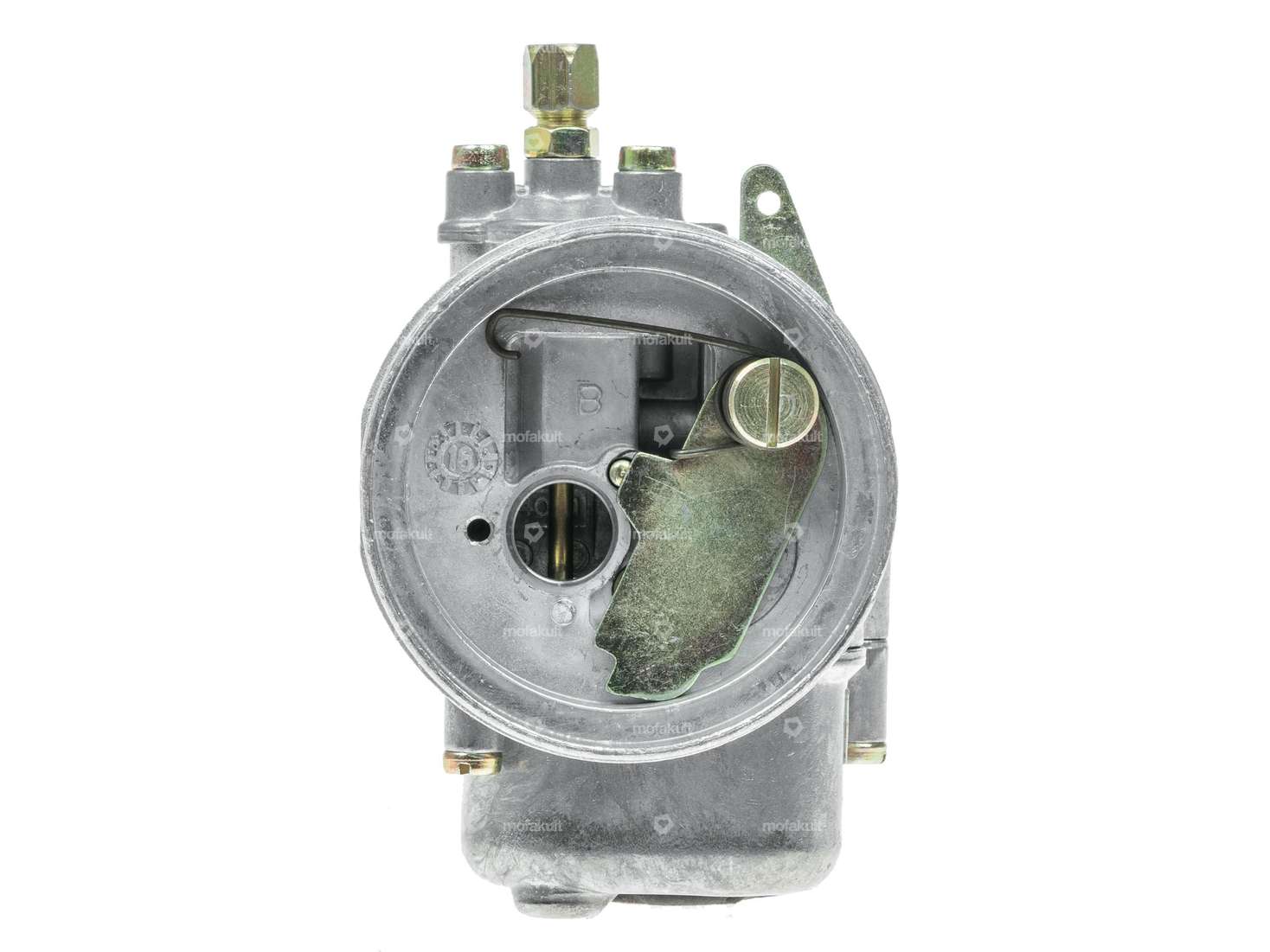

The Spaco version has a large air filter connection.
The tuning carburetor has a manually operated choke / starter slide. The starter flap engages by pressing it down and is only returned to its original position by actuating the throttle cable (full throttle).
Carburettor type: SHA type 3 (SHA3)
Main diameter (M5): 48
Inlet connection diameter: 16 mm (or 18 mm after removing the reducer). 18 mm after removing the reducing sleeve)
Ø outside air filter connection: 59 mm
Ø passage on air filter side: 11 mm
Ø passage on intake manifold side: 13 mm
Total height: 99 mm (without pipe bend)
Total length: 52 mm
Total width: 65 mm
Matching nozzles, intake manifolds and alternative air filters can be found in the accessories section.
Quality product from the Italian manufacturer Dell'Orto.
Details
| Nominal diameter | 13 mm, 11 mm |
| Manufacturer | Dell'Orto |
| Material | Aluminum |
| Component group Carburetor | Carburetor complete |
| Area of application | Original, Tuning |
| Color | black |
| Carburetor type | SHA (Piaggio) |
| Choke control | Hand choke |
| Total length | 52 mm |
| Ø fuel hose connection | 6 mm, 5.2 mm |
| Nozzle thread | M5x0.8 (standard thread) |
| Nozzle size | 48 |
| Ø without reducing sleeve | 18 mm |
| Ø Internal connection | 16 mm |
| Ø Inside entrance | 11 mm |
| Width | 65 mm |
| Ø Output inside | 13 mm |
| Height | 99 mm |
| Ø Air filter connection | 59 mm |
| Mounting type | Plug connection clamped |
| Mixed oil connection | No |
| Vacuum connection | No |
| Camouflaged | No |
