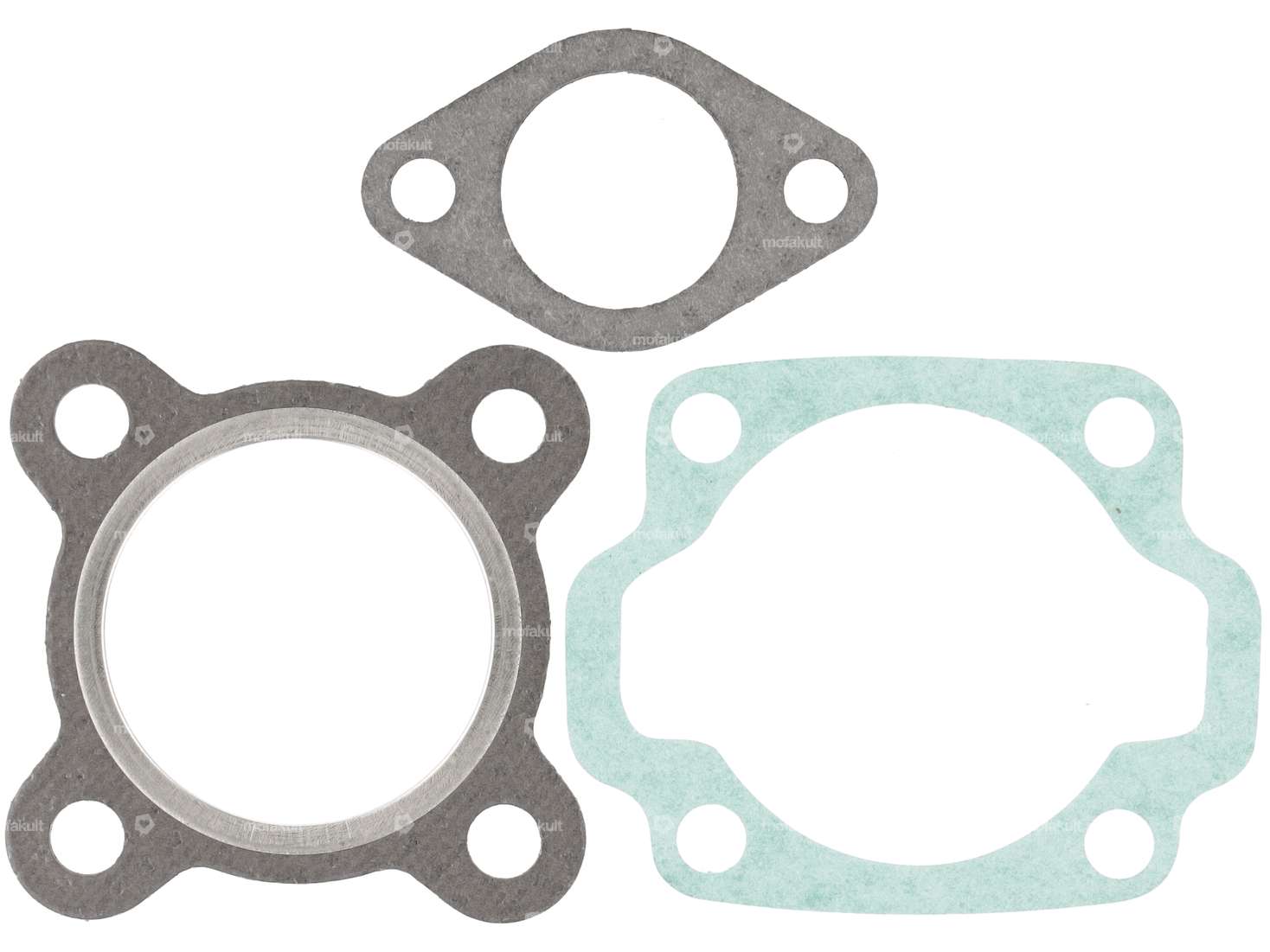

DMP gasket set cylinder 50 ccm | Tomos A3, A35

Airsal 44 mm cylinder kit tuning 12 mm KoBo | Tomos A35

Nominal diameter: 44 mm · Manufacturer: Airsal · Material: Aluminum · Surface: sandblasted · Displacement: 65 ccm · Ø cylinder neck: 47.4 mm · Ø outlet inside: 22 mm · Hole spacing inlet: 31.5 mm · Hole spacing inlet: 36 mm · Hole spacing inlet: 39 mm · Inlet window: 29.5 x 37.5 · Thread inlet: M5x0.8 (standard thread) · Area of application: Tuning · Hole pattern [mm]: 44 x 44 · Number of fixing points: 4 pcs · Ø piston pin (B): 12 mm · Outlet type: slanted · Hole spacing outlet: 42 mm · Thread outlet: M6x1 (standard thread) · Decompressor: No · Camouflaged: No

GPO 44 mm cylinder kit tuning 12 mm KoBo | Tomos A35

Nominal diameter: 44 mm · Manufacturer: GPO · Material: Aluminum · Surface: sandblasted · Displacement: 65 ccm · Crankshaft stroke: 43 mm · Ø cylinder neck: 47.8 mm · Ø outlet inside: 22.8 mm · Hole spacing inlet: 36 mm · Hole spacing inlet: 39 mm · Inlet window: 35.5 x 29.5 · Thread inlet: M5x0.8 (standard thread) · Area of application: Tuning · Hole pattern [mm]: 44 x 44 · Number of fixing points: 4 pcs · Ø piston pin (B): 12 mm · Outlet type: slanted · Hole spacing outlet: 42 mm · Thread outlet: M6x1 (standard thread) · Decompressor: No · Camouflaged: No

GPO oil seal set | Tomos A35

Simmering type: A DUO - With rubberized outer casing / two sealing lips. · Manufacturer: GPO · Material: NBR · Surface: rubberized · Ø inside: 16 mm · Ø inside: 17 mm · Ø inside: 35 mm · Width: 7 mm · Ø outside: 24 mm · Ø outside: 35 mm · Ø outside: 47 mm · Temperature resistance (min.): -30 - 100 °C

Engine gasket set | Tomos A35

Number of components: 6 pcs · Area of application: Standard

GPO gasket set 45 mm | Tomos A3 / A35

Manufacturer: GPO · Number of components: 3 pcs · Ø cylinder: 45 mm · Area of application: Tuning · Hole pattern [mm]: 44 x 44 mm · Hole spacing outlet: 42 mm

Engine gasket set | Tomos A3 (1975 - 1991)

Manufacturer: Tomos · Number of components: 7 pcs · Area of application: Standard

KMC drive chain 415H (reinforced) 128L

Ø Pin: 3.94 mm · Manufacturer: KMC · Material: Steel · Surface: blank / oiled · Color: gray · Number of chain links: 128 pcs · Chain type: 415H · Rolling circumference: 1626 mm · Chain pitch: 1/2" x 3/16" · Chain lock type: Spring lock · Ø bore: 4 mm

swiing® revival stud bolt inlet/outlet M6 x 30 mm (10.9 strength)

Diameter: 5.95 mm · Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Total length: 30 mm · Thread length: 12 mm · Strength class: 10.9 · Thread type: M6x1 (standard thread)

GPO bulb 6V - 15W (P26s) with collar, 1 filament

Manufacturer: GPO · Test mark: none · Tension: 6 V · Color: white · Performance: 15 W · Total length: 43 mm · Bulb holder: P26s · Ø base: 26 mm · Ø Lamp head: 25 mm · LED: No

Motorex Automatic Motor Oil (ATF) 450 ml

Manufacturer: Motorex · Contents [ml]: 450 ml · Gearbox type: Automatic machine · Temperature resistance (min.): -45 - 200 °C · Area of application: Gearbox lubrication with clutch · Pony OEM number: A2080 · Sachs OEM no.: 0263 014 002

GPO chain separator pedal chain

Manufacturer: GPO · Material: Steel · Surface: galvanized (blue) · Number of components: 3 pcs · Total length: 70 mm · Chain type: 410 · Chain pitch: 1/2" x 1/8" · Width: 22 mm · Height: 75 mm · Area of application: (Dis)assembly tool

Dell'Orto SHA reducing bushing (21/18 mm)

Manufacturer: Dell'Orto · Material: Plastic · Component group Carburetor: Adjusting screws, float, etc. · Color: white · Carburetor type: SHA · Total length: 14 mm · Ø outside: 21 mm · Ø inside: 18 mm

Polini gasket diaphragm

Manufacturer: Polini · Ø cylinder: 45 mm · Place of use: Admission

DMP 38 mm cylinder kit slanted exhaust 12 mm KoBo | Tomos Sprint, Quadro, Fun Sport'R, Classic

Nominal diameter: 38 mm · Manufacturer: DMP · Material: Gray cast iron · Surface: varnished · Displacement: 50 ccm · Crankshaft stroke: 43 mm · Thread inlet: M5x0.8 (standard thread) · Area of application: Standard · Hole pattern [mm]: 44 x 44 · Number of fixing points: 4 pcs · Ø piston pin (B): 12 mm · Outlet type: slanted · Hole spacing outlet: 42 mm · Thread outlet: M6x1 (standard thread) · Camouflaged: Yes · Tomos OEM number: 229402

GPO gasket set 38 mm cylinder & diaphragm | Tomos A3, A35

Manufacturer: GPO · Material: Aluminum · Material: Graphite / Graphite · Material: Oiled paper · Number of components: 5 pcs · Thickness: 0.35 mm · Thickness: 0.4 mm · Thickness: 1.4 mm · Hole pattern [mm]: 39 x 36 · Hole pattern [mm]: 44 x 44 · Hole spacing outlet: 44 mm
