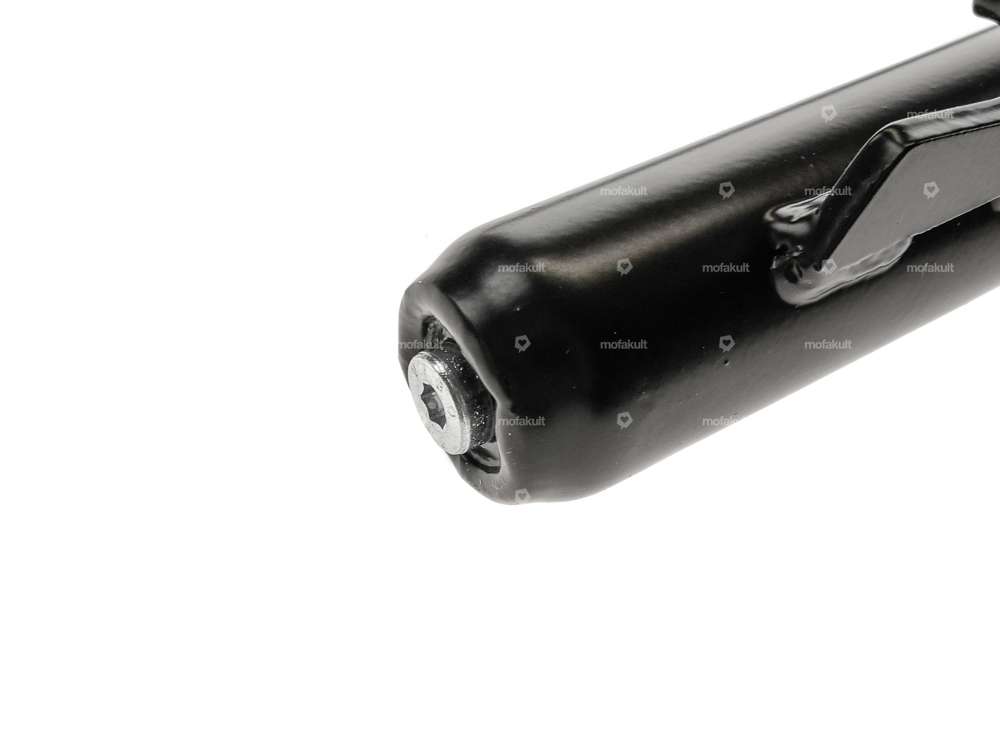

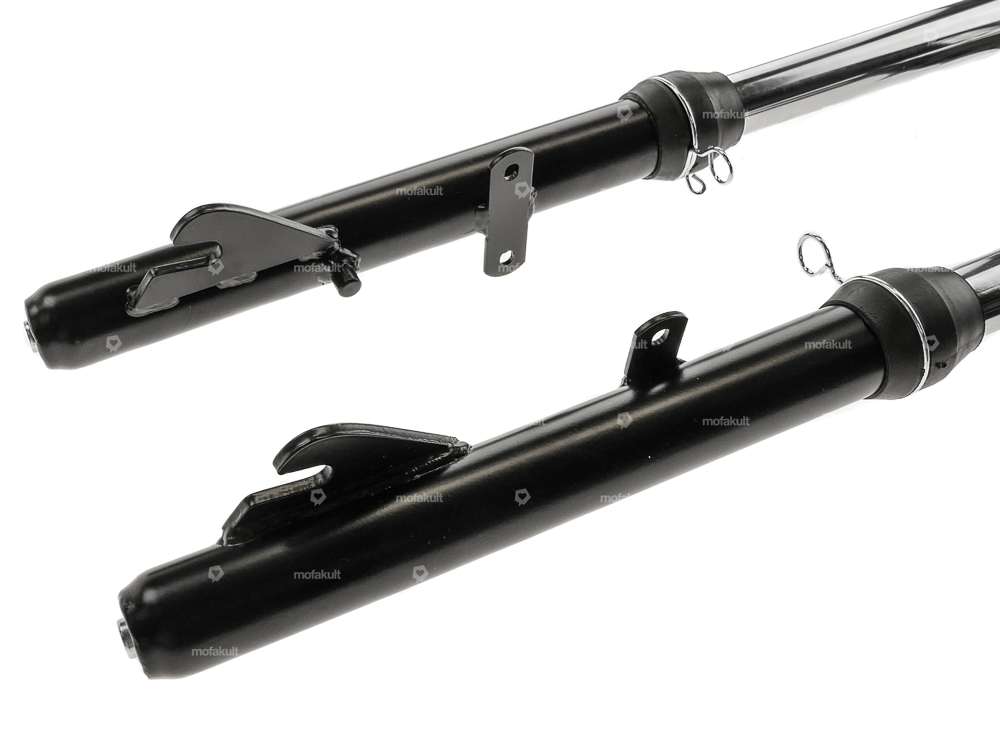

Black painted telescopic fork suitable for Piaggio Si mopeds / mopeds.
Total fork length: 680 mm
Head tube length: 175 mm
Head tube thread: M27.5x1 (often incorrectly referred to as M28x1)
Ø inner head tube (for stem mounting): 21.6 mm
The matching attachments, such as headset set etc. can be found in the accessories.
Branded product from the Italian manufacturer EBR.
Details
| Manufacturer | EWC |
| Material | Steel |
| Surface | varnished, chrome-plated |
| Color | black, Chrome |
| Adjustable | No |
| Ø spars | 28 mm |
| Spar end distance (center-center) | 139 mm |
| Ø outer head tube | 27.9 mm |
| Ø head tube inside | 22 mm |
| Head tube length | 173 mm |
| Thread type | MF27.5x1 (fine pitch thread) |
| Total length | 675 mm |
| Fork bridge - center wheel axle | 408 mm |
| Distance brake cam to wheel axle center-center | 62 mm |
| Thread length | 58 mm |
Suitable for the following models
| Piaggio | Si |
