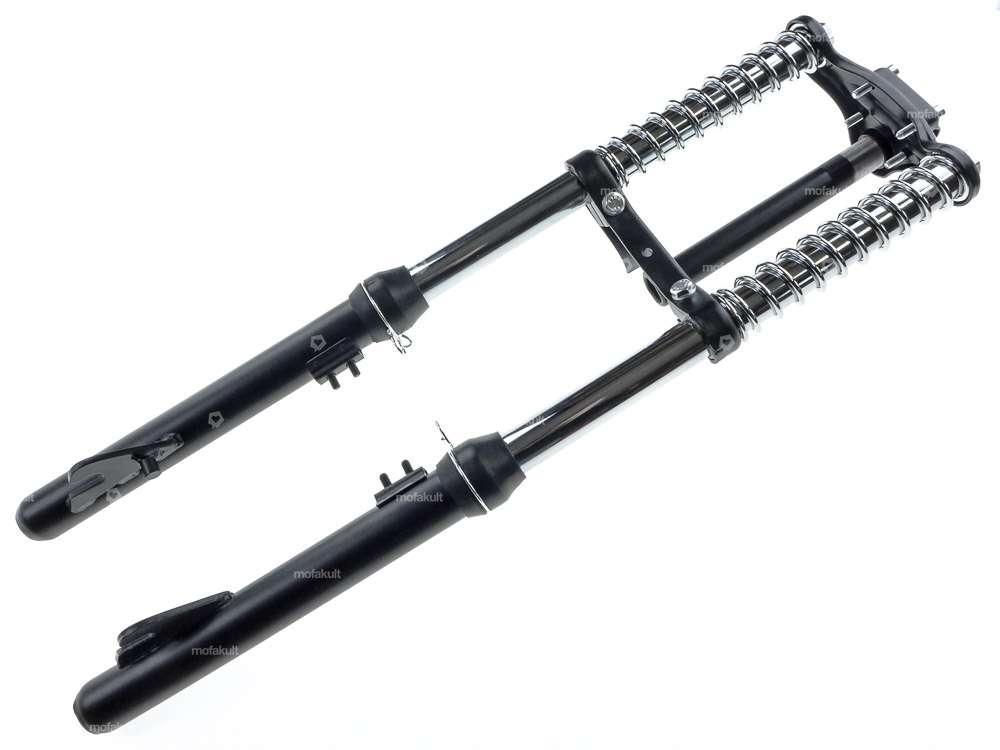

Reinforced EBR telescopic fork in black for your Piaggio Ciao moped / moped.

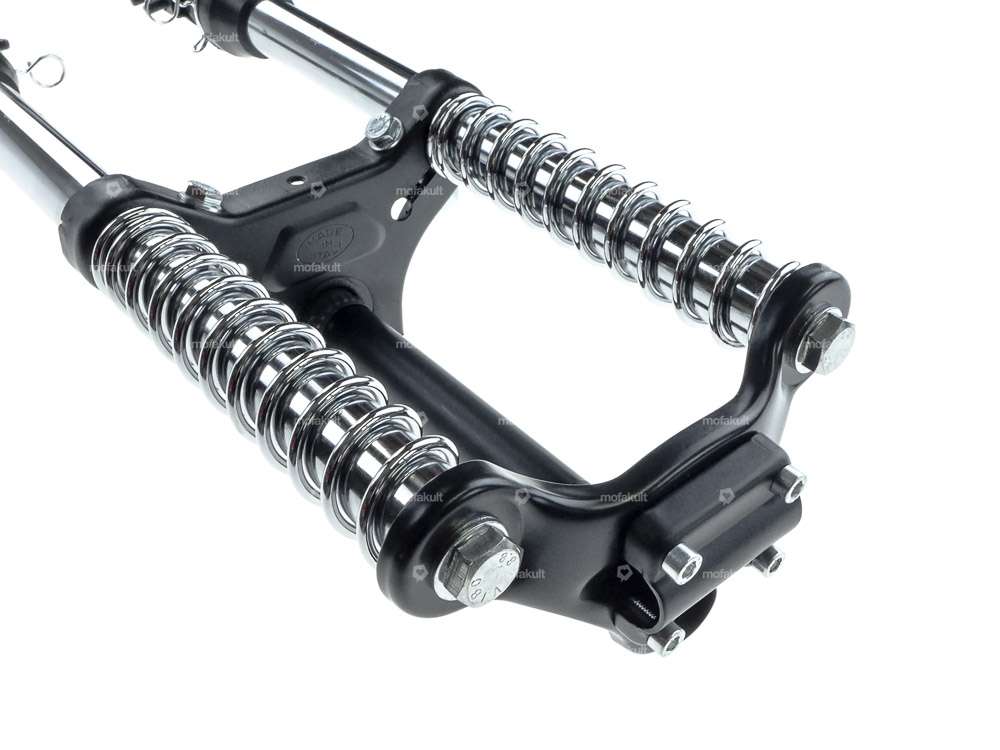

Includes clamps for attaching handlebars to the fork plate.
Ø stanchion tube: 28 mm

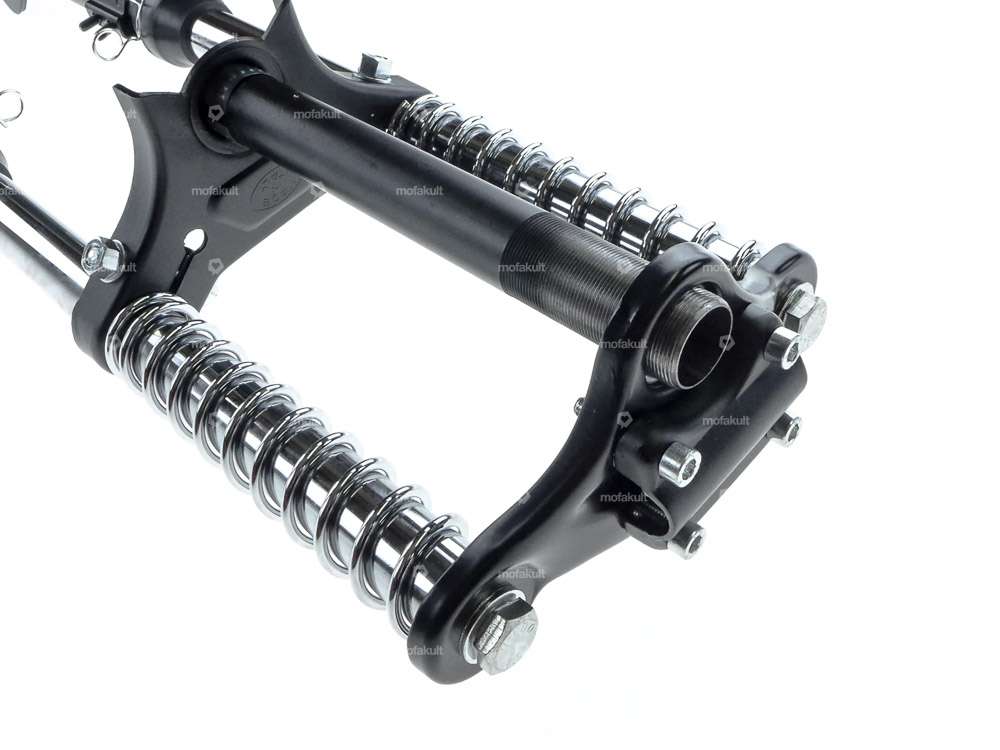

Ø head tube: 25.4 mm (single-inch thread)
Total length: 650 mm
Fork bridge - center wheel axle: 400 mm

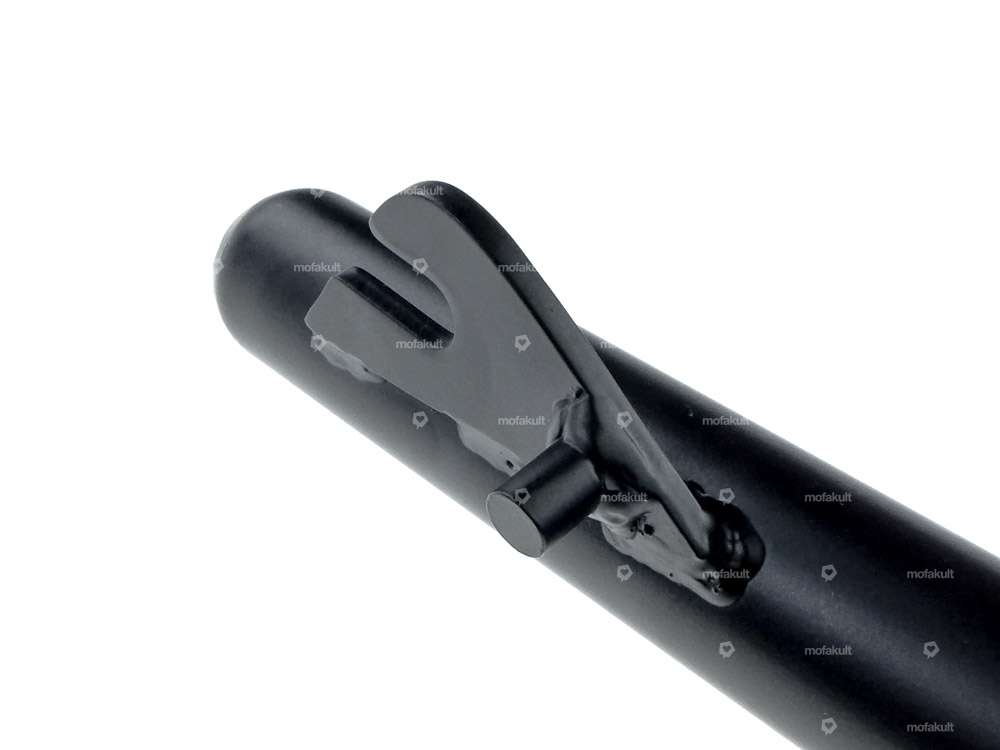

Center wheel axle - mount for brake anchor plate: 30 mm
We would like to point out that adjustments must be made to this suspension fork on some Ciao models.
In particular, the brake lever rubbing against the bars is always a problem. Possible solutions are to lengthen the cam for the brake anchor plate or to weld or lengthen the brake lever. Another option is to cut open the brake lever and use a cable mount with item number 16776.
Matching parts such as the cable mount described above, snap rings, a headset or a closed end nut for the head tube can be found in the accessories section.
Branded product from the Italian manufacturer EBR.
Details
| Total length | 675 mm, 610 mm |
| Manufacturer | EWC |
| Material | Steel |
| Surface | varnished, chrome-plated |
| Color | black, Chrome |
| Adjustable | No |
| Ø spars | 28 mm |
| Spar end distance (center-center) | 140 mm |
| Ø outer head tube | 25.65 mm |
| Ø head tube inside | 21.1 mm |
| Head tube length | 200 mm |
| Thread type | FG25.4 (1" 24G) |
| Fork bridge - center wheel axle | 385 mm |
| Thread length | 58 mm |
| Distance brake cam to wheel axle center-center | 35 mm |
Suitable for the following models
| Piaggio | Ciao - Ciao, Ciao, Ciao, Ciao |
