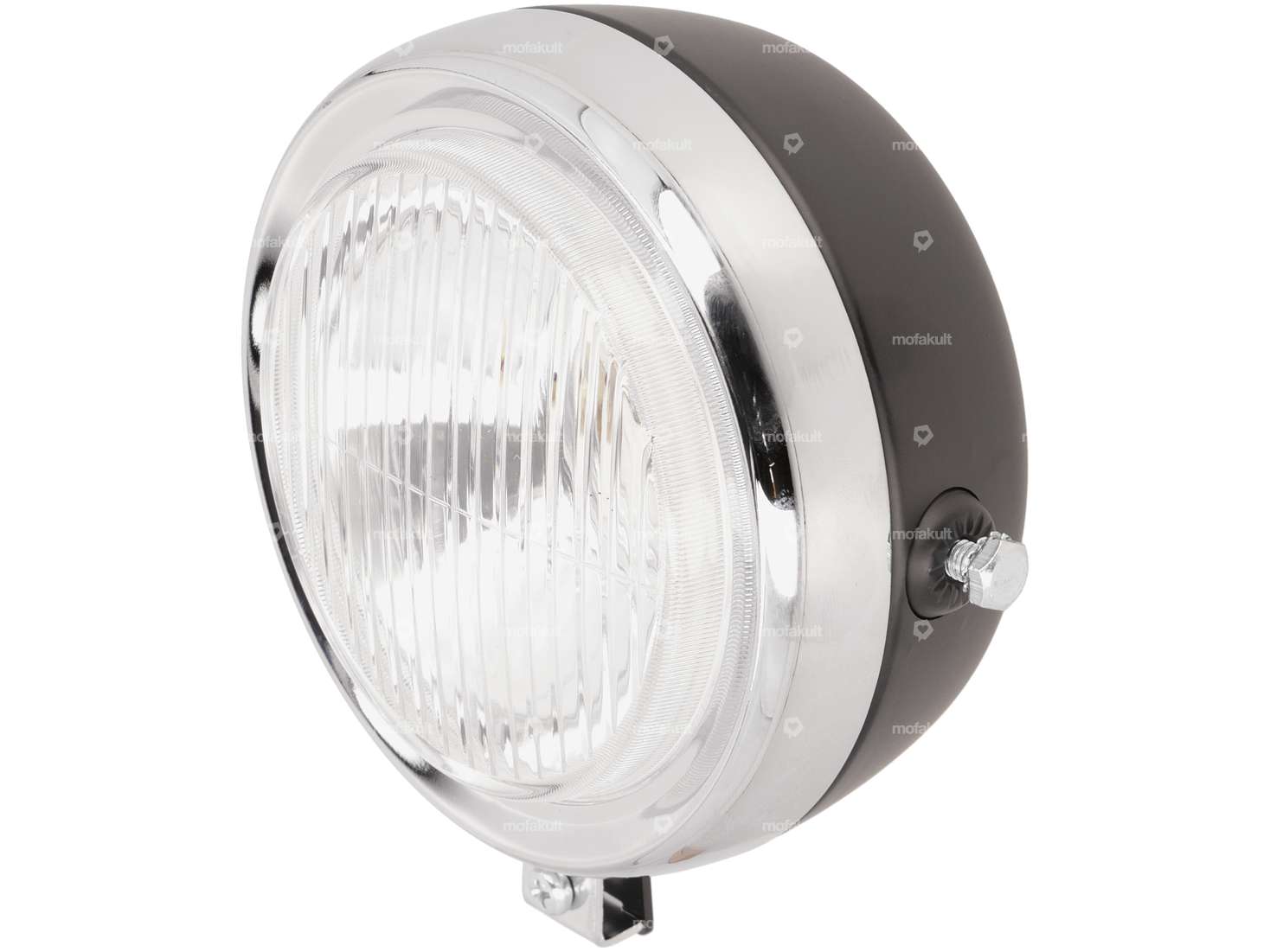

This black lamp with chrome-plated ring is suitable for various mopeds, mopeds and small motorcycles.

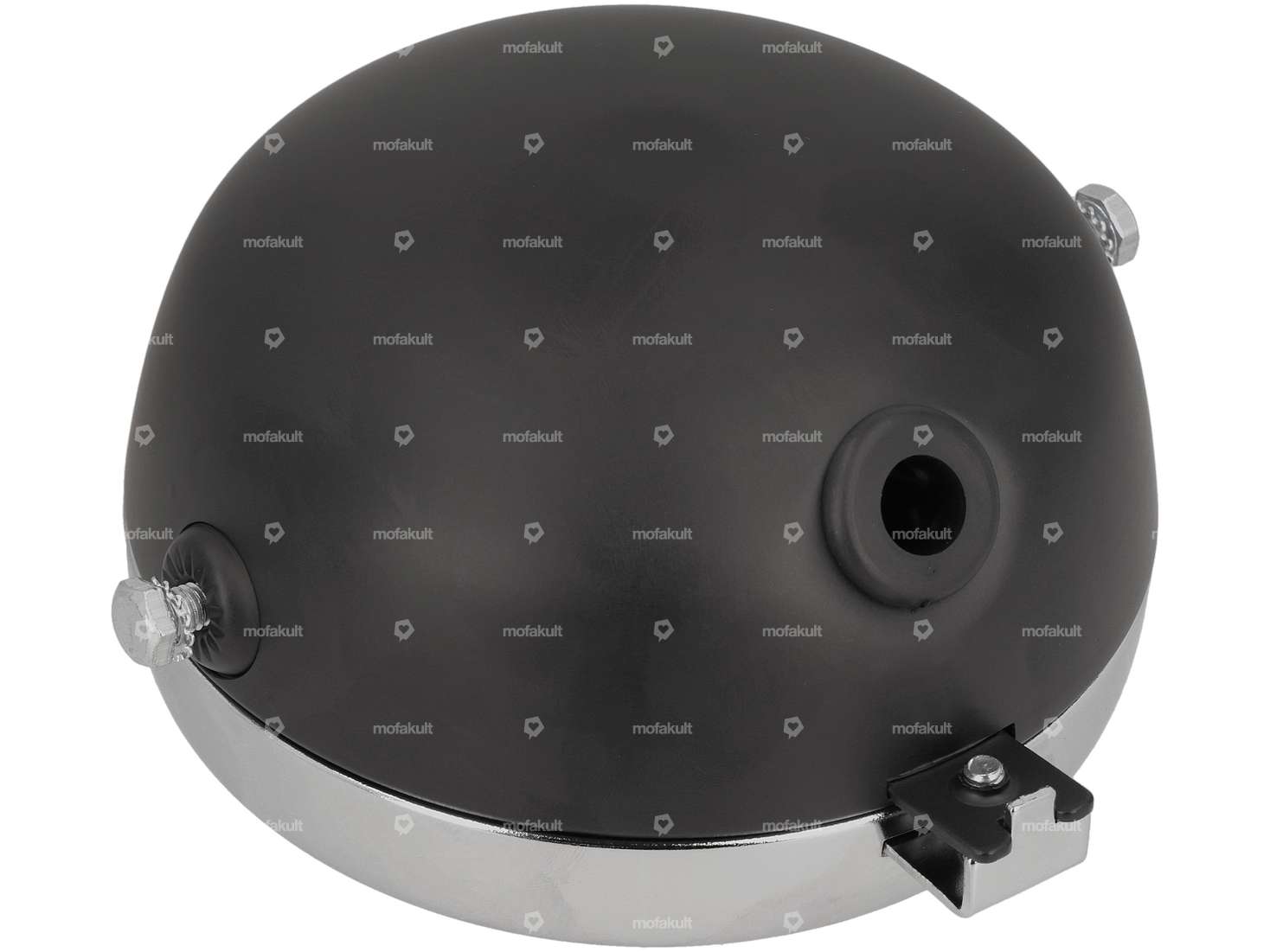

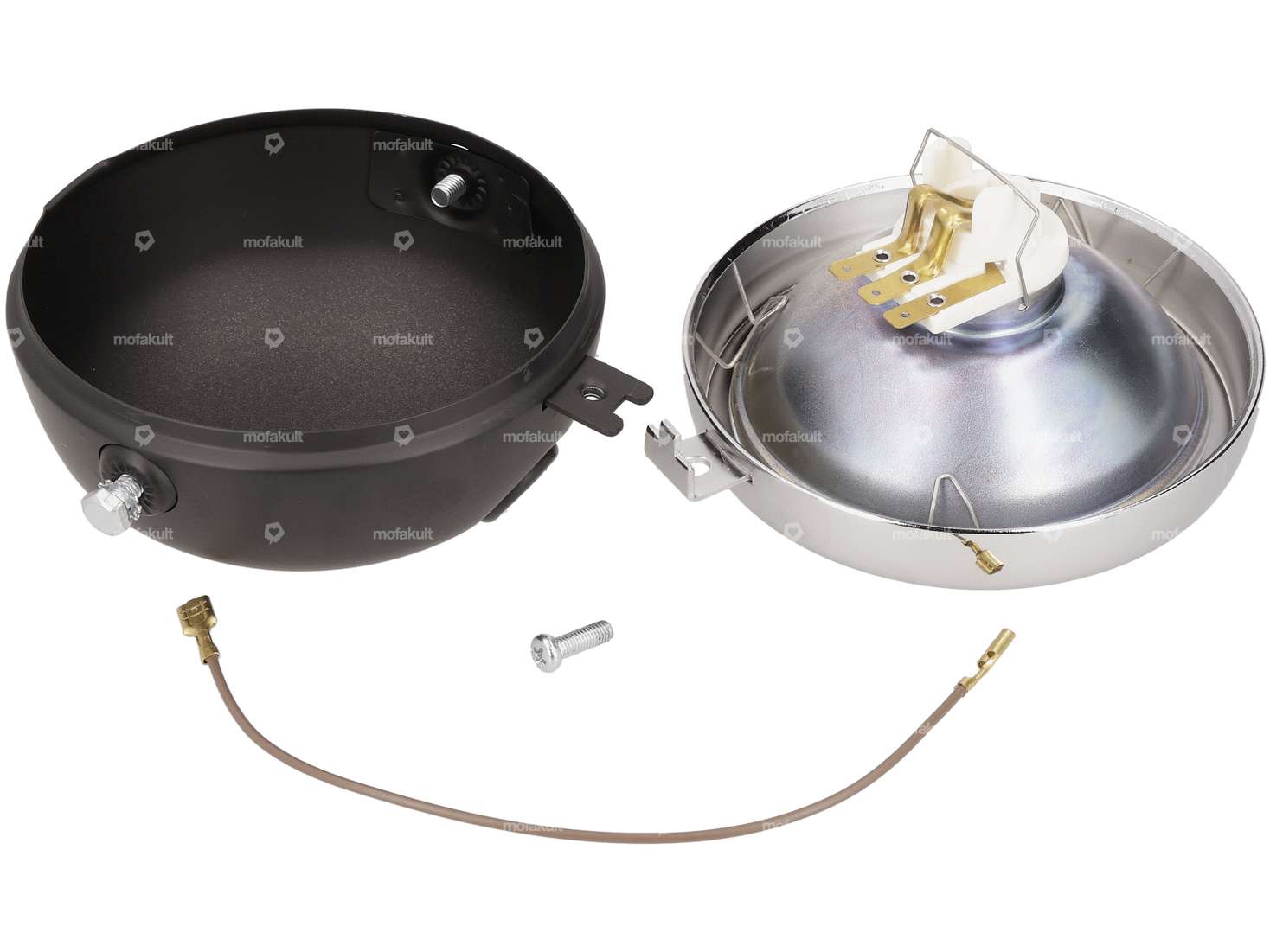

The round lamp pot is suitable for side mounting between the headlight brackets. Inside is a BA15d bulb socket, which is suitable for 2-phase bulbs with full and dipped beam.
With this replica article, it may happen that the lamp glass is not perfectly embedded in the lampshade.
Ø outside: 130 mm
Length: 140 mm
Mounting thread: M6
Bulb holder: BA15d
The bulb is not included in the scope of delivery.
Matching bulbs for this front lamp can be found in the accessories section.
Details
| Surface | chrome-plated, varnished |
| Ø outside | 130 mm |
| Width | 134 mm |
| Test mark | none |
| Material | Sheet metal (steel) |
| Housing material | Metal |
| Bulb holder | BA15d |
| Color | transparent, black, Chrome |
| Switch included | No |
| Lens material | Plastic |
| Mounting type | Screws |
| Depth | 80 mm |
| Number of fixing points | 2 pcs |
| Height | 147 mm |
| Speedometer recording | None |
| Thread size | M6 |
| Battery operated | No |
| Area of application | Standard |
Suitable for the following models
| Universal | |
| Puch | |
| Sachs |
