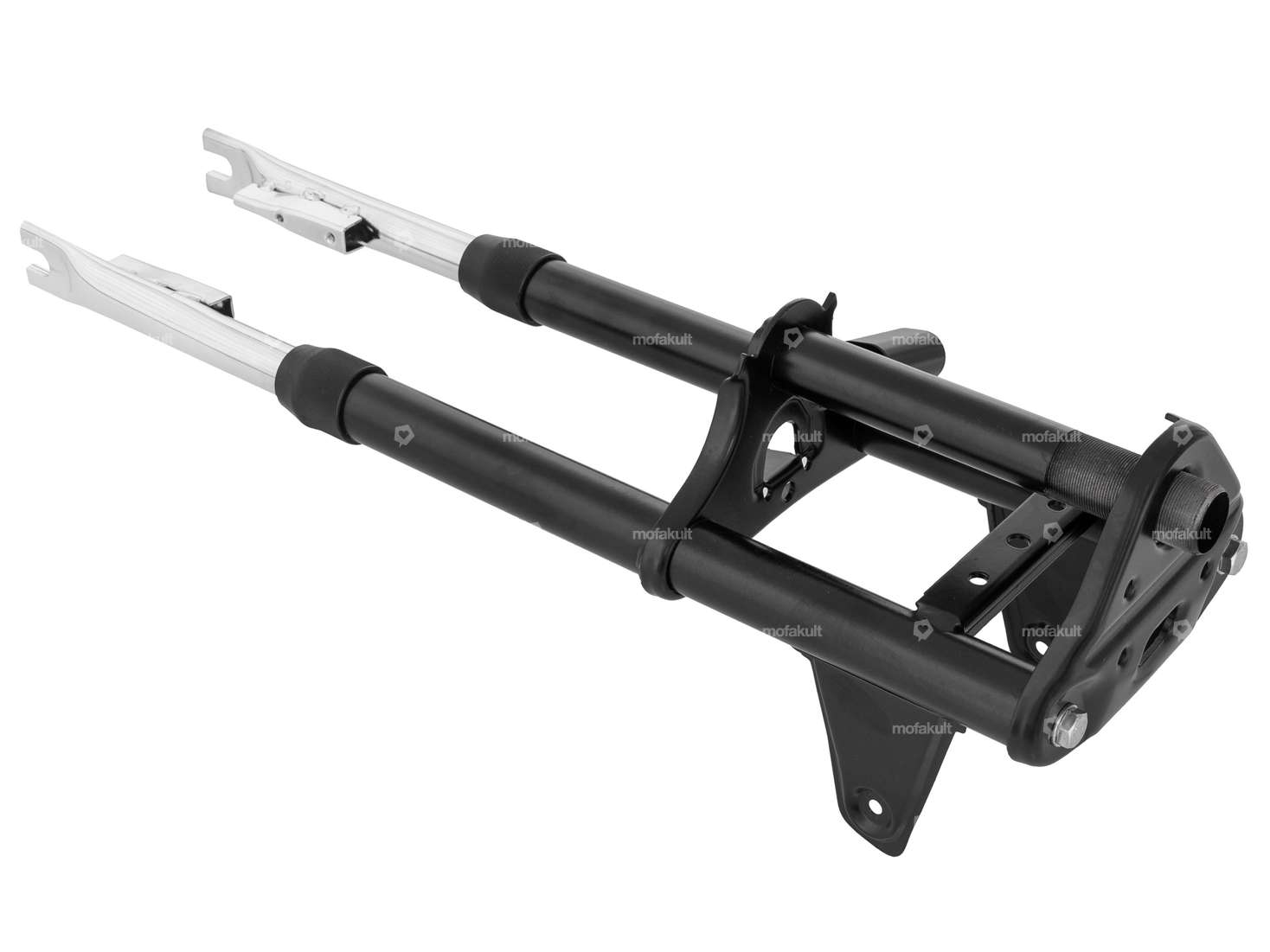

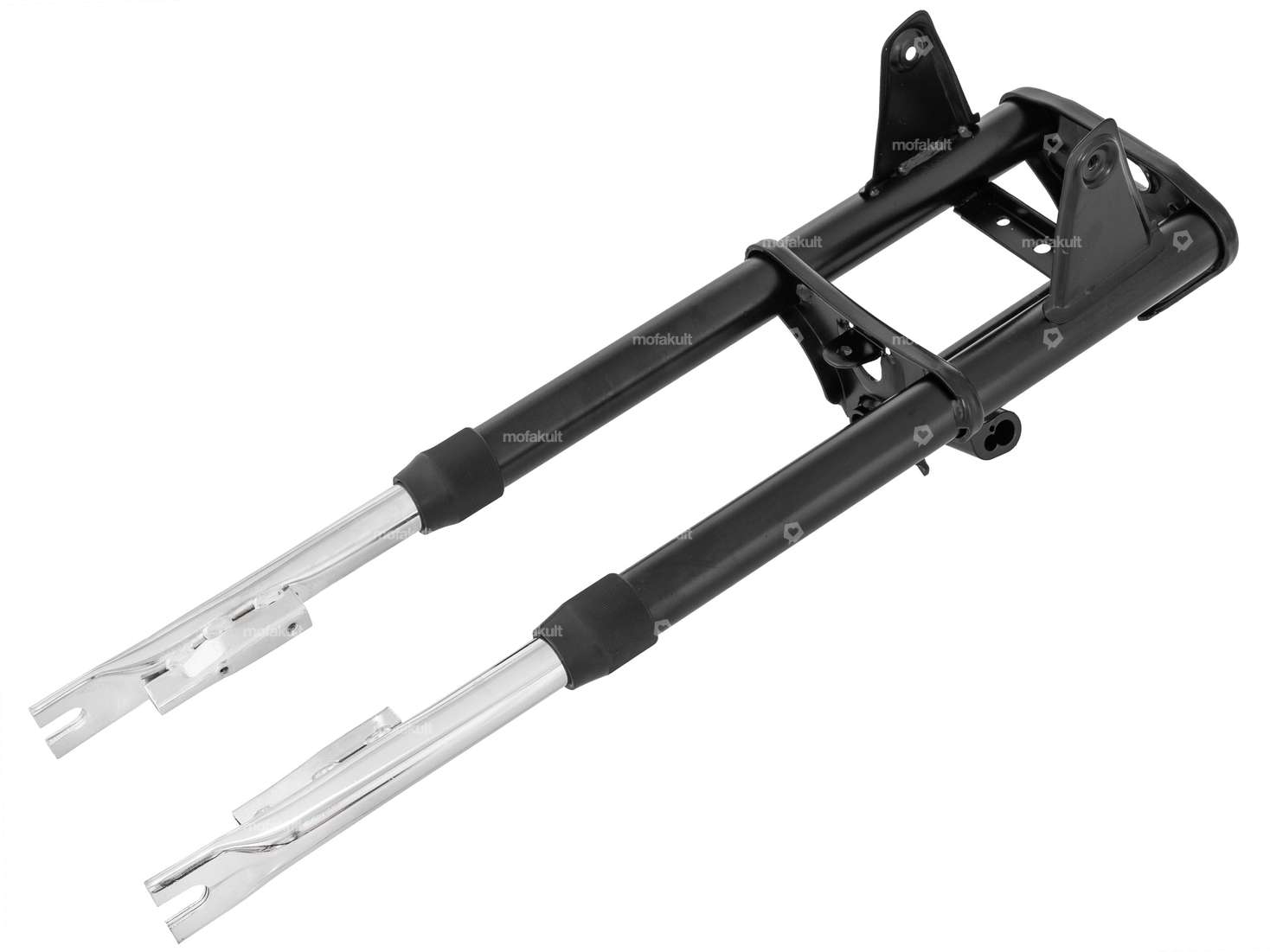

Black painted EBR fork suitable for Puch Maxi S and Puch Maxi N mopeds.

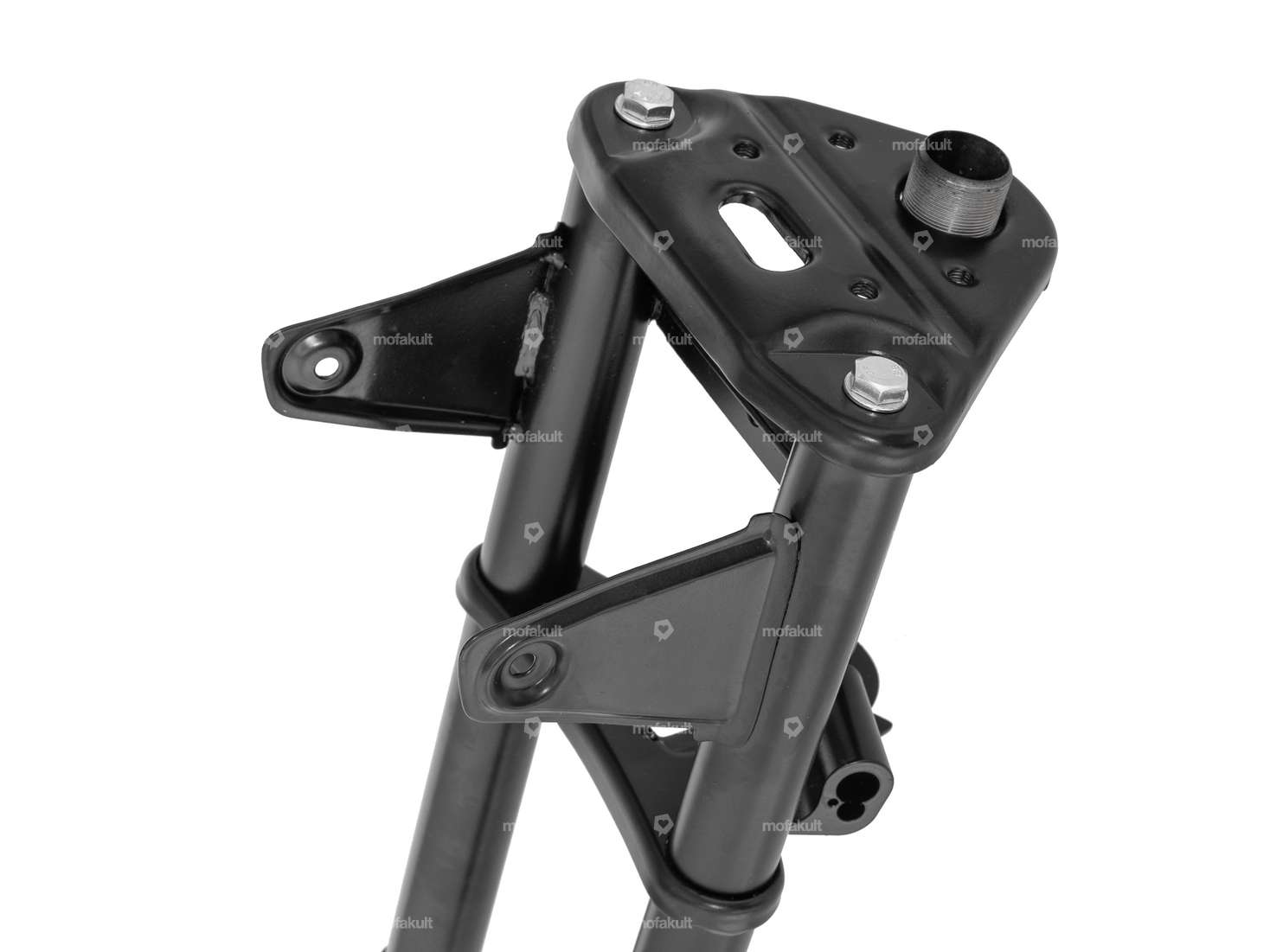

The fork has a welded fork lock mount - just like the original Puch forks. (Figure 5).
You will find the matching fork lock in the accessories section below.
Provided for handlebar mounting on the fork plate.
Ø inner head tube (for stem mounting): 22 mm
Head tube length: 18 cm
Total length: 57 cm
Branded product from the Italian manufacturer EBR.
Details
| Total length | 580 mm |
| Manufacturer | EWC |
| Material | Steel |
| Surface | varnished, chrome-plated |
| Color | black, Chrome |
| Adjustable | No |
| Thread type | MF26x1 (fine pitch thread) |
| Ø spars | 23 mm |
| Spar end distance (center-center) | 120 mm |
| Ø outer head tube | 26.2 mm |
| Ø head tube inside | 22.3 mm |
| Head tube length | 180 mm |
| Fork bridge - center wheel axle | 385 mm |
| Distance brake cam to wheel axle center-center | 40 mm |
| Thread length | 57 mm |
Suitable for the following models
| Puch |
