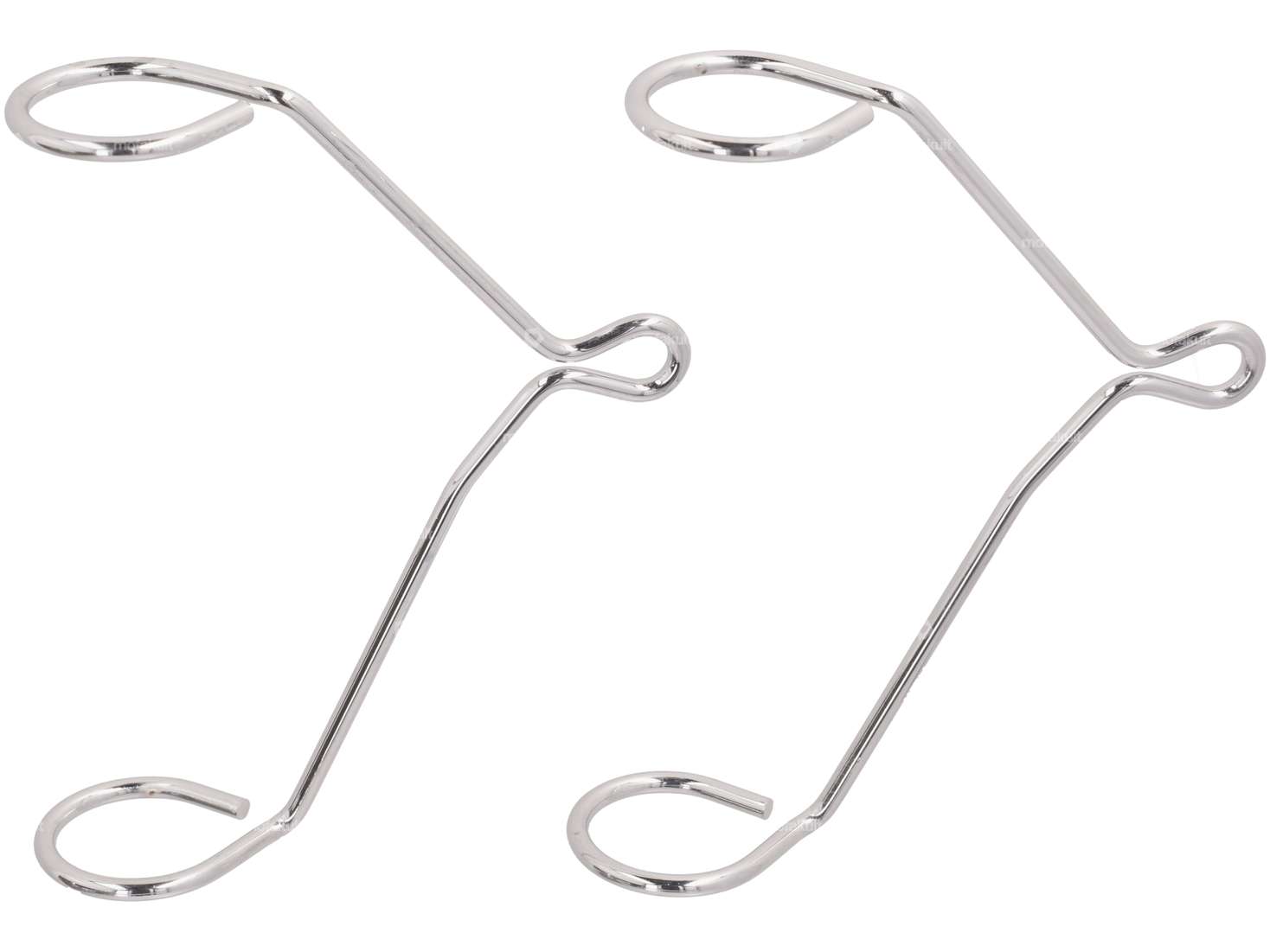

Extravagant headlight mount for the EBR telescopic fork on your Piaggio Ciao, Hercules or Alpa moped / moped.
The headlight mount can also be fitted to various other forks with a corresponding standpipe with 28 mm diameter.
The mount is fitted between the lower and upper fork bridge.

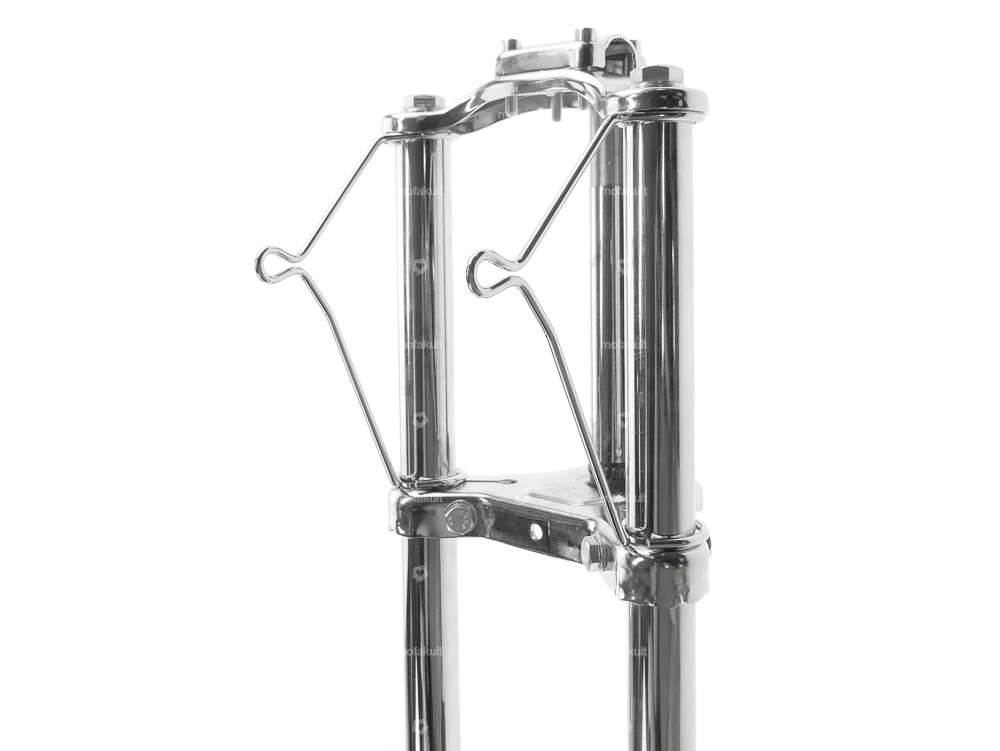

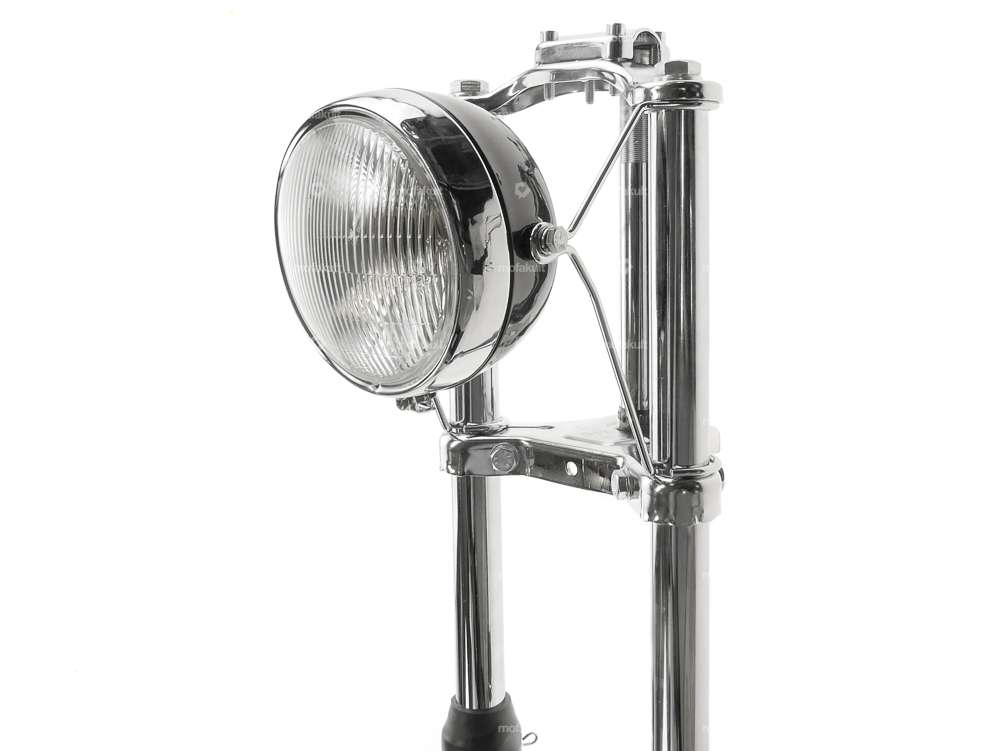

Figure 2 & 3 shows the mount in assembled condition.
Total length: 165 mm
Ø mounting standpipe: 29 mm
Ø mounting lamp screw: 9 mm
Distance center standpipe - center headlight mount: 98 mm
Wire thickness: 4 mm
Price per pair.
Pictures 2 and 3 are for illustrative purposes only.
You can find the complete fork and headlight in the accessories section.
Branded product from the Italian manufacturer EBR.
Details
| Manufacturer | EWC |
| Material | Steel |
| Surface | chrome-plated |
| Color | Chrome |
| Total length | 165 mm |
| Thickness | 4 mm |
| Ø spars | 29 mm |
Suitable for the following models
| Piaggio | Ciao - Ciao, Ciao, Ciao, Ciao |
| Alpa Chopper / Turbo | |
| Hercules |
