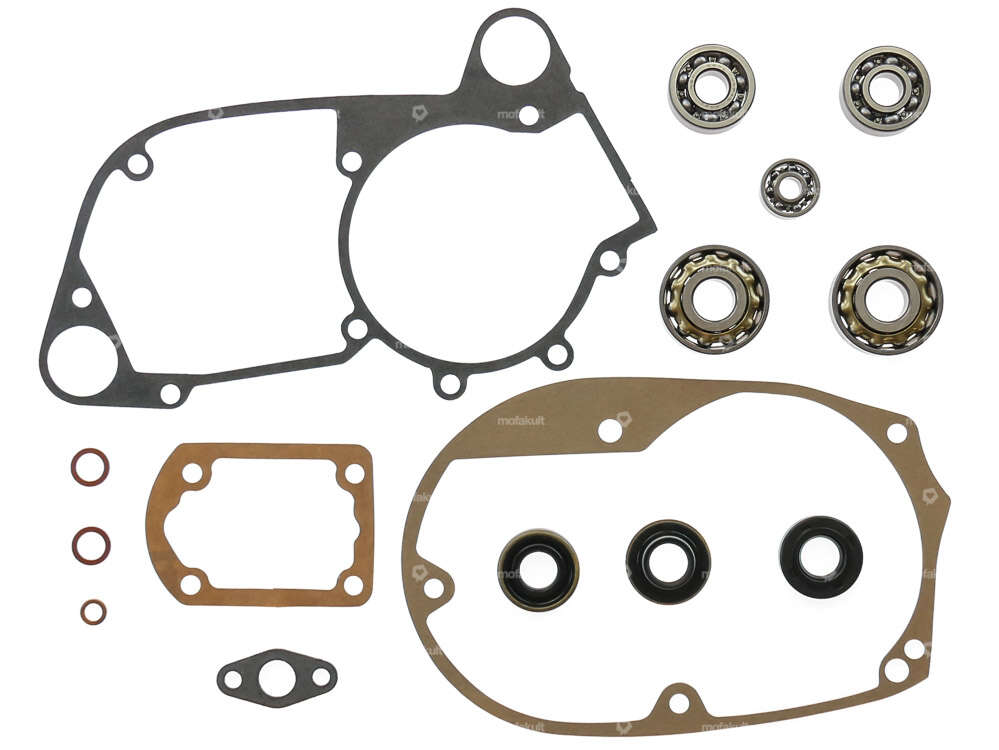

Revision kit for the Sachs 503 ABL CH automatic engine with blower oiling.
This 15-part revision kit includes all seals, O-rings, bearings and oil seals.
When you purchase this complete set, you will receive a substantial discount on the retail price of the individual parts.
The set includes the following fixed parts:
Hole pattern [mm]: 60 x 40 · Number of components: 8 pcs · Hole spacing inlet: 32 mm · Area of application: Standard
Manufacturer: Sachs · Material: NBR · Temperature resistance (min.): -30 - 100 °C · Simmering type: B DUO - With sheet metal outer casing / two sealing lips. · Ø inside: 15 mm · Ø outside: 30 mm · Width: 7 mm · Pony spare part no.: A1830 · Sachs spare part no.: 0250 090 000
Manufacturer: Sachs · Material: NBR · Surface: rubberized · Place of use: Crankshaft · Temperature resistance (min.): -30 - 100 °C · Simmering type: A - With rubberized outer part / one sealing lip. · Ø inside: 15 mm · Ø outside: 30 mm · Width: 5.5 mm · Pony spare part no.: A5602 · Sachs spare part no.: 0230 111 100
Manufacturer: NSK · Material: Steel, Brass · Surface: blank · Area of application: Standard · Bearing type: Shoulder bearing · Stock number: BO15 · Ø inside: 15 mm · Ø outside: 40 mm · Width: 10 mm · Inner ring width: 10 mm · Ball bearing closed: No · Bearing cage: Brass cage ball-guided · Pony spare part no.: A4502 · Sachs spare part no.: 0932 007 001
Manufacturer: NTN · Bearing type: Deep groove ball bearing · Stock number: 608 · Bearing clearance: CN (standard) · Ø inside: 8 mm · Ø outside: 22 mm · Width: 7 mm · Inner ring width: 7 mm · Bearing cage: "-" Sheet steel cage ball-guided
Manufacturer: SKF · Bearing type: Deep groove ball bearing · Stock number: 6201 · Bearing clearance: CN (standard) · Ø inside: 12 mm · Ø outside: 32 mm · Width: 10 mm · Inner ring width: 10 mm · Bearing cage: "-" Sheet steel cage ball-guided
Details
| Manufacturer | NSK, NTN |
| Area of application | Standard |
| Alternative version of the Pony Spare part no. | A2553 |
| Alternative version of Sachs spare part no. | 0286 125 050 |
Suitable for the following models
| Sachs | 503 - ABL |
