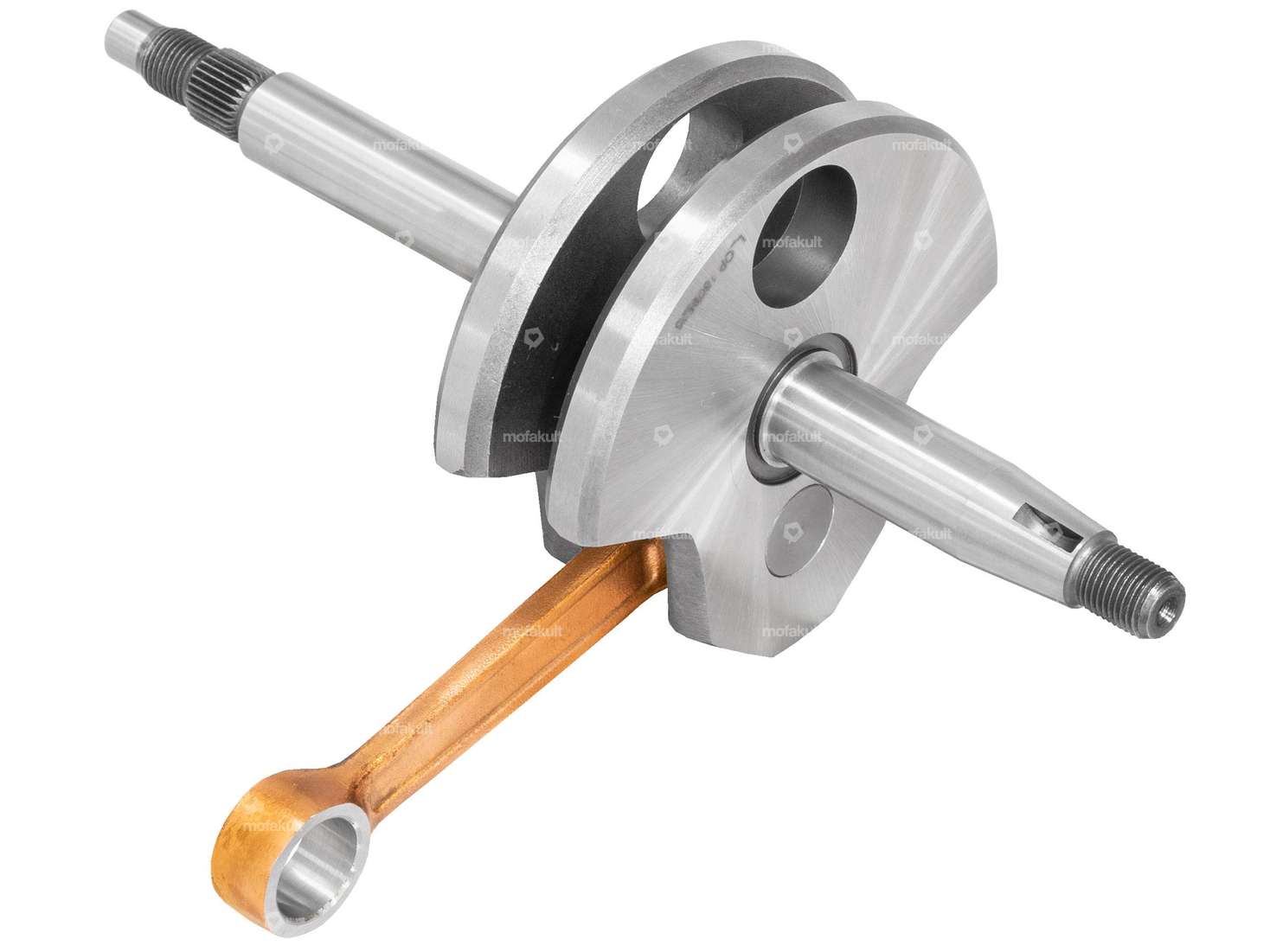

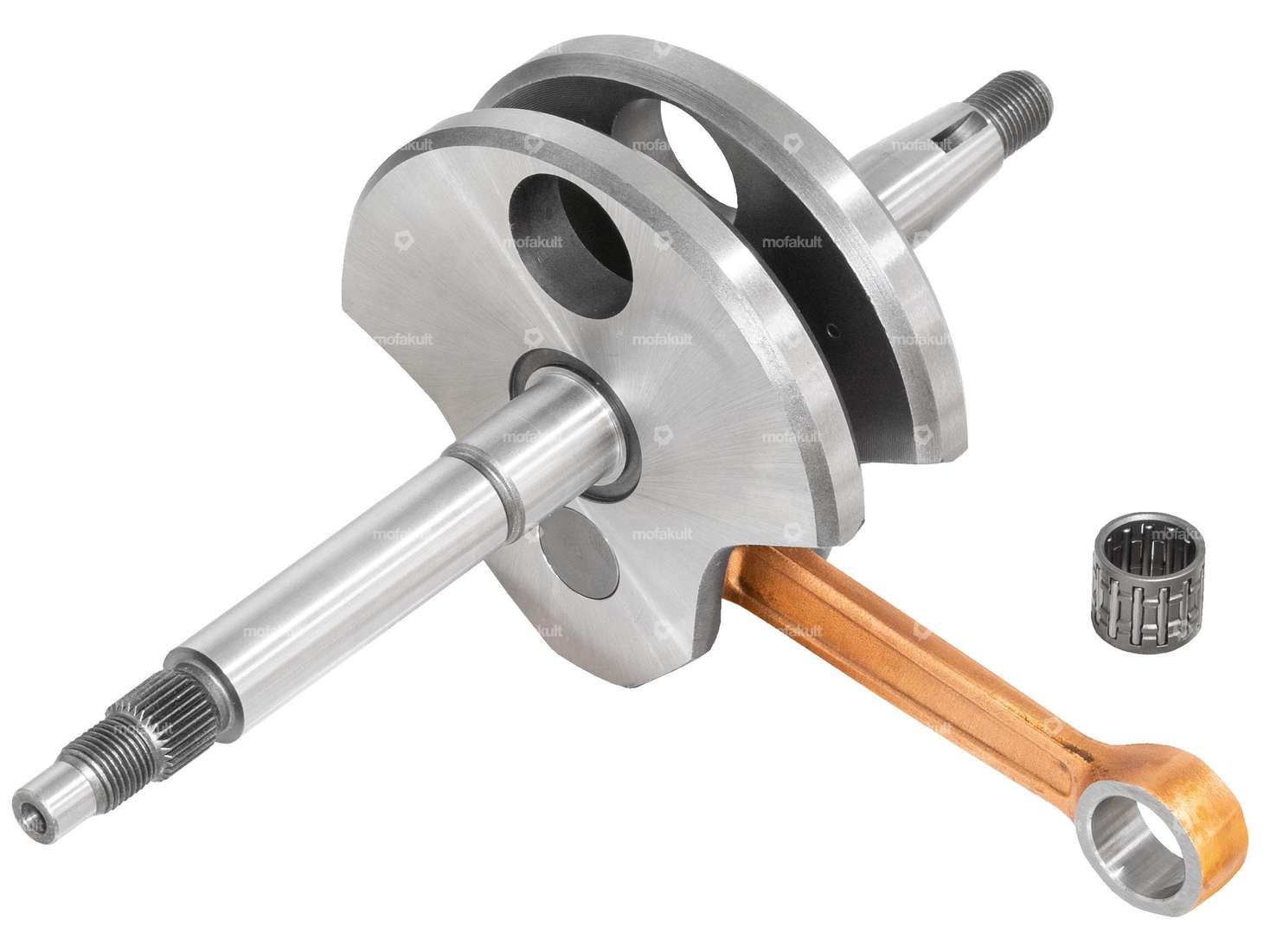

Crankshaft suitable for Sachs 503 AB-CH 2-speed automatic mopeds / mopeds with the large black cylinder without catalytic converter (up to engine number 11'065'712), spare part number: A2902
Also suitable for the 2nd models of the Sachs 503 ABL CH 2-speed automatic engines (from engine number 9'504'770).
Spare part number: A2901
If you have an ABL engine of the old generation (up to engine number 9'504'769) and the shaft is to be installed, either the clutch basket must be replaced by that of the new model, or various adjustments must be made to the crankshaft and clutch basket. More detailed information and explanations with instructions can be obtained from customer service.
Details
| Manufacturer | Jasil |
| Area of application | Standard |
| Material | Steel |
| Cheek type | standard |
| Crankshaft stroke | 42 mm |
| Connecting rod length center-center | 84 mm |
| Thread length | 11 mm |
| Weight | 875 g |
| Total length crankpin ignition side | 101 mm |
| Ø crank webs | 85 mm |
| Ø piston pin (B) | 12 mm |
| Ø Connecting rod eye | 15 mm |
| Ø Bearing seat (clutch side) | 15 mm |
| Ø Bearing seat (ignition side) | 15 mm |
| Thread type | MF10x1 (fine pitch thread) |
| Dimension needle bearing | 12 / 15 x 12.8 mm (axe 12) |
| Wide crank webs | 30.3 mm |
| Length 1st paragraph | 19 mm |
| Length 2nd paragraph | 51 mm |
| Ø 1st step (on the coupling side) | 15 mm |
| Ø 2nd shoulder (on the clutch side) | 14 mm |
| Length of shoulder (ignition side) | 34 mm |
| Number of gears | 2 pcs |
| Alternative version of the Pony Spare part no. | A2900 |
| Pony spare part no. | A2902, A2901 |
| Alternative version of Sachs spare part no. | 0288 115 002, 0288 115 102 |
Suitable for the following models
| Sachs | 503 - ABL, AB |
