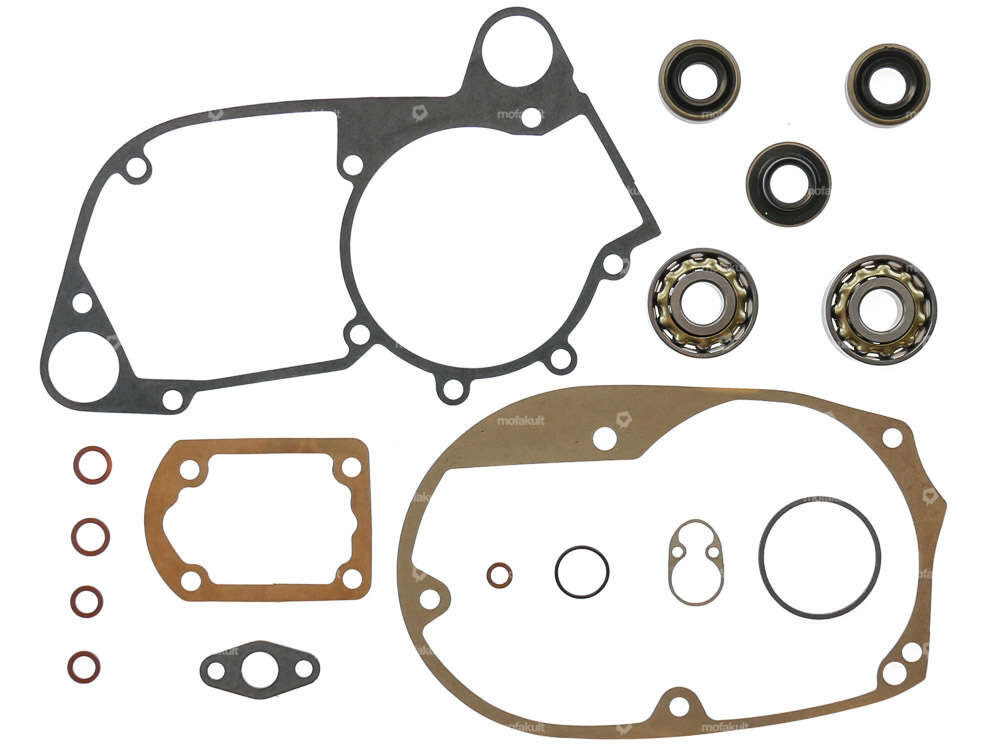

Revision set for Sachs engines of the manual transmission 503 series with the designation 2AL-CH / 2BL-CH
The revision set includes the crankshaft bearings, oil seals and gaskets.
Top quality at a fair price!
When you buy this complete set, you get a big percentage off the retail price of the individual parts.
The set includes the following fixed parts:
Hole pattern [mm]: 60 x 40 · Material: Sealing paper, Sealing carton, Aluminum, Fiber, Copper · Number of components: 14 pcs · Hole spacing inlet: 32 mm · Ø outlet inside: 13.3 mm · Area of application: Standard
Manufacturer: NSK · Material: Steel, Brass · Surface: blank · Area of application: Standard · Bearing type: Shoulder bearing · Stock number: BO15 · Ø inside: 15 mm · Ø outside: 40 mm · Width: 10 mm · Inner ring width: 10 mm · Ball bearing closed: No · Bearing cage: Brass cage ball-guided · Pony spare part no.: A4502 · Sachs spare part no.: 0932 007 001
Manufacturer: BING · Material: Rubber · Surface: raw · Area of application: Standard · Place of use: Carburetor · Ø inside: 17.2 mm · Ø outside: 20 mm · Cord thickness: 1.4 mm · Color: black · Number of components: 1 pcs · Pony spare part no.: A4281 · Sachs spare part no.: 0250 160 101
Details
| Manufacturer | NSK, BING |
| Area of application | Standard |
| Number of components | 17 pcs |
Suitable for the following models
| Sachs | 503 - 2AL / 2BL |
