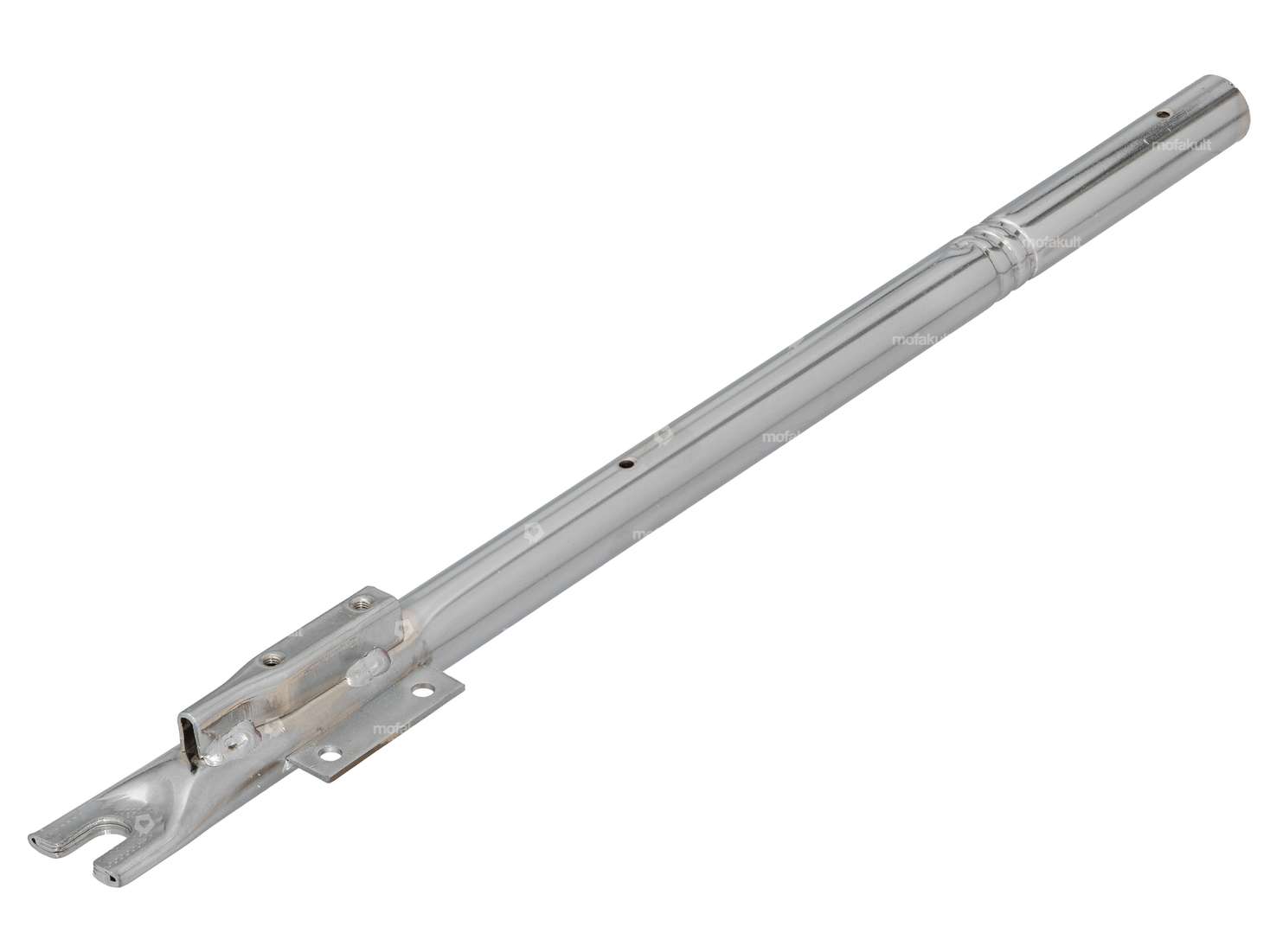

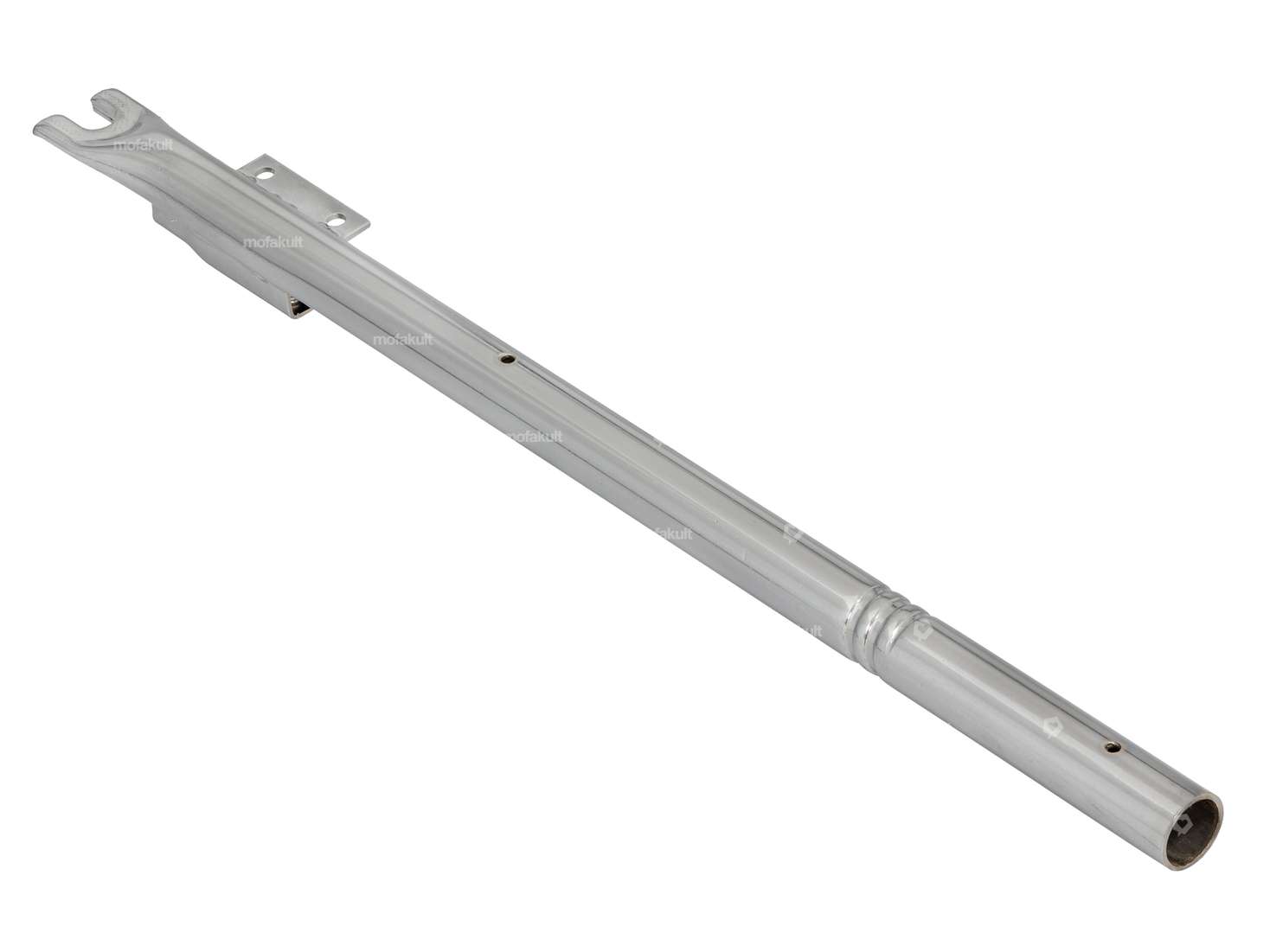

Left fork standpipe for your Puch X30 NS, NL, NG-2AH and Supermaxi LG1 and LG2 moped / moped.
The flat bar for attaching the brake anchor plate is located 30 mm above the center of the wheel axle.
There is a bracket for attaching the mudguard. The distance between the two mounting holes is 36 mm.
Total length: 495 mm
Ø fork leg: 23 mm
Length of mudguard tab: 54 mm
Corresponding attachments for the dip tube such as fork spring, fork bushes, spring insert etc. can be found in the accessories section.
NOS – New from old stock.
Original Puch spare part number: 321.1.30.015.2
Details
| Total length | 495 mm |
| Manufacturer | Puch |
| Material | Steel |
| Surface | chrome-plated |
| Color | Chrome |
| Adjustable | No |
| Ø spars | 23 mm |
| Distance brake cam to wheel axle center-center | 38 mm |
Suitable for the following models
| Puch |
