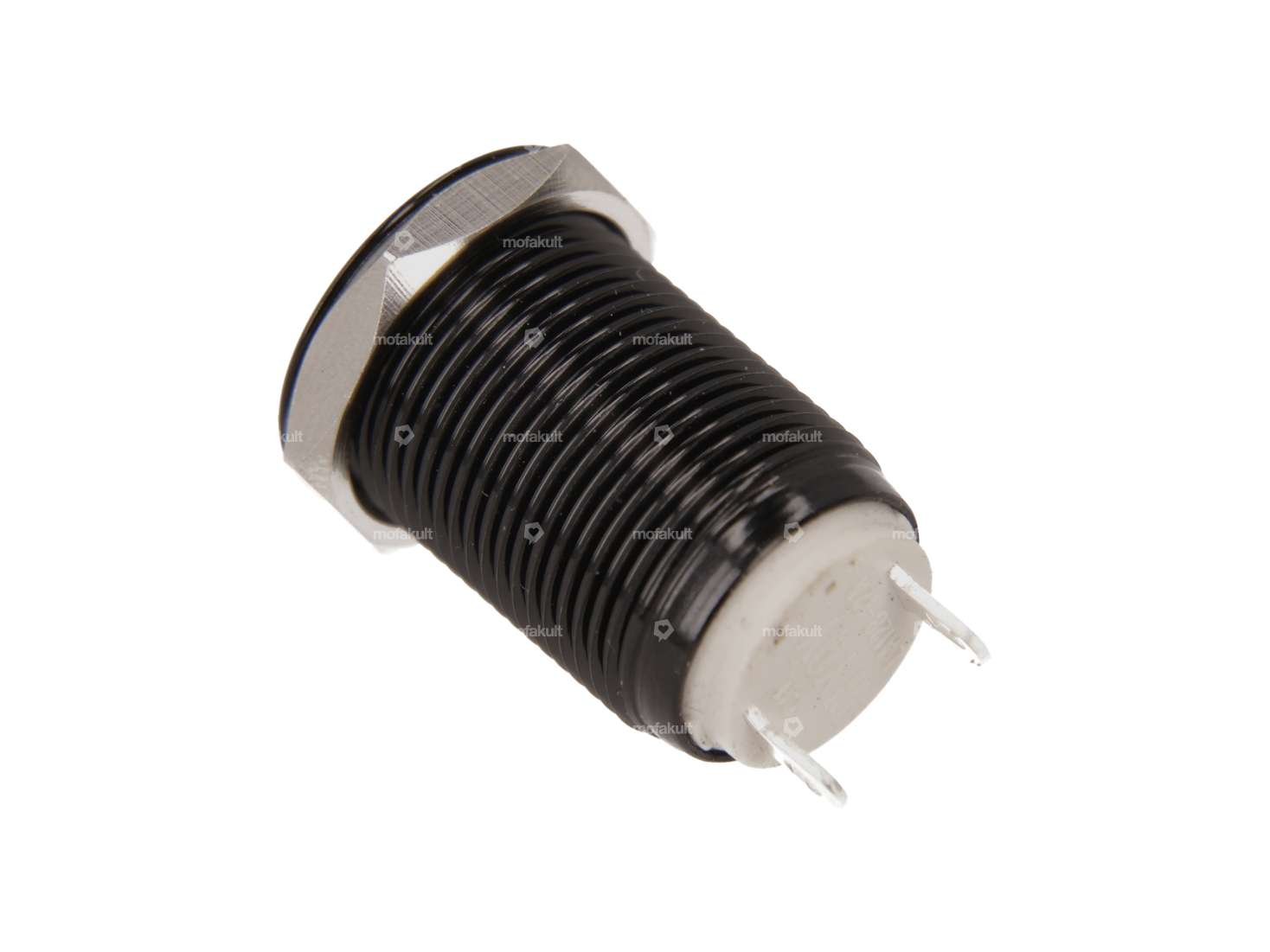

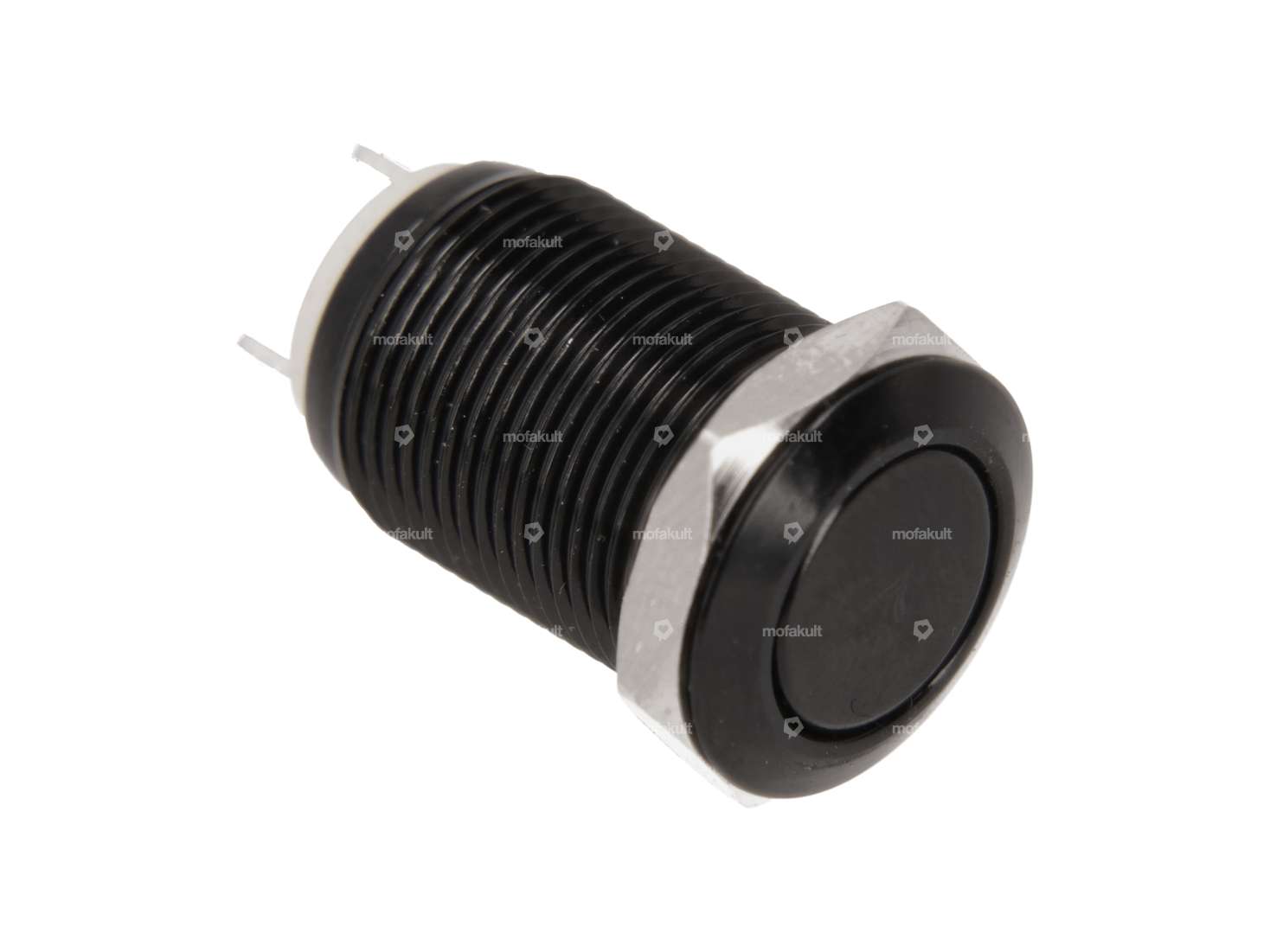

Pressure switch made of black anodized aluminium for your moped, moped, small motorcycle and deep-sea boat.

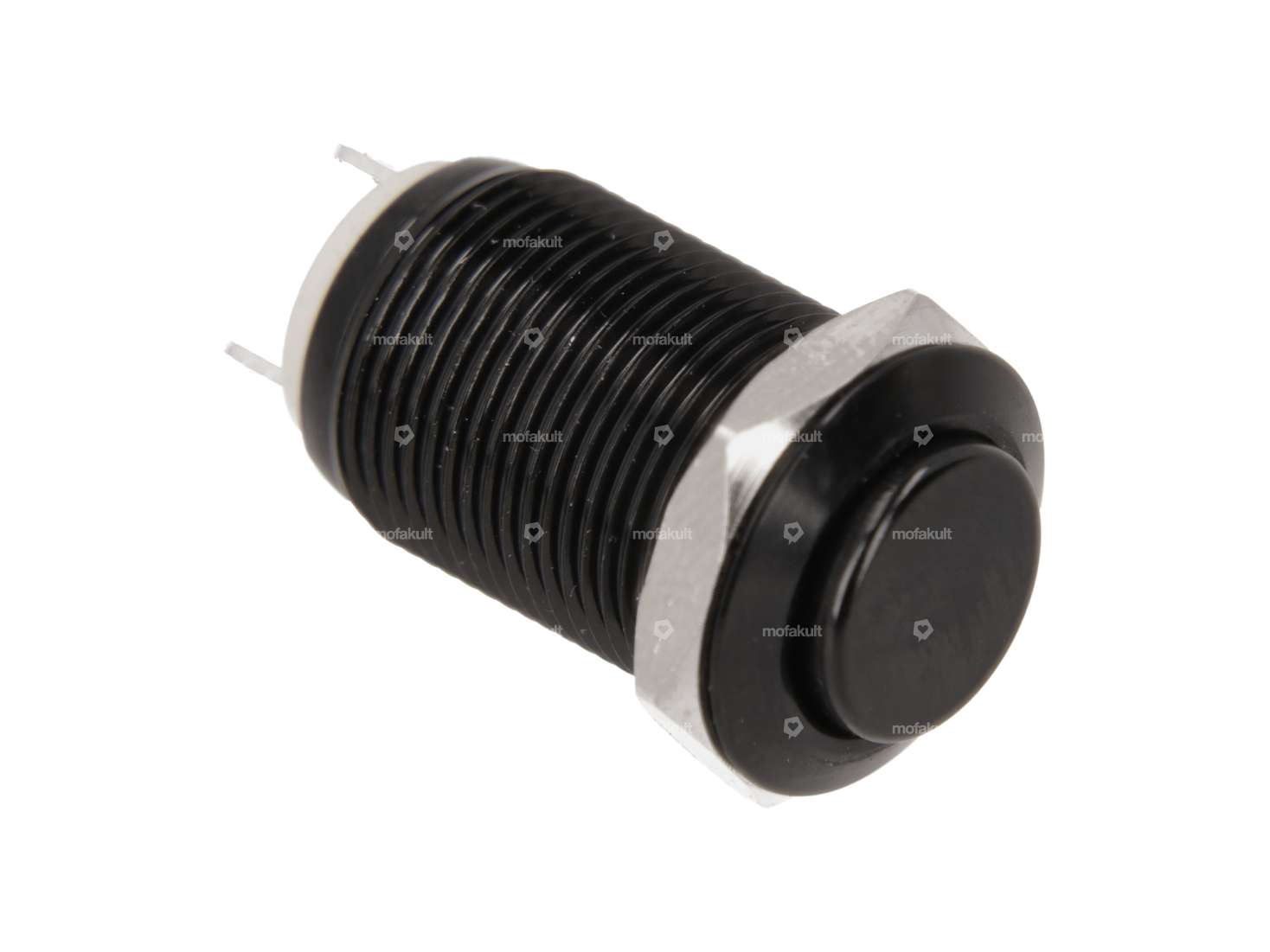

The switch has two positions (1 - 0) in which the actuation button engages. This means it can be used for various applications, such as start/stop or for controlling two ignition curves. Depending on the position, the latching high head button is flush with the housing or protrudes by 1.5 mm.
Thread: MF 12x0.75
Total length: 23 mm

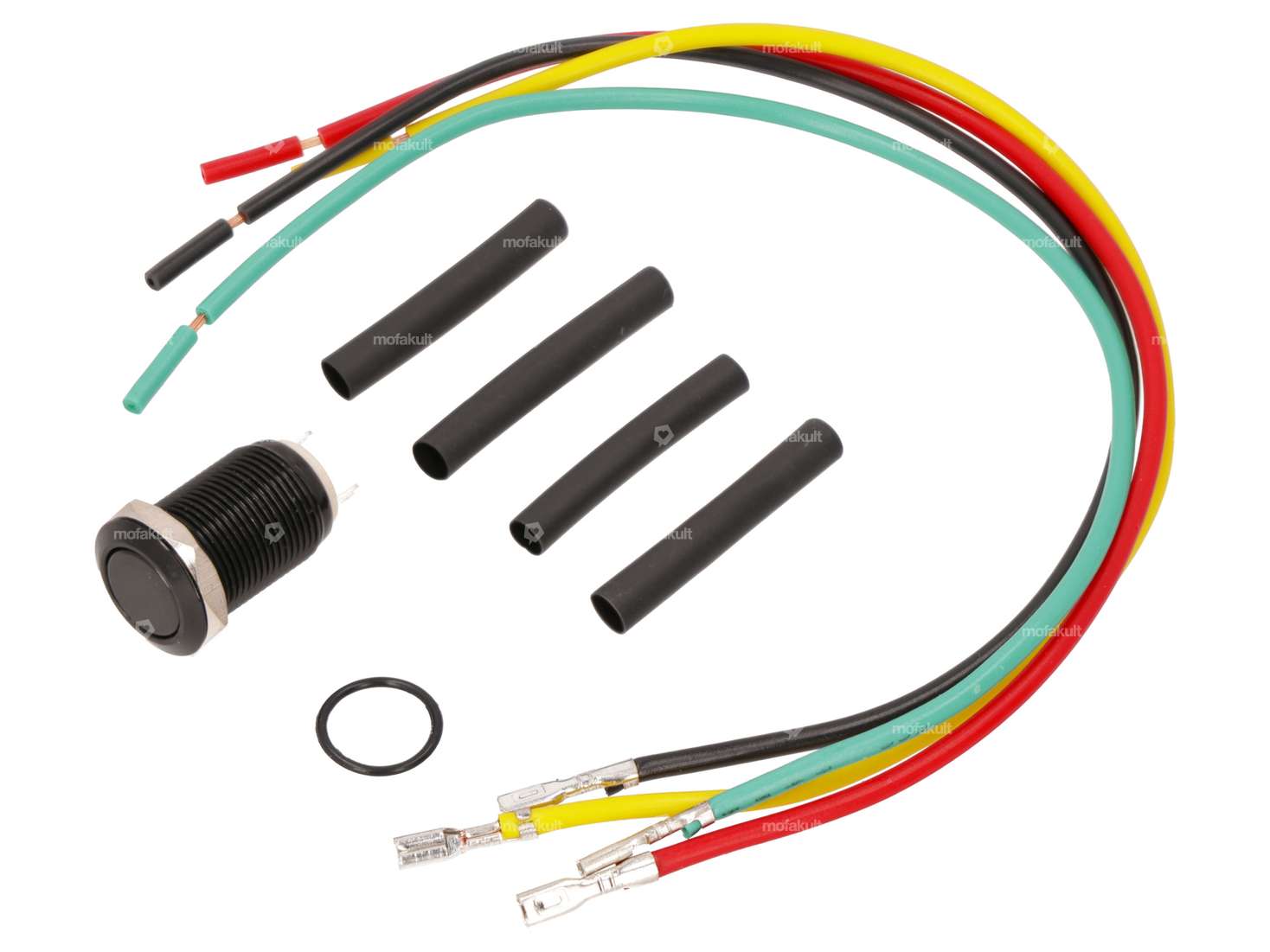

Cable length: 200 mm (4x)
Alternative push buttons with LED and toggle switch can be found under accessories.
Good, inexpensive standard spare part. GPO – GOOD PARTS ONLY.
Details
| Total length | 27 mm |
| Manufacturer | GPO |
| Material | Metal |
| Number of cables | 4 pcs |
| Color | black |
| Number of positions | 2 pcs |
| Ø mounting hole | 12 mm |
| Thread type | MF12x0.75 (fine pitch thread) |
