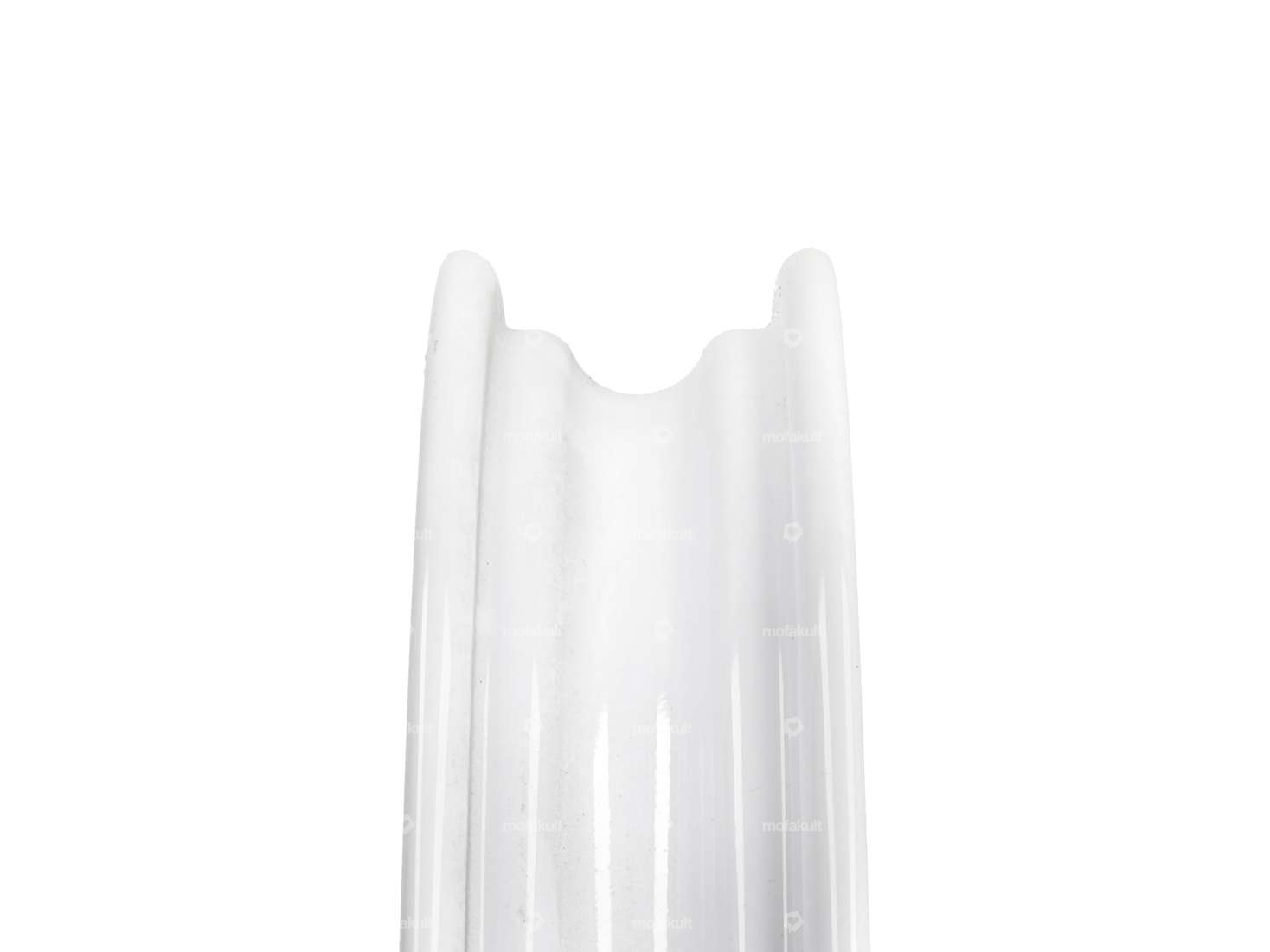

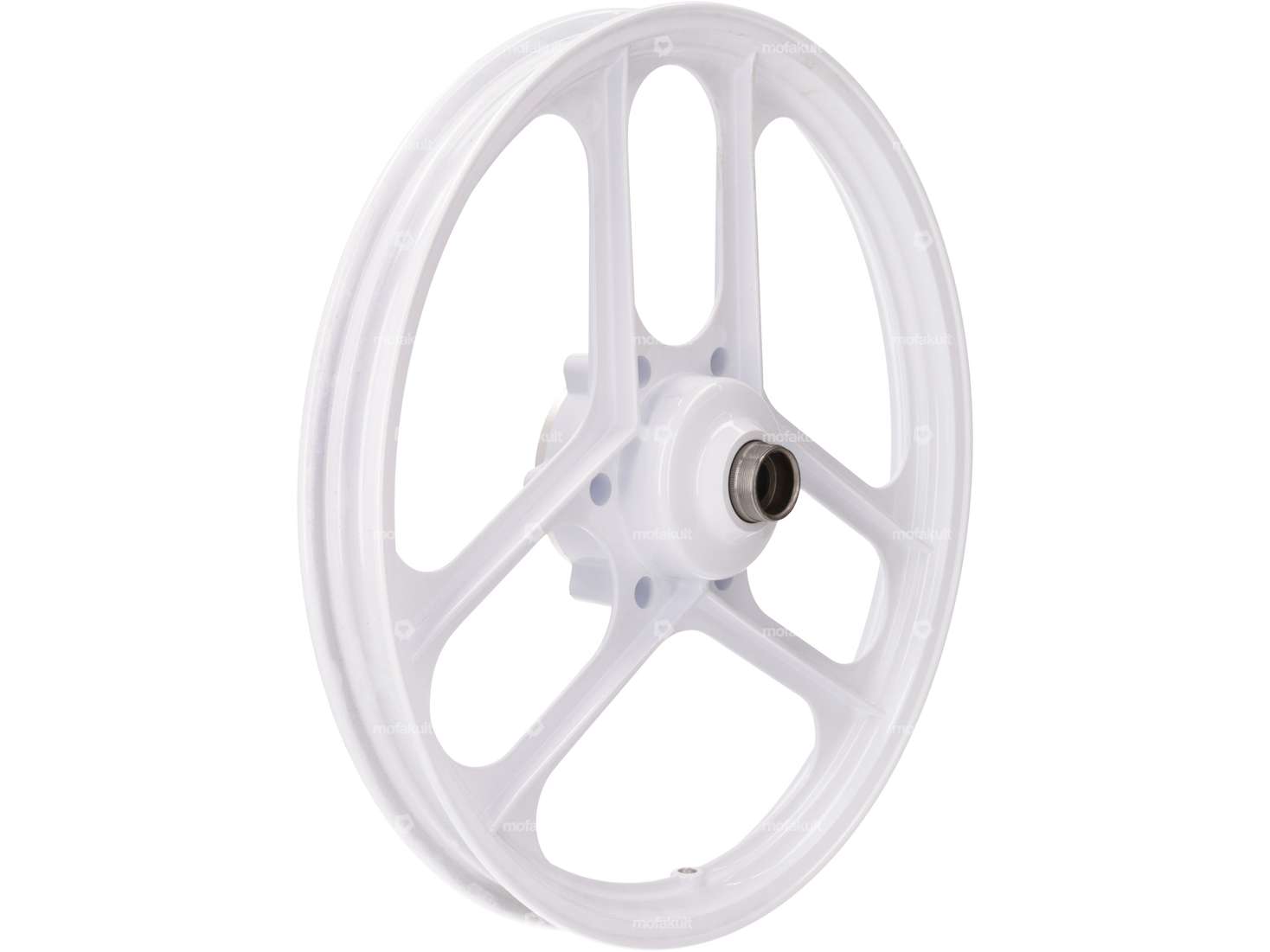

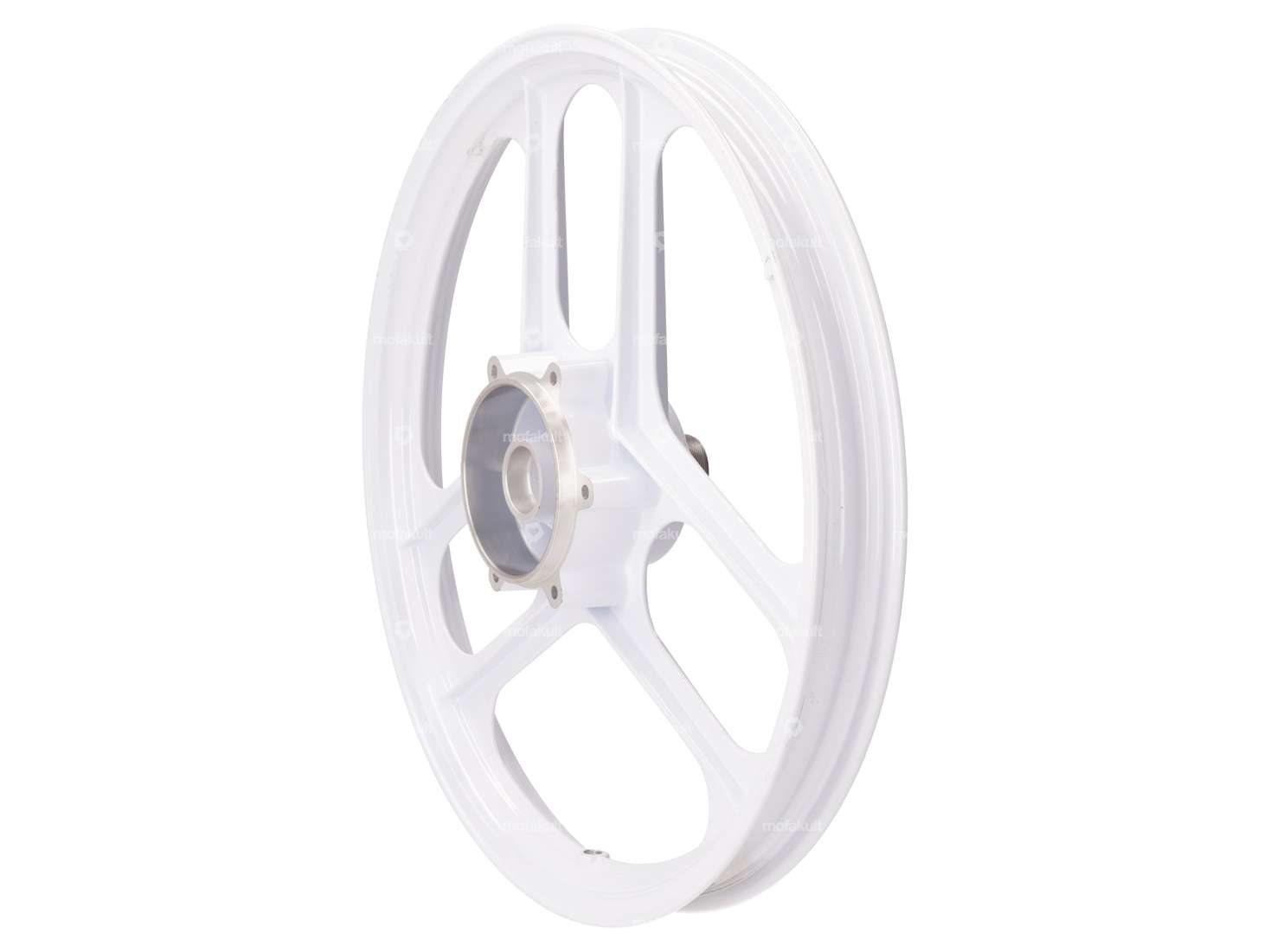

16 inch 3/6-star cast rim suitable for your Pony Cross 521 moped / moped.
Ø outside: 425 mm
Rim width outside: 48 mm
Rim width inside: 34.29 mm (1.35 ”)
Ø brake drum: 90 mm
Pitch circle sprocket mounting: 115 mm
Ø sprocket mount: 97.8 mm
Ø mounting hole: 6.5
Matching sprocket, freewheel as well as tires and hoses can be found under accessories.
Quality product from the Italian manufacturer Grimeca.
Details
Manufacturer | Grimeca |
Material | Aluminum |
Surface | powder-coated |
Color | white |
Nominal diameter | 425 mm |
Wheel size [inch] | 16 " |
Jaw width | 34.29 mm |
Overall width outside | 48 mm |
Ø Brake drum | 90 mm |
Suitable for the following models
Pony / Cilo (Beta 521 & 512) | Pony Cross 521 (Rahmen) |
Accessories & related products

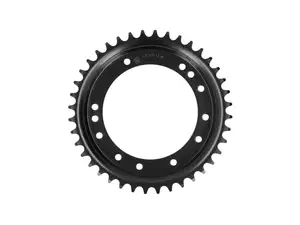

ESJOT sprocket 40 teeth (4/5/6 hole) Ø 98 mm cranked black
