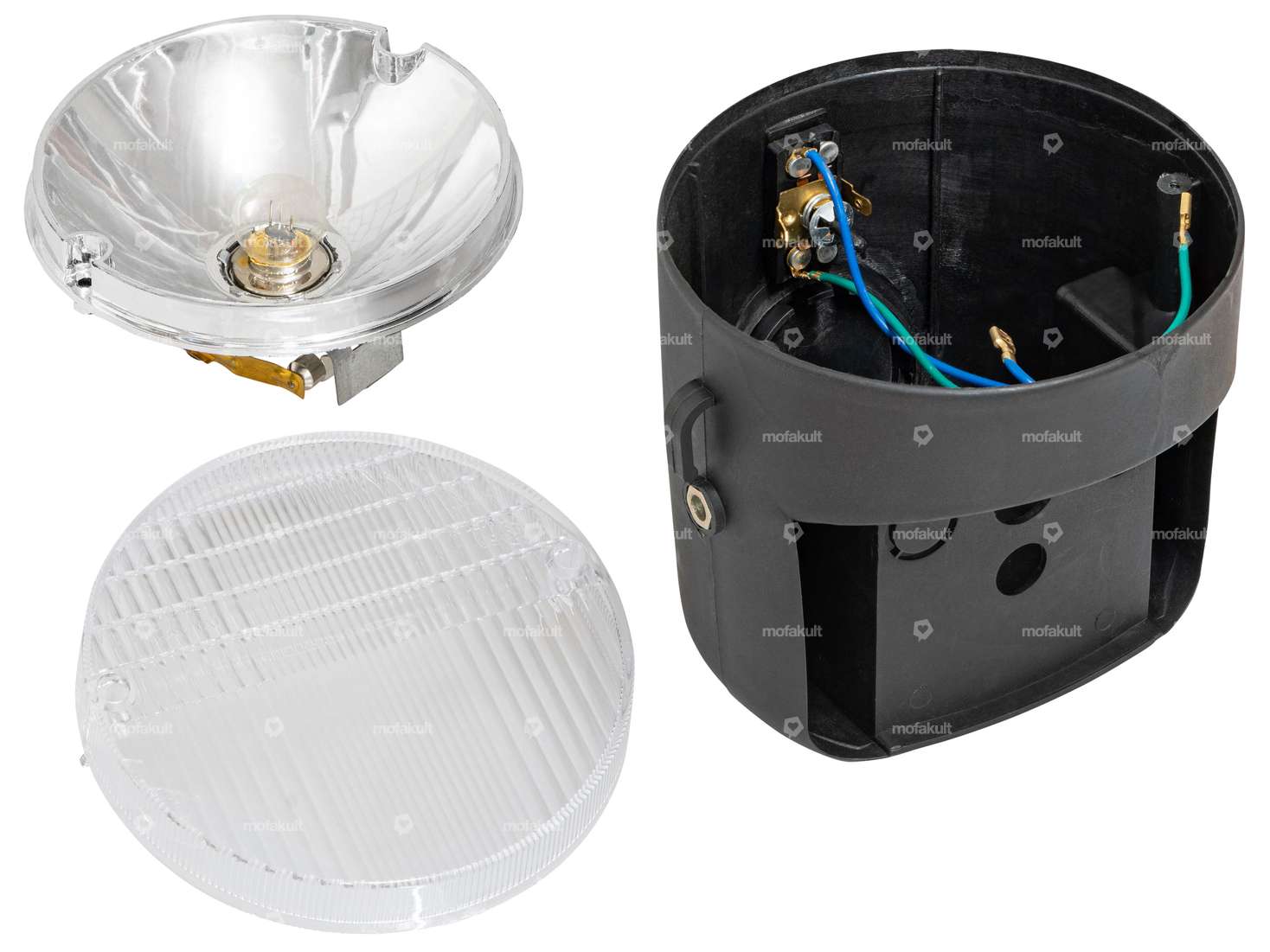

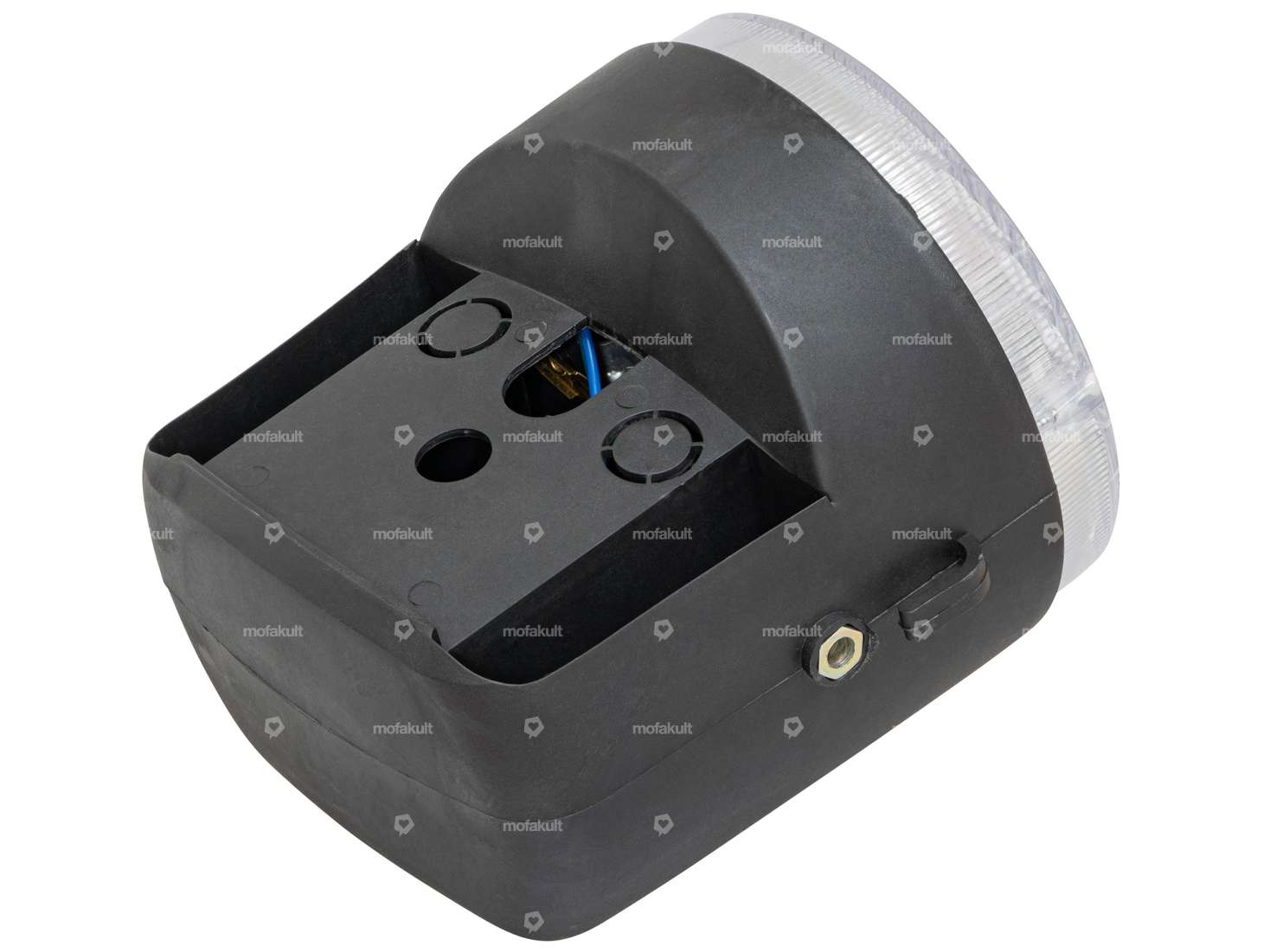

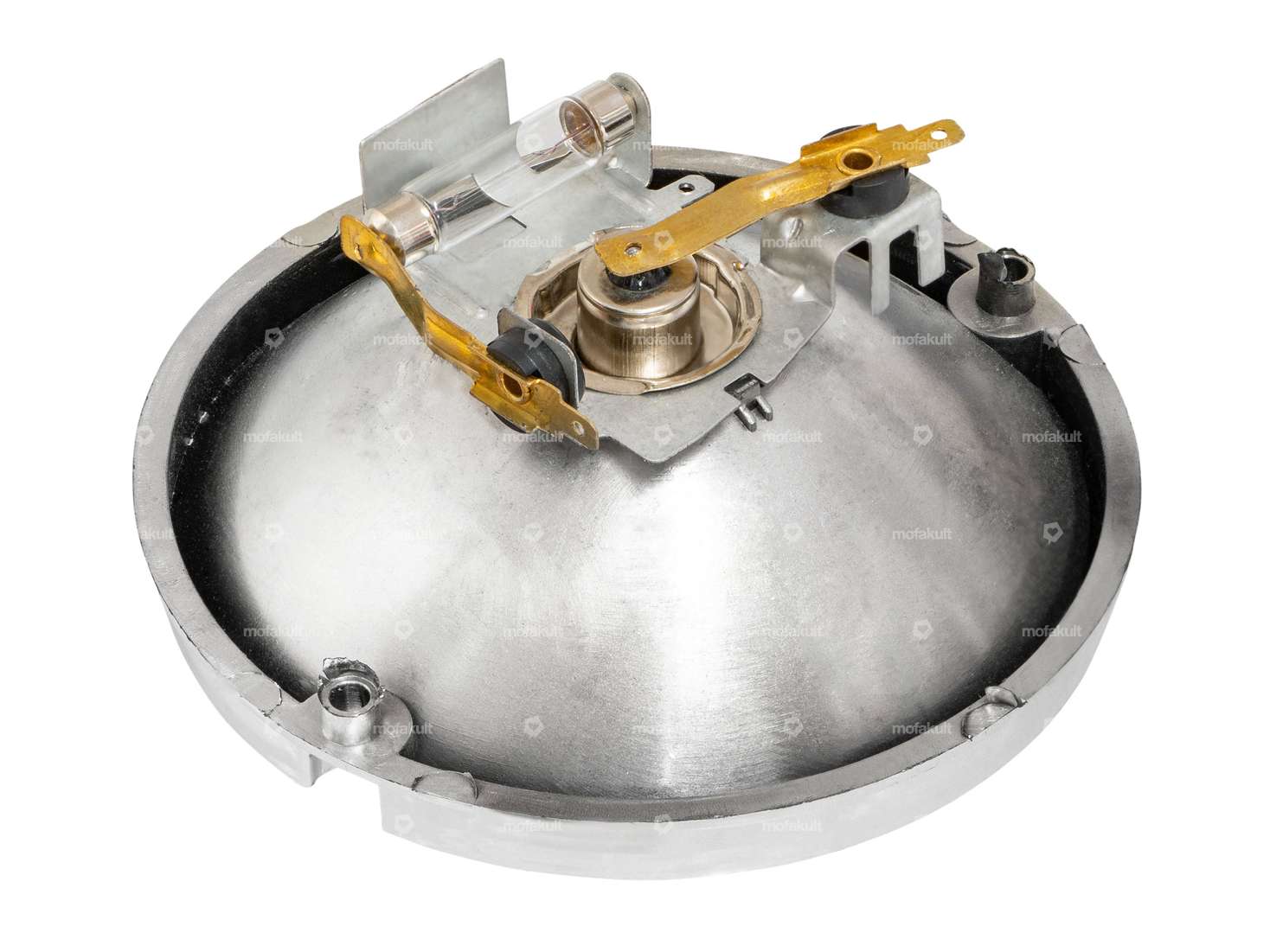

Valuable front light with parking light and low beam made of black matt plastic for Piaggio Si mopeds / mopeds.
The light has side tabs for routing the cable harness.
The front light can be fitted with both conventional P26s bulbs and P26s LED bulbs.
A filament bulb with PS26s socket and a 43 mm socket bulb as indicator light are included in the scope of delivery.
All common speedometers with 48 mm diameter can be installed in the front light.
Ø outside: 130 mm
Hole spacing: 115 mm
Tachometer cut-out: 48 mm
Installed low beam bulb: PS26s 12V - 21W
Installed base bulb: 12V - 10W
Mark: E3 S3
Mäsig-läsig! – We strive to offer you the widest range of moped spare parts. However, this product is of rather poor quality and is not recommended by us. Should you nevertheless choose this item, we can understand your decision, but cannot offer you any guarantee or exchange.
The light fulfills its purpose, but the lamp housing is susceptible to scratches and in some cases already shows slight damage from the factory. In addition, the reflector does not make a particularly high-quality impression.
Matching bulbs, lamp grilles and alternative front spotlights can be found in the accessories section.
Original Piaggio spare part number: 228999, 268074
Good-quality reproduction product from the Asian market.
Details
Manufacturer | Quenching |
Test mark | E3 |
Area of application | Standard |
Material | Plastic |
Bulb holder | P26s, Soffit pear |
Housing material | Plastic |
Tension | 12 V |
Performance | 21 W, 10 W |
Color | black, white |
Ø outside | 130 mm |
Speedometer recording | 48 mm |
Mounting type | Screws |
Switch included | Yes |
Battery operated | No |
Number of fixing points | 2 pcs |
Suitable for the following models
Piaggio | Si |
