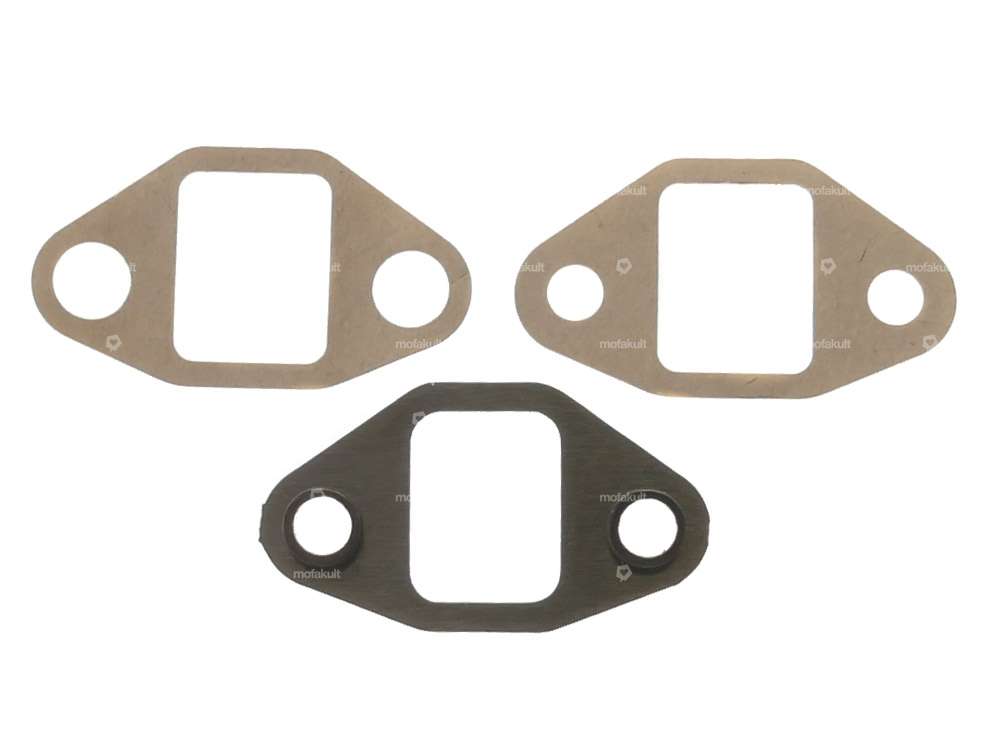

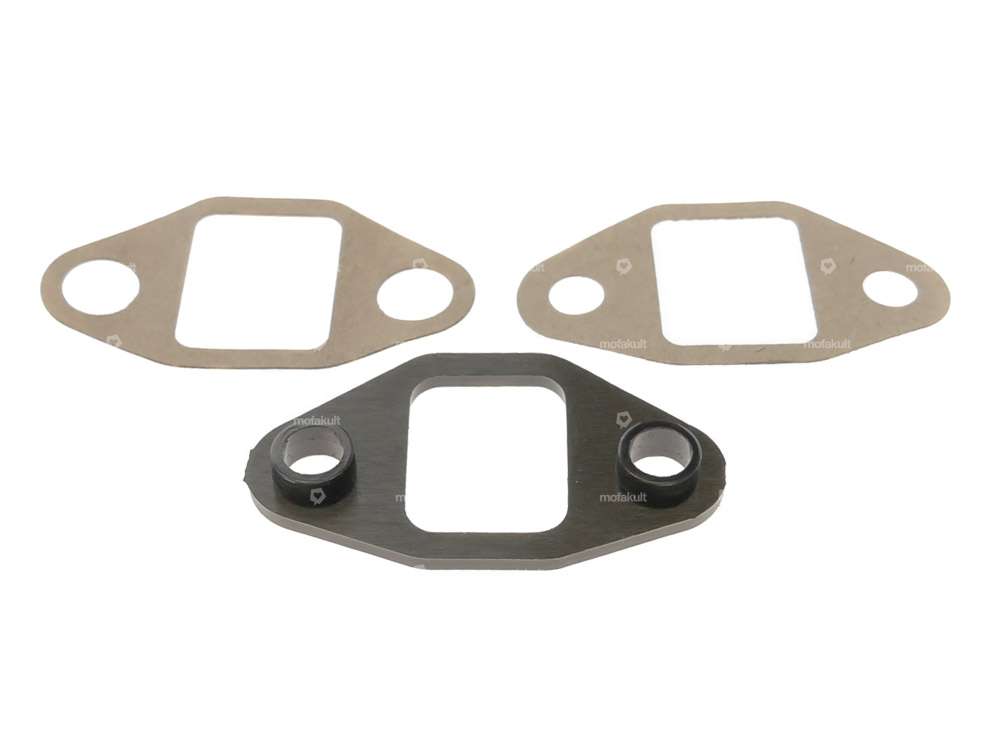

Inlet gasket 2.6 mm Bing 17 mm | Sachs 50/3

swiing® revival gasket cylinder base 0.3 mm | Sachs 50, 50/3, 50/4 DE engines

Place of use: Cylinder base · Manufacturer: swiing® revival parts · Thickness: 0.5 mm · Material: Oiled paper · Hole pattern [mm]: 40.5 x 51

Carburetor 17 mm Bing SSB 1/17/69 reproduction

Width: 86 mm · Total length: 116 mm · Height: 99 mm · Material: Aluminum · Component group Carburetor: Carburetor complete · Area of application: Standard · Area of application: Tuning · Carburetor type: SSB · Nominal diameter: 17 mm · Ø fuel hose connection: 6.2 mm · Mixed oil connection: No · Vacuum connection: Yes · Choke control: without choke · Nozzle thread: MF7x0.75 (fine pitch thread) · Camouflaged: No · Nozzle size: 76 · Mounting type: Stud bolts & nuts · Hole spacing inlet: 31 mm · Clamping screw torque (max.): 3 N/m · Clamping screw torque (max.): 4 N/m

32 mm copper ring 30.6/37.8 flame tube | Sachs

Material: Copper · Ø inside: 30.6 mm · Ø outside: 37.8 mm

Inlet seal 17 mm spigot (5.5 mm) | Sachs 50/3

Hole spacing inlet: 30 mm · Place of use: Admission · Thickness: 5.5 mm

swiing® revival stud bolt M5 x 23 mm inlet (diaphragm) 10.9 | Sachs 50/2 (A3700)

Manufacturer: swiing® revival parts · Diameter: 4.9 mm · Surface: galvanized (blue) · Material: Steel · Total length: 23 mm · Thread type: M5x0.8 (standard thread) · Thread length: 6 mm · Thread length: 12 mm · Area of application: Standard · Pony OEM number: A3700 · Sachs OEM no.: 0640 016 101 · Sachs OEM no.: 0640 016 102

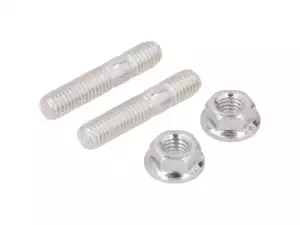

swiing® revival stud bolt inlet M5x26 mm galvanized (strength 10.9) | Sachs (A1474)

Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Thread length: 7 mm · Thread length: 14 mm · Total length: 26 mm · Thread type: M5x0.8 (standard thread) · Strength class: 10.9 · Pony OEM number: A1474 · Sachs OEM no.: 0241 031 101

GPO piston 40.94 mm | Sachs 502, 50/2, 50/3, 50/4

Manufacturer: GPO · Ø outside piston (A): 40.94 mm · Ø piston pin (B): 12 mm · Compression height (C): 28 mm · Curvature (D): 3.2 mm · Total piston height (E): 49.4 mm · Number of piston rings (F): 2 pcs · Nominal diameter: 41 mm · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Piston ring height: 1.5 mm · Thick piston ring: 1.8 mm · Piston weight: 86 g

swiing carburetor 17 mm Bing SSB 1/17/69

Manufacturer: swiing · Total length: 132 mm · Material: Aluminum · Camouflaged: No · Area of application: Standard · Area of application: Tuning · Component group Carburetor: Carburetor complete · Carburetor type: SSB · Choke control: without choke · Nominal diameter: 17 mm · Ø fuel hose connection: 6 mm · Nozzle size: 76 · Mixed oil connection: No · Hole spacing inlet: 31 mm · Vacuum connection: No · Width: 85 mm · Height: 100 mm · Mounting type: Flange

swiing 41 mm cylinder kit | Sachs 50/3, 50/4 LKH (square inlet)

Manufacturer: swiing · Material: Gray cast iron · Area of application: Tuning · Surface: sandblasted · Nominal diameter: 41 mm · Displacement: 55 ccm · Crankshaft stroke: 42 mm · Ø piston pin (B): 12 mm · Thread inlet: M5x0.8 (standard thread) · Number of fixing points: 4 pcs · Hole spacing inlet: 31 mm · Outlet type: Union nut · Thread outlet: MF40x1.5 (fine pitch thread) · Hole pattern [mm]: 51 x 40 / 37 x 37 · Camouflaged: No
