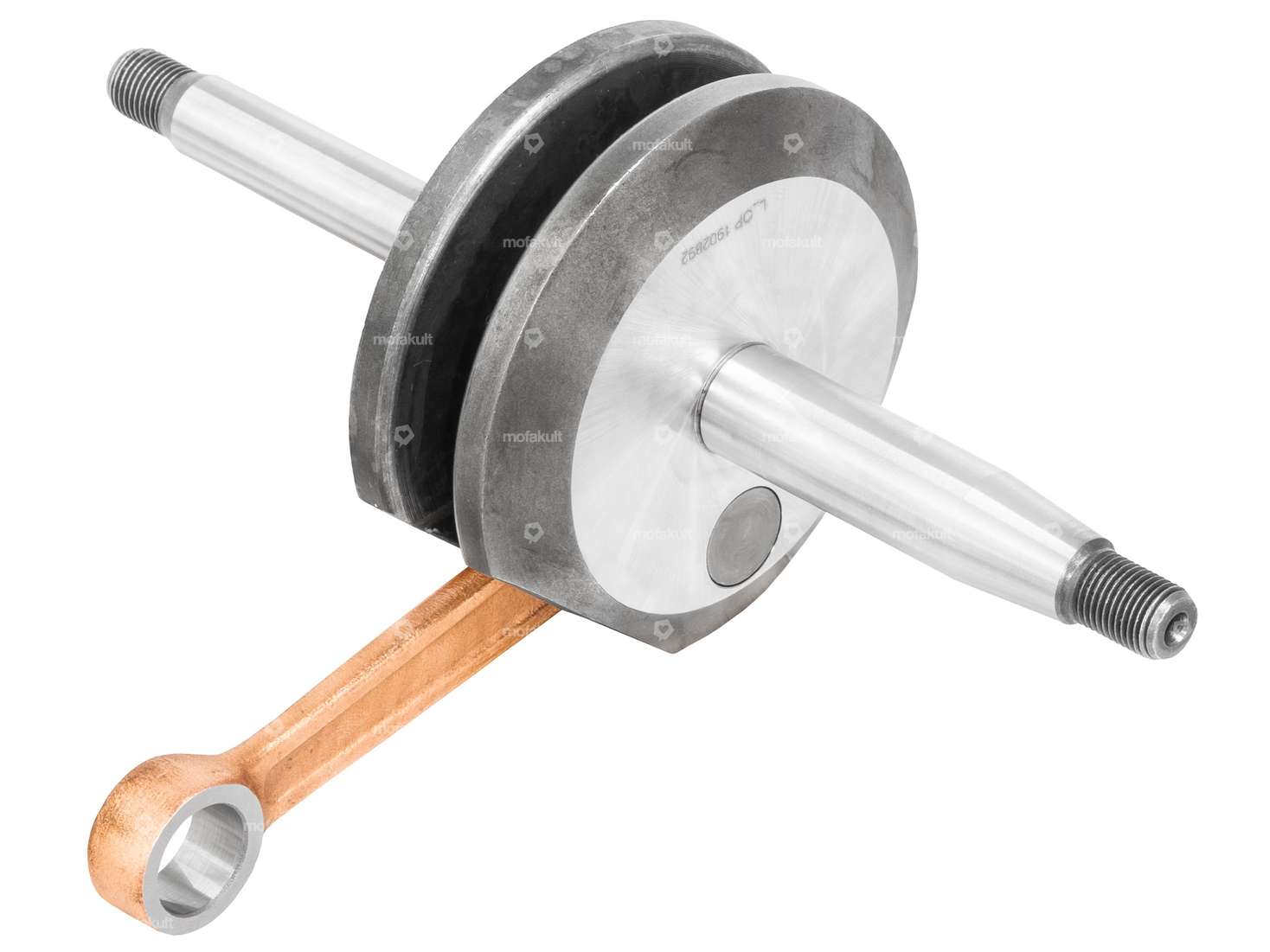

Jasil crankshaft original | Sachs 505, 535 A1, 535 AV (A4477)

Airsal 43.5 mm cylinder kit incl. mounting parts | Sachs 504, 505, 508

Number of fixing points: 4 pcs · Manufacturer: Airsal · Material: Cast aluminum · Camouflaged: No · Area of application: Tuning · Surface: sandblasted · Nominal diameter: 43.5 mm · Crankshaft stroke: 44 mm · Ø piston pin (B): 12 mm · Ø cylinder neck: 50 mm · Ø Outlet outside: 26 mm · Ø Inlet inside: 14 mm · Hole spacing inlet: 31 mm · Inlet window: 23.8 x 14.8 · Thread inlet: M6x1 (standard thread) · Hole pattern [mm]: 56 (61) x 56 · Decompressor: M10x1.5 · Outlet type: clamped

Crankshaft | Sachs 505, 535 A1, 535 AV (A4477)

Weight: 956 g · Area of application: Standard · Material: Steel · Crankshaft stroke: 44 mm · Ø piston pin (B): 12 mm · Thread type: MF10x1 (fine pitch thread) · Connecting rod length center-center: 85 mm · Total length of crankpin on clutch side: 77.5 mm · Total length crankpin ignition side: 73.5 mm · Ø crank webs: 79.9 mm · Ø Connecting rod eye: 15 mm · Ø Bearing seat (clutch side): 15 mm · Ø Bearing seat (ignition side): 15 mm · Thread length: 12 mm · Dimension needle bearing: 12 / 15 x 14.2 mm (axe 12) · Wide crank webs: 34.3 mm · Length 1st paragraph: 18 mm · Length 2nd paragraph: 44 mm · Ø 1st step (on the coupling side): 15 mm · Ø 2nd shoulder (on the clutch side): 11.6 mm · Length of shoulder (ignition side): 42.5 mm · Number of gears: 1 pcs · Number of gears: 2 pcs · Pony spare part no.: A4477

Jasil crankshaft full cheeks | Sachs 505, 535 A1, 535 AV

Manufacturer: Jasil · Area of application: Standard · Cheek type: Full cheeks · Crankshaft stroke: 44 mm · Thread type: MF10x1 (fine pitch thread) · Total length of crankpin on clutch side: 77.5 mm · Total length crankpin ignition side: 74 mm · Ø Bearing seat (clutch side): 14.95 mm · Ø Bearing seat (ignition side): 14.95 mm · Alternative version of Sachs spare part no.: A4477

Repair instructions | Sachs 505/2

Material: Paper · DIN format: A4 · Number of pages: 62 pcs

Wedge for flywheel (Sachs 504, 505, 535)

Total length: 9.3 mm · Width: 2 mm · Height: 3.8 mm · Material: Steel

Oil seal NBR 15/30/5.5 A crankshaft | Sachs (A4215 & A5602)

Simmering type: A - With rubberized outer part / one sealing lip. · Ø inside: 15 mm · Ø outside: 30 mm · Manufacturer: Sachs · Width: 5.5 mm · Material: NBR · Surface: rubberized · Place of use: Crankshaft · Temperature resistance (min.): -30 - 100 °C · Pony spare part no.: A5602 · Sachs spare part no.: 0230 111 100

Oil seal NBR 15/35/7 AS crankshaft | Sachs 504, 535 (A4214)

Simmering type: AS - With rubberized outer casing / one sealing lip / one dust lip. · Ø inside: 15 mm · Ø outside: 35 mm · Manufacturer: Sachs · Width: 7 mm · Material: NBR · Surface: rubberized · Place of use: Crankshaft · Temperature resistance (min.): -30 - 100 °C

GPO gasket set | Sachs 504 manual / automatic

Manufacturer: GPO · Area of application: Standard · Number of components: 5 pcs

Bearing bushing gearbox | Sachs 504, 535 (A4220)

Nominal diameter: 15.5 mm · Ø inside: 15.5 mm · Ø outside: 20 mm · Material: Steel · Surface: hardened & ground · Ø Bundle: 22 mm · Total height: 9 mm · Pony spare part no.: A4220 · Sachs spare part no.: 0232 155 001

Oil seal NBR 15/35/7 A DUO crankshaft | Sachs 535

Simmering type: A DUO - With rubberized outer casing / two sealing lips. · Ø inside: 15 mm · Ø outside: 35 mm · Manufacturer: Sachs · Width: 7 mm · Material: NBR · Surface: rubberized · Place of use: Crankshaft · Temperature resistance (min.): -30 - 100 °C

Wedge for flywheel (Sachs 504, 505, 535)

Total length: 9.3 mm · Width: 2 mm · Height: 3.8 mm · Material: Steel

NTN 6202 Ball bearing 15/35/11

Bearing type: Deep groove ball bearing · Stock number: 6202 · Ø inside: 15 mm · Inner ring width: 11 mm · Ø outside: 35 mm · Manufacturer: NTN · Ball bearing closed: No · Width: 11 mm · Bearing clearance: CM (special/noise-reduced) · Bearing cage: "-" Sheet steel cage ball-guided · Groove ring: No · Material: Steel · Surface: blank

Gasket cylinder base Sachs 504, 535 (A4277, A4456)

Manufacturer: Sachs · Place of use: Cylinder base

Oil seal FPM 15/30/5.5 AS

Simmering type: AS - With rubberized outer casing / one sealing lip / one dust lip. · Ø inside: 15 mm · Ø outside: 30 mm · Width: 5.5 mm · Material: FPM - Rubber · Surface: rubberized · Temperature resistance (min.): -30 - 200 °C

Oil seal FPM 15/30/5.5 AS crankshaft / main shaft | Sachs 503, 504, 535, 504/1 (A4215 / A5602)

Simmering type: AS - With rubberized outer casing / one sealing lip / one dust lip. · Ø inside: 15 mm · Ø outside: 30 mm · Manufacturer: Sachs · Width: 5.5 mm · Material: FPM - Rubber · Surface: rubberized · Place of use: Crankshaft · Temperature resistance (min.): -30 - 200 °C · Pony spare part no.: A5602 · Sachs spare part no.: 0230 111 100
