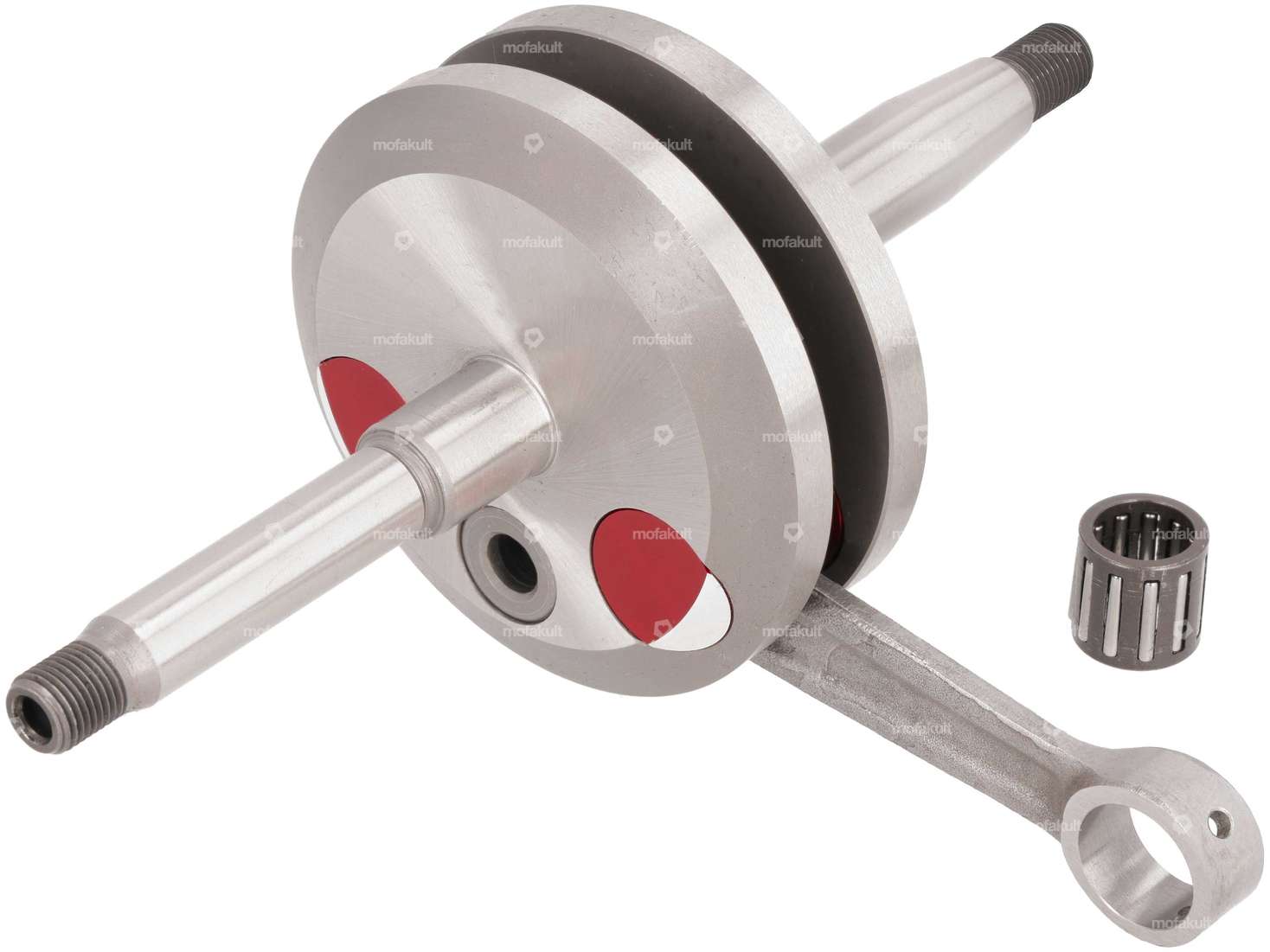

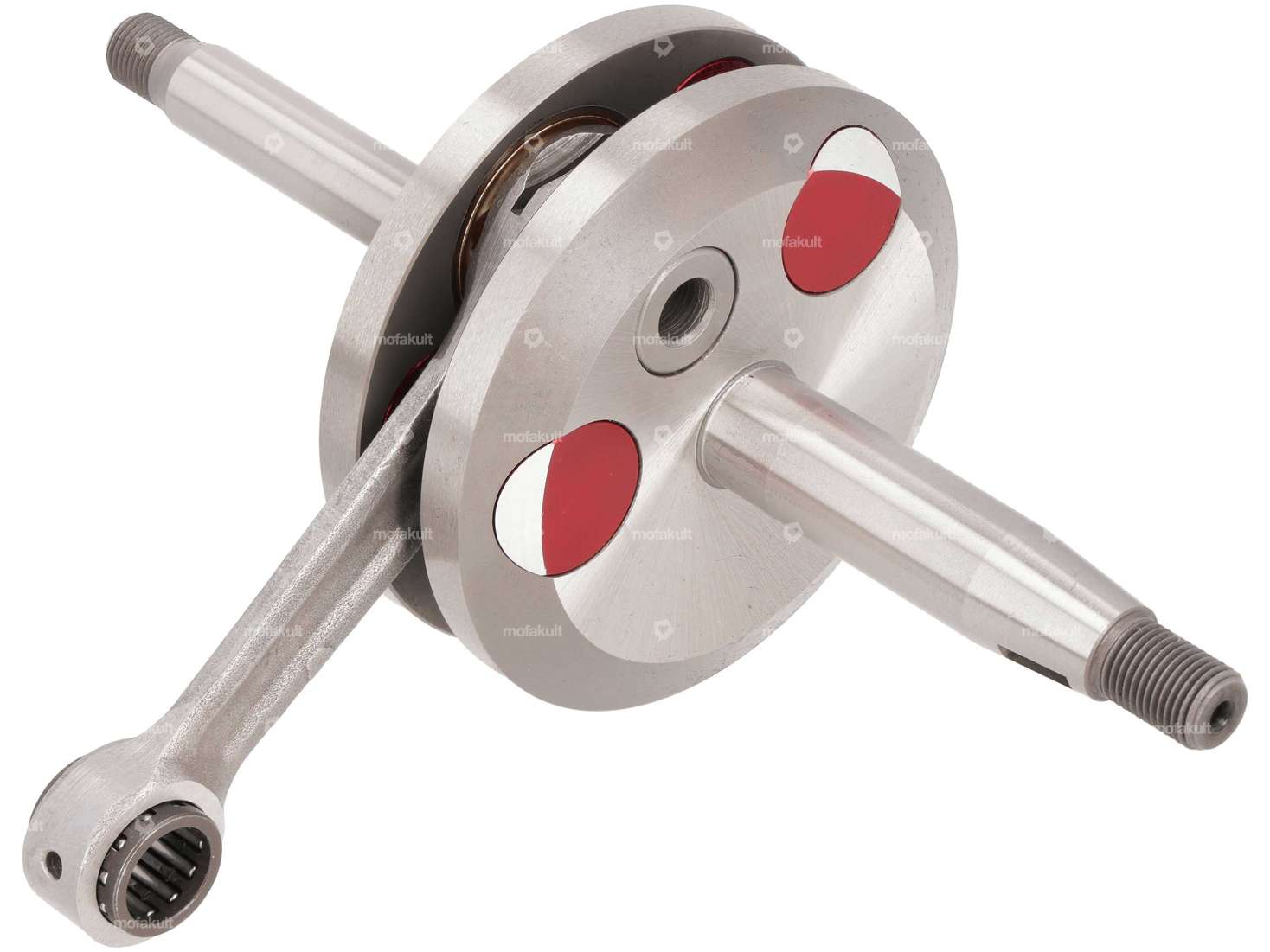

First-class full cheek crankshaft, suitable for your moped / moped with Sachs 505, 535 A1 and 535 AV engines
.This crankshaft is suitable for Hercules Prima 2, 3, 4, 5, Optima models, among others.
For perfect balancing and pre-compression of the crankshaft, the balancing holes are sealed with aluminum plugs. The workmanship and accuracy of fit are excellent.
Details
| Manufacturer | Rito |
| Material | Steel |
| Cheek type | Full cheeks |
| Crankshaft stroke | 44 mm |
| Connecting rod length center-center | 85 mm |
| Thread type | MF10x1 (fine pitch thread) |
| Total length of crankpin on clutch side | 77.8 mm |
| Number of gears | 1 pcs |
| Total length crankpin ignition side | 73.8 mm |
| Ø crank webs | 79.5 mm |
| Ø Connecting rod eye | 16 mm |
| Area of application | Tuning, High End, Racing |
| Ø piston pin (B) | 12 mm |
| Ø Bearing seat (clutch side) | 15 mm |
| Ø Bearing seat (ignition side) | 15 mm |
| Thread length | 9.5 mm, 13 mm |
| Dimension needle bearing | 12 / 16 x 15.8 (axe 12) |
| Wide crank webs | 34.2 mm |
| Length 2nd paragraph | 16.8 mm |
| Length 3rd paragraph | 15 mm |
| Ø 1st step (on the coupling side) | 15 mm |
| Ø 2nd shoulder (on the clutch side) | 11.7 mm |
| Weight | 878 g |
| Length of shoulder (ignition side) | 42 mm |
Suitable for the following models
| Sachs | 505 (mit Tretwelle) - 1A (AT), 2 A (HG), 2B (HG) 535 |
| Hercules | Prima - 2, 3, 4, 5, Optima |
