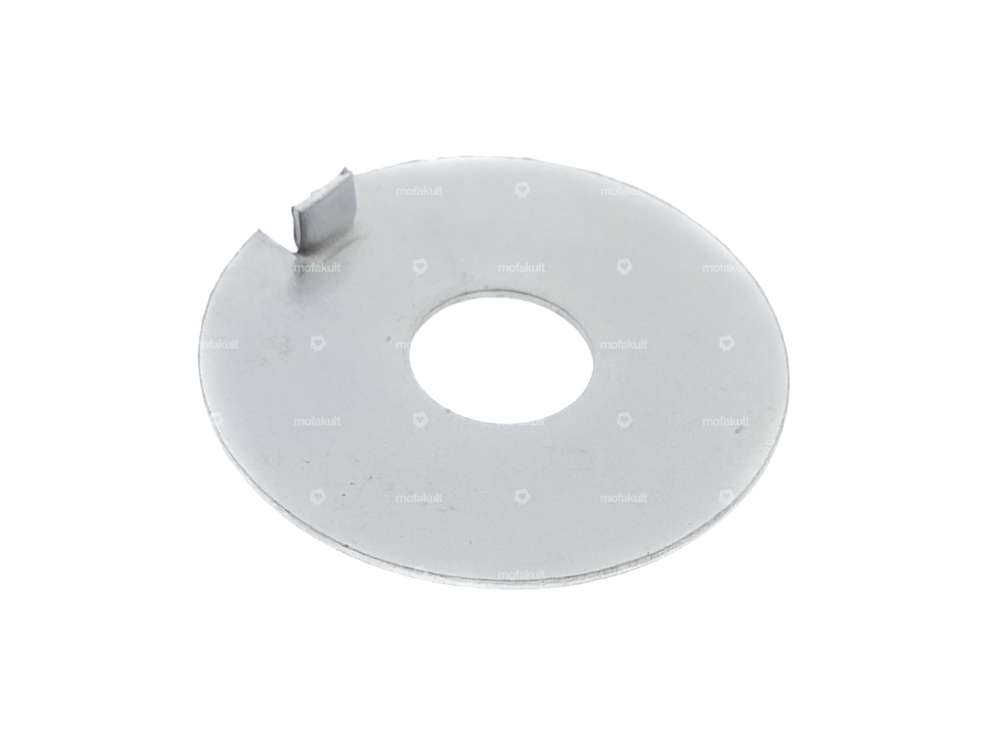

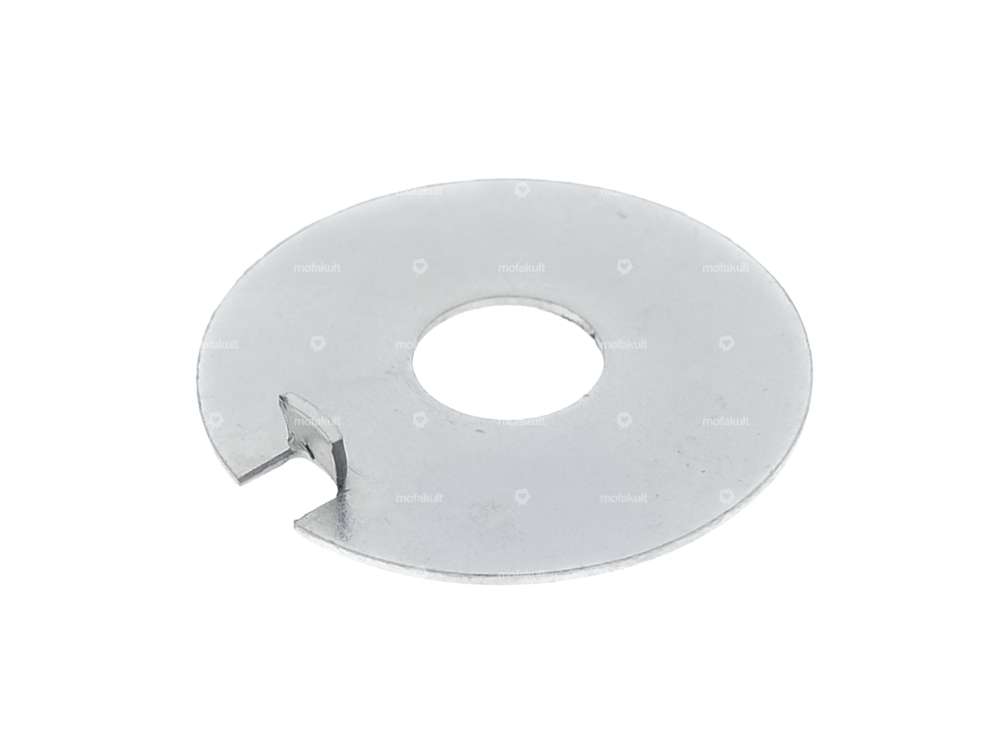

Locking plate Ø 10 mm pinion | Kreidler

BERU spark plug connector / 1 kΩ interference suppressed

Ø cable: 5 mm · Ø cable: 7 mm · Manufacturer: BERU · Material: Sheet metal (steel) · Color: silver · Spark plug socket: M4 · Cable available: No · Resistance: 1000 Ω · Suppressed: Yes · Pony OEM number: A2099 · Sachs OEM number: 0265 100 00

Airsal 45 mm cylinder kit 70 ccm camouflaged | Puch

Manufacturer: Airsal · Camouflaged: Yes · Material: Aluminum · Surface: sandblasted · Nominal diameter: 45 mm · Displacement: 70 ccm · Crankshaft stroke: 43 mm · Ø piston pin (B): 12 mm · Ø cylinder neck: 48 mm · Inlet window: 23.5 / 20 x 15 · Thread inlet: M6x1 (standard thread) · Ø outlet inside: 25 mm · Number of fixing points: 4 pcs · Hole spacing outlet: 42 mm · Hole pattern [mm]: 44 x 44 · Area of application: Tuning · Outlet type: straight · Thread outlet: M6x1 (standard thread) · Decompressor: Yes · Hole spacing inlet: 38 mm

swiing® revival gasket set | Puch X30 Velux

Manufacturer: swiing® revival parts · Area of application: Standard · Number of components: 11 pcs · Ø outlet inside: 22 mm · Hole spacing outlet: 42 mm · Hole pattern [mm]: 44 x 44

Dell'Orto 19 mm PHBG CS carburetor hand choke

Manufacturer: Dell'Orto · Material: Aluminum · Camouflaged: No · Color: black · Carburetor type: PHBG CS · Nominal diameter: 19 mm · Ø without reducing sleeve: 26 mm · Ø Inside entrance: 19 mm · Total length: 82 mm · Ø Output inside: 19 mm · Ø Air filter connection: 32 mm · Ø Air filter connection: 60 mm · Air filter connection thread: MF32x1.25 (fine pitch thread) · Ø Internal connection: 24 mm · Ø fuel hose connection: 5.4 mm · Ø fuel hose connection: 6 mm · Width: 70 mm · Mixed oil connection: Yes · Height: 124 mm · Mounting type: Plug connection clamped · Vacuum connection: Yes · Choke control: Hand choke · Area of application: Racing · Area of application: Tuning · Choke nozzle size: 60 · Nozzle thread: M5x0.8 (standard thread) · Nozzle size: 75 · Size of secondary nozzle: 45

Fuel tap horizontal M12x1 (with union nut) outgoing at the bottom

Possible lever positions: open / closed / reserve · Material lever: Metal · Thread type: MF12x1 (fine pitch thread) · Filter type: Plastic net · Installation direction: horizontal / horizontal · Outlet direction: below · Spare tube shape: curved · Ø fuel hose connection: 6 mm · Reserve level: 70 mm · Mounting type: Union nut

M8 locking plate clutch | Puch X30 Velux

Material: Steel · Ø inside: 8.15 mm · Ø outside: 20.1 mm · Number of lobes: 1 pcs · Thickness: 1 mm · Thread size: M8

NewFren clutch plates (1A quality) | Puch X30

Manufacturer: NewFren · Area of application: Standard · Number of slats: 2 pcs

M12 locking plate 1 lug

Ø inside: 13.4 mm · Ø outside: 32 mm · Manufacturer: Made in Portugal · Thread size: M12 · Number of lobes: 1 pcs · Thickness: 0.8 mm

Locking plate sprocket | Kreidler

Ø inside: 72 mm · Manufacturer: Made in Portugal · Number of lobes: 5 pcs · Ø bolt circle: 89 mm

ESJOT sprocket 13 teeth SW 11.2 | Kreidler

Manufacturer: ESJOT · Material: Steel · Surface: raw · Chain type: 415H · Recording type: Ø14.85 x SW11.2 · Chain pitch: 1/2" x 3/16" · Number of teeth: 13 pcs · Total thickness: 9.9 mm
