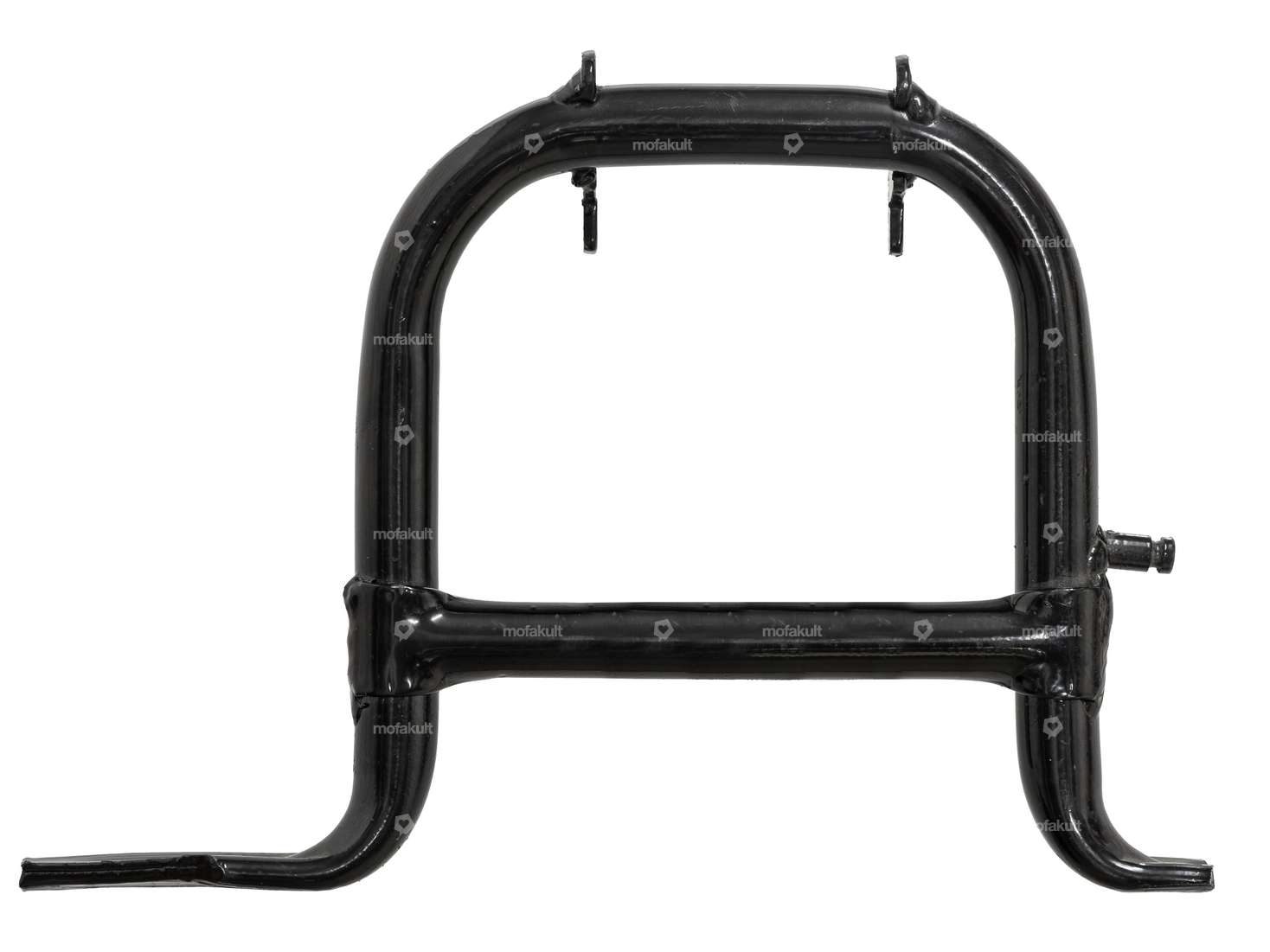

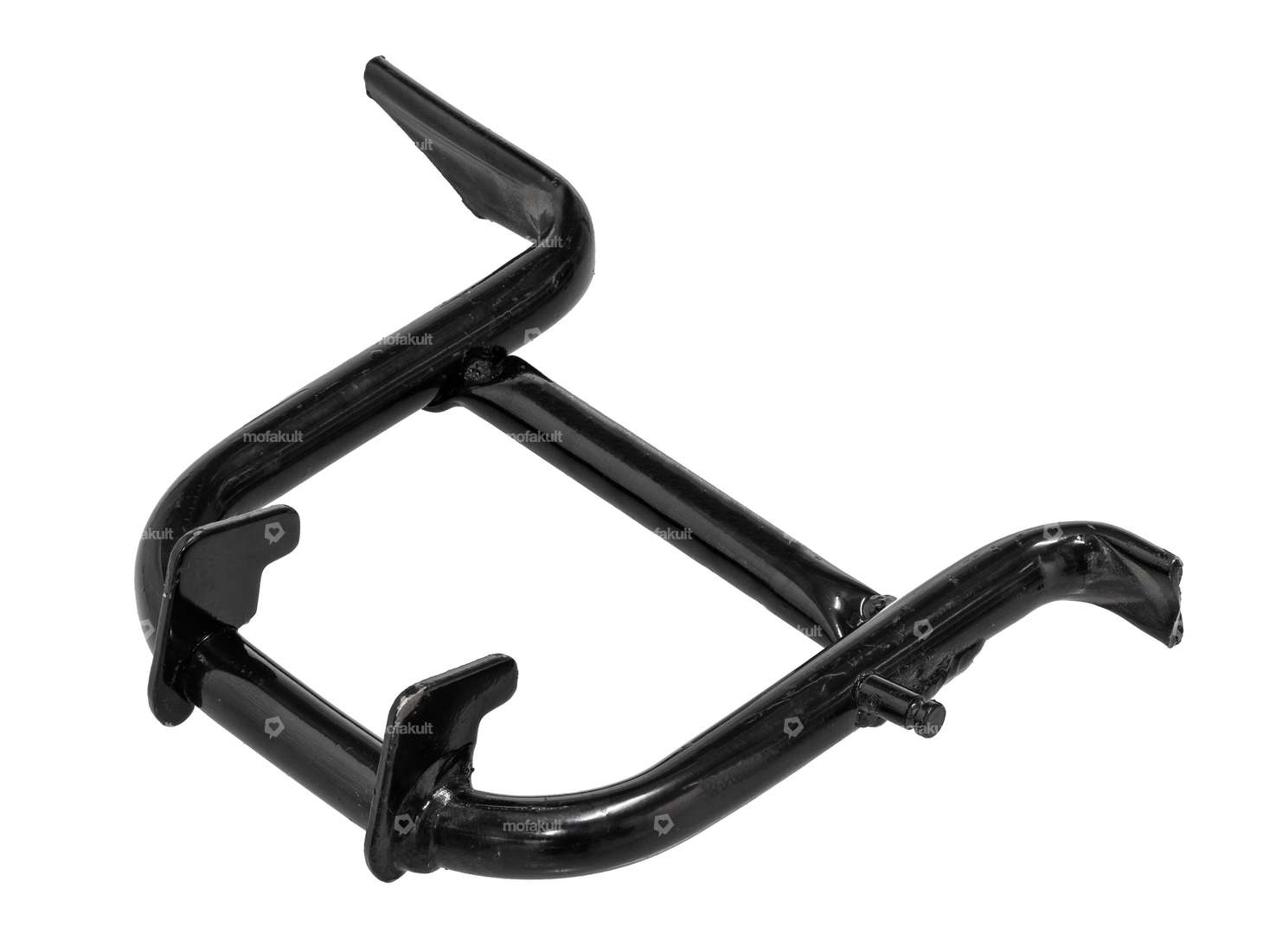

High-quality center stand suitable for Puch Maxi N and Puch NV Strada mopeds, mopeds or small motorcycles.
A stand base is extended, which makes it much easier to place the door on the center stand. This is incredibly helpful, especially with a catalytic converter exhaust.
Corresponding add-on parts such as strut spring, bearing shell etc. can be found under accessories.
Quality product from old stock of the Austrian manufacturer Puch.
Original Puch spare part number: 702259
Details
| Manufacturer | Puch |
| Material | Steel |
| Surface | varnished |

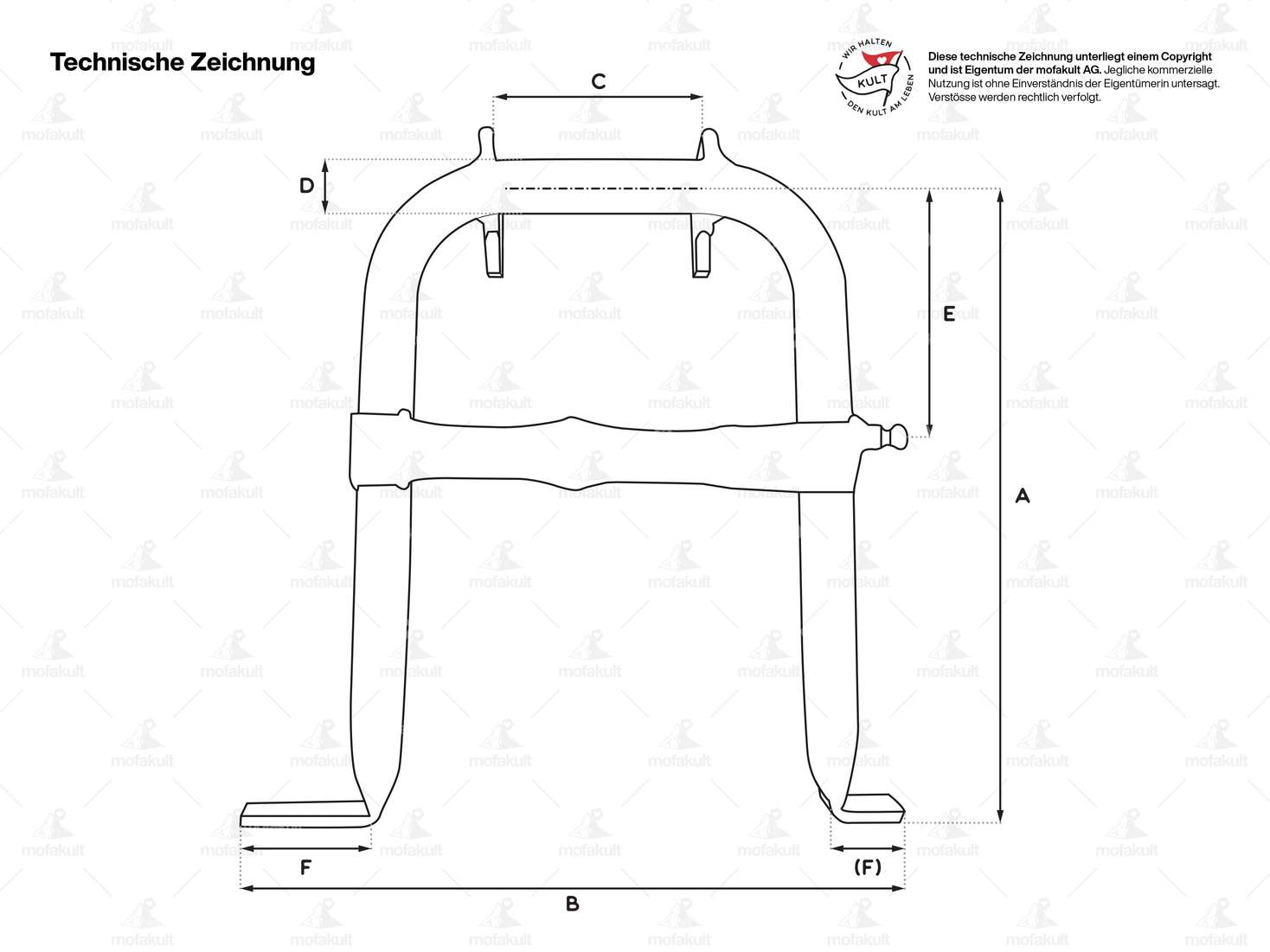

| Stand base - center mount (A) | 165 mm |
| Total width of stand base (B) | 255 mm |
| Color | black |
| Wide receptacle (C) | 65 mm |
| Ø Receptacle (D) | 17.8 mm |
| Spring nipple distance - center pivot axis (E) | 90 mm |
| Wide upright foot (F) | 20 mm, 60 mm |
| Total height | 180 mm |
Suitable for the following models
| Puch | E50 |
