Replacement connecting rod for old original crankshafts with a 12 mm axle on your Piaggio Ciao, Si, Bravo or Boxer moped / moped.
Like the first Piaggio shafts installed, the sword connecting rod has a bronze bushing for the piston pin instead of a needle bearing.
Dimensions:
- Total connecting rod length: 113 mm
- Connecting rod length (center-to-center): 87 mm
- Bearing bush dimension: Ø 12 / 15.2 x 12.2 mm (axe 12)
- Lower connecting rod bearing dimension: Ø 16 / 21 x 9.6 mm (axe 16)
- Length of crank pin: 33 mm
- Ø crank pin: 16 mm
- Ø thrust washers: 26 mm
- Thickness of thrust washers: 0.5 mm
Scope of delivery:

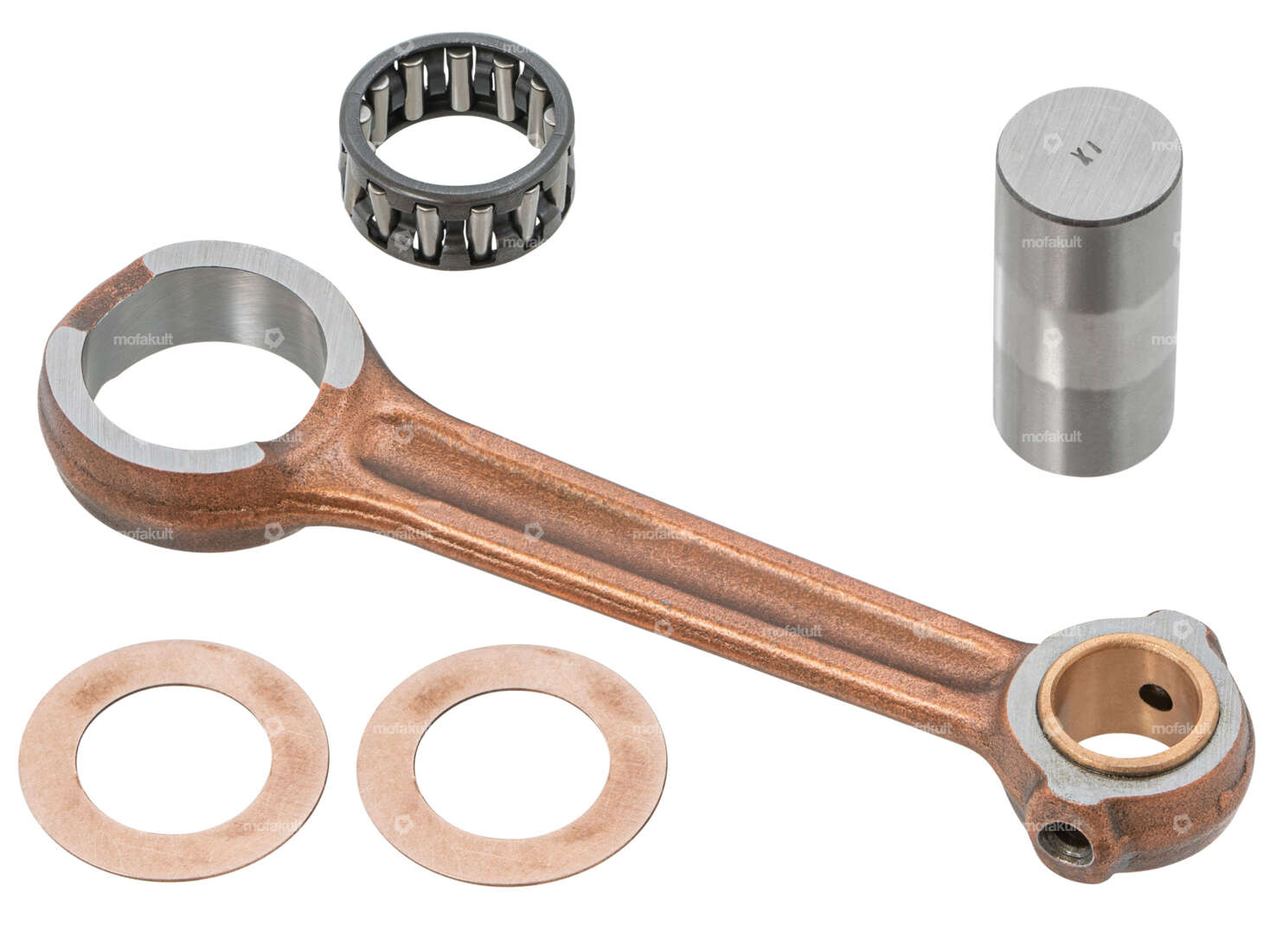

- Connecting rod with pressed-in bearing bush made of bearing bronze
- Bottom connecting rod bearing
- Thrust washers
- Stroke pin
Further versions of the connecting rod as well as crankshafts for your Piaggio can be found in the accessories section.
Quality product from the Italian manufacturer Mazzucchelli.
Details
| Manufacturer | Mazzucchelli |
| Material | Steel |
| Area of application | Original, Standard |
| Connecting rod length center-center | 87 mm |
| Ø Connecting rod bolt | 16 mm |
| Thickness | 9.8 mm |
| Ø lower bearing inside | 16 mm |
| Total length | 113 mm |
| Ø inside upper bearing | 12 mm |
| Dimension lower bearing | Ø 16 / 21 x 9.6 mm (axe 16) |
| Dimension upper bearing | Ø 12 / 15.2 x 12.2 mm (axe 12) |
| Ø piston pin (B) | 12 mm |
| Connecting rod pin length | 33 mm |
Suitable for the following models
| Piaggio | Ciao - Ciao, Ciao, Ciao, Ciao Si Bravo/Superbravo Boxer Grillo |
