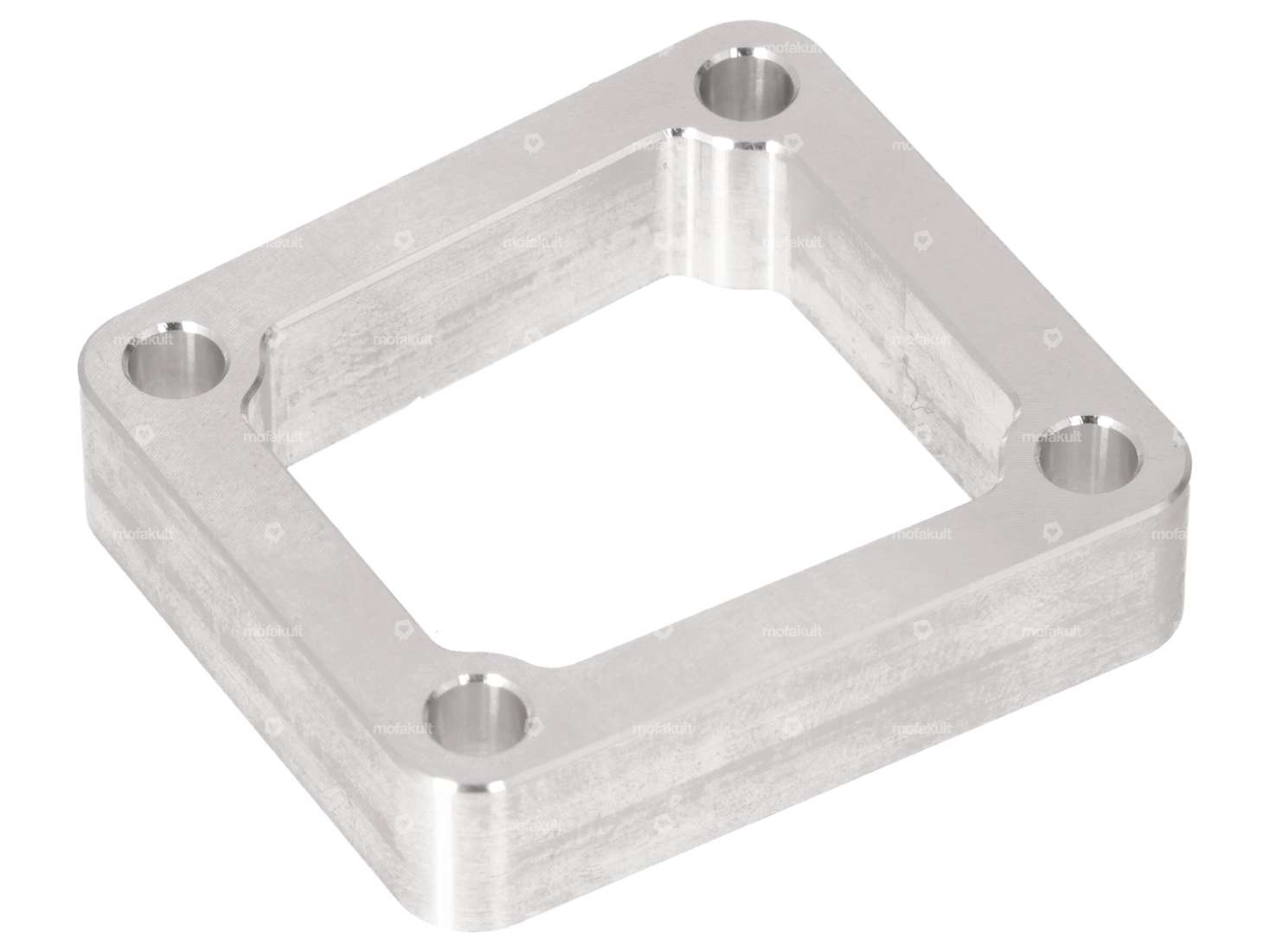

Aluminum adapter plate for optimum mounting of the reed system from the Polini racing cylinder on your Puch moped / moped with ZA50 engine.
Thickness of the plates: 12 mm
Total length: 50 mm
Internal length: 37 mm
Total width: 46 / 42.5 mm
Internal width: 33.3 / 30 mm
Hole spacing: 32 / 36 x 39 mm
Gaskets and screws are not included in the scope of delivery.
You can find an alternative with a height of 6.15 mm and other great products in the accessories section.
Details
| Total length | 50 mm |
| Width | 46 mm, 42.5 mm |
| Number of fixing points | 4 pcs |
| Material | Aluminum |
| Surface | blank |
| Area of application | Tuning |
| Thickness | 12 mm |
| Ø mounting hole | 5.4 mm |
| Mounting type | Screws |
| Hole pattern [mm] | 32 / 36 x 39 |
Suitable for the following models
| Puch | ZA50 (Fahrtwindgekühlt) ZA50 (Gebläsegekühlt) |
