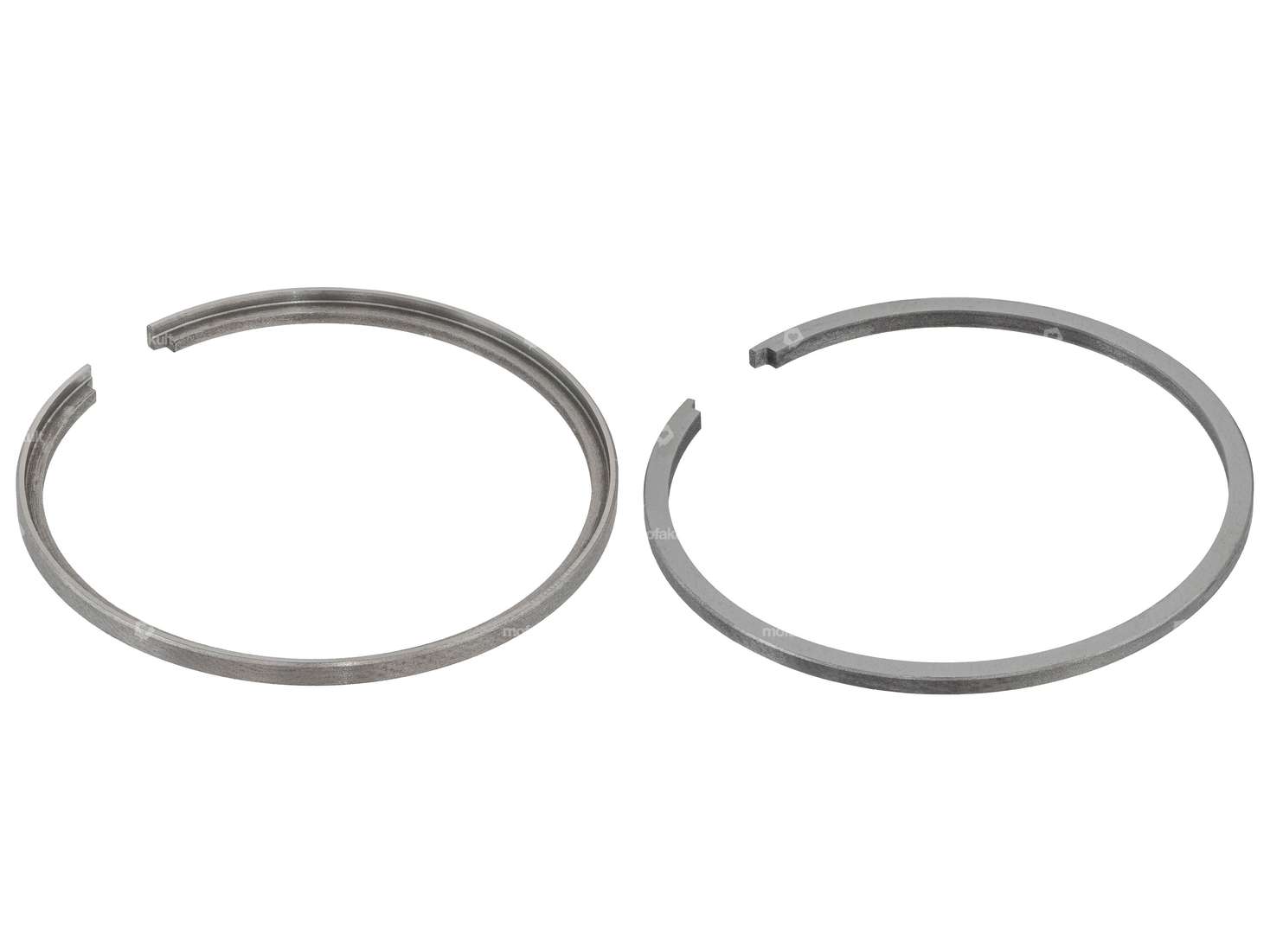

A set of 40.0 mm compression rings consisting of a rectangular ring and an L-piston ring, suitable for various Kreidler mopeds and small motorcycles such as Florett RS, Flory etc.

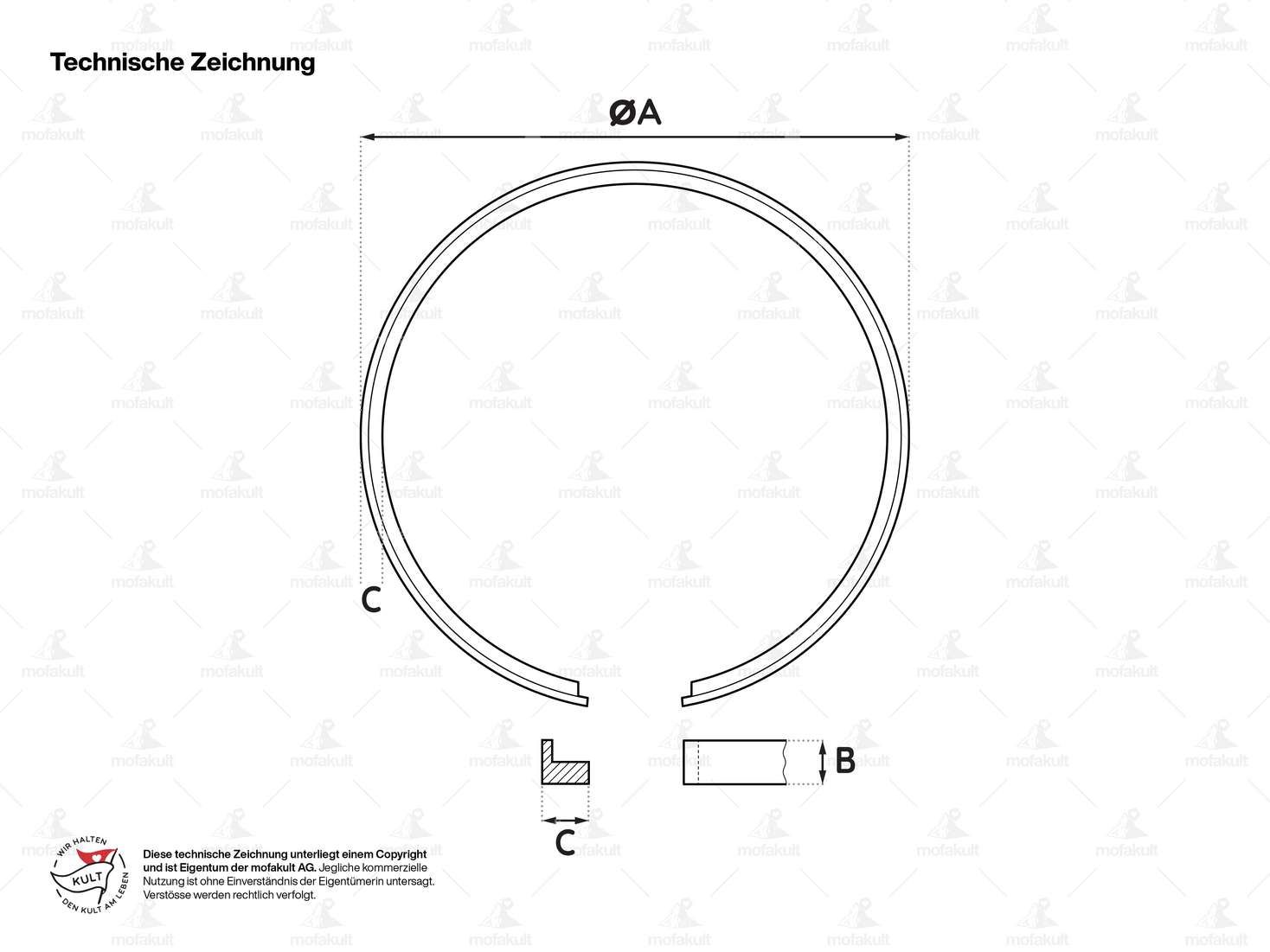

Dimension L-ring:
Ø outside (ØA): 40.00 mm
Height (B): 2.0 mm
Thickness (C): 1.85 mm

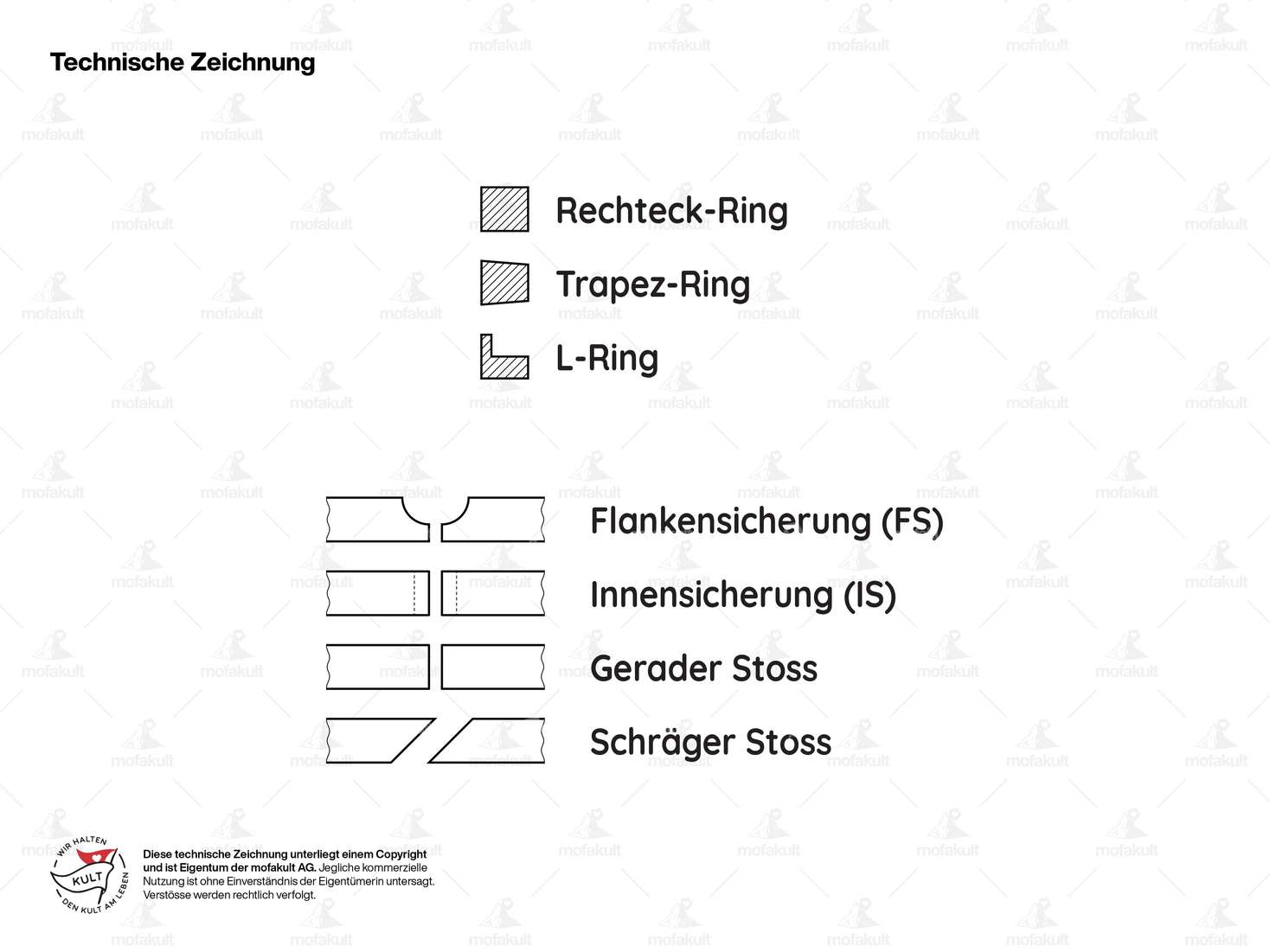

Piston ring shape: L-ring

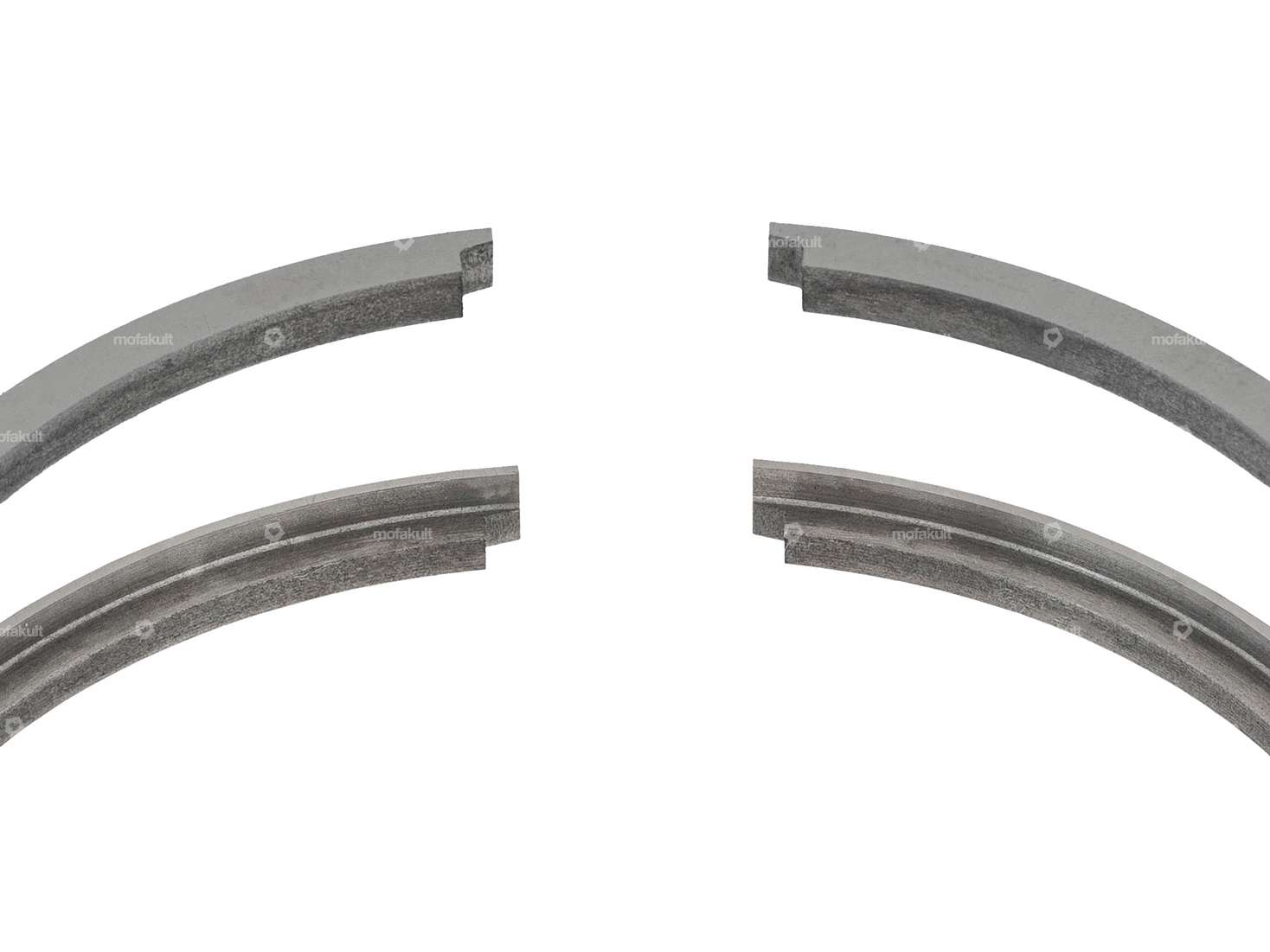

Piston ring joint: Internal locking (IS)

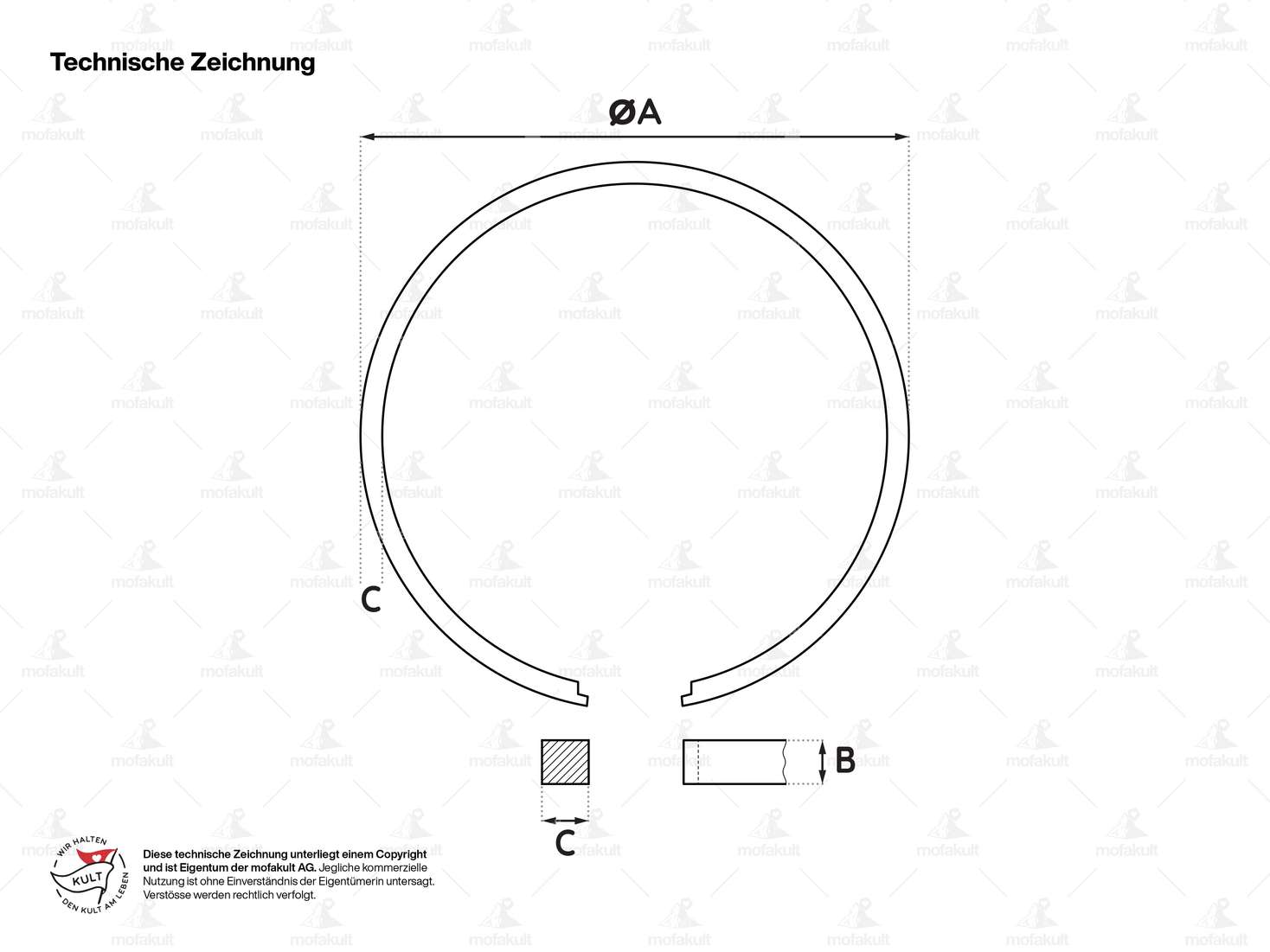

Size rectangular ring:
Ø outer (ØA): 40.00 mm
Height (B): 1.5 mm
Thickness (C): 1.65 mm
Piston ring shape: Rectangular ring
Piston ring joint: Internal locking (IS)
The scope of delivery corresponds to one pair.
Matching pistons, assembly tools and lubricant can be found in the accessories section.
Quality product from the Italian manufacturer Meteor.
The set includes the following fixed parts:
Manufacturer: Meteor · Nominal diameter: 40 mm · Thick piston ring: 1.65 mm · Height: 1.5 mm · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS)
Manufacturer: Meteor · Nominal diameter: 40 mm · Thick piston ring: 1.85 mm · Height: 2 mm · Piston ring mold: L-ring · Piston ring impact: Internal fuse (IS)
Details
| Nominal diameter | 40 mm |
| Manufacturer | Meteor |
| Piston ring mold | L-ring, Rectangular ring |
| Piston ring impact | Internal fuse (IS) |
| Height | 2 mm, 1.5 mm |
| Thick piston ring | 1.85 mm, 1.65 mm |
Suitable for the following models
| Kreidler |
Accessories & related products
Meteor piston 39.97 mm (14 mm KoBo) E | Kreidler Florett RS
Manufacturer: Meteor · Nominal diameter: 40 mm · Ø outside piston (A): 39.97 mm · Ø piston pin (B): 14 mm · Compression height (C): 27 mm · Curvature (D): 3 mm · Total piston height (E): 51 mm · Number of piston rings (F): 2 pcs · Piston ring mold: L-ring · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Piston ring height: 1.5 mm · Piston ring height: 2 mm · Tolerance group: E · Piston weight: 99 g
CHF 59.90

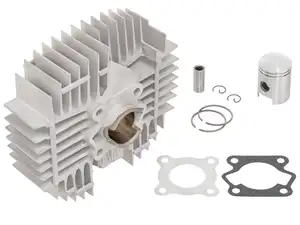

40 mm tuning cylinder | Kreidler Florett RS, RMC
