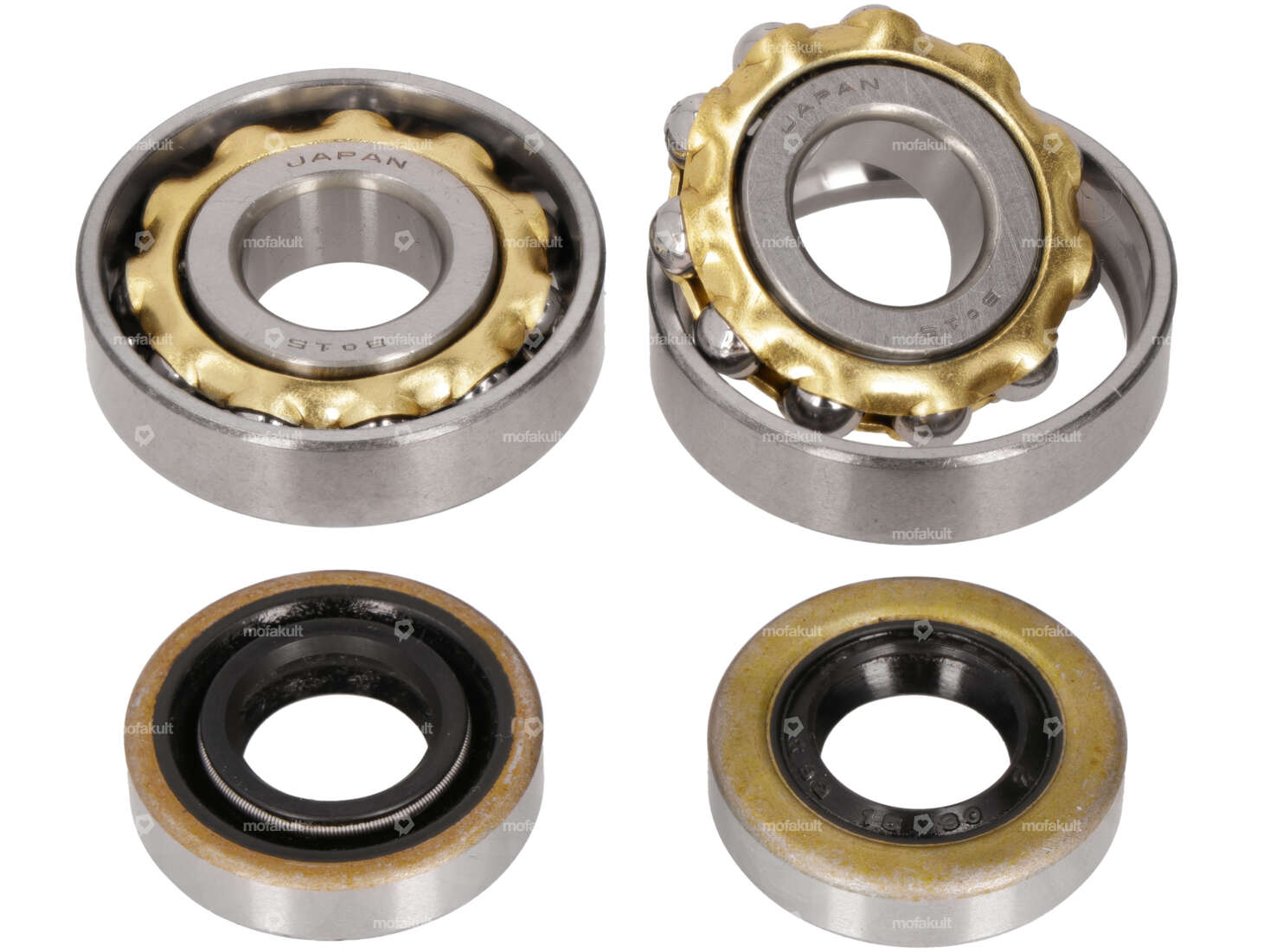

Bearing set incl. oil seals for overhauling Sachs 503 2AL/BL engines
The set includes the following components:
- 2 pcs. shoulder ball bearing BO15 (15/40/10)
- 1 pc. radial shaft seal ring 15/30/7 BS NBR
- 1 piece radial shaft seal ring 15/30/7 AS NBR
Guaranteed high-quality materials.
When you purchase this complete set, you will receive a substantial percentage off the retail price of the individual parts.
The set includes the following fixed parts:
Manufacturer: NSK · Material: Steel, Brass · Surface: blank · Area of application: Standard · Bearing type: Shoulder bearing · Stock number: BO15 · Ø inside: 15 mm · Ø outside: 40 mm · Width: 10 mm · Inner ring width: 10 mm · Ball bearing closed: No · Bearing cage: Brass cage ball-guided · Pony spare part no.: A4502 · Sachs spare part no.: 0932 007 001
Manufacturer: Sachs · Material: NBR · Temperature resistance (min.): -30 - 100 °C · Simmering type: B DUO - With sheet metal outer casing / two sealing lips. · Ø inside: 15 mm · Ø outside: 30 mm · Width: 7 mm · Pony spare part no.: A1830 · Sachs spare part no.: 0250 090 000
Manufacturer: Sachs · Material: NBR · Temperature resistance (min.): -30 - 100 °C · Simmering type: B - With sheet metal outer casing / one sealing lip. · Ø inside: 15 mm · Ø outside: 30 mm · Width: 7 mm · Pony spare part no.: A1830 · Sachs spare part no.: 0250 090 000
Details
| Manufacturer | NSK |
| Number of components | 4 pcs |
Suitable for the following models
| Sachs | 503 - 2AL / 2BL |
