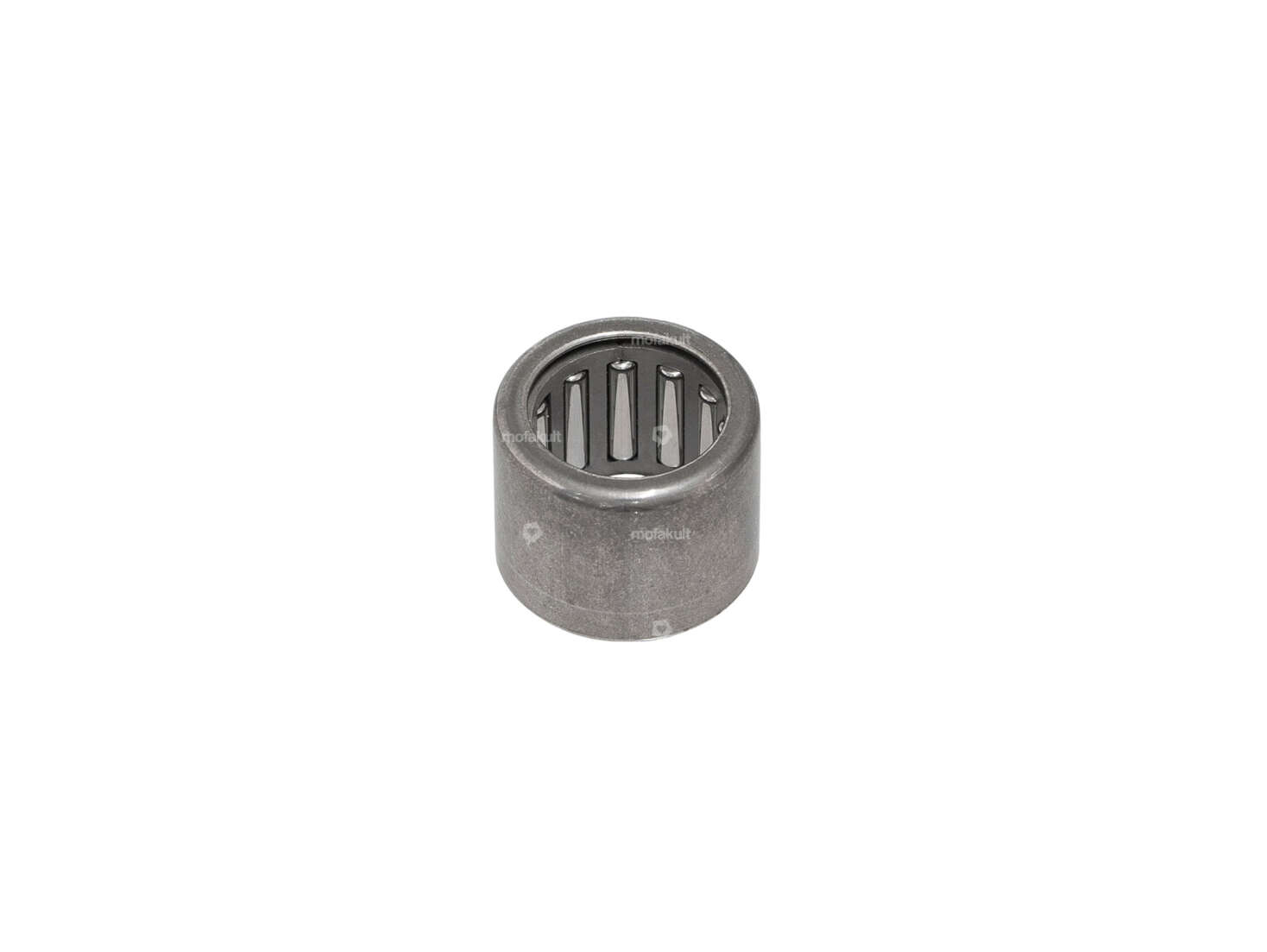

The HK0810 needle sleeve is installed in the gearbox cover (clutch side) of the following Sachs engines:
50/2 AML, AL (Saxonette)
503 AC, ADV, AAL
Quality product from the Japanese manufacturer NTN.
Original spare part number: A1176
Details
| Bearing type | Needle sleeve |
| Stock number | HK0810 |
| Manufacturer | NTN |
| Width | 10 mm |
| Ø outside | 12 mm |
| Ø inside | 8 mm |
| Dimension needle bearing | 8/12 x 10 |
| Pony spare part no. | A1176 |
| Sachs spare part no. | 0232 137 000 |
Suitable for the following models
| Sachs | 502 (Saxonette) - AL, AML 503 - AAL, AC, ADV |
Moped fans like you also bought:
Oil seal NBR 17/33/7 B DUO crankshaft | Sachs 503 AB, ADV
Simmering type: B DUO - With sheet metal outer casing / two sealing lips. · Ø inside: 17 mm · Manufacturer: Sachs · Material: NBR · Place of use: Crankshaft · Width: 7 mm · Ø outside: 33 mm · Temperature resistance (min.): -30 - 100 °C
CHF 8.90
NSK 6201 ball bearing 12/32/10
Bearing cage: "-" Sheet steel cage ball-guided · Ø inside: 12 mm · Stock number: 6201 · Inner ring width: 10 mm · Manufacturer: NSK · Bearing clearance: CM (special/noise-reduced) · Groove ring: No · Area of application: Standard · Material: Steel · Surface: blank · Bearing type: Shoulder bearing · Width: 10 mm · Ø outside: 32 mm · Ball bearing closed: No
CHF 8.50
Oil seal NBR 14.96x31.5x3.5 Pinion shaft | Sachs 502, 50/2, 503 (A1134)
Ø inside: 14.96 mm · Manufacturer: Sachs · Material: NBR · Area of application: Standard · Surface: coated · Place of use: Pinion shaft · Width: 3.5 mm · Ø outside: 31.5 mm · Temperature resistance (min.): -30 - 100 °C · Pony spare part no.: A1134 · Sachs spare part no.: 0230 011 100 · Sachs spare part no.: 0230 011 200
CHF 7.50
swiing® revival clamp body reinforced | Sachs 503 AB, AC, ADV, ABL (A1196)
Manufacturer: swiing® revival parts · Material: Steel · Surface: Hardened · Number of teeth: 24 pcs · Height: 10.9 mm · Ø outside: 26.8 mm · Ø inside: 19 mm · Pony spare part no.: A1196 · Sachs spare part no.: 0232 186 100
CHF 64.90
Jasil crankshaft | Sachs 503 AC / ADV (A3337 / A2904)
Manufacturer: Jasil · Area of application: Standard · Material: Steel · Cheek type: standard · Crankshaft stroke: 44 mm · Connecting rod length center-center: 86 mm · Thread length: 7 mm · Thread length: 11 mm · Total length of crankpin on clutch side: 97 mm · Weight: 964 g · Total length crankpin ignition side: 62 mm · Ø crank webs: 83 mm · Ø piston pin (B): 12 mm · Ø Connecting rod eye: 15 mm · Ø Bearing seat (clutch side): 12 mm · Thread type: MF10x1 (fine pitch thread) · Ø Bearing seat (ignition side): 15 mm · Dimension needle bearing: 12 / 15 x 12.8 mm (axe 12) · Wide crank webs: 34.2 mm · Length 1st paragraph: 9.4 mm · Length 2nd paragraph: 19.4 mm · Length 3rd paragraph: 74 mm · Ø 1st step (on the coupling side): 17 mm · Ø 2nd shoulder (on the clutch side): 12 mm · Ø 3rd step (on the clutch side): 11.6 mm · Length of shoulder (ignition side): 32 mm · Number of gears: 2 pcs
CHF 199.90
Oil seal NBR 15/30/7 B DUO | Sachs 50/2 / 503 (A1830)
Temperature resistance (min.): -30 - 100 °C · Simmering type: B DUO - With sheet metal outer casing / two sealing lips. · Manufacturer: Sachs · Material: NBR · Width: 7 mm · Ø outside: 30 mm · Ø inside: 15 mm · Pony spare part no.: A1830 · Sachs spare part no.: 0250 090 000
CHF 5.40
NTN 6202 C3 ball bearing 15/35/11
Bearing cage: "-" Sheet steel cage ball-guided · Ø inside: 15 mm · Stock number: 6202 · Inner ring width: 11 mm · Manufacturer: NTN · Bearing clearance: C3 · Bearing type: Deep groove ball bearing · Width: 11 mm · Ø outside: 35 mm · Puch spare part no.: 900.4.6202
CHF 5.90
Not in stock

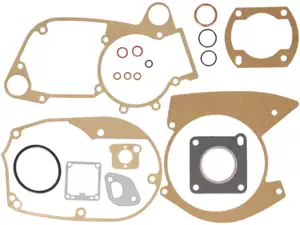

swiing® revival gasket set | Sachs 503 ADV wide wall Cat.
