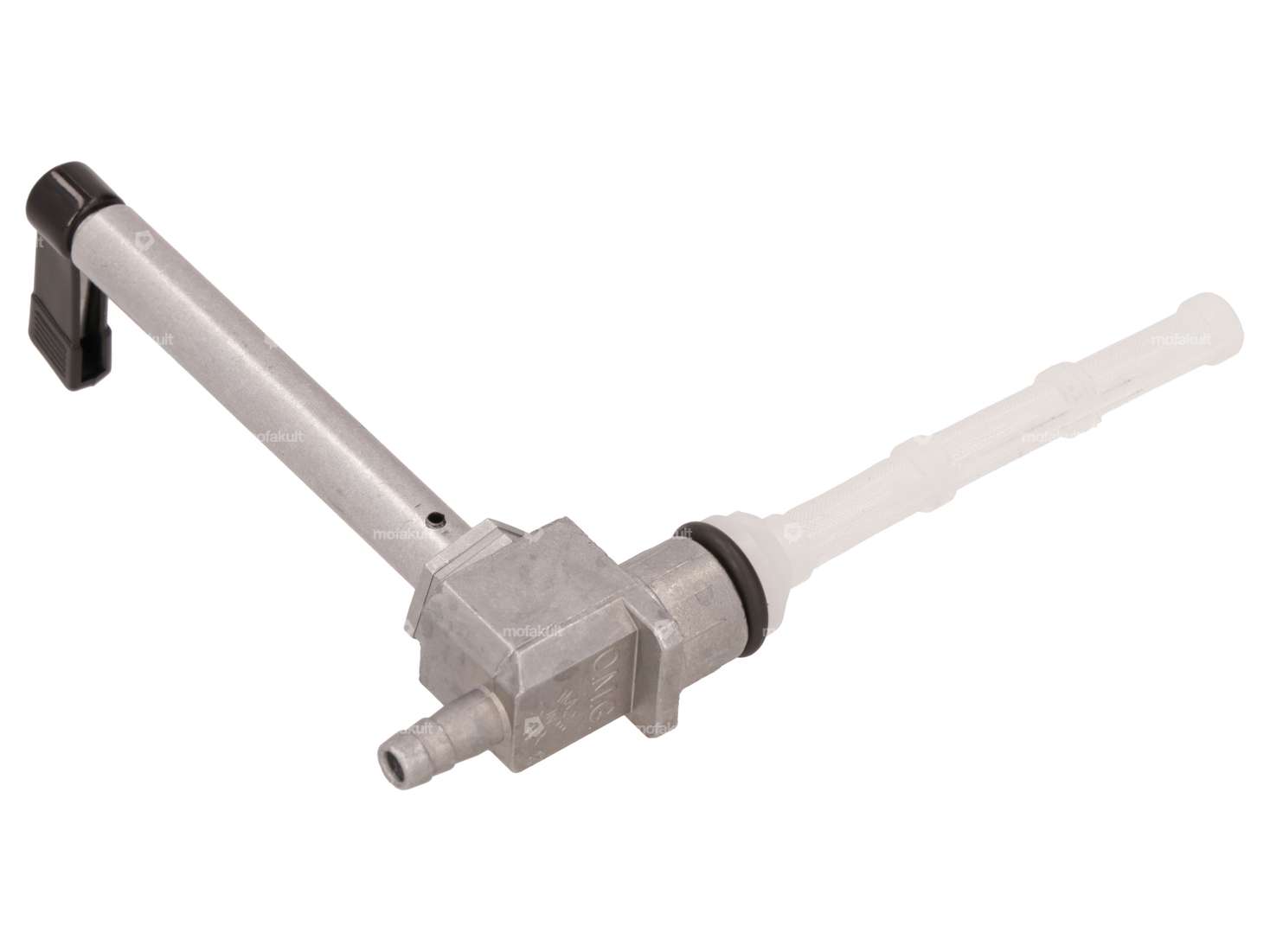

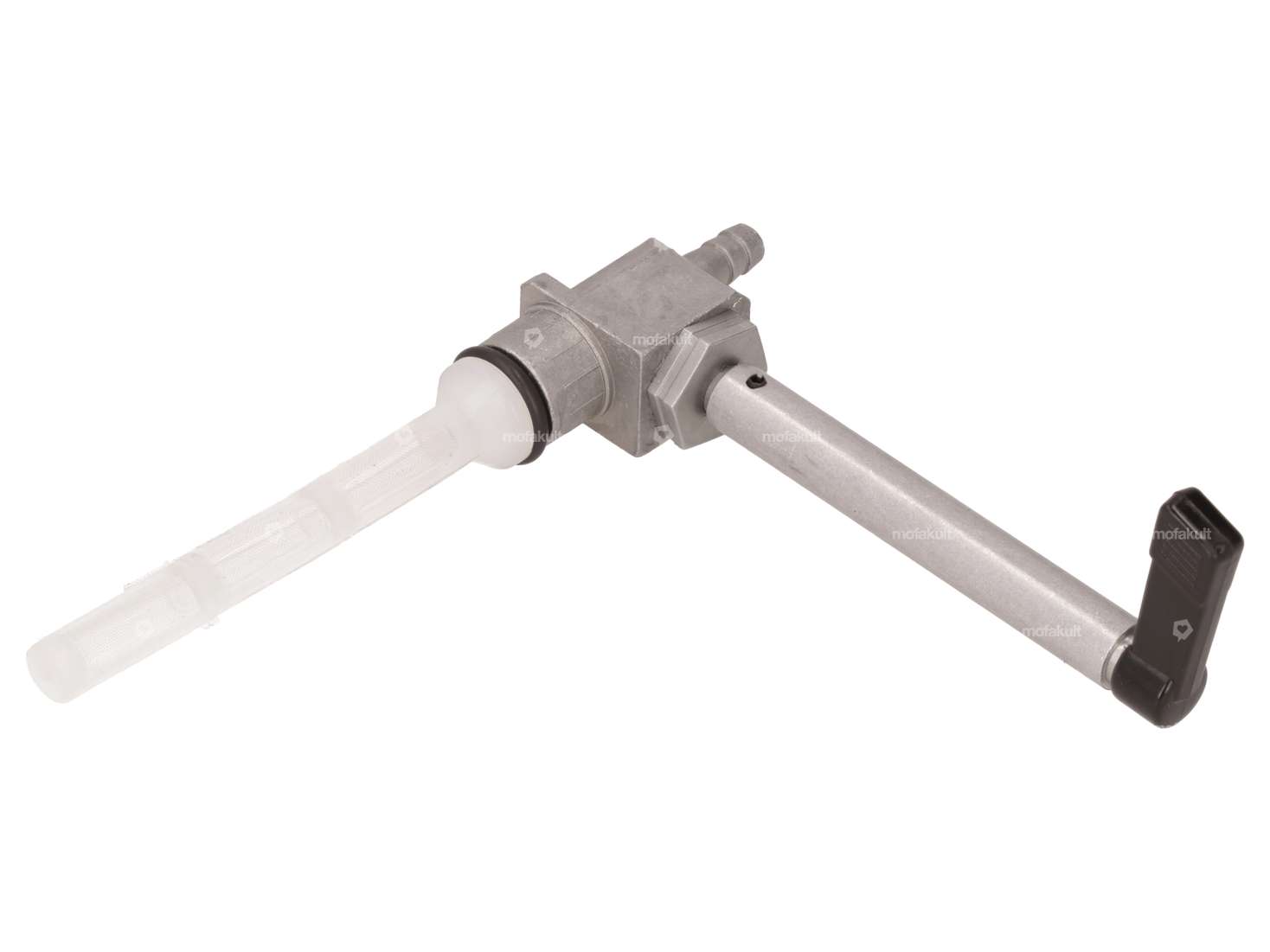

Fuel tap with plug-in connection (without thread) and downwardly extending nozzle for your Piaggio Boxer BTV1 & BTV2 moped / moped. The fuel tap is operated via a special control element.
The fuel connection has the following features:
Ø Connection: 15 mm
Connection type: plugged

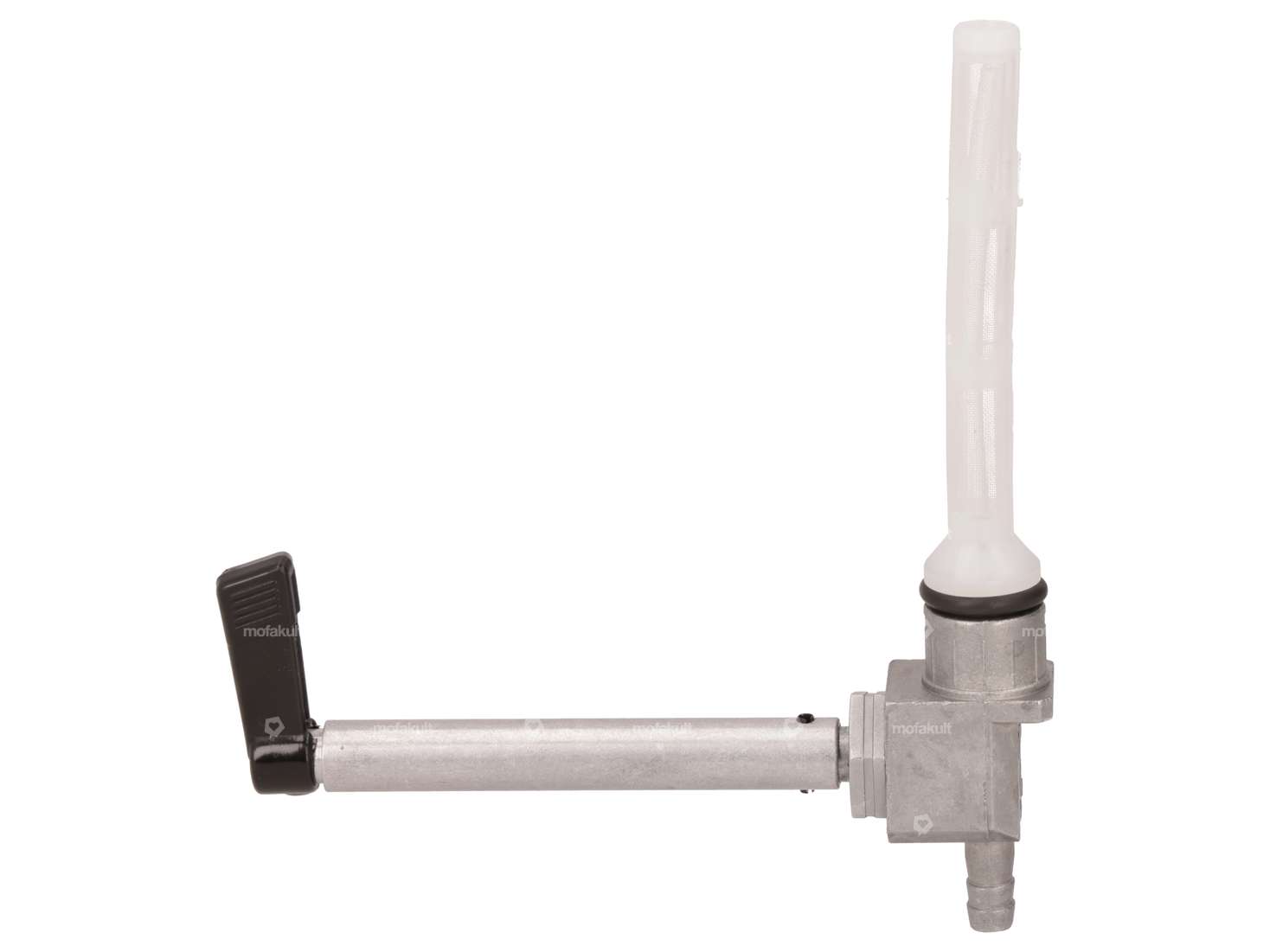

Positions: closed / open / reserve (Figure 1 shows center position)
Ø Fuel hose connection: 6 mm / 5.5 mm
Reserve height (filter length): 80 mm
Length of lever axle from screw connection: 75 mm
Matching fuel hoses, filters and clamps can be found under accessories.
Quality product from the Italian manufacturer OMG.
Details
| Manufacturer | OMG |
| Outer width | 17 mm |
| Material | Aluminum, Plastic |
| Possible lever positions | open / closed / reserve |
| Material lever | Plastic |
| Filter type | Plastic net |
| Installation direction | vertical / vertical |
| Outlet direction | below |
| Spare tube shape | straight |
| Mounting type | Plug connection |
| Reserve level | 80 mm |
| Ø fuel hose connection | 6 mm, 5.5 mm |
Suitable for the following models
| Piaggio | Boxer |
