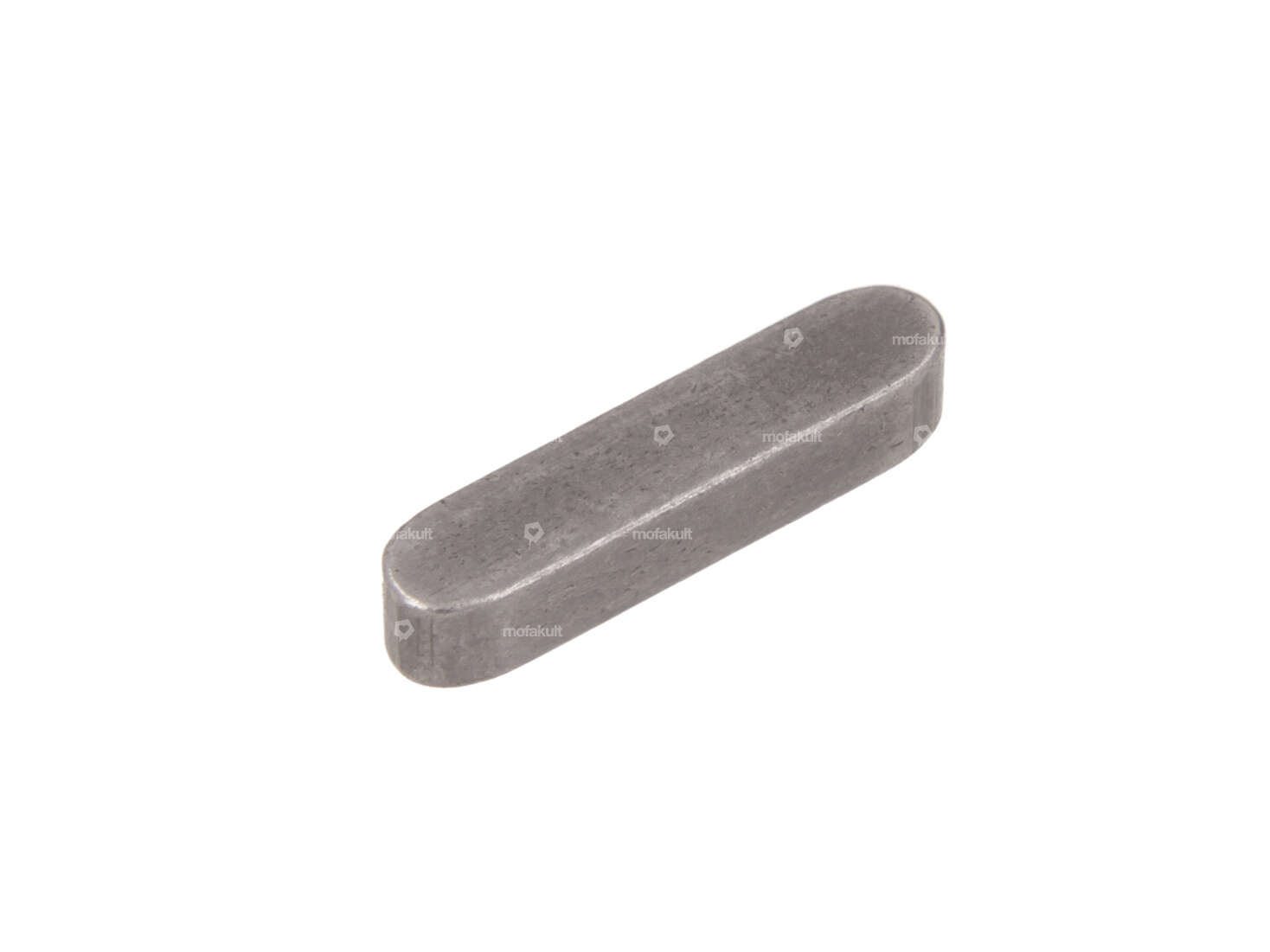

Polini Vario input shaft key | Piaggio Ciao, SI, Bravo, Boxer

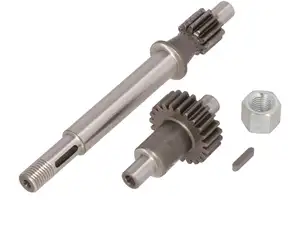

Polini Vario input shaft & 1st gear | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Polini · Material: Steel · Number of teeth: 11 pcs · Number of teeth: 23 pcs · Toothing type: straight toothed · Translation: 11.40 / 1 · Translation: 12.82 / 1 · Gearbox type: Vario

Polini Vario 13:1 / 11.5:1 gearbox ratio (selection) | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Polini · Material: Steel · Toothing type: straight toothed · Translation: 11.40 / 1 · Translation: 12.82 / 1 · Gearbox type: Vario

Jasil crankshaft "Original" 10 mm KoBo | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Jasil · Cheek type: standard · Crankshaft stroke: 43 mm · Ø coupling pin / vario pin: 12 mm · Connecting rod length center-center: 87 mm · Total length crankpin ignition side: 91.5 mm · Ø piston pin (B): 10 mm · Ø Connecting rod eye: 13 mm · Ø Bearing seat (clutch side): 15 mm · Ø Bearing seat (ignition side): 15 mm · Thread type: M8x1.25 (standard thread) · Dimension needle bearing: 10 / 13 x 14.2 mm (axe 10) · Wide crank webs: 33 mm · Length 1st paragraph: 21.5 mm · Length 2nd paragraph: 43.5 mm · Length 3rd paragraph: 64 mm · Number of gears: 1 pcs · Area of application: Standard

Cable set black | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Made in Germany · Material: Steel · Color: black · Quantity: 4 pcs · Ø Stranded wire: 1.25 mm · Ø Stranded wire: 1.5 mm · Ø Stranded wire: 1.8 mm · Total length: 1350 mm · Total length: 1600 mm · Total length: 2180 mm · Outer shell length: 1200 mm · Outer shell length: 1250 mm · Outer shell length: 1300 mm · Outer shell length: 2000 mm · Nipple shape: Ball · Nipple shape: Barrel (transverse) · Nipple shape: Pears

NTN 6202 C3 ball bearing 15/35/11

Bearing type: Deep groove ball bearing · Stock number: 6202 · Ø inside: 15 mm · Ø outside: 35 mm · Width: 11 mm · Inner ring width: 11 mm · Manufacturer: NTN · Bearing clearance: C3 · Bearing cage: "-" Sheet steel cage ball-guided · Puch OEM number: 900.4.6202

Nut M8 SW24 crankshaft / Variomat original | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Piaggio · Material: Steel · Surface: galvanized (blue) · Nut type: Hexagon nut 0.8D · Thread type: M8x1.25 (standard thread) · Drive: External hexagon · Height: 7 mm · Width across flats SW: 24 mm

Light coil plug | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Quenching · Tension: 6 V · Tension: 12 V · Height: 10.5 mm · Total length: 13 mm · Mounting type: Plug connection · Area of application: Standard · Piaggio OEM number: 122390

Parallel key 3 x 14 mm round-headed

Total length: 14 mm · Width: 3 mm · Height: 3 mm · Material: Steel · Surface: Hardened

GPO engine overhaul kit with bearing selection | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: GPO · Number of components: 9 pcs
