With this practical set, defective spark plug threads in the cylinder head can be repaired quickly and easily.
Re-cut the defective thread with the supplied tap, screw in the matching thread insert - done!

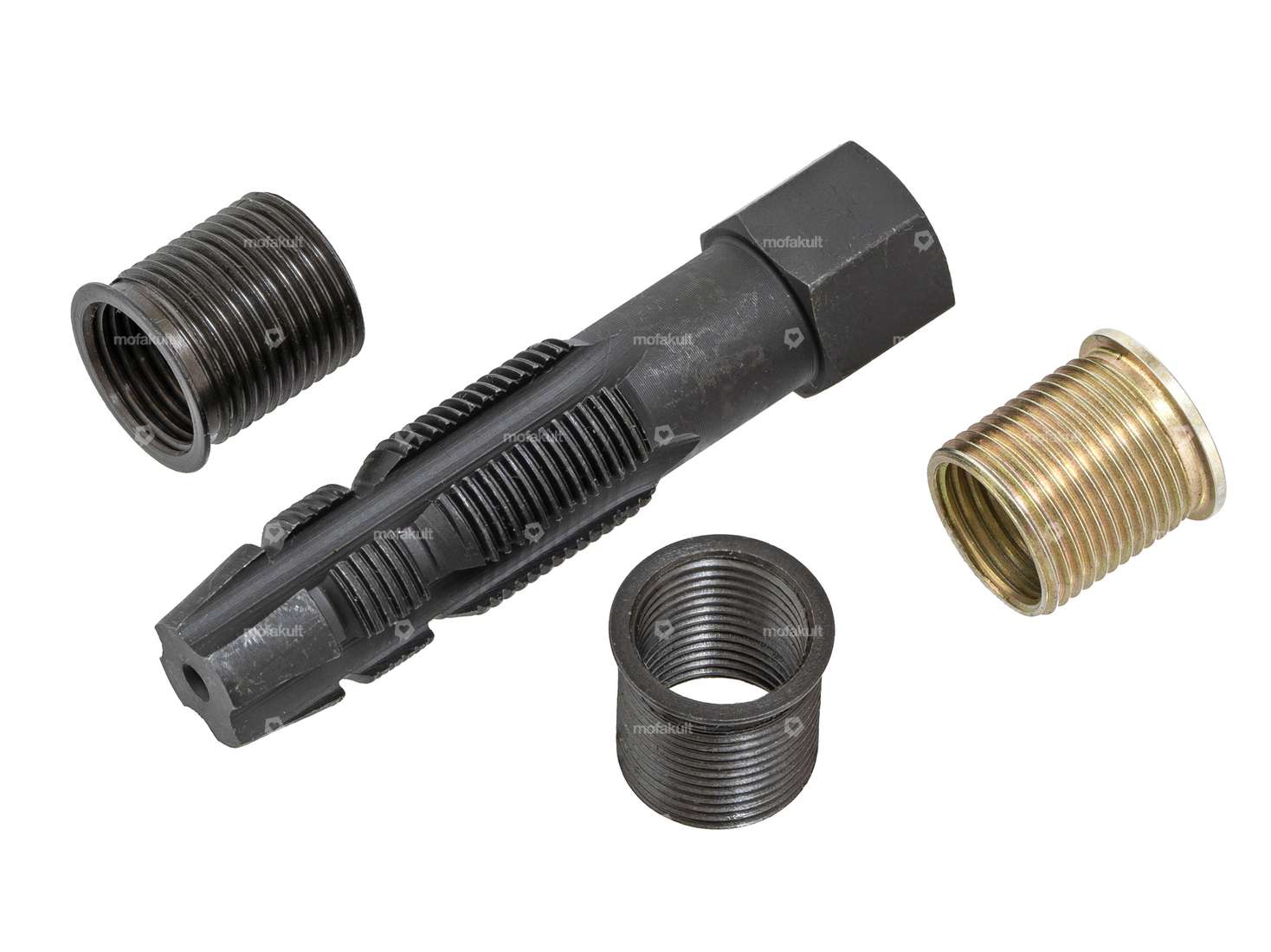

The following individual parts are included in the set:
- 1 piece HSS tap with external hexagon (SW 16 mm)
- 5 pieces. Threaded inserts M14 x 1.25 mm, 11.5 mm length, black finish
- 5 pcs. Threaded inserts M14 x 1.25 mm, 17.5 mm length, black brüniert
- 5 pcs. Threaded inserts M14 x 1.25 mm, 17.5 mm length, yellow galvanized

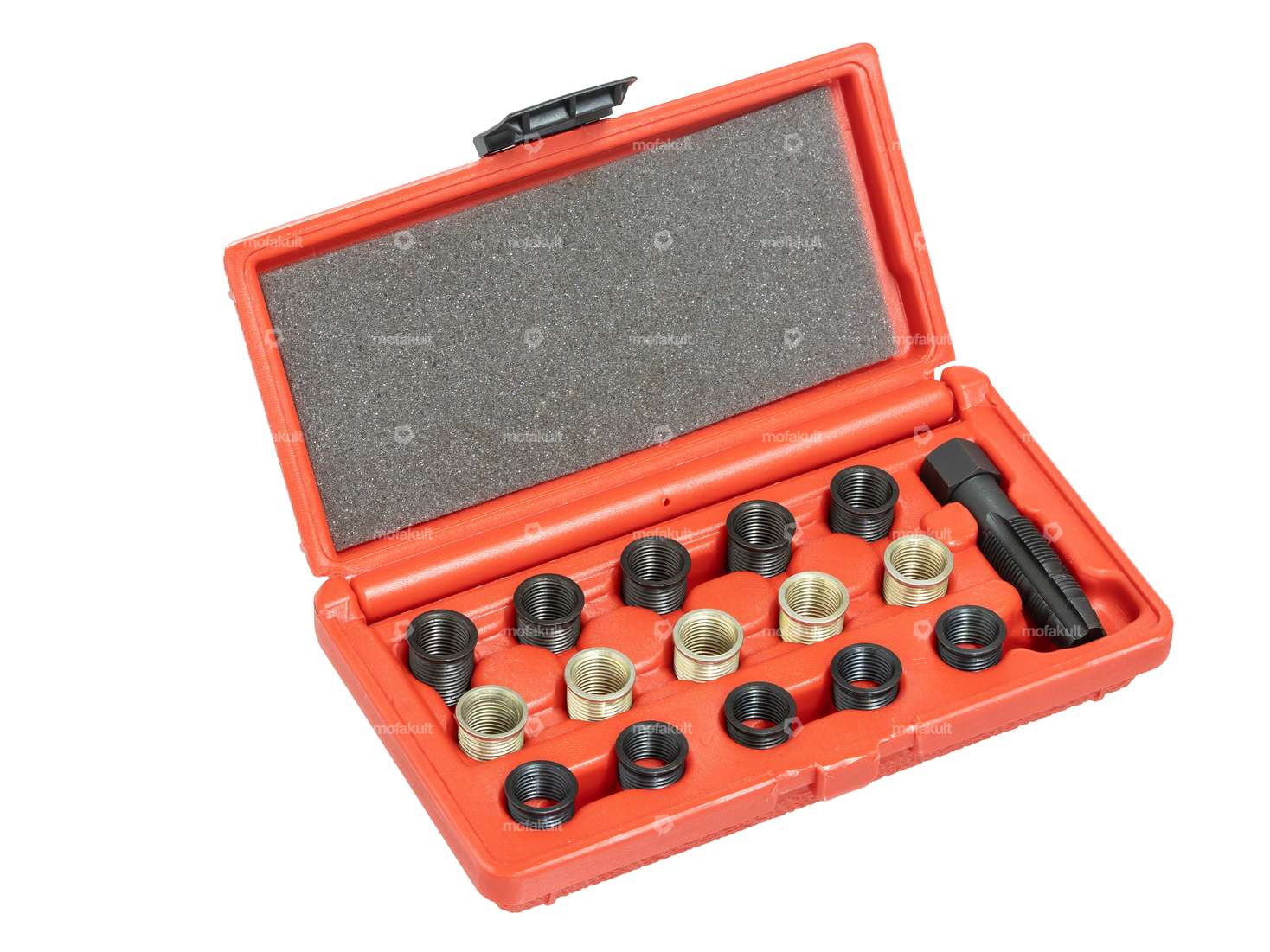

All components are packed in a practical plastic box.
Details
| Storage method | Plastic box |
| Material | Steel |
| Surface | burnished, galvanized (blue) |
| Thread type | MF14x1.25 (fine pitch thread) |
| Ø outside | 17.4 mm |
| Ø bore | 14 mm |
| Total length | 70.4 mm, 17.5 mm, 11.3 mm |
| Nominal diameter (thread) | 14 mm |
| Area of application | Workshop accessories |
| Number of components | 16 pcs |
| Dimension storage box | 19 x 105 x 40 mm |
Suitable for the following models
| Universal | |
| Puch | |
| Sachs | |
| Pony / Cilo (Beta 521 & 512) | |
| Piaggio | |
| Zündapp Belmondo | |
| Solex | |
| Tomos | |
| Bye Bike | |
| Alpa Chopper / Turbo |
| Cilo | |
| DKW | |
| Fantic | Issimo |
| Garelli | |
| Honda | |
| Hercules | |
| ILO / JLO | |
| Kreidler | Flory MF Florett |
| Malaguti | |
| MBK | |
| Miele | |
| Motobecane | |
| Monark | |
| Peugeot | |
| Victoria | |
| Yamaha | |
| Zündapp | 434 Fahrgestell (Bergsteiger) 278 Motor |
