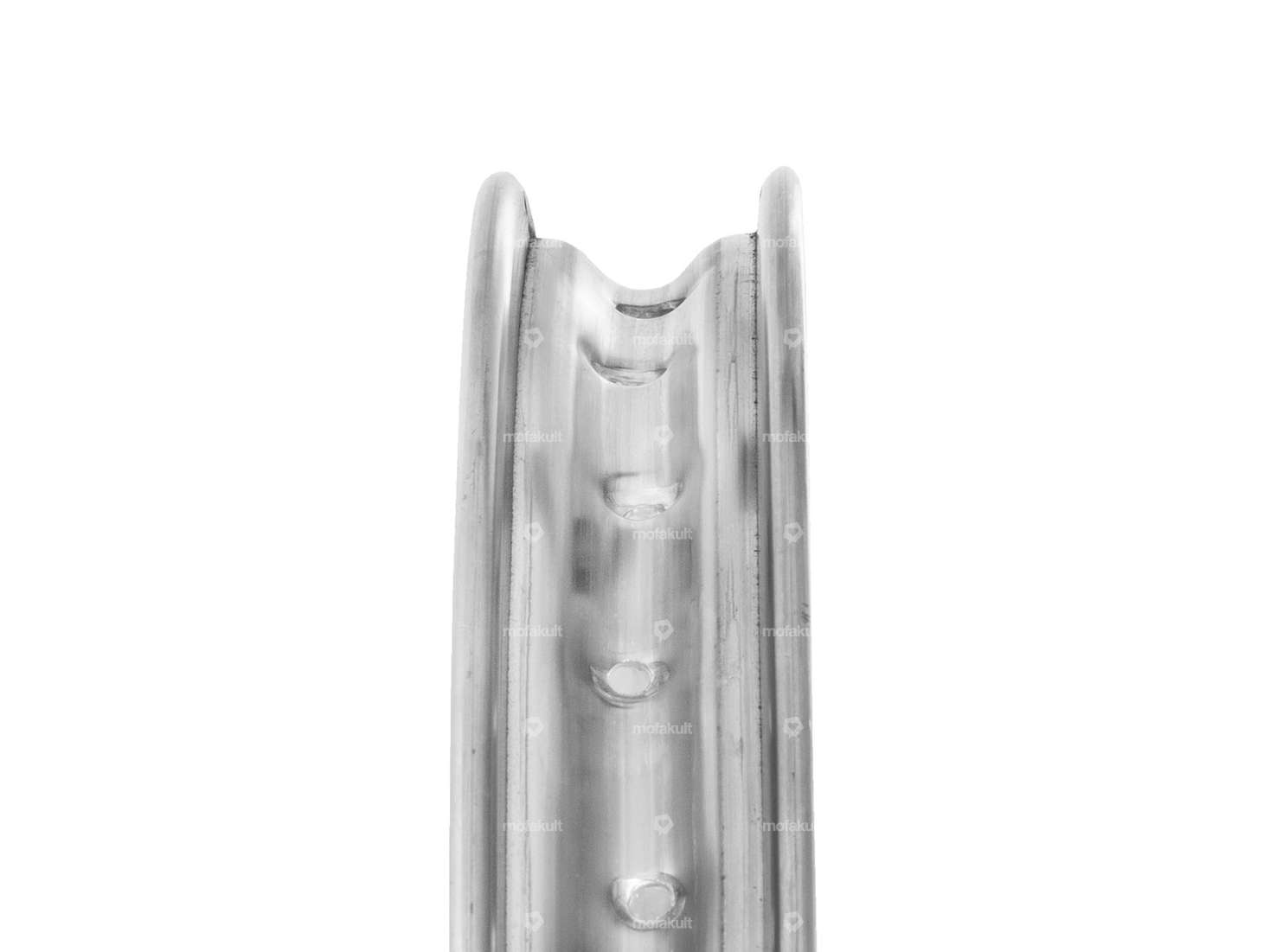

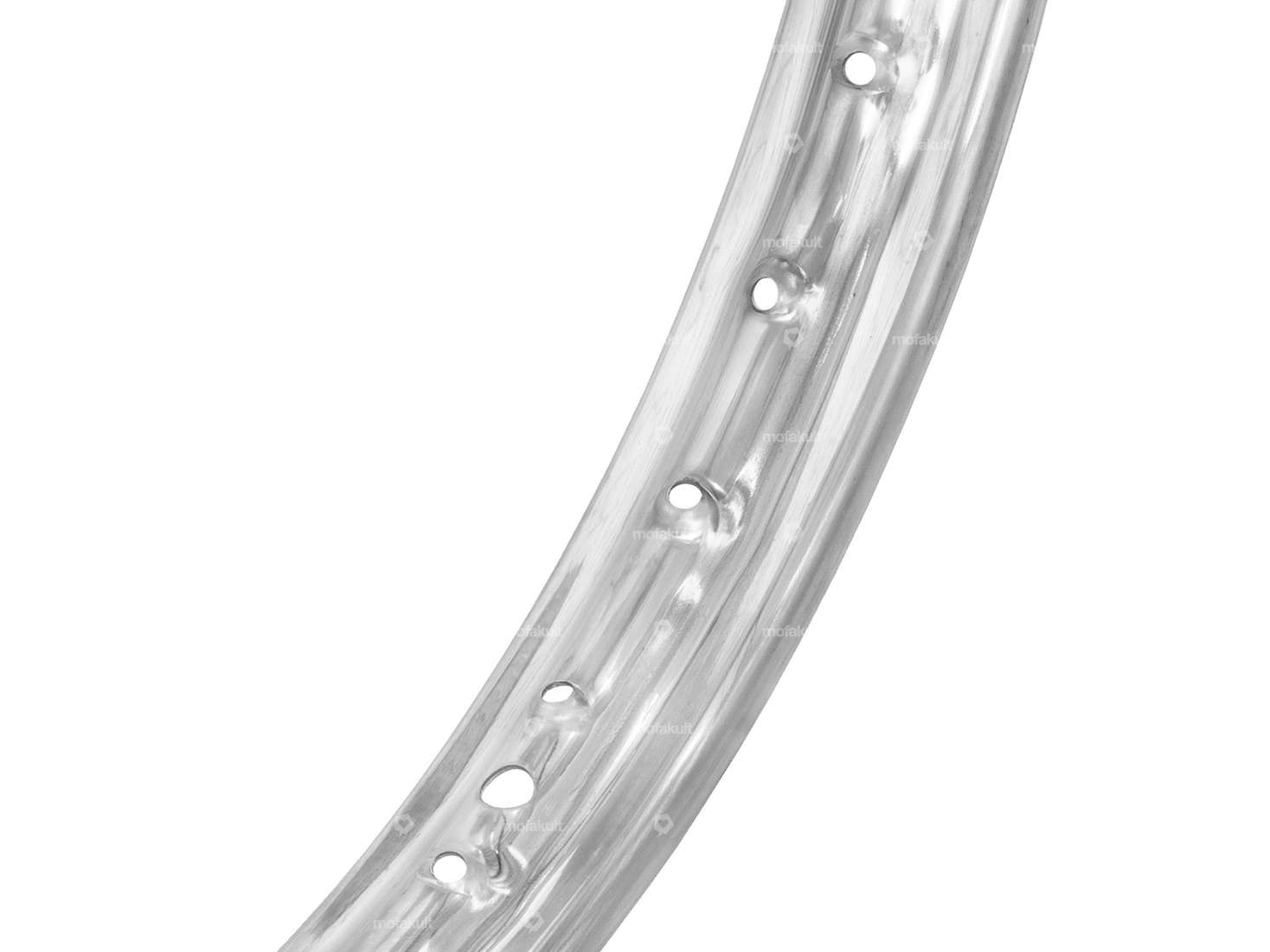

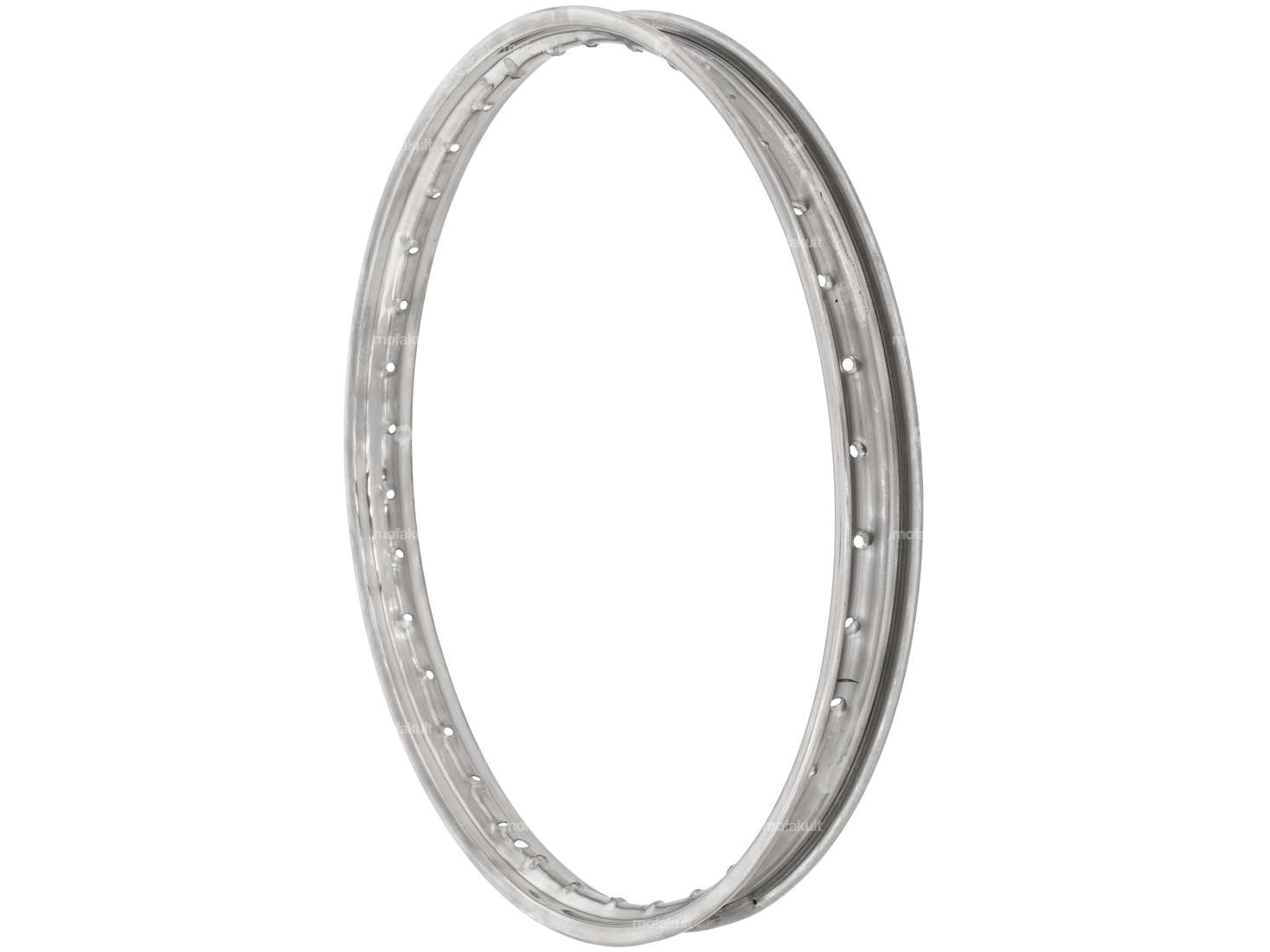

Sleek 19x1.35" rim with 36 nipples to fit various 19-inch spoke wheels on your moped, moped or small motorcycle.
The rim belt is made of steel and is completely raw. Ideal for powder coating or painting. This rim tire convinces with super workmanship.

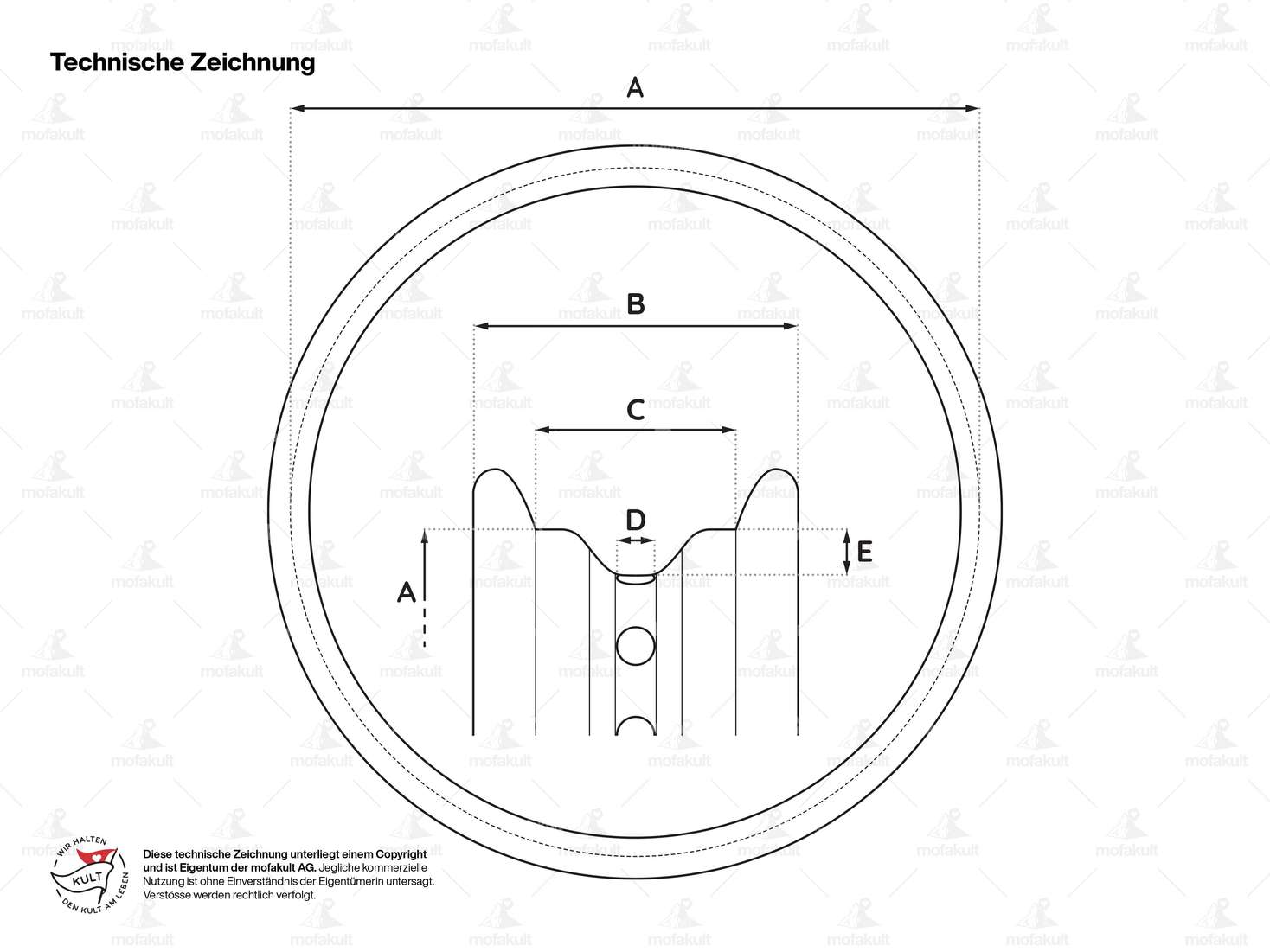

Nominal diameter (A): 483 mm
Total width outside (B): 49 mm
Mouth width (C): 34.0 mm
Ø nipple hole (D): 5.5 mm
Depth rim bed (E): 7.7 mm
Number of nipple holes: 36
Matching spoke sets, alternative rim rings and a corresponding tube and tire can be found in the accessories section.
A quality product made in Italy.
Details
| Nominal diameter | 484 mm |
| Manufacturer | Made in Italy |
| Material | Steel |
| Surface | raw |
| Wheel size [inch] | 19 " |
| Rim well depth | 7.7 mm |
| Jaw width [inch] | 1.35 " |
| Jaw width | 34 mm |
| Ø Nipple hole | 5.5 mm |
| Number of spoke holes | 36 pcs |
| Overall width outside | 49 mm |
Suitable for the following models
| Universal | |
| Puch | |
| Sachs |
