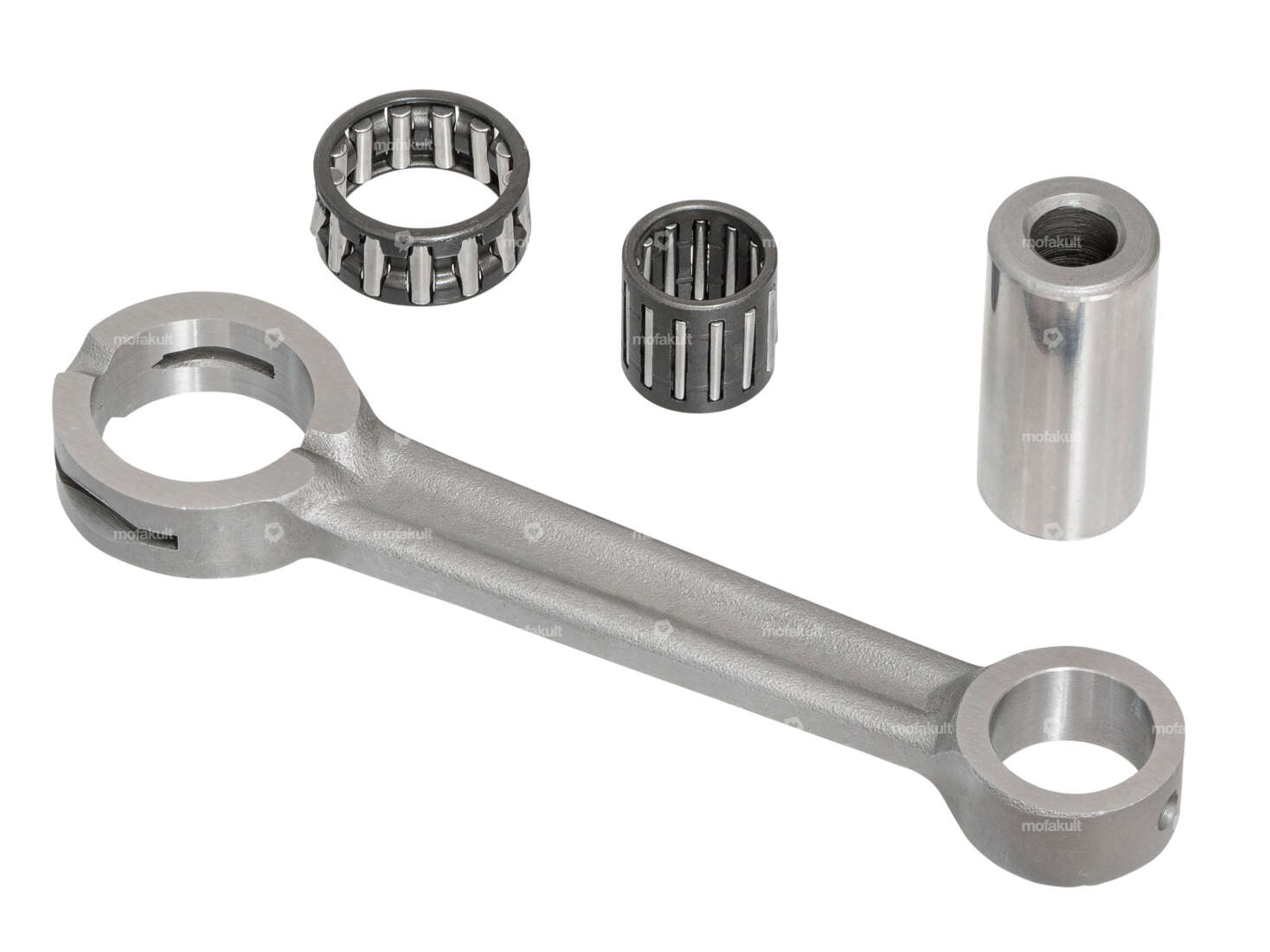

Rito connecting rod | Puch

Motorex Automatic Motor Oil (ATF) 450 ml

Temperature resistance (min.): -45 - 200 °C · Manufacturer: Motorex · Contents [ml]: 450 ml · Gearbox type: Automatic machine · Area of application: Gearbox lubrication with clutch · Pony spare part no.: A2080 · Sachs spare part no.: 0263 014 002

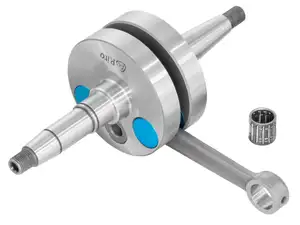

Rito Crankshaft Racing | Puch E50

Dimension needle bearing: 12 / 15 x 15 mm (axe 12) · Manufacturer: Rito · Material: Steel · Cheek type: Full cheeks · Thread type: MF10x1 (fine pitch thread) · Crankshaft stroke: 43 mm · Connecting rod length center-center: 90 mm · Weight: 970 g · Total length of crankpin on clutch side: 74 mm · Total length crankpin ignition side: 67 mm · Ø crank webs: 69.9 mm · Area of application: Racing · Area of application: Tuning · Ø Connecting rod eye: 15 mm · Thread length: 11 mm · Thread length: 14 mm · Ø piston pin (B): 12 mm · Ø Bearing seat (clutch side): 17 mm · Ø Bearing seat (ignition side): 17 mm · Wide crank webs: 34 mm · Length 1st paragraph: 9 mm · Length 2nd paragraph: 14.5 mm · Length 3rd paragraph: 25 mm · Ø 1st step (on the coupling side): 22 mm · Ø 2nd shoulder (on the clutch side): 17 mm · Ø 3rd step (on the clutch side): 15 mm · Length of shoulder (ignition side): 26.3 mm · Number of gears: 1 pcs

Jasil crankshaft | Puch E50

Manufacturer: Jasil · Area of application: Standard · Material: Steel · Cheek type: standard · Crankshaft stroke: 43 mm · Connecting rod length center-center: 90 mm · Thread length: 11 mm · Thread length: 15 mm · Total length of crankpin on clutch side: 74 mm · Weight: 942 g · Total length crankpin ignition side: 67 mm · Ø crank webs: 69.9 mm · Ø piston pin (B): 12 mm · Ø Connecting rod eye: 15 mm · Ø Bearing seat (clutch side): 17 mm · Thread type: MF10x1 (fine pitch thread) · Ø Bearing seat (ignition side): 17 mm · Dimension needle bearing: 12 / 15 x 14.6 mm (axe 12) · Wide crank webs: 34.3 mm · Length 1st paragraph: 23.3 mm · Length 2nd paragraph: 25 mm · Ø 1st step (on the coupling side): 17 mm · Ø 2nd shoulder (on the clutch side): 15 mm · Length of shoulder (ignition side): 26.3 mm · Number of gears: 1 pcs

Mazzucchelli crankshaft original E50

Manufacturer: Mazzucchelli · Area of application: Standard

swiing® revival crankshaft standard (version 2.0) | Puch E50

Manufacturer: swiing® revival parts · Area of application: Standard · Material: Steel · Cheek type: standard · Crankshaft stroke: 43 mm · Connecting rod length center-center: 90 mm · Thread length: 11 mm · Thread length: 15 mm · Total length of crankpin on clutch side: 74 mm · Weight: 873 g · Total length crankpin ignition side: 66 mm · Ø crank webs: 69.9 mm · Ø Connecting rod eye: 15 mm · Ø Bearing seat (clutch side): 17 mm · Thread type: MF10x1 (fine pitch thread) · Thread type: MF8x1 (fine pitch thread) · Ø Bearing seat (ignition side): 17 mm · Dimension needle bearing: 12 / 15 x 14.2 mm (axe 12) · Wide crank webs: 34 mm · Length 1st paragraph: 9 mm · Length 2nd paragraph: 14.5 mm · Length 3rd paragraph: 25 mm · Ø 1st step (on the coupling side): 22 mm · Ø 2nd shoulder (on the clutch side): 17 mm · Ø 3rd step (on the clutch side): 15 mm · Length of shoulder (ignition side): 26.3 mm · Number of gears: 1 pcs

swiing® ingenious crankshaft High End (Version 2.0) | Puch E50

Manufacturer: swiing® ingenious parts · Area of application: High End · Area of application: Racing · Area of application: Tuning · Material: Aluminum · Cheek type: Full cheeks · Material: Steel · Crankshaft stroke: 43 mm · Connecting rod length center-center: 90 mm · Thread length: 11 mm · Thread length: 15 mm · Total length of crankpin on clutch side: 74 mm · Weight: 968 g · Total length crankpin ignition side: 66 mm · Ø crank webs: 69.9 mm · Ø piston pin (B): 12 mm · Ø Connecting rod eye: 15 mm · Ø Bearing seat (clutch side): 17 mm · Thread type: MF10x1 (fine pitch thread) · Ø Bearing seat (ignition side): 17 mm · Dimension needle bearing: 12 / 15 x 14.2 mm (axe 12) · Wide crank webs: 34 mm · Length 1st paragraph: 9 mm · Length 2nd paragraph: 14.5 mm · Length 3rd paragraph: 25 mm · Ø 1st step (on the coupling side): 22 mm · Ø 2nd shoulder (on the clutch side): 17 mm · Ø 3rd step (on the clutch side): 15 mm · Number of gears: 1 pcs

Rito connecting rod "Racing" Ø 16 mm bolt | Sachs

Manufacturer: Rito · Area of application: High End · Area of application: Tuning · Material: Steel · Surface: polished · Connecting rod length center-center: 85 mm · Ø Connecting rod bolt: 16 mm · Ø lower connecting rod eye outside: 28.2 mm · Total length: 110 mm · Thickness: 10 mm · Ø upper connecting rod eye outside: 21.6 mm · Ø piston pin (B): 12 mm · Ø lower bearing inside: 21 mm · Ø inside upper bearing: 15 mm · Dimension lower bearing: 16/21 x 9.7 mm · Dimension upper bearing: 12/15 x 14.7 mm · Connecting rod pin length: 38.5 mm

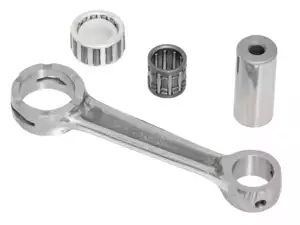

Rito connecting rod "Racing" Ø 16 mm bolt | Zündapp

Manufacturer: Rito · Area of application: High End · Area of application: Tuning · Material: Steel · Surface: polished · Connecting rod length center-center: 91 mm · Ø Connecting rod bolt: 16 mm · Ø lower connecting rod eye outside: 29.6 mm · Total length: 117 mm · Thickness: 12 mm · Ø upper connecting rod eye outside: 23 mm · Ø piston pin (B): 12 mm · Ø lower bearing inside: 22 mm · Ø inside upper bearing: 16 mm · Dimension lower bearing: 16/22 x 11.7 mm · Dimension upper bearing: 12/16 x 15.7 mm · Connecting rod pin length: 37.3 mm

swiing® ingenious clutch springs reinforced (+20%) (Version 2.0) | Puch E50

Spring design: Pressure spring · Total length: 28 mm · Ø wire: 1.7 mm · Manufacturer: swiing® ingenious parts · Material: Spring steel · Surface: coated · Number of components: 3 pcs · Area of application: Tuning · Color: blue · Ø inside: 4.8 mm · Ø outside: 8.3 mm

Chrome side panels | Puch Maxi S

Material: Plastic · Surface: chrome-plated · Color: Chrome · Width: 80 mm · Width: 90 mm · Height: 165 mm · Height: 200 mm · Number of fixing points: 6 pcs · Ø mounting hole: 7 mm · Total length: 705 mm · Total length: 730 mm

GPO sprocket 13 teeth (wide) | Puch

Chain pitch: 1/2" x 3/16" · Chain type: 415H · Manufacturer: GPO · Material: Steel · Surface: Hardened · Number of teeth: 13 pcs · Ø inside: 13.7 mm · Ø inside: 16.9 mm · Recording type: Interlocking · Total thickness: 4.6 mm

GPO sprocket 12 teeth (wide) | Puch

Ø inside: 13.7 mm · Ø inside: 16.9 mm · Manufacturer: GPO · Material: Steel · Surface: Hardened · Chain type: 415H · Recording type: Interlocking · Chain pitch: 1/2" x 3/16" · Number of teeth: 12 pcs · Total thickness: 4.6 mm

GPO sprocket 14 teeth (wide) | Puch

Chain pitch: 1/2" x 3/16" · Chain type: 415H · Manufacturer: GPO · Material: Steel · Surface: Hardened · Number of teeth: 14 pcs · Recording type: Interlocking · Total thickness: 4.6 mm

GPO sprocket 15 teeth (wide) | Puch

Chain pitch: 1/2" x 3/16" · Chain type: 415H · Manufacturer: GPO · Material: Steel · Surface: Hardened · Number of teeth: 15 pcs · Ø inside: 13.7 mm · Ø inside: 16.9 mm · Recording type: Interlocking · Total thickness: 4.6 mm

Motorex Automatic Motor Oil (ATF) 450 ml

Temperature resistance (min.): -45 - 200 °C · Manufacturer: Motorex · Contents [ml]: 450 ml · Gearbox type: Automatic machine · Area of application: Gearbox lubrication with clutch · Pony spare part no.: A2080 · Sachs spare part no.: 0263 014 002

Fortune / Merrick 2.00-2.50 x 16/17" inner tube

Valve type: TR4 Auto valve · Manufacturer: Fortune · Tire width [inch]: 2 - 2.5 " · Tire width [mm]: 50.8 - 63.5 · Tire height [%]: 100 · Width [inch]: 2 · Width [inch]: 2 1/4 · Width [inch]: 2 1/2 · Wheel size [inch]: 16 - 17 " · Wheel size [inch]: 17 " · Old designation: 20 x 2 · Old designation: 20 x 2.25 · Old designation: 20 x 2.5 · Old designation: 21 x 2 · Old designation: 21 x 2.25 · Old designation: 21 x 2.5

Clutch pressure plate | Puch E50 Cat. (LG1)

Material: Steel · Ø outside: 100 mm · Thickness: 2 mm

Lamp grille round black

Total length: 70 mm · Width: 138 mm · Number of fixing points: 2 pcs · Wide intake: 128 mm · Material: Steel · Surface: varnished · Color: black · Ø outside: 130 mm · Grille length to attachment: 60 mm · Mounting type: Screws
