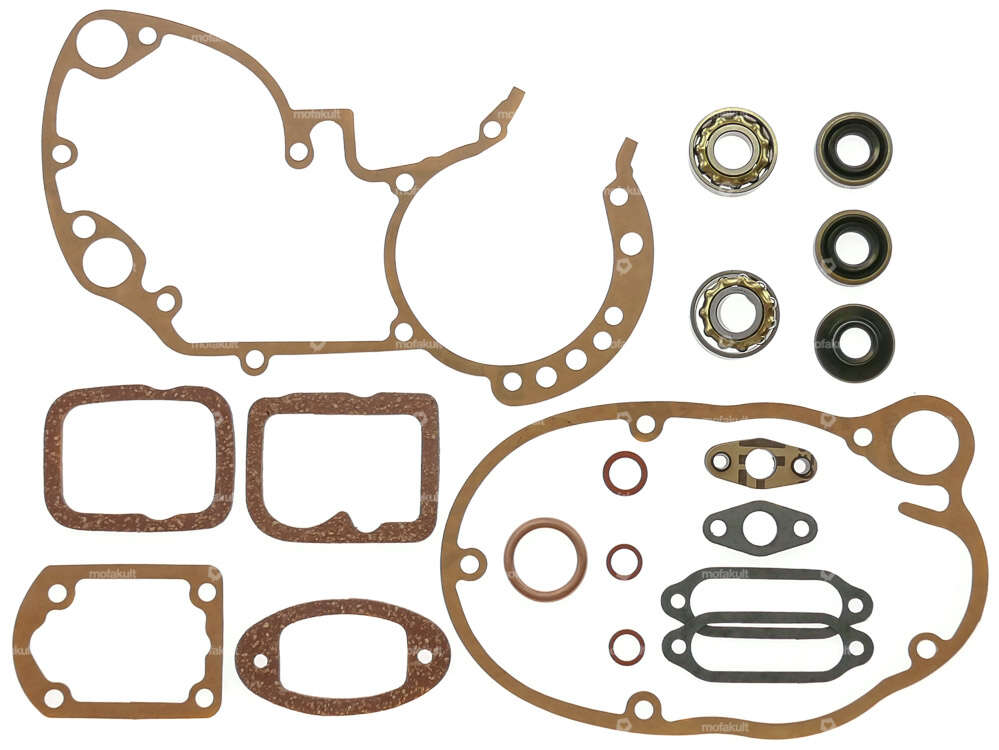

Small overhaul kit for your moped / moped with Sachs 502 & 50/2 engine.
The set consists of various seals and shaft seals / oil seals.
Corresponding tools and the matching oil can be found in the accessories section.
When you purchase this complete set, you will receive a substantial percentage off the retail price of the individual parts.
The set includes the following fixed parts:
Manufacturer: NSK · Material: Steel, Brass · Surface: blank · Area of application: Standard · Bearing type: Shoulder bearing · Stock number: E15 · Bearing clearance: CN (standard) · Ø inside: 15 mm · Ø outside: 35 mm · Width: 8 mm · Inner ring width: 8 mm · Ball bearing closed: No · Bearing cage: Brass cage ball-guided · Groove ring: No · Pony spare part no.: A1149 · Sachs spare part no.: 0232 017 006
Place of use: Admission · Thickness: 5 mm · Ø inside: 11.8 mm · Hole spacing inlet: 31 mm · Pony spare part no.: A1823 · Sachs spare part no.: 0250 085 000
Place of use: Admission · Thickness: 3.2 mm · Hole spacing inlet: 32 mm
Details
| Manufacturer | NSK |
| Area of application | Standard |
| Number of components | 18 pcs |
Suitable for the following models
| Sachs | 50/2 - L CH (0.8 PS), ML CH (0.8 PS), MB (2.6 PS), MLB (2.6 PS) |
