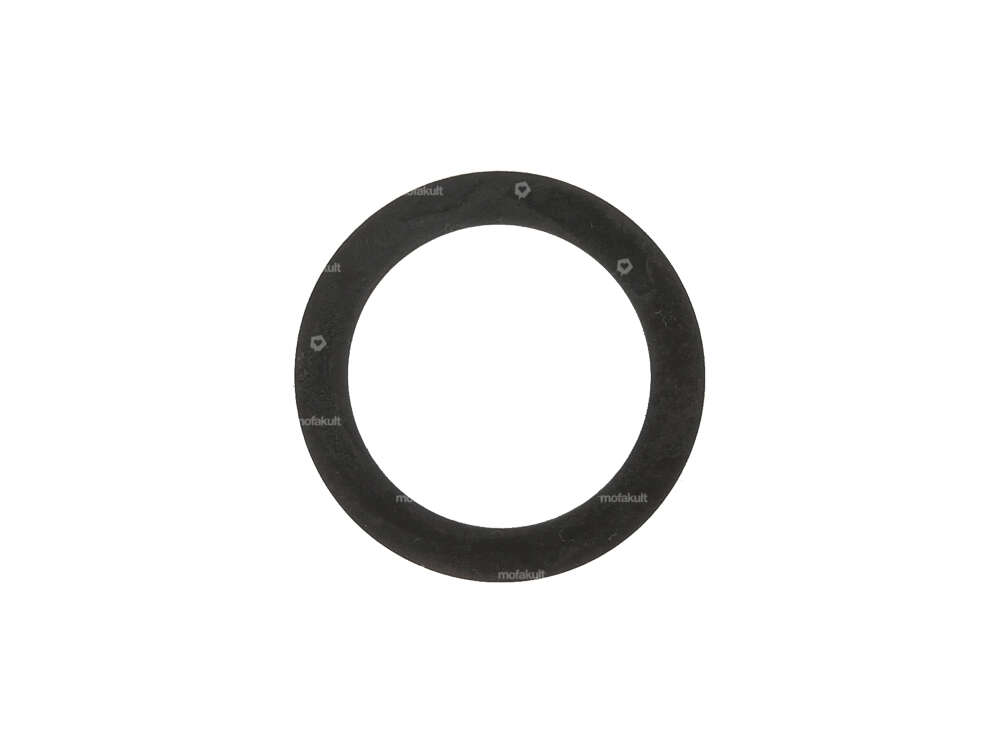

Spacer 19.1x26x0.3 mm for the countershaft in the gearwheel of the second gear on Sachs mopeds / mopeds with 503 ABL, AB, AC and ADV engines.
The spacer, which is mounted between the freewheel body and the bearing rollers or bearing rings, is made of hardened spring steel.
Ø inner: 19.1 mm
Ø outer: 26 mm
Thickness: 0.3 mm
Tolerance: DIN988 (-0.03 mm permissible for thickness)
This component is also known as a shim, bearing washer or thrust washer, depending on how it is used.
Original Sachs spare part number: A1197
The set includes the following fixed parts:
Details
| Nominal diameter | 19 mm |
| Manufacturer | Sachs |
| Ø inside | 19.1 mm |
| Material | Steel |
| Surface | blank / oiled |
| Thickness | 0.3 mm |
| Ø outside | 26 mm |
| Pony spare part no. | A1197 |
| Sachs spare part no. | 0244 200 000 |
Suitable for the following models
| Sachs | 503 - ABL, AB, AC, ADV |
