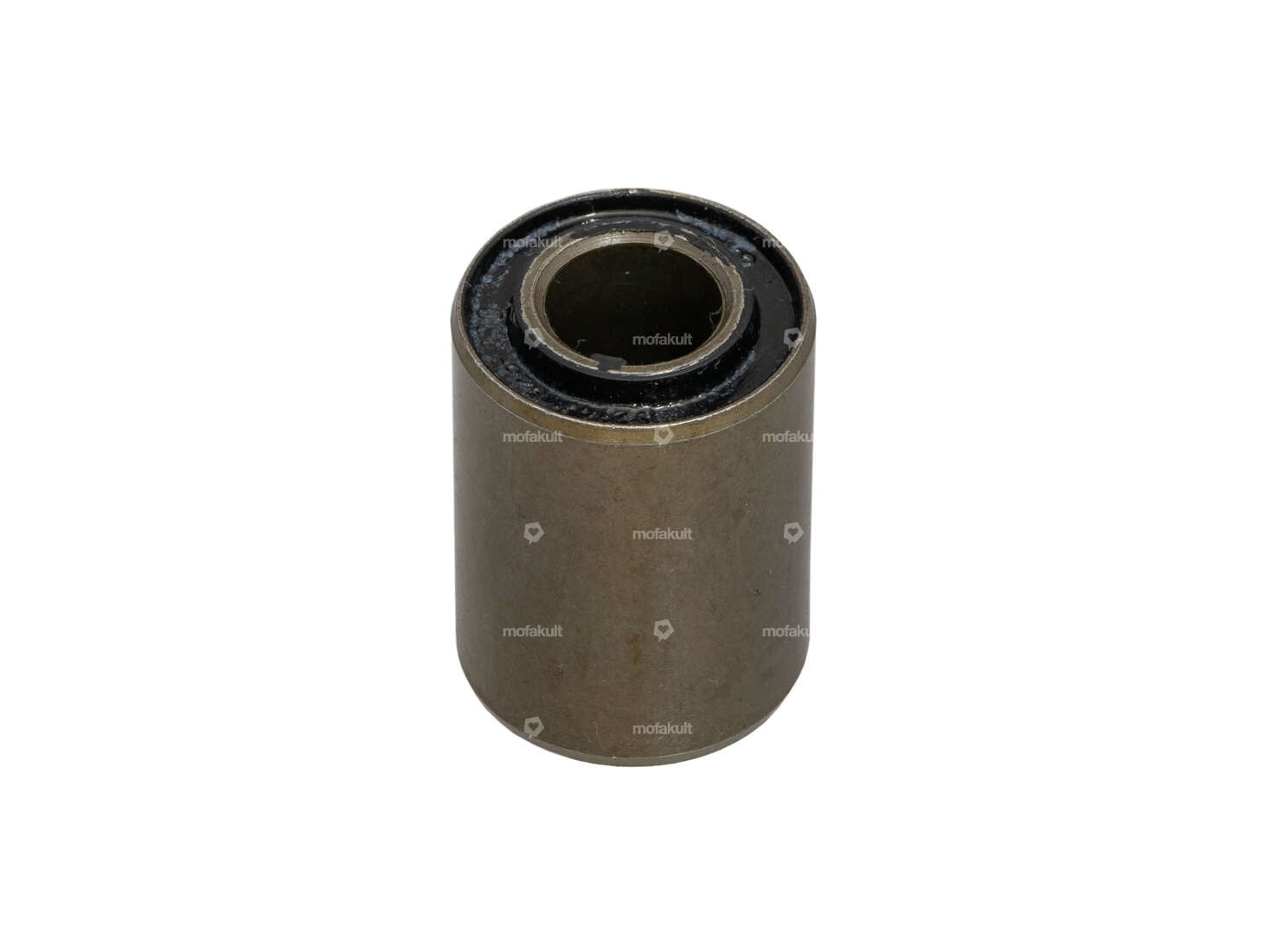

Silentblock swingarm bearing | Puch VZ50, MC50, X50, Monza

Guide times | Steyr - Daimler - Puch AG

Material: Paper · DIN format: A5 · Number of pages: 23 pcs

Engine gasket set | Puch MS, VS, DS, MV, M

Area of application: Standard · Number of components: 8 pcs

Thrust washer 12.5/25/1.5 NOS | Puch M50, DSV, VZV

Ø inside: 12.5 mm · Material: Steel · Surface: hardened & ground · Ø outside: 25 mm · Thickness: 1.5 mm

Intake rubber (1A quality) | Puch MS, VS, MV, DS, X50 (small motorcycle)

Manufacturer: Made in Italy · Material: Rubber · Color: black

Air filter Puch X50-4 | Duett | MK II

Area of application: Security · Material: Plastic · Color: black · Filter type: Standard sieve · Camouflaged: Yes · Mounting type: Plug connection

Crankshaft full cheek Puch MV, VS, MS, DS | Monza | X50 (3 & 4 speed)

Area of application: Tuning · Cheek type: Full cheeks · Total length of crankpin on clutch side: 73 mm · Total length crankpin ignition side: 66 mm · Ø piston pin (B): 12 mm · Ø Bearing seat (clutch side): 17 mm · Ø Bearing seat (ignition side): 17 mm · Number of gears: 3 pcs · Number of gears: 4 pcs

40 mm cylinder kit aluminum | Puch Monza, X50

Area of application: Tuning · Material: Aluminum · Surface: sandblasted · Crankshaft stroke: 43 mm · Displacement: 60 ccm · Camouflaged: No · Nominal diameter: 40 mm · Number of fixing points: 4 pcs · Hole spacing inlet: 32 mm · Ø piston pin (B): 12 mm · Thread inlet: M6x1 (standard thread) · Hole pattern [mm]: 44 x 44 · Hole spacing outlet: 42 mm · Outlet type: slanted · Thread outlet: M6x1 (standard thread)

Silentblock 10/22/33 mm

Material: Rubber · Material: Steel · Total length: 33 mm · Ø outside: 22 mm · Ø inside: 10 mm

Silentblock engine mount | Puch MS50, VS50, MV50

Ø inside: 8 mm · Material: Rubber · Material: Steel · Total length: 17 mm · Ø outside: 20 mm

Rear light glossy chrome - red

Material: Plastic · Test mark: none · Color: Chrome · Color: red · Width: 65 mm · Bulb holder: BA9s · Height: 45 mm · Number of fixing points: 1 pcs · Ø Receptacle: 3.5 mm · Depth: 55 mm · Battery operated: No · Mounting type: Nuts & bolts

Sliding bush fork original | Puch

Total length: 30 mm · Manufacturer: Made in Italy · Material: Plastic · Surface: raw · Color: white · Ø inside: 23 mm · Ø outside: 27 mm

Motorex Automatic Motor Oil (ATF) 450 ml

Temperature resistance (min.): -45 - 200 °C · Manufacturer: Motorex · Contents [ml]: 450 ml · Gearbox type: Automatic machine · Area of application: Gearbox lubrication with clutch · Pony spare part no.: A2080 · Sachs spare part no.: 0263 014 002

swiing® revival screw footboard M6 Inox | Piaggio Ciao

Total length: 17 mm · Manufacturer: swiing® revival parts · Material: Chrome steel (stainless steel) · Thread type: M6x1 (standard thread) · Drive: Slot · Screw head: Lens head · Ø External head: 13.8 mm

swiing® ingenious LED bulb rear light 6V (BA9s) white 1-phase (version 2.0)

Total length: 33 mm · Manufacturer: swiing® ingenious parts · Tension: 6 V · Color: white · Bulb holder: BA9s · Ø base: 9 mm · Test mark: none · Ø Lamp head: 12 mm · Resonance: Yes

Meteor piston ring 38.4 x 1.5 mm (FS)

Manufacturer: Meteor · Height: 1.5 mm · Nominal diameter: 38 mm · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Thick piston ring: 1.6 mm

Mazzucchelli crankshaft "Original" 12 mm KoBo | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Mazzucchelli · Area of application: Original · Area of application: Standard · Material: Steel · Cheek type: standard · Crankshaft stroke: 43 mm · Ø coupling pin / vario pin: 12 mm · Connecting rod length center-center: 87 mm · Thread length: 16 mm · Weight: 698 g · Total length crankpin ignition side: 90 mm · Total length crankpin ignition side: 106 mm · Ø crank webs: 69.7 mm · Ø piston pin (B): 12 mm · Ø Connecting rod eye: 15 mm · Bearing seat right: 15 mm · Thread type: M8x1.25 (standard thread) · Ø Bearing seat (ignition side): 15 mm · Dimension needle bearing: 12 / 15 x 14.7 mm (axe 12) · Wide crank webs: 33 mm · Length 1st paragraph: 21 mm · Length 2nd paragraph: 44 mm · Length 3rd paragraph: 63.5 mm · Ø 1st step (on the coupling side): 15 mm · Ø 2nd shoulder (on the clutch side): 14.4 mm · Ø 3rd step (on the clutch side): 12 mm · Inlet control time: 130 ° · Control time before O.T: 77 ° · Control time according to O.T: 53 ° · Number of gears: 1 pcs

NTN 6202 C3 ball bearing 15/35/11

Bearing type: Deep groove ball bearing · Bearing cage: "-" Sheet steel cage ball-guided · Stock number: 6202 · Inner ring width: 11 mm · Manufacturer: NTN · Bearing clearance: C3 · Ø outside: 35 mm · Ø inside: 15 mm · Width: 11 mm · Puch spare part no.: 900.4.6202

Meteor L-piston ring 38.4 x 2 mm (IS)

Manufacturer: Meteor · Height: 2 mm · Nominal diameter: 38.4 mm · Piston ring mold: L-ring · Piston ring impact: Internal fuse (IS) · Thick piston ring: 1.75 mm

Meteor piston rings 38.4 mm (pair) | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Meteor · Nominal diameter: 38.4 mm · Thick piston ring: 1.6 mm · Thick piston ring: 1.75 mm · Piston ring mold: L-ring · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Piston ring impact: Internal fuse (IS) · Height: 1.5 mm · Height: 2 mm
