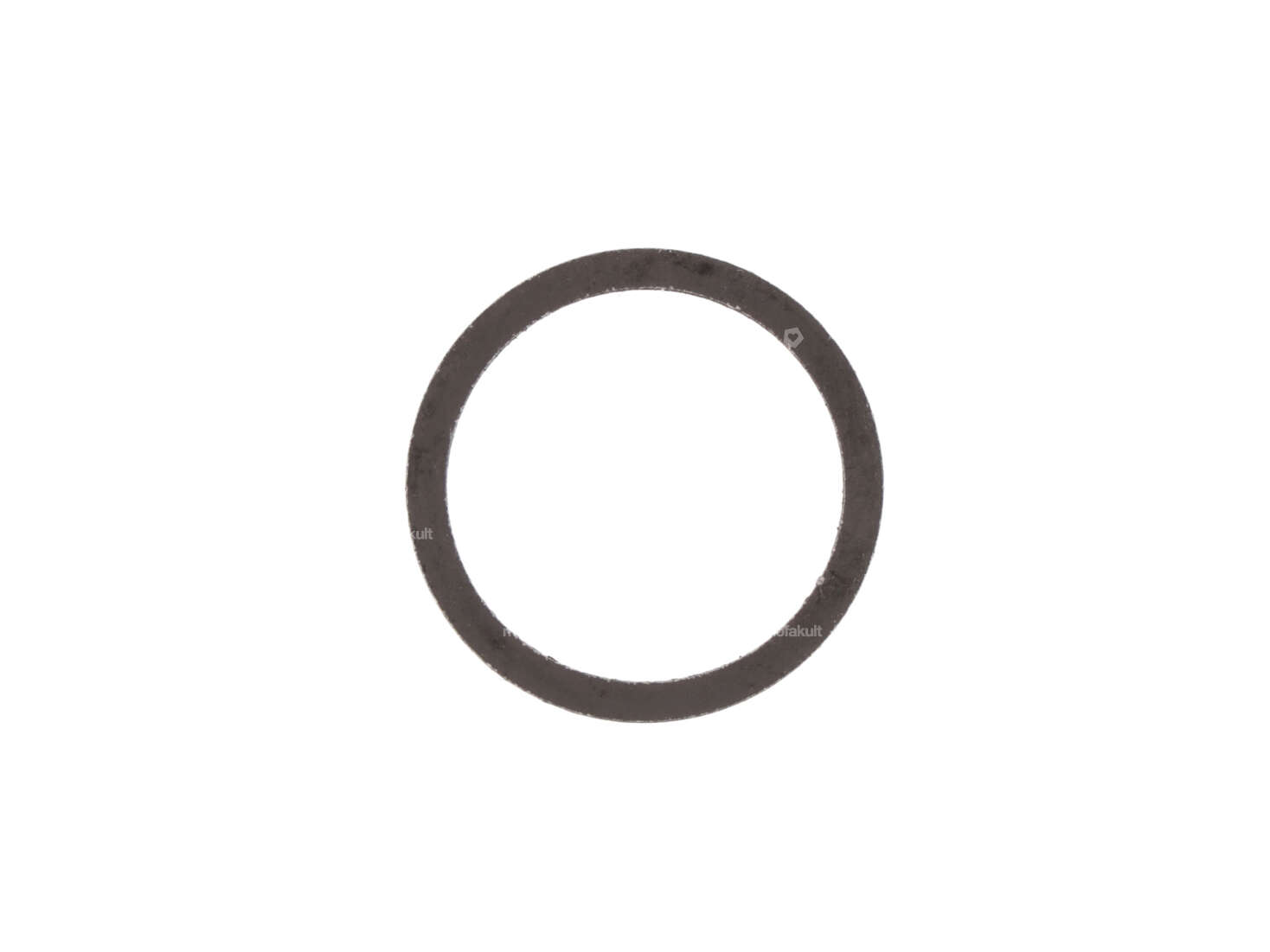

Spacer 18.6/22.6/0.8 Converter Vario | Piaggio Ciao, SI, Bravo, Boxer

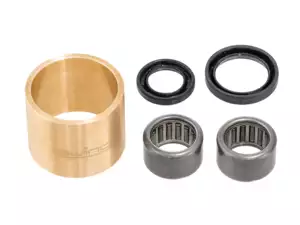

swiing® revival revision set converter | Piaggio Ciao, SI

Manufacturer: swiing® revival parts · Gearbox type: Vario

Oil seal NBR 12/19/3 A original Vario clutch hub | Piaggio Ciao, SI, Bravo, Boxer

Temperature resistance (min.): -30 - 100 °C · Simmering type: A - With rubberized outer part / one sealing lip. · Ø inside: 12 mm · Ø outside: 19 mm · Width: 3 mm · Manufacturer: Piaggio · Material: NBR · Surface: rubberized · Piaggio OEM number: 008766

swiing® revival spacer 10.3/20/1.0 converter Vario | Piaggio Ciao, SI, Bravo, Boxer

Ø inside: 10.1 mm · Nominal diameter inside: 10 mm · Ø outside: 20 mm · Thickness: 1 mm · Manufacturer: swiing® revival parts · Material: Steel · Surface: blank / oiled

Athena revision kit engine, cylinder & gearbox Vario | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Athena · Material: Aluminum · Material: Sealing paper · Number of components: 8 pcs · Thickness: 0.2 mm · Thickness: 0.25 mm · Thickness: 0.4 mm

Spacer washer 10.3/22.4/1.2 converter Vario | Piaggio Ciao, SI, Bravo, Boxer

Nominal diameter inside: 10 mm · Material: Steel · Surface: burnished · Ø inside: 10.3 mm · Thickness: 1.2 mm · Ø outside: 22.4 mm · Piaggio OEM number: 120214

swiing® revival washer (26.3/37/2) Fork plate End nut

Material: Steel · Ø inside: 26.3 mm · Ø outside: 37 mm · Manufacturer: swiing® revival parts · Surface: galvanized (blue) · Thickness: 2 mm · Nominal diameter (thread): 26 mm

Jasil crankshaft "Racing" 10 mm KoBo | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Jasil · Weight: 716 g · Material: Steel · Cheek type: standard · Thread type: M8x1.25 (standard thread) · Crankshaft stroke: 43 mm · Ø coupling pin / vario pin: 12 mm · Connecting rod length center-center: 87 mm · Total length crankpin ignition side: 91.5 mm · Total length crankpin ignition side: 105 mm · Ø crank webs: 69.8 mm · Ø piston pin (B): 10 mm · Thread length: 13.5 mm · Ø Connecting rod eye: 13 mm · Bearing seat right: 15 mm · Ø Bearing seat (ignition side): 15 mm · Area of application: Racing · Dimension needle bearing: 10 / 13 x 14.2 mm (axe 10) · Wide crank webs: 32.9 mm · Length 1st paragraph: 21.5 mm · Length 2nd paragraph: 44 mm · Length 3rd paragraph: 64.9 mm · Ø 1st step (on the coupling side): 15 mm · Ø 2nd shoulder (on the clutch side): 14.4 mm · Ø 3rd step (on the clutch side): 12 mm · Number of gears: 1 pcs

Washer M11 galvanized

Material: Steel · Surface: galvanized (blue) · Ø inside: 11.2 mm · Ø outside: 20 mm · Nominal diameter (thread): 11 mm · Thickness: 2 mm · Thread size: M11

TECNO Exhaust 22 mm | Piaggio SI Mix

Manufacturer: TECNO · Material: Steel · Surface: varnished · Color: black · Ø Silencer: 70 mm · Number of fixing points: 1 pcs · Ø Flame tube outside: 22.5 mm · Exhaust type: Cylindrical · Ø Internal connection: 23.5 mm · Flame tube attachment: Plug connection clamped · Mounting type: Welded lug

Lockable fuel filler cap

Manufacturer: Made in Italy · Material: Cast aluminum · Material: Plastic · Color: black · Fuel filler cap: Bayonet 30 mm · Lockable: Yes · Height: 41 mm · Ø External head: 64.5 mm · Ø outside connection piece: 53 mm

Wedge 12.1x4.9x3 mm

Total length: 12.5 mm · Width: 3 mm · Height: 4.9 mm · Material: Steel

Counter pressure spring 30kg original | Piaggio Ciao, SI, Bravo, Boxer

Spring design: Pressure spring · Ø wire: 3.8 mm · Ø outside: 45 mm · Total length: 80 mm · Manufacturer: Piaggio

Wedge flywheel / torque converter bell Vario | Piaggio Ciao, SI, Bravo, Boxer

Total length: 12.1 mm · Width: 3 mm · Height: 4.9 mm · Material: Steel

swiing® revival spacer 10.3/20/1.0 converter Vario | Piaggio Ciao, SI, Bravo, Boxer

Ø inside: 10.1 mm · Nominal diameter inside: 10 mm · Ø outside: 20 mm · Thickness: 1 mm · Manufacturer: swiing® revival parts · Material: Steel · Surface: blank / oiled

Spacer washer 10.3/22.4/1.2 converter Vario | Piaggio Ciao, SI, Bravo, Boxer

Nominal diameter inside: 10 mm · Material: Steel · Surface: burnished · Ø inside: 10.3 mm · Thickness: 1.2 mm · Ø outside: 22.4 mm · Piaggio OEM number: 120214
