Spare parts catalog (Germany) for Puch Maxi 1-speed and 2-speed automatic mopeds / mopeds.
The following types are described in the catalog:
- Maxi N (1-speed)
- Maxi S (1-speed)
- Maxi S-Sport (1-speed)
- Maxi SL (2-speed)

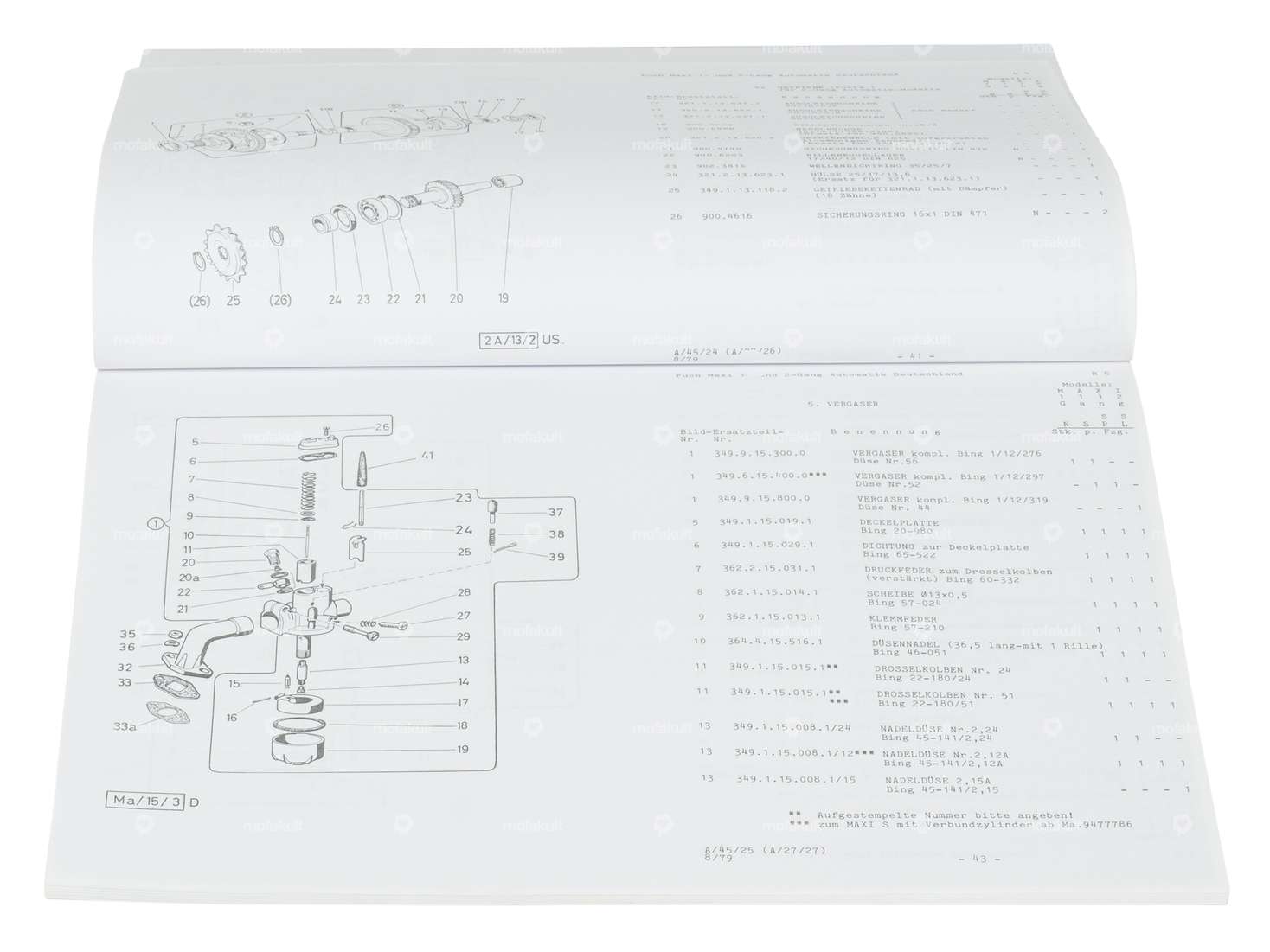

Each individual component is shown with the appropriate spare part number and the correct mounting location using numerous exploded drawings.
Format: A4 (210 x 297 mm)
Pages: 78
Language: German
High-quality facsimile (reproduction) of the original edition.
Further workshop manuals, operating and repair instructions can be found in the accessories section.
Details
| Material | Paper |
| DIN format | A4 |
| Number of pages | 78 pcs |
| Width | 210 mm |
| Height | 297 mm |
Suitable for the following models
| Puch | E50 |
