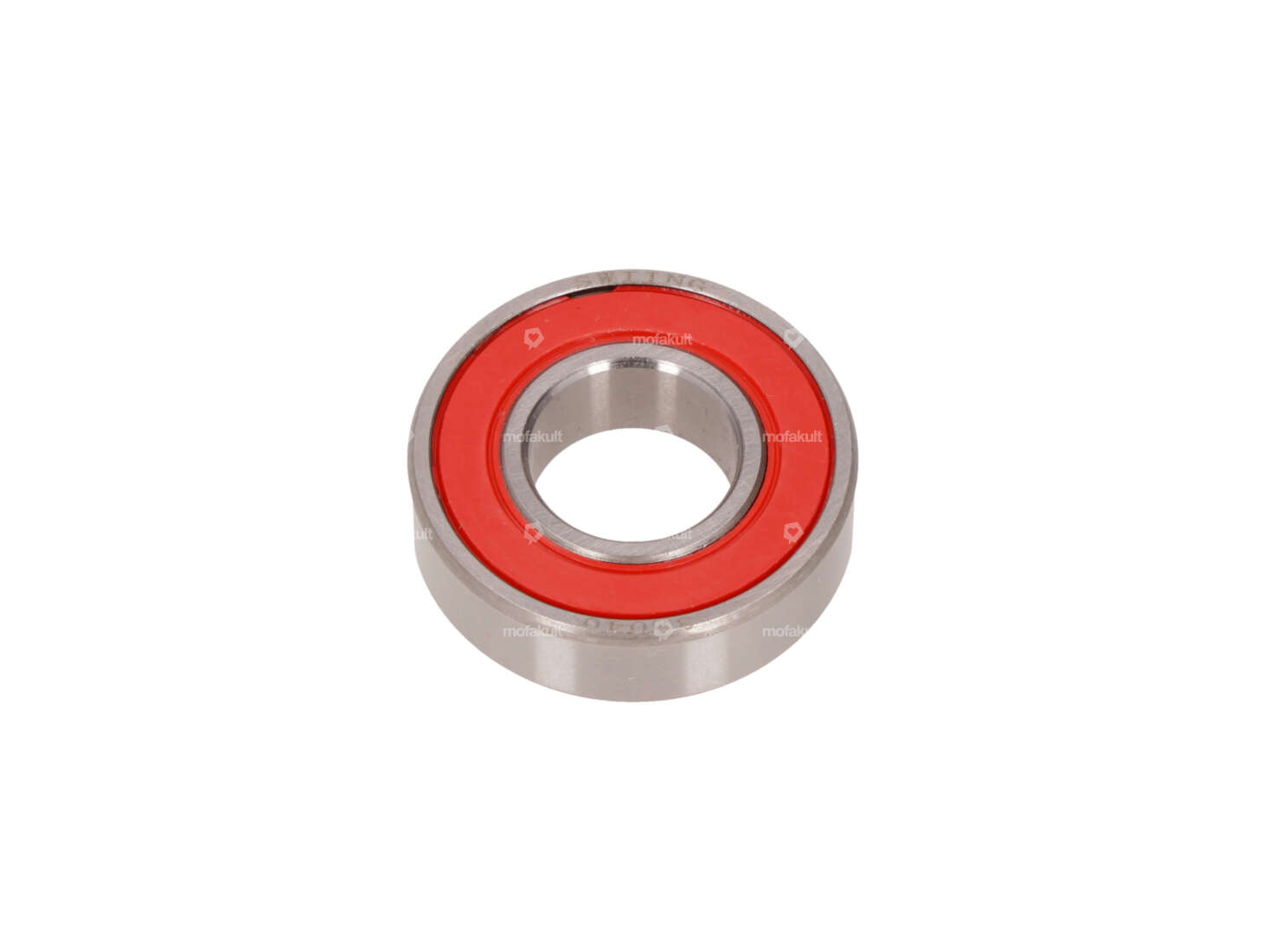

Special ball bearing 13x28x8 mm for the right side of the pinion shaft on your moped / moped with Sachs 502, 50/2 and 503 engine.
The deep groove ball bearing has a dust ring made of NBR on both sides.
This pinion shaft bearing replaces the roller race (bearing ring) A1146, the 6 x 4 mm cylindrical rollers A1145 as well as the two thrust washers A1548 on the right-hand side of the main shaft in your Sachs transmission.
Other shape: 2RS1 (two sheet steel reinforced contact seals made of NBR)
Bearing clearance: Standard
Ball bearing: Sheet steel bearing, ball bearing «-»
Installation instructions: Check the pinion shaft for scalloping or other damage before installation. First, the bearing should be shrunk into the housing. The shaft can then be inserted into the bearing without play and, if necessary, additionally secured with adhesive. The axial play of the shaft must be set to 0.1-0.2 mm.
Exceptional product for the highest demands of the quality brand swiing®.
Details
| Manufacturer | swiing® ingenious parts |
| Ø inside | 13 mm |
| Ball bearing closed | Yes |
| Dust protection type | 2RS1 - NBR contact seal on both sides |
| Bearing clearance | CN (standard) |
| Bearing cage | Sheet steel cage |
| Material | Steel |
| Bearing type | Deep groove ball bearing |
| Ø outside | 28 mm |
| Width | 8 mm |
Suitable for the following models
| Sachs | 502 (Saxonette) - AL, AML 50/2 - L CH (0.8 PS), ML CH (0.8 PS), MB (2.6 PS), MLB (2.6 PS) 503 - AAL, 2AL / 2BL |
