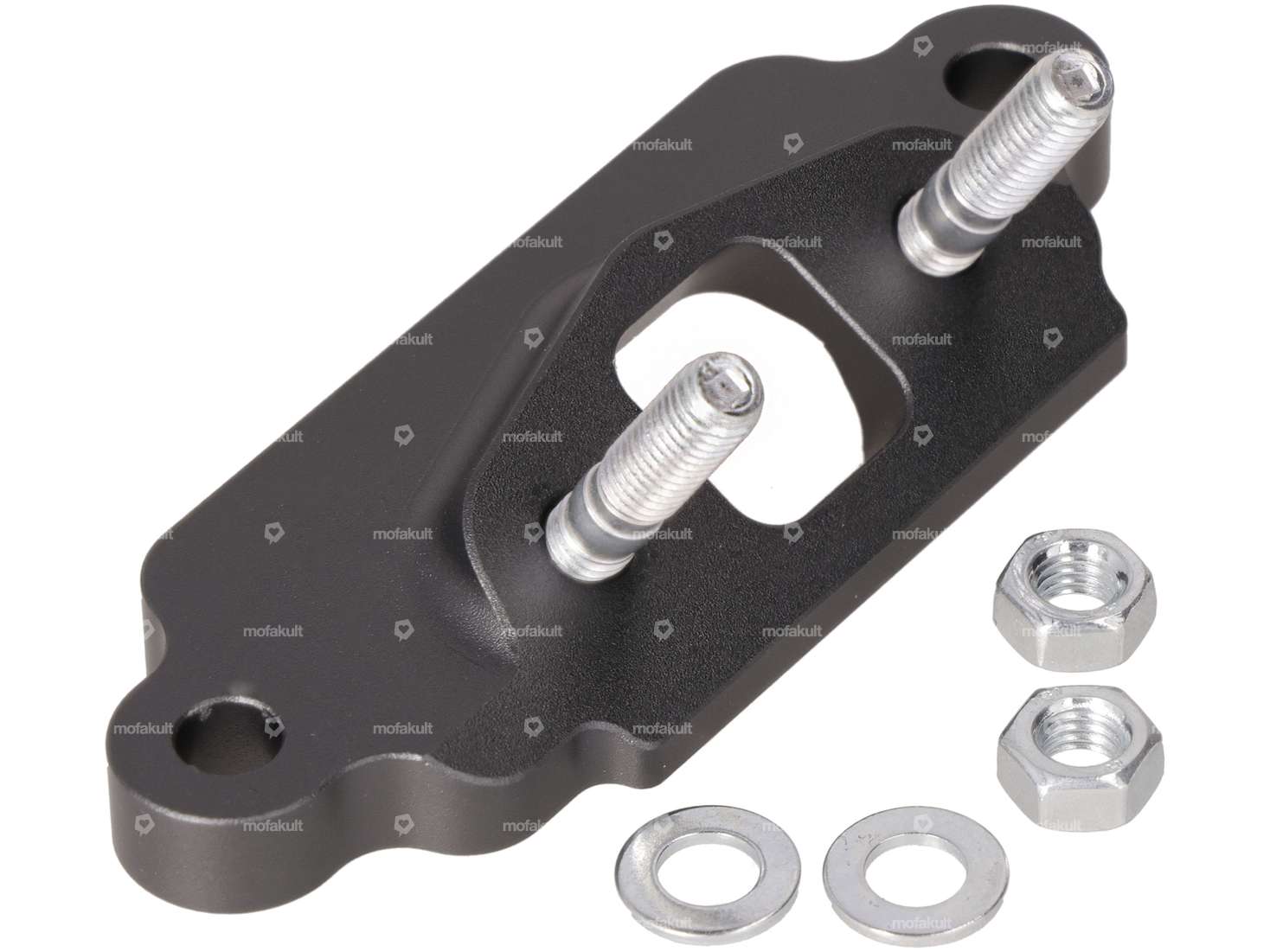

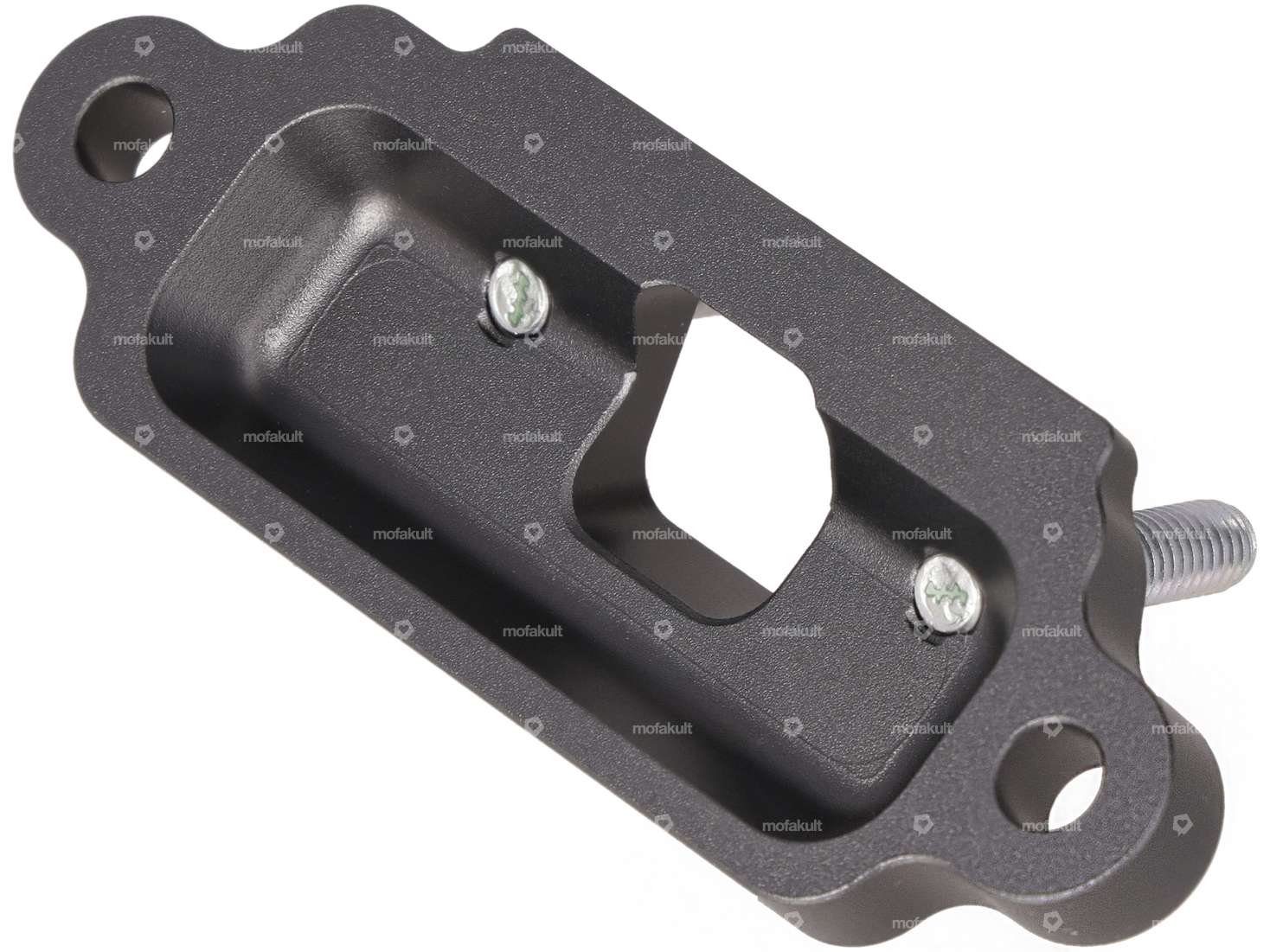

Membrane block made of CNC machined aluminum with 13 x 13 mm intake window. Ideal flange plate for mounting the 13 mm SSB carburetor.
Fits Sachs 502, 50/2, 50/3, 50/4 mopeds / mopeds with diaphragm intake.
The stud bolts of the intake flange are already secured with Loctite.
Hole spacing to cylinder: 67 mm
Spacing of stud bolts: 31 mm
Thread: M5
Attention: Due to the nature of the inlet, the carburetor is approx. 5-8 mm higher, this can be compensated for with 2-3 cork gaskets below the carburetor.
In addition, a slight adjustment to the fan cover is necessary.
Gaskets and other intermediate flanges can be found in the accessories.
Exceptional product for the highest demands of the quality brand swiing®.
Details
| Manufacturer | swiing® ingenious parts |
| Ø inside | 13 mm |
| Area of application | Tuning, Standard |
| Material | Aluminum |
| Surface | anodized |
| Number of flaps | 2 pcs |
| Thread type | M5x0.8 (standard thread) |
| Mounting type | Screws |
| Hole spacing | 67 mm, 31 mm |
| Number of fixing points | 4 pcs |
Suitable for the following models
| Sachs | 50 (Fahrtwind, 1.25 / 1.5 PS, DE) 502 (Saxonette) - AML 50/2 - ML CH (0.8 PS), MB (2.6 PS), MLB (2.6 PS) 50/3 50/4 - MLFB (2.6 PS) |
