Front and rear mudguards made of stainless steel and chrome-plated steel struts for your Zündapp Belmondo moped.
The highly polished surface ensures a first-class look and gives your moped the necessary shine.
Since the front mudguard is folded on both sides and the rear mudguard is folded at the rear, the risk of injury is significantly reduced.
The option of using an edge protector or splash guard flap on the front mudguard is also still available. Corresponding holes must still be drilled if required.
All original holes are available for mounting the lower and upper mudguard struts on the front mudguard.
The rear mudguard has all the original mounting brackets and the tabs for the cable routing.
The set consists of the following individual parts:
- swiing® revival front mudguard Art. No. 19171
- swiing® revival rear mudguard Art. No. 19168
- swiing® revival upper front mudguard strut Art. No. 24722
- swiing® revival lower front mudguard strut Art. No. 24823
- swiing® revival lower rear mudguard strut Art. No. 24941
- Cable grommet Art. No. 17719

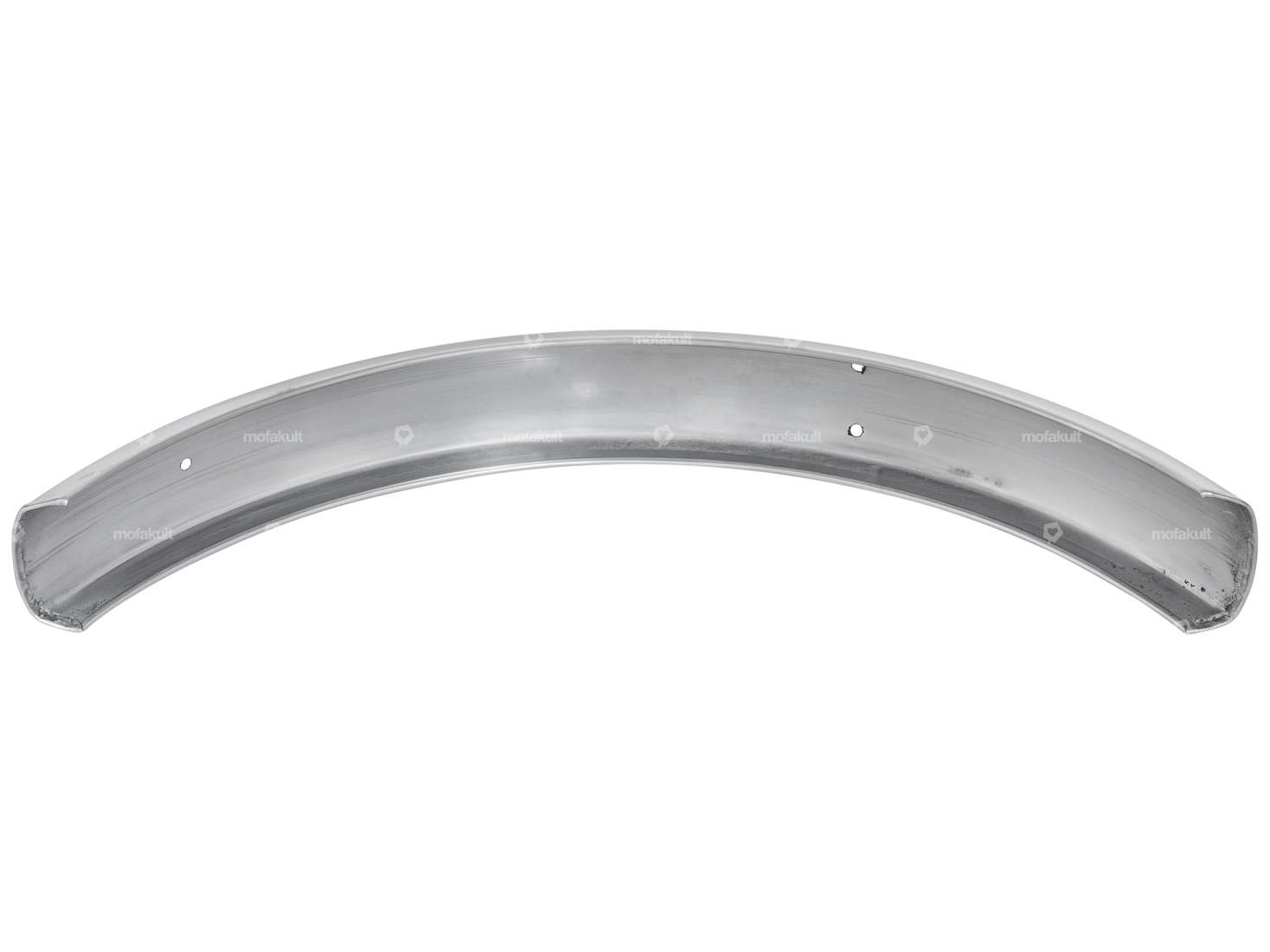

Technical data for front mudguard:
- Material: Chrome steel (stainless steel)
- Shape: Partly round
- Width of mudguard profile (A): 70 mm
- Height of mudguard profile (B): 25 mm
- Endings: Folded closed on both sides
- Material: Chrome steel (stainless steel), highly polished
- Total height from support surface to top edge (C): 158 mm
- Total length over ends (D): 525 mm
- Circumference (E): 638 mm

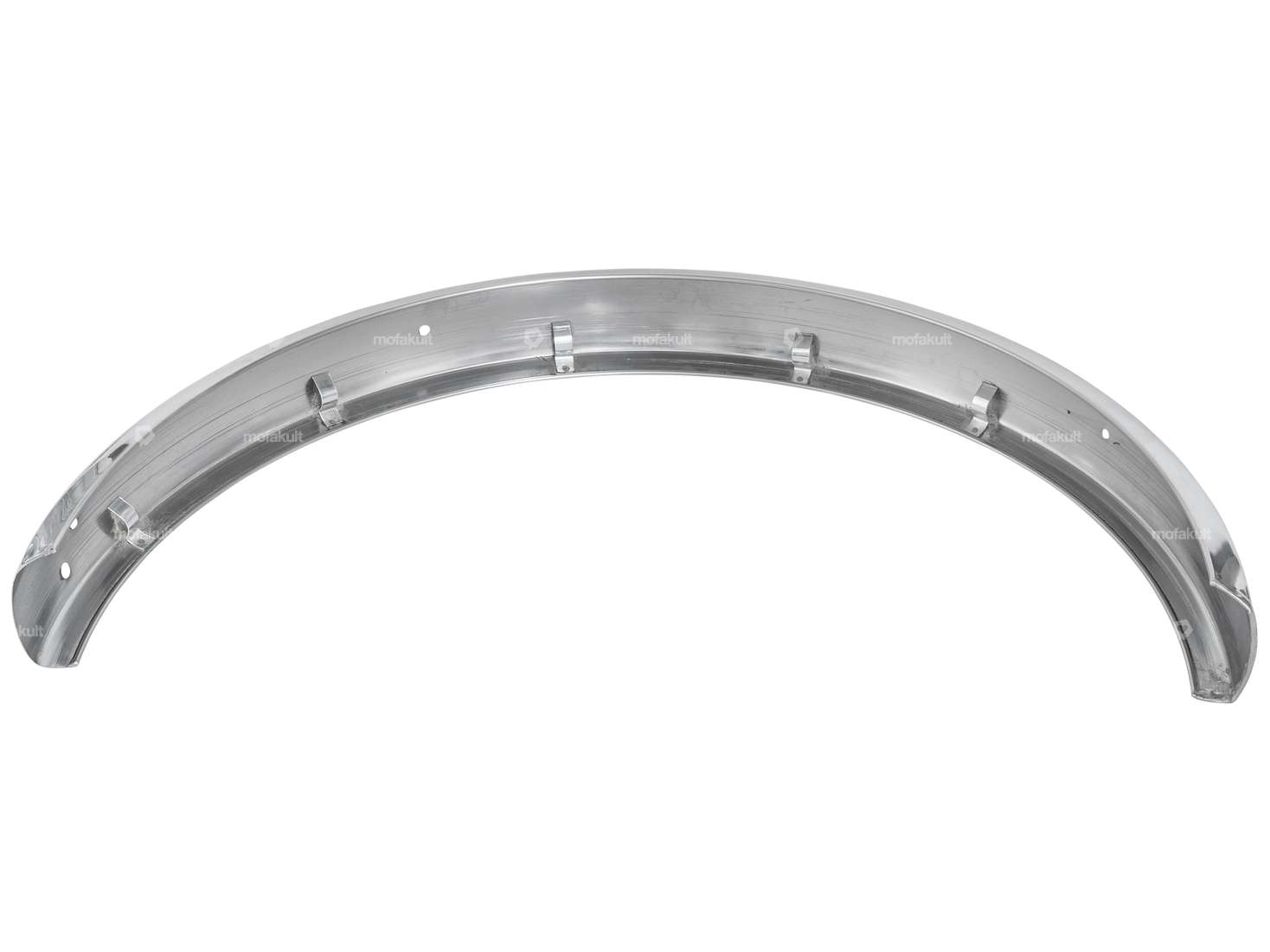

Technical data rear mudguard:
- Material: chrome steel (stainless steel)
- Shape: part-round
- Width mudguard profile (A): 70 mm
- Height mudguard profile (B): 25 mm
- Endings: front side not folded / rear side closed folded
- Material: Chrome steel (stainless steel), highly polished
- Total height from support surface to top edge (C): 305 mm
- Total length over ends (D): 595 mm
- Circumference (E): 950 mm
Technical data upper front mudguard strut:
- Material: steel, chrome-plated
- Total length: 200 mm
- Distance between mounting holes (for fork): 20 - 25 mm
- Material thickness: 2.1 mm
Technical data lower front mudguard strut:
- Material: steel, chrome-plated
- Total length: 305 mm
- Distance mudguard support - end of the two brackets: 280 mm
- Long hole dimensions: 6.5 x 13 mm
Technical data lower rear mudguard strut:
- Material: steel, chrome-plated
- Total length: 345 mm
- Distance mudguard support - end of the two outriggers: 318 mm
- Long hole dimensions: 6.5 x 13 mm
Technical data Cable grommet:
- Material: Soft PVC, black
- Ø inner: 4.7 mm
- Ø outer: 9.5 mm
When you purchase this complete set, you will receive a substantial percentage off the retail price of the individual parts.
Other parts for your wheel fairing, such as stainless steel polish, can be found in the accessories section.
Nostalgic product for the highest demands from the quality brand swiing®.
Manufacturer: Made in Germany · Material: Polyvinyl chloride (PVC-P_soft) · Ø Cable bushing: 4.7 mm · Ø mounting hole: 6.5 mm · Ø outside: 9.5 mm · Material thickness: 6.6 mm · Height: 6.6 mm · Color: black · Ø inside: 4.7 mm · Ø Passage: 4.7 mm · Total height: 6.6 mm
Manufacturer: swiing® revival parts · Material: Steel · Surface: chrome-plated · Color: Chrome · Total length: 305 mm · Distance mudguard - center hole: 280 mm · Mounting type: Nuts & bolts · Number of fixing points: 3 pcs · Ø mounting hole: 6.5 mm
Manufacturer: swiing® revival parts · Material: Steel · Surface: chrome-plated · Color: Chrome · Total length: 200 mm · Mounting type: Nuts & bolts · Number of fixing points: 7 pcs · Hole spacing: 20 mm, 25 mm
Manufacturer: swiing® revival parts · Material: Steel · Surface: chrome-plated · Color: Chrome · Total length: 345 mm · Distance mudguard - center hole: 318 mm · Mounting type: Nuts & bolts · Number of fixing points: 3 pcs · Ø mounting hole: 6.5 mm
Manufacturer: swiing® revival parts · Material: Chrome steel (known as Nirosta®) · Surface: polished · Color: Chrome · Wheel size [inch]: 17 " · Folding the ends: not folded, closed folded · Shape of the mudguard: partly round · Total length over ends: 595 mm · Scope: 950 mm · Wide mudguard profile: 70 mm · Height of mudguard profile: 25 mm · Total height from support surface to top edge: 305 mm · Mounting type: Nuts & bolts
Manufacturer: swiing® revival parts · Material: Chrome steel (known as Nirosta®) · Surface: polished · Color: Chrome · Wheel size [inch]: 17 " · Folding the ends: closed folded · Shape of the mudguard: partly round · Total length over ends: 525 mm · Scope: 638 mm · Wide mudguard profile: 69 mm · Height of mudguard profile: 25 mm · Total height from support surface to top edge: 157 mm · Mounting type: Nuts & bolts
| Manufacturer | swiing® revival parts |
| Material | Chrome steel (known as Nirosta®), Steel |
| Surface | polished |
| Mounting type | Nuts & bolts |
| Color | Chrome |
| Zündapp Belmondo |
