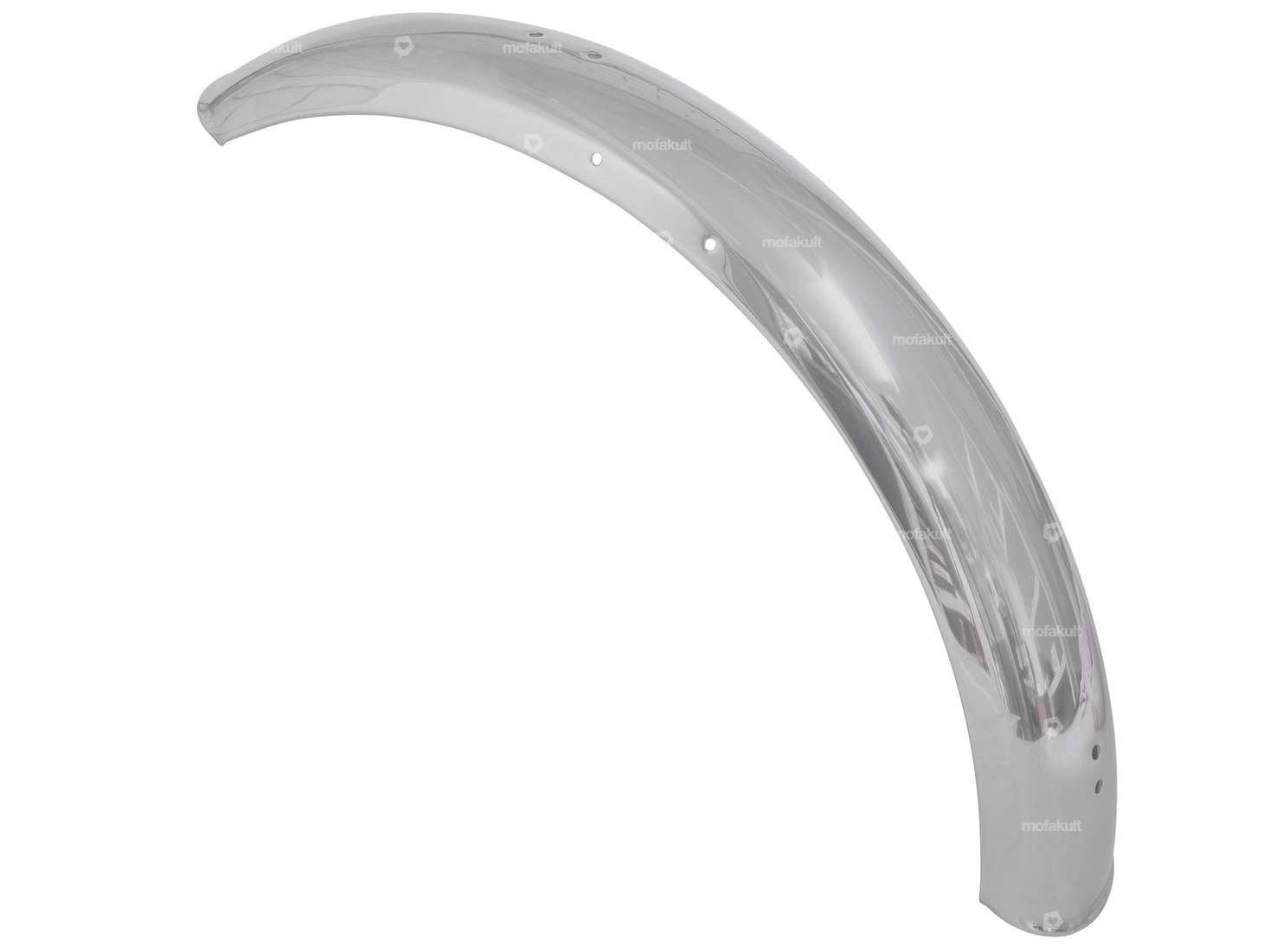

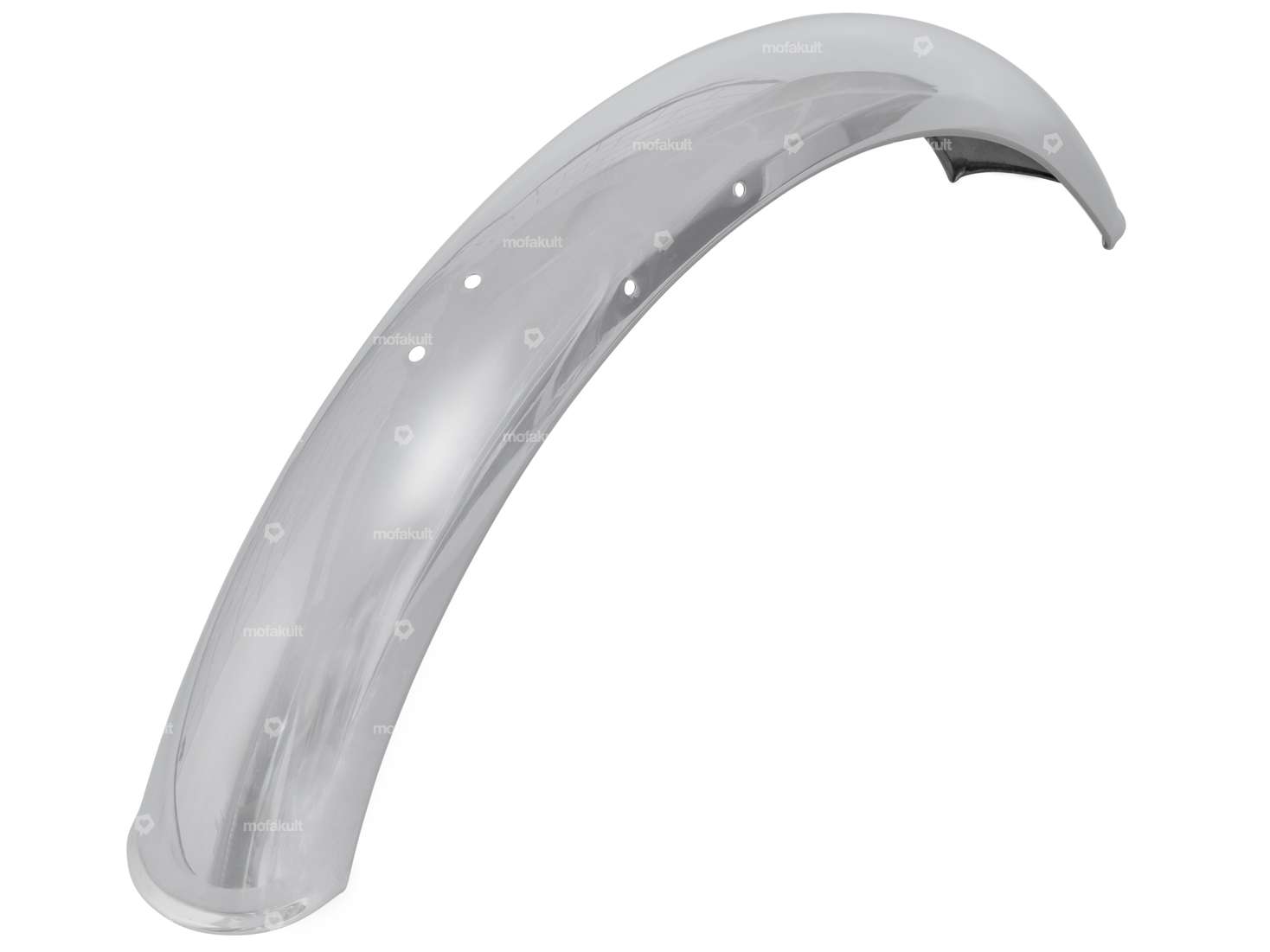

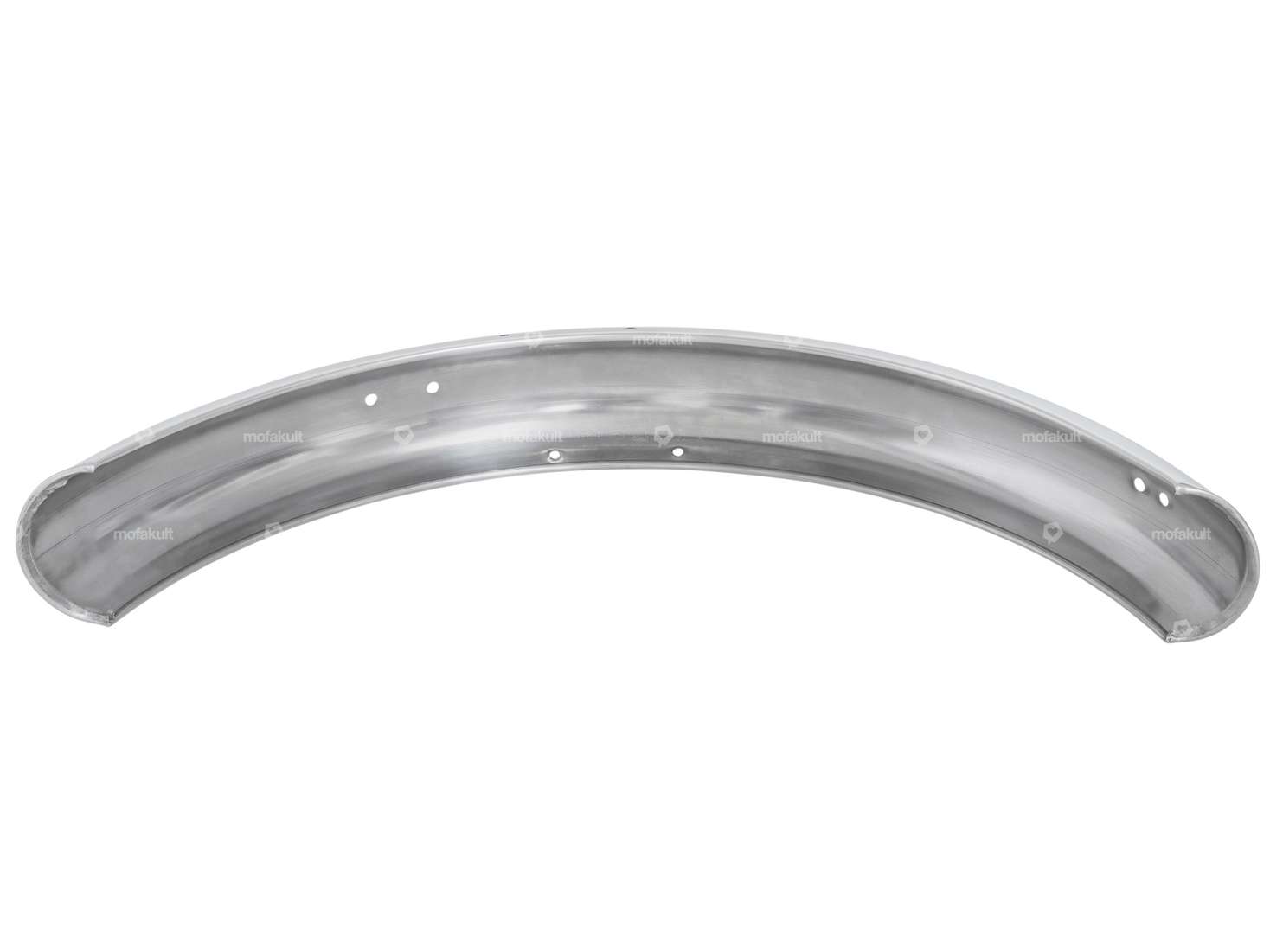

Front fender made of stainless steel for your Puch X30 NS, NL, NG-2AH, N-2AH, Puch X30-A, Puch Sprinter and Puch Supermaxi LG1 / LG2 moped.
The high-gloss polished surface ensures a first-class look and gives your moped the perfect shine.
Since the mudguard is folded on both sides, there are no sharp edges, which significantly reduces the risk of injury. Furthermore, it is still possible to use an edge protector or splash guard. Corresponding holes must still be drilled if required.
All original holes are provided for mounting the side and lower mudguard struts.
To mount cable ducts, holes are also already provided on both sides of the mudguard.
Shape: round
Width of mudguard profile (A): 80 mm
Height of mudguard profile (B): 35 mm
End: folded closed on both sides
Material: chrome steel (stainless steel), highly polished
Total height from support surface to top edge (C): 180 mm
Total length over ends (D): 560 mm
Circumference (E): 700 mm
Further parts for your wheel fairing, such as stainless steel polish or fastening material, can be found in the accessories section.
Nostalgic product for the highest demands from the quality brand swiing®.
Details
| Manufacturer | swiing® revival parts |
| Color | Chrome |
| Material | Chrome steel (stainless steel) |
| Surface | polished |
| Wheel size [inch] | 17 " |
| Folding the ends | closed folded |
| Shape of the mudguard | round |
| Total length over ends | 560 mm |
| Scope | 700 mm |
| Wide mudguard profile | 80 mm |
| Height of mudguard profile | 35 mm |
| Total height from support surface to top edge | 180 mm |
| Mounting type | Nuts & bolts |
