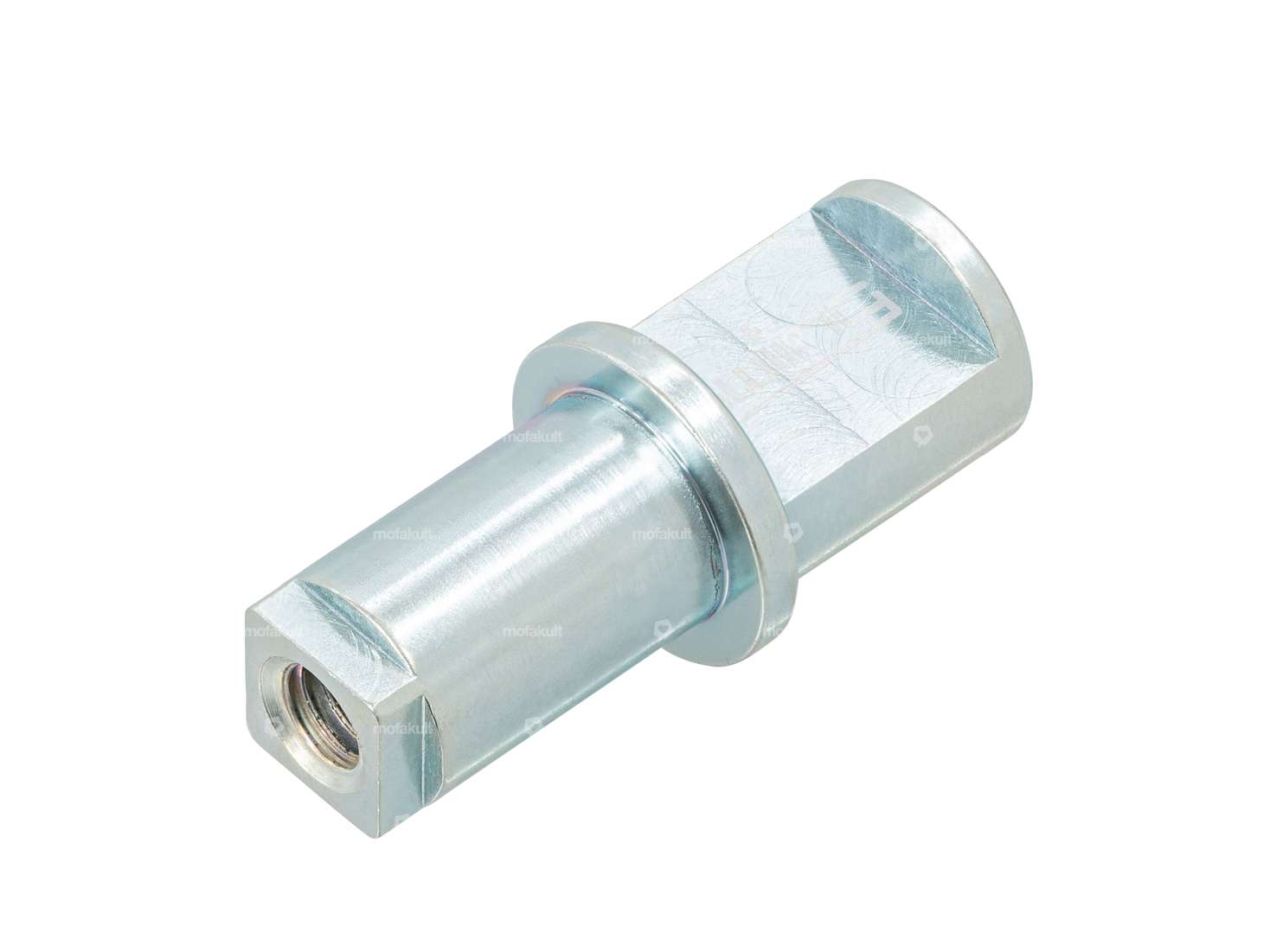

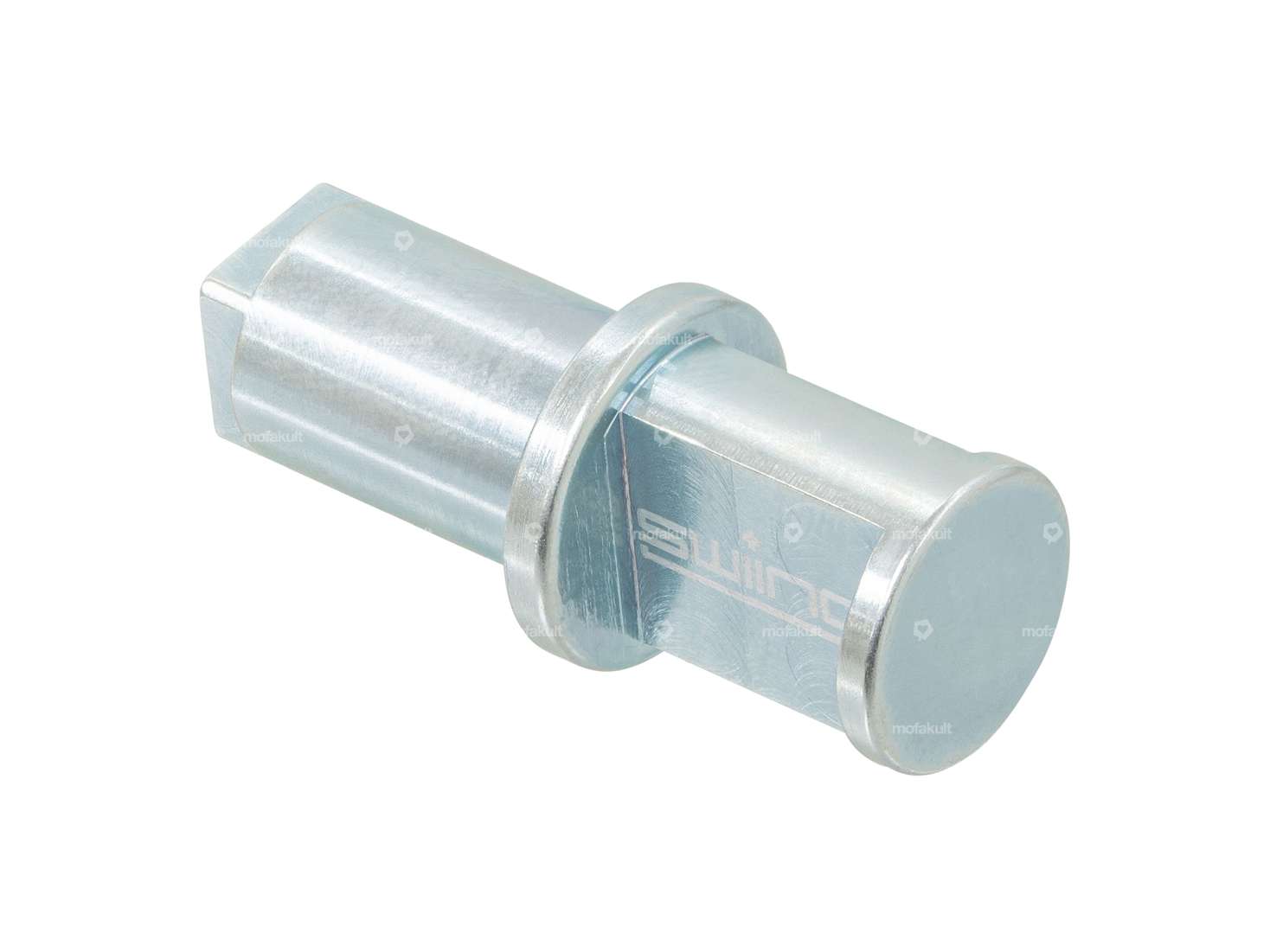

Brake cam suitable for brake anchor plates on the front wheel of your Puch Maxi S & N moped.
This CNC turned part fits all old brake discs where the brake cams and the brake lever are bolted together.
The galvanized brake cam is in no way inferior to the original SGDG / LELEU brake cams in terms of workmanship and functionality.
Width of square: 9 x 9 mm
Width of diagonal: 6 mm
Total length: 38.2 mm
Thread: M6x1 mm
Material: steel
Surface: galvanized
Complete brake anchor plates, brake shoes and the cam for the rear wheel can be found in the accessories section.
Nostalgic product for the highest demands of the quality brand swiing®.
Details
| Manufacturer | swiing® revival parts |
| Material | Steel |
| Surface | blue galvanized |
| Thread type | M6x1 (standard thread) |
| Height | 28.2 mm |
| Width across flats SW | 6 mm, 9 mm |
Suitable for the following models
| Puch | E50 ZA50 (Fahrtwindgekühlt) ZA50 (Gebläsegekühlt) |
