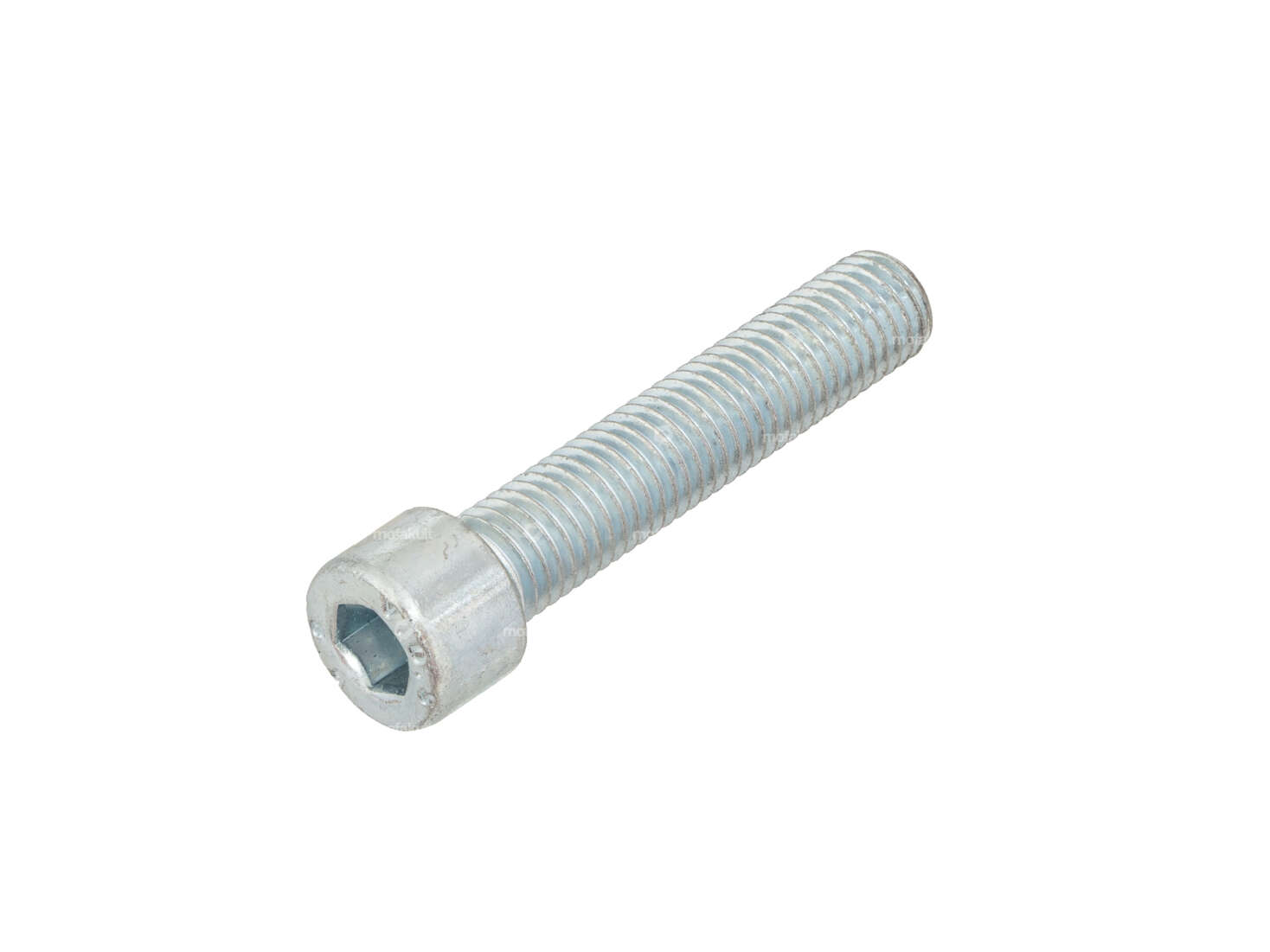

Special M7 cylinder screw made of galvanized steel for fastening the handlebar bracket to the fork plate of your Puch moped / moped.
For a complete handlebar assembly, 4 pieces are required.
Price per piece.
Matching clamps can be found in the accessories section.
Nostalgic product for the highest demands of the quality brand swiing®.
Details
| Manufacturer | swiing® revival parts |
| Area of application | Standard |
| Material | Steel |
| Surface | blue galvanized |
| Total length | 41.6 mm |
| Drive | Hexagon socket |
| Thread length | 34.6 mm |
| Screw head | Cylinder head |
| Ø External head | 10.5 mm |
| Width across flats SW | 5 mm |
| Shank | No |
| Number of components | 1 pcs |
| Strength class | 8.8 |
| Thread type | M7x1 (standard thread) |
Suitable for the following models
| Universal | |
| Puch |
