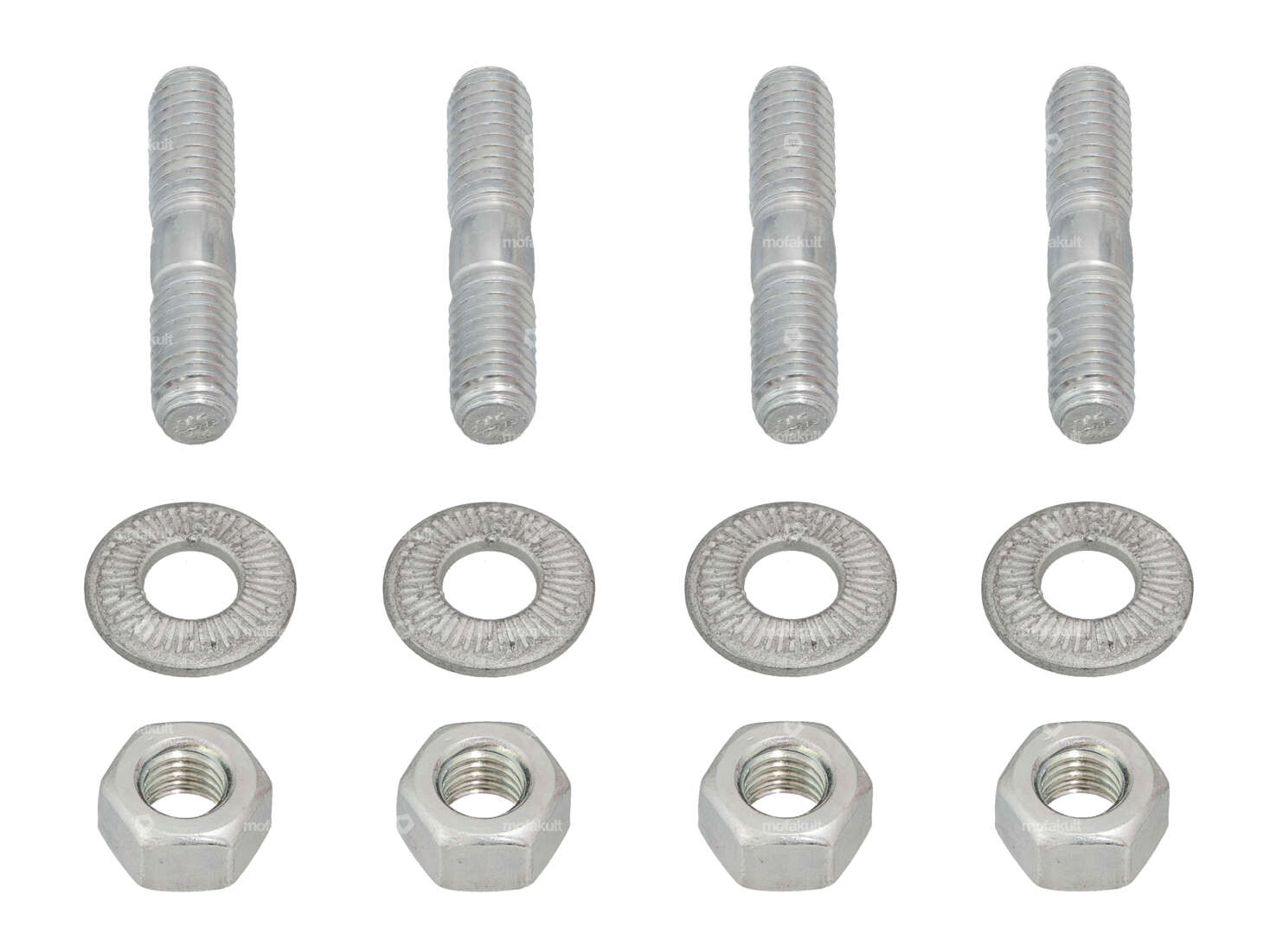

Set of galvanized M6 threaded stud bolts with increased strength and 1D nuts for the intake, exhaust or cylinder base mounting of various mopeds, mopeds and small engine bikes (Puch, Sachs, Zündapp, etc.).
These stud bolts can also be used with Sachs engines when mounting a lift plate. The original cylinder stud bolts are usually too short.
Total length: 30 mm
Thread length: 12 / 12 mm
Strength of stud bolt: 10.9
Strength nut: 8
Material: Steel, galvanized
Nostalgic product for the highest demands of the quality brand swiing®.
Details
| Total length | 30 mm |
| Drive | External hexagon |
| Width across flats SW | 10 mm |
| Thread type | M6x1 (standard thread) |
| Manufacturer | swiing® revival parts |
| Thread length | 12 mm |
| Material | Steel |
| Surface | galvanized (blue) |
| Diameter | 6 mm |
| Strength class | 10.9, 8 |
Accessories & related products
Loctite 243 medium-strength threadlocker 10 ml
Manufacturer: Loctite · Material to be used: Aluminum · Material to be used: Metal · Material to be used: Steel · Area of application: Chemistry · Color: blue · Contents [ml]: 10 ml · Hazard warning: Causes serious eye irritation · Hazard warning: Causes skin irritation · Hazard warning: Harmful to aquatic organisms (with long-term effects) · Hazard warning: May cause allergic skin reactions · Hazard warning: May irritate the respiratory tract · Signal word: Attention · Hazard pictogram: GHS07 - Caution dangerous · Hazard pictogram: GHS09 - Hazardous to the aquatic environment · Adhesion: medium strength · Type of application: 1K · Gap dimension (max.): 0.01 mm · Alignment time: 600 sec · Temperature resistance (min.): -75 - 200 °C · Breakaway torque (according to material): 3 N/m · Breakaway torque (according to material): 12 N/m · Breakaway torque (according to material): 26 N/m
CHF 21.90
CHF 2’190.00/l
swiing® revival stud bolts M6x38 inlet/outlet galvanized (10.9 strength)
Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Diameter: 5.9 mm · Thread type: M6x1 (standard thread) · Total length: 38 mm · Thread length: 11 mm · Thread length: 19 mm · Strength class: 10.9
CHF 2.00
swiing stud bolt set M6 / M5 Sachs (12.9 strength) Special
Manufacturer: swiing · Material: Steel · Surface: burnished · Surface: galvanized (blue) · Diameter: 6 mm · Thread type: M5x0.8 (standard thread) · Thread type: M6x1 (standard thread) · Total length: 27.3 mm · Thread length: 9.5 mm · Thread length: 14 mm · Width across flats SW: 8 mm · Strength class: 10 · Strength class: 12.9 · Drive: External hexagon
CHF 19.20
Moped fans like you also bought:
Meteor piston 38 mm #1 | Puch
Manufacturer: Meteor · Nominal diameter: 38 mm · Ø outside piston (A): 37.95 mm · Ø piston pin (B): 12 mm · Compression height (C): 22.7 mm · Curvature (D): 3.3 mm · Total piston height (E): 52.5 mm · Number of piston rings (F): 2 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Piston ring height: 2 mm · Tolerance group: 1 · Piston weight: 79 g · Puch OEM number: 349.1.10.106.0/21
CHF 49.90
GPO piston 40 mm (12 mm KoBo) | Puch X30 Velux fan-cooled
Manufacturer: GPO · Nominal diameter: 40 mm · Ø outside piston (A): 39.94 mm · Ø piston pin (B): 12 mm · Compression height (C): 22.5 mm · Curvature (D): 3.4 mm · Total piston height (E): 52.5 mm · Number of piston rings (F): 2 pcs · Piston ring mold: L-ring · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Piston ring height: 1.5 mm · Piston ring height: 2 mm · Piston weight: 89 g
CHF 34.90

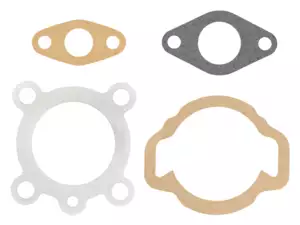

GPO gasket set 38 mm cylinder fan-cooled | Puch X30 NG-2AH, Velux
Manufacturer: GPO · Number of components: 4 pcs · Ø cylinder: 38 mm · Hole spacing inlet: 38 mm · Ø outlet inside: 22 mm · Hole spacing outlet: 42 mm · Hole pattern [mm]: 44 x 44 mm · Decompressor: Yes · Area of application: Standard
CHF 8.90
GPO gasket set 40 - 41 mm cylinder fan-cooled | Puch X30 NG-2AH, Velux
Manufacturer: GPO · Area of application: Tuning · Number of components: 4 pcs · Ø cylinder: 40 mm · Ø cylinder: 41 mm · Hole spacing inlet: 38 mm · Ø outlet inside: 22 mm · Hole spacing outlet: 42 mm · Hole pattern [mm]: 44 x 44 mm · Decompressor: Yes
CHF 8.90

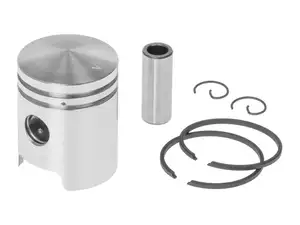

Piston 38 mm (12 mm KoBo) short shirt | Puch fan-cooled
Nominal diameter: 38 mm · Ø outside piston (A): 37.95 mm · Ø piston pin (B): 12 mm · Compression height (C): 22.9 mm · Curvature (D): 3.2 mm · Total piston height (E): 50.1 mm · Number of piston rings (F): 2 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Piston ring height: 2 mm · Piston weight: 74 g
CHF 39.90
Set
Hot

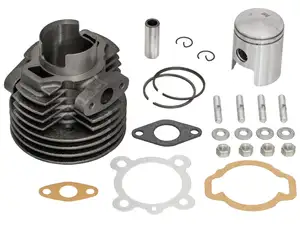

swiing 40 mm cylinder kit 12 mm KoBo | Puch X30 Velux, NG-2AH
