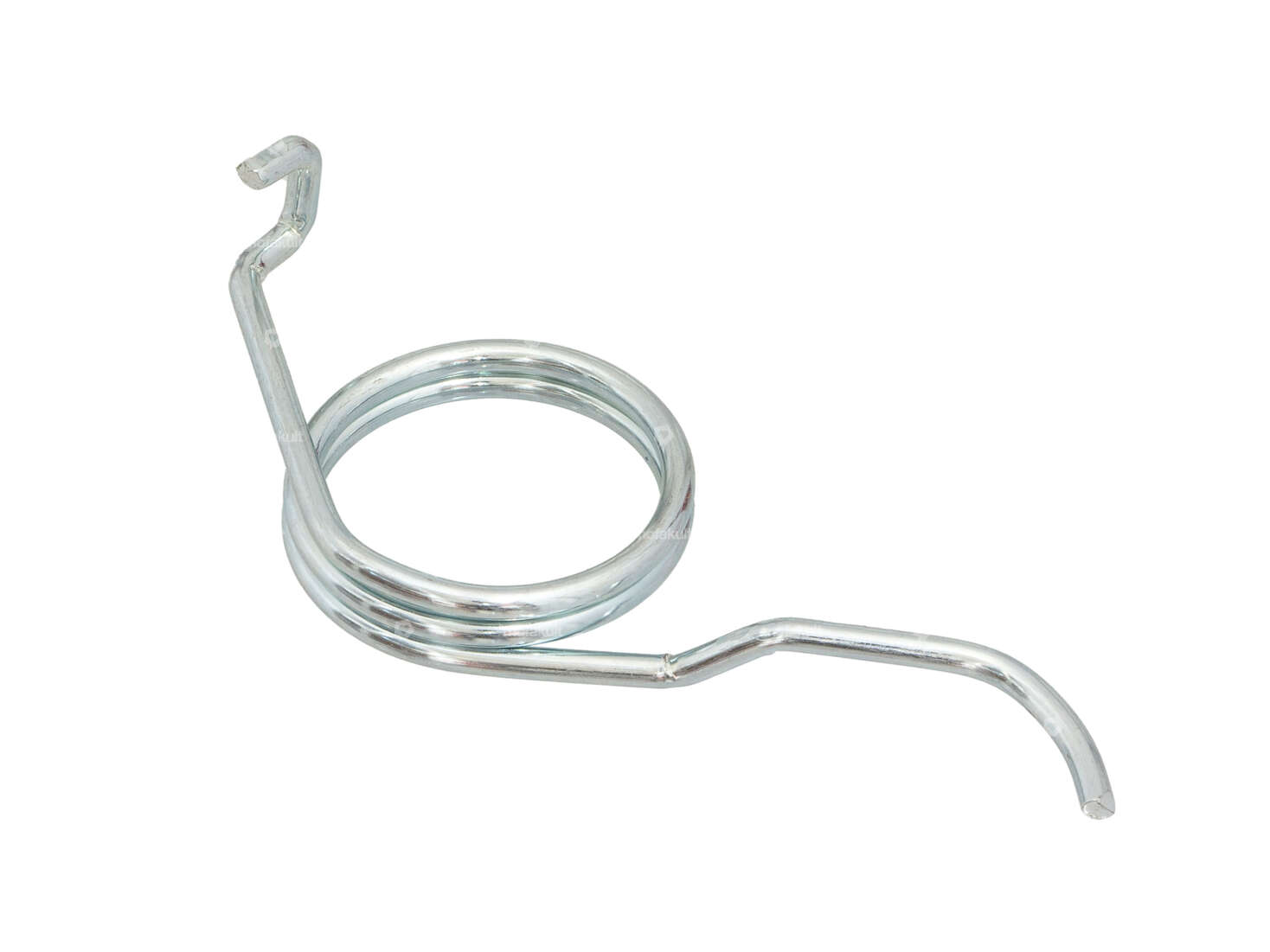

Torsion spring brake plate front & rear Puch DS50, VZ50, VS50, MV50

Guide times | Steyr - Daimler - Puch AG

Material: Paper · DIN format: A5 · Number of pages: 23 pcs

Gasket set | Puch MS, VS, DS, MV, M

Number of components: 8 pcs · Area of application: Standard

Thrust washer 12.5/25/1.5 NOS | Puch M50, DSV, VZV

Material: Steel · Surface: hardened & ground · Thickness: 1.5 mm · Ø inside: 12.5 mm · Ø outside: 25 mm

Intake rubber (1A quality) | Puch MS, VS, MV, DS, X50 (small motorcycle)

Manufacturer: Made in Italy · Material: Rubber · Color: black

Air filter Puch X50-4 | Duett | MK II

Material: Plastic · Mounting type: Plug connection · Area of application: Security · Filter type: Standard sieve · Camouflaged: Yes · Color: black

Crankshaft full cheek Puch MV, VS, MS, DS | Monza | X50 (3 & 4 speed)

Cheek type: Full cheeks · Area of application: Tuning · Number of gears: 3 pcs · Number of gears: 4 pcs · Ø piston pin (B): 12 mm · Ø Bearing seat (clutch side): 17 mm · Ø Bearing seat (ignition side): 17 mm · Total length crankpin ignition side: 66 mm · Total length of crankpin on clutch side: 73 mm

40 mm cylinder kit aluminum | Puch Monza, X50

Material: Cast aluminum · Thread inlet: M6x1 (standard thread) · Thread outlet: M6x1 (standard thread) · Camouflaged: No · Area of application: Tuning · Surface: sandblasted · Outlet type: slanted · Number of fixing points: 4 pcs · Ø piston pin (B): 12 mm · Hole spacing inlet: 32 mm · Nominal diameter: 40 mm · Hole spacing outlet: 42 mm · Crankshaft stroke: 43 mm · Hole pattern [mm]: 44 x 44 · Displacement: 60 ccm

Silentblock 10/22/33 mm

Ø inside: 10 mm · Ø outside: 22 mm · Material: Rubber · Material: Steel · Total length: 33 mm

Return spring brake plate | Puch Maxi

Spring design: Nose feather · Spring design: Torsion spring · Ø wire: 2.4 mm · Ø inside: 25.5 mm · Ø outside: 30 mm · Total length: 125 mm · Leg length: 45 mm · Length spring hook: 50 mm · Material: Spring steel · Surface: blue galvanized · Area of application: Original · Area of application: Standard

Black bench seat

Manufacturer: Made in Portugal · Material: Imitation leather · Ø Saddle tube holder: 22 mm · Color: black · Spring-loaded: No · Lettering: No · Total length: 300 mm · Width: 215 mm · Height: 80 mm · Height: 115 mm · Number of fixing points: 1 pcs

GPO sprocket 45 teeth black | Puch Maxi, Puch X30 NG-2AH

Manufacturer: GPO · Material: Steel · Surface: powder-coated · Chain pitch: 1/2" x 3/16" · Chain type: 415H · Number of teeth: 45 pcs · Ø bolt circle: 105.5 mm · Ø inside: 94 mm · Ø mounting hole: 6.7 mm · Thickness: 4.5 mm · Hole spacing: 36.5 mm · Hole spacing 2: 68 mm · Cranking (offset): 8 mm · Number of fixing points: 6 pcs · Color: black

Magura adjusting screw brake long

Manufacturer: Magura · Material: Brass · Surface: nickel-plated · Thread type: MF6x0.75 (fine pitch thread) · Thread length: 24 mm · Total length: 47 mm · Total length: 65 mm · Ø External head: 9.1 mm · Shank length: 11 mm · Ø shaft: 6 mm · Drive: Knurled screw · Color: silver

swiing® revival plain bearing clutch basket | Puch E50

Ø inside: 15 mm · Nominal diameter: 15 mm · Ø outside: 17 mm · Total height: 21.75 mm · Manufacturer: swiing® revival parts · Material: special bearing bronze

16 mm circlip

Fuse type: Outside · Nominal diameter: 16 mm · Place of use: Universal · Material: Spring steel

ESJOT drive chain 415H (reinforced) 114L (1A quality)

Chain pitch: 1/2" x 3/16" · Chain type: 415H · Manufacturer: ESJOT · Material: Steel · Surface: blank / oiled · Color: gray · Number of chain links: 114 pcs · Chain lock type: Spring lock · Ø bore: 4.05 mm · Ø Pin: 4 mm

swiing® revival screws set sprocket mounting galvanized | Puch Maxi

Manufacturer: swiing® revival parts · Material: Steel · Surface: blue galvanized · Thread type: M6x1 (standard thread) · Drive: External hexagon · Screw head: Hexagon · Width across flats SW: 10 mm · Thread length: 22 mm · Shank: No · Strength class: 8.8 · Number of components: 24 pcs · Color: silver

Polini brake shoes Ø 80 x 18 | Puch Maxi

Manufacturer: Polini · Ø drum: 80 mm · Width: 18 mm · Number of springs: 2 pcs · Springs included: Yes · Ø locating bolt: 10 mm · Slotted: No · Color: silver · Area of application: Tuning

ESJOT chain kit | Puch Maxi

Manufacturer: ESJOT · Manufacturer: GPO · Material: Steel · Chain pitch: 1/2" x 3/16" · Chain type: 415H · Pinion sizes: 9 pcs · Pinion sizes: 10 pcs · Pinion sizes: 11 pcs · Pinion sizes: 12 pcs · Pinion sizes: 13 pcs · Pinion sizes: 14 pcs · Pinion sizes: 15 pcs · Pinion sizes: 16 pcs · Pinion sizes: 17 pcs · Pinion sizes: 18 pcs · Pinion sizes: 19 pcs · Pinion sizes: 20 pcs · Pinion sizes: 21 pcs · Sprocket sizes: 35 pcs · Sprocket sizes: 36 pcs · Sprocket sizes: 37 pcs · Sprocket sizes: 38 pcs · Sprocket sizes: 39 pcs · Sprocket sizes: 40 pcs · Sprocket sizes: 41 pcs · Sprocket sizes: 42 pcs · Sprocket sizes: 43 pcs · Sprocket sizes: 44 pcs · Sprocket sizes: 45 pcs · Sprocket sizes: 46 pcs · Sprocket sizes: 47 pcs · Sprocket sizes: 48 pcs · Sprocket sizes: 49 pcs · Sprocket sizes: 50 pcs · Sprocket sizes: 51 pcs · Sprocket sizes: 52 pcs · Sprocket sizes: 53 pcs · Sprocket sizes: 54 pcs · Sprocket sizes: 55 pcs · Sprocket sizes: 56 pcs · Sprocket sizes: 57 pcs · Ø bolt circle: 105.5 mm · Cranking (offset): 8 mm
