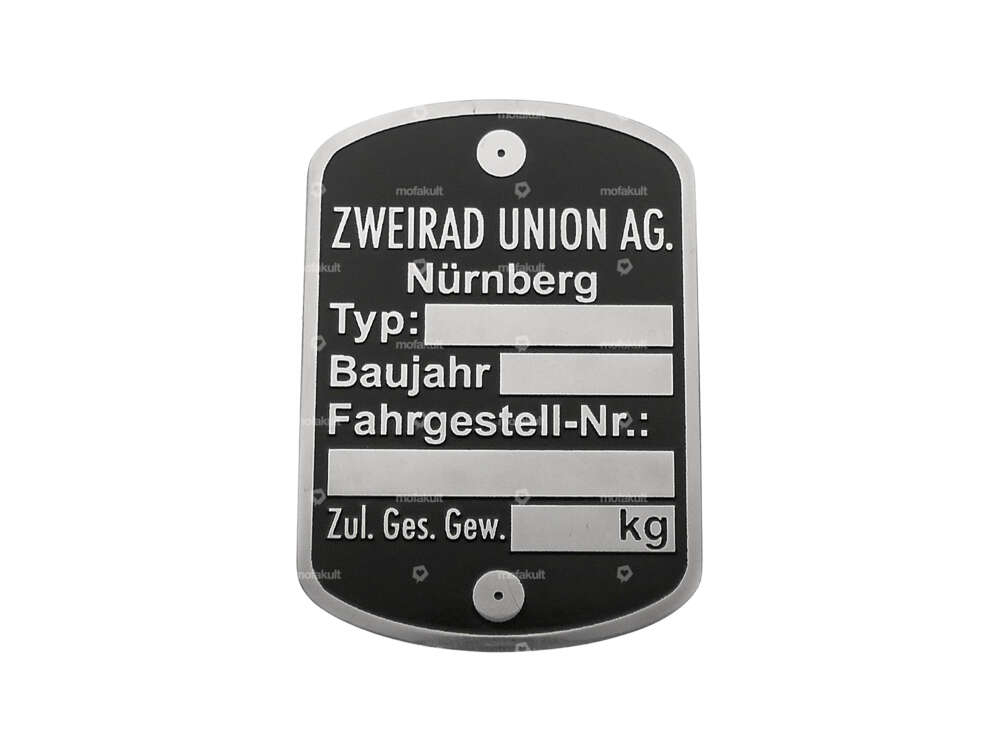

Type plate | Zweirad Union

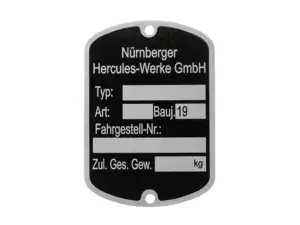

Nameplate small | Hercules

Number of fixing points: 2 pcs · Ø mounting hole: 2.45 mm · Manufacturer: Made in Germany · Width: 35 mm · Height: 50 mm · Color: black

Karcoma fuel tap M12x1 vertical (with union nut)

Manufacturer: Karcoma · Possible lever positions: open / closed / reserve · Material lever: Metal · Thread type: MF12x1 (fine pitch thread) · Filter type: Plastic net · Ø fuel hose connection: 6 mm · Installation direction: vertical / vertical · Outlet direction: any · Spare tube shape: straight · Reserve level: 50 mm · Mounting type: Union nut

Chrome mirror

Clamping diameter: 22 mm · Material: Steel · Surface: chrome-plated · Color: Chrome · Thread type: M8x1.25 (standard thread) · Ø mirror surface: 96 mm · Ø mirror rod: 7 mm · Total length: 285 mm · Mirror rod length: 230 mm · Thread size: M8

Brake cable Ø 1.8 mm x 220 cm (pear-shaped nipple)

Ø nipple: 3.5 mm · Ø nipple: 6 mm · Nipple length: 10 mm · Manufacturer: Made in Germany · Area of application: Standard · Material: Steel · Surface: blue galvanized · Number of components: 1 pcs · Ø Stranded wire: 1.8 mm · Nipple shape: Pears · Cable length: 2200 mm

Magura lever screw M5x18 mm

Drive: External hexagon · Drive: Slot · Width across flats SW: 8 mm · Total length: 21.5 mm · Manufacturer: Magura · Material: Steel · Surface: blue galvanized · Color: silver · Thread type: M5x0.8 (standard thread) · Ø shaft: 5.9 mm · Ø External head: 8.8 mm · Shank length: 9 mm · Thread length: 8.5 mm

Union pedals plastic standard

Drive: Hexagon socket · Drive: Outer edge · Width across flats SW: 15 mm · Total length: 129 mm · Manufacturer: Union · Width: 77 mm · Height: 29 mm · Material: Plastic · Material: Steel · Surface: rubberized · Color: black · Thread type: FG14.3 (9/16" 20G) · Reflectors: Yes

Oil seal NBR 15/30/7 B AS | Sachs 503, 50/2

Simmering type: B - With sheet metal outer casing / one sealing lip. · Ø inside: 15 mm · Ø outside: 30 mm · Manufacturer: Sachs · Width: 7 mm · Material: NBR · Temperature resistance (min.): -30 - 100 °C · Pony spare part no.: A1830 · Sachs spare part no.: 0250 090 000

NSK BO15 shoulder ball bearing 15/40/10 (A4502)

Bearing type: Shoulder bearing · Stock number: BO15 · Ø inside: 15 mm · Inner ring width: 10 mm · Ø outside: 40 mm · Manufacturer: NSK · Ball bearing closed: No · Width: 10 mm · Bearing cage: Brass cage ball-guided · Material: Brass · Area of application: Standard · Material: Steel · Surface: blank · Pony spare part no.: A4502 · Sachs spare part no.: 0932 007 001

swiing® revival intermediate blade | Sachs 50/2 ML, 503 2AL/2BL (A1908)

Manufacturer: swiing® revival parts · Area of application: Standard · Material: Steel · Pony spare part no.: A1908 · Sachs spare part no.: 0259 015 000

Oil seal NBR 14.96x31.5x3.5 Pinion shaft | Sachs 502, 50/2, 503 (A1134)

Ø inside: 14.96 mm · Ø outside: 31.5 mm · Manufacturer: Sachs · Width: 3.5 mm · Material: NBR · Area of application: Standard · Surface: coated · Place of use: Pinion shaft · Temperature resistance (min.): -30 - 100 °C · Pony spare part no.: A1134 · Sachs spare part no.: 0230 011 100 · Sachs spare part no.: 0230 011 200

GPO ball bearing countershaft | Sachs 50/2, 50/3, 50/4, 503 2AL/2BL (A2531)

Bearing type: Deep groove ball bearing · Ø inside: 15 mm · Ø outside: 35 mm · Manufacturer: GPO · Ball bearing closed: No · Width: 8 mm · Width: 25.6 mm · Bearing clearance: CN (standard) · Bearing cage: "-" Sheet steel cage ball-guided · Area of application: Standard · Material: Steel · Surface: blank / oiled · Thread type: MF20x1 (fine pitch thread) · Pony spare part no.: A2531 · Sachs spare part no.: 0286 079 105
