Name: Wedge clutch | Puch E50
Brand: Puch
SKU: 24192
Price: 1.90 CHF
Availability: InStock

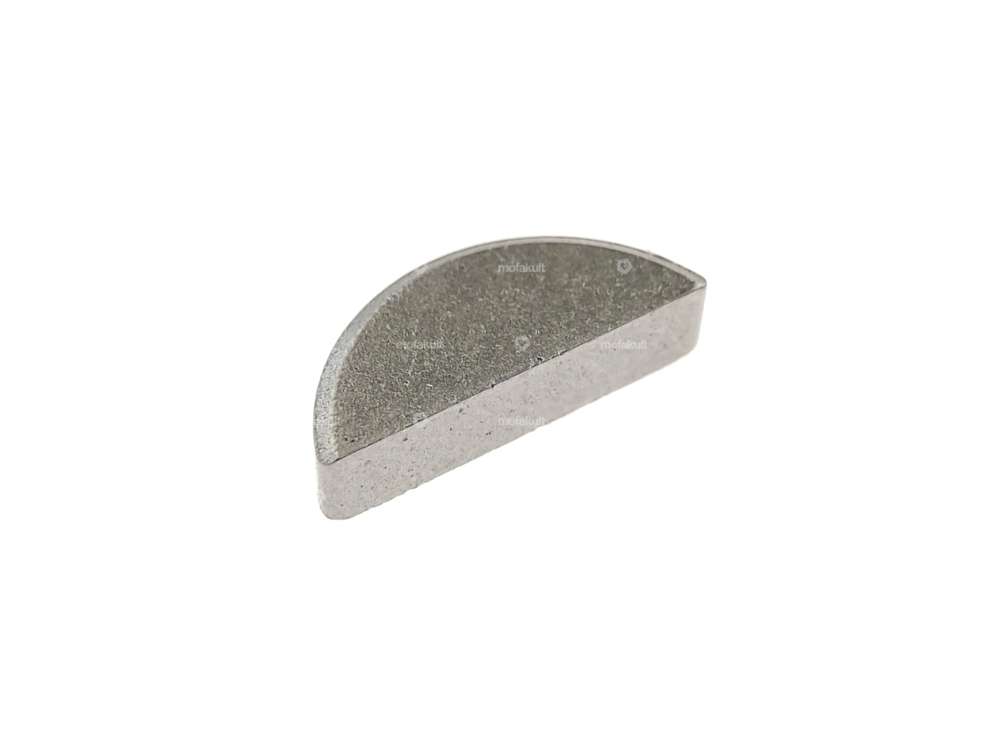

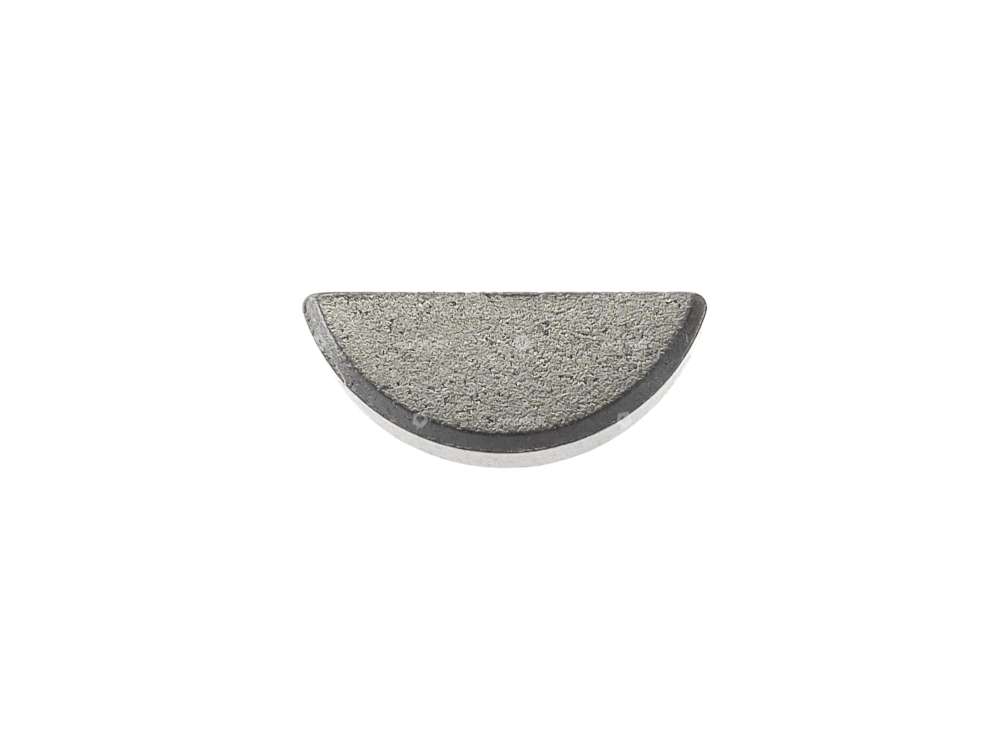

Woodruff key / Woodruff key for the clutch of Maxi 1-speed E50 engines.

Attention: Some new clutches and crankshafts do not have grooves to accommodate the key.

Length: 12.1 mm
Height: 4.9 mm
Width: 3 mm

Original Puch spare part number: 23340

The set includes the following fixed parts:

Universal

Wedge 12.1x4.9x3 mm

18948

Material: Steel · Total length: 12.5 mm · Width: 3 mm · Height: 4.9 mm

Details

Manufacturer	Puch
Material	Steel
Total length	12.1 mm
Width	3 mm
Height	4.9 mm

Suitable for the following models

Puch

E50
