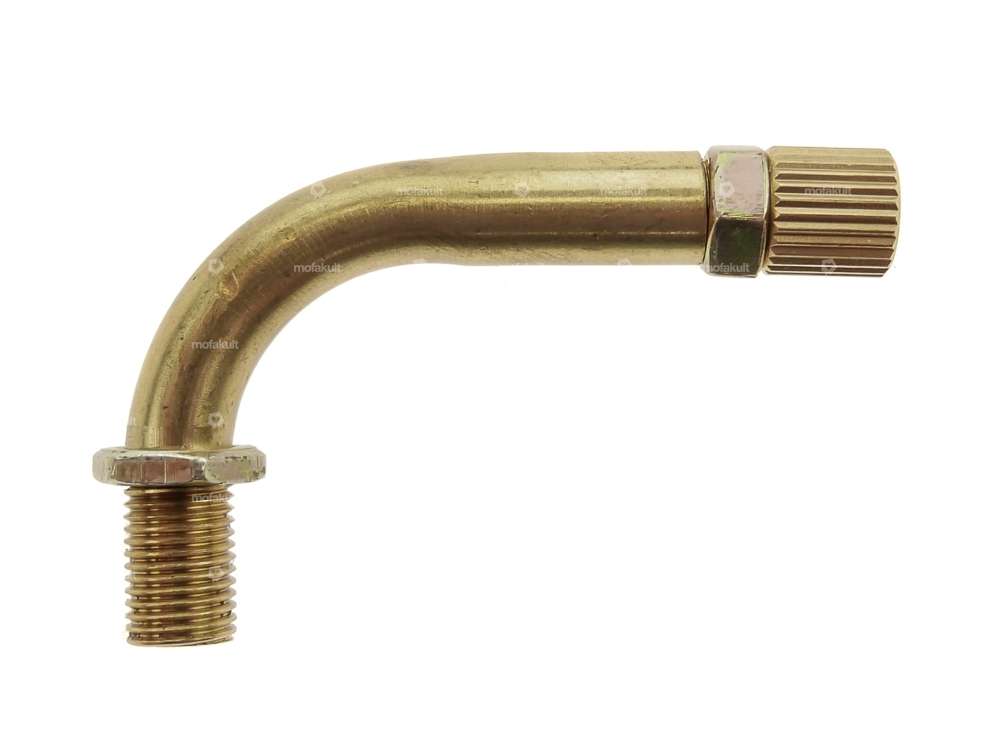

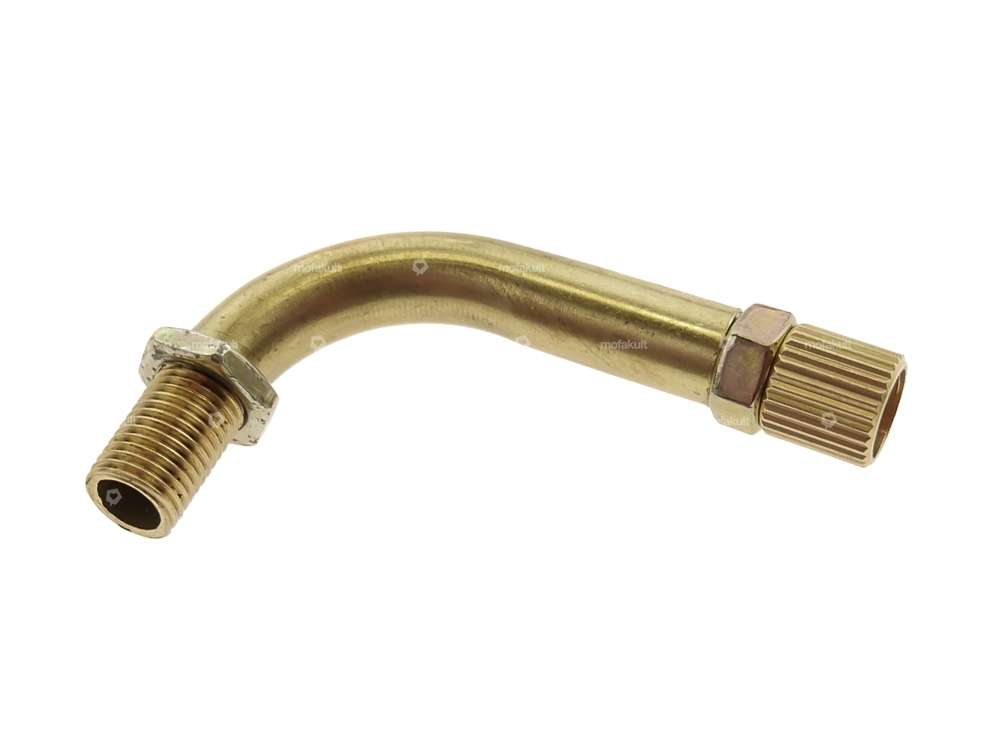

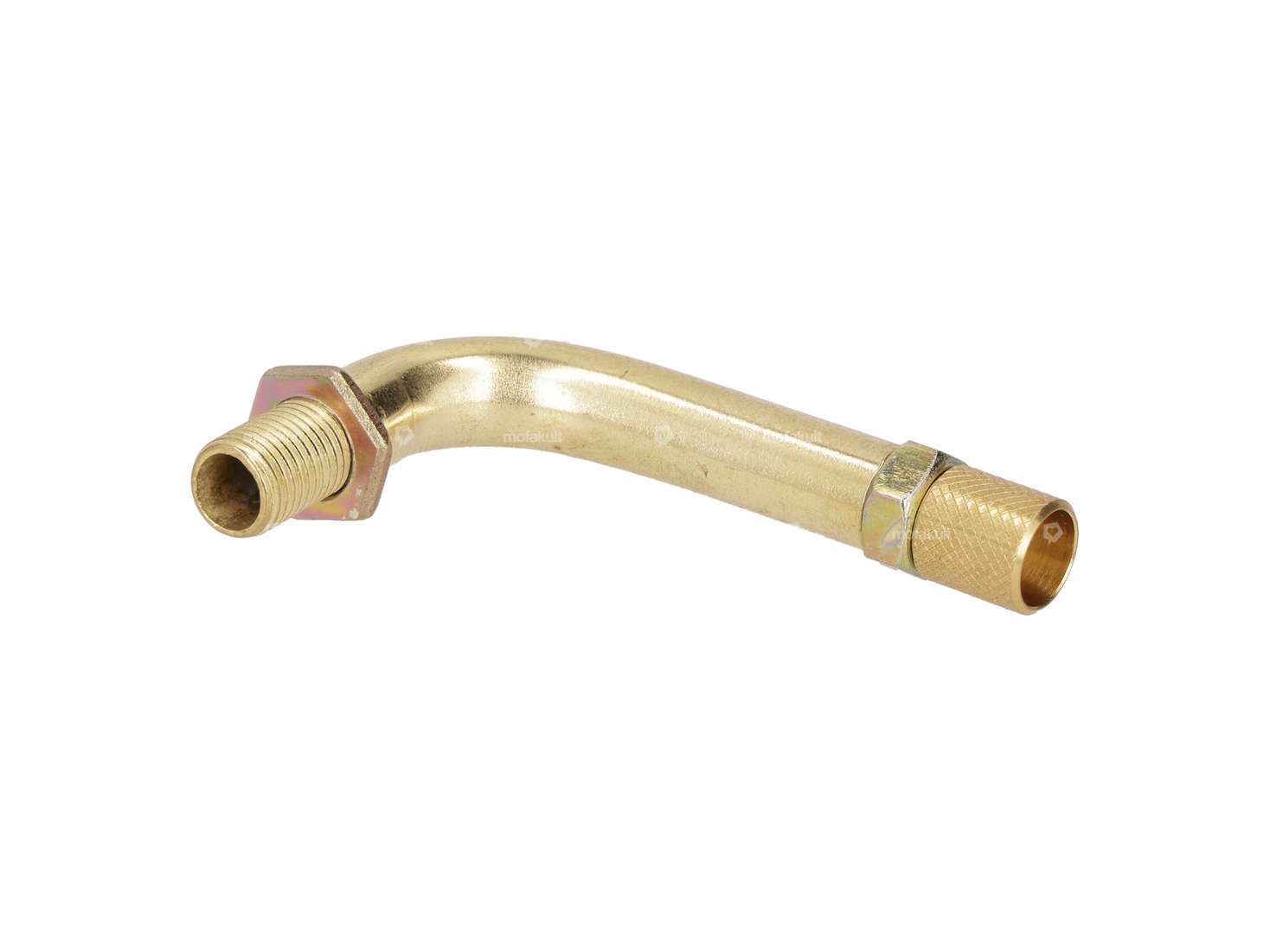

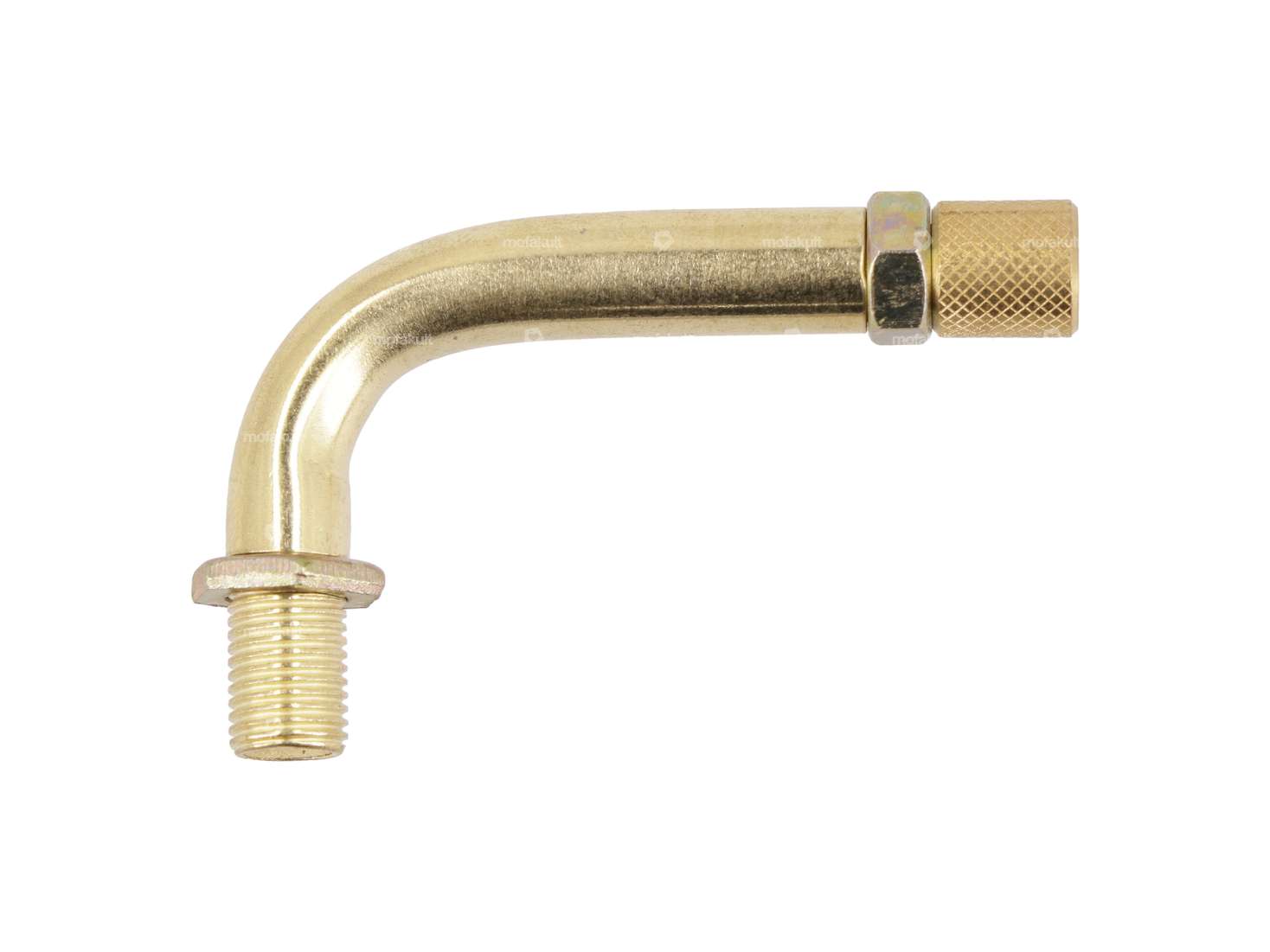

Gas cable pipe bend incl. cable adjusting screw suitable for various mopeds, mopeds and small motorcycles with Bing 85, 17, 18 carburettors.
These carburettors are installed on Puch X30 Sport, Puch Supermaxi LG1 & LG2, Sachs 503 ADV, as well as Sachs 504 / 535 mopeds.
The throttle cable guide tube has an M7 x 0.75 mm mounting thread.
You can find more carburetor elbows and throttle cables in the accessories section.
Details
| Width across flats nut | 10 mm, 8 mm |
| Material | Brass |
| Component group Carburetor | Adjusting screws, float, etc. |
| Angle | 90 ° |
| Carburetor type | 85, 18 Catalyst |
| Total length | 47 mm, 53.5 mm |
| Ø outside | 7 mm |
| Height | 29 mm |
| Internal thread | MF6x0.75 (fine pitch thread) |
| Thread type | MF7x0.75 (fine pitch thread) |
| Pony OEM number | A2066 |
| Sachs OEM no. | 0261 132 000 |
Suitable for the following models
| Puch | E50 ZA50 (air-cooled) |
| Sachs | 503 - ADV 535 |
