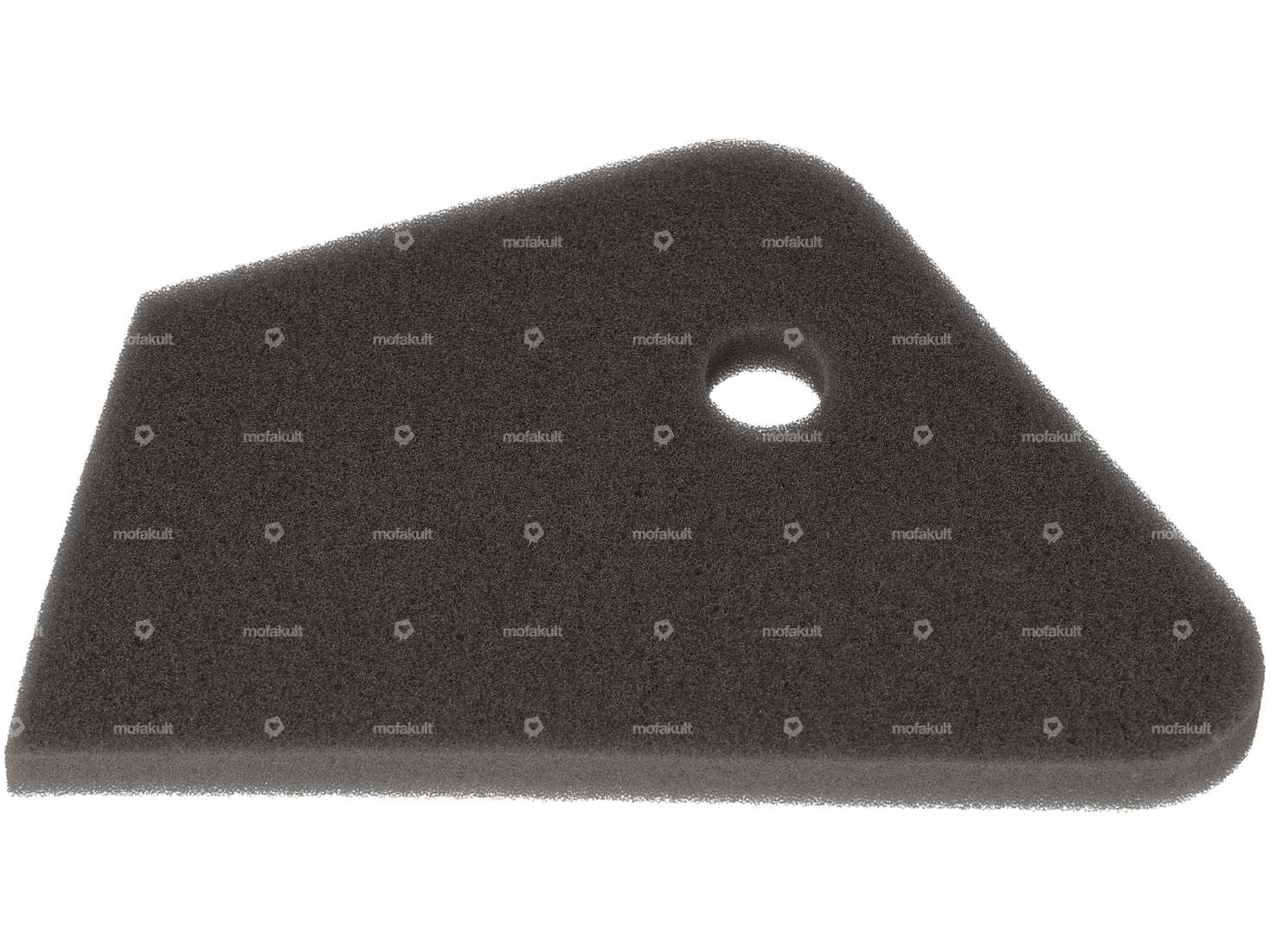

Air filter insert original Tomos

Air filter Tomos original

Manufacturer: Tomos · Area of application: Original · Material: Plastic · Color: black · Filter type: Foam · Total length: 240 mm · Width: 62 mm · Length rubber part: 30 mm · Ø outside: 61 mm · Height: 122 mm · Length of filter section: 210 mm · Ø Internal connection: 56 mm · Mounting type: Plug connection clamped · Tomos spare part no.: 230069

BERU spark plug connector / 1 kΩ interference suppressed

Ø cable: 5 mm · Ø cable: 7 mm · Manufacturer: BERU · Material: Sheet metal (steel) · Spark plug socket: M4 · Cable available: No · Color: silver · Resistance: 1000 Ω · Suppressed: Yes · Pony spare part no.: A2099 · Sachs spare part no.: 0265 100 00

Brake cable Ø 1.8 mm x 220 cm (pear-shaped nipple)

Ø nipple: 3.5 mm · Ø nipple: 6 mm · Manufacturer: Made in Germany · Material: Steel · Surface: blue galvanized · Number of components: 1 pcs · Area of application: Standard · Ø Stranded wire: 1.8 mm · Nipple shape: Pears · Cable length: 2200 mm · Nipple length: 10 mm

Motorex Automatic Motor Oil (ATF) 450 ml

Temperature resistance (min.): -45 - 200 °C · Manufacturer: Motorex · Contents [ml]: 450 ml · Gearbox type: Automatic machine · Area of application: Gearbox lubrication with clutch · Pony spare part no.: A2080 · Sachs spare part no.: 0263 014 002

Tank cap 40 mm bayonet lockable

Height: 34 mm · Color: Chrome · Material: Plastic · Material: Steel · Surface: blue galvanized · Surface: chrome-plated · Fuel filler cap: Bayonet 40 mm · Lockable: Yes · Vented: No · Ø External head: 68.5 mm

Speedometer drive 11 mm axle left with grease nipple holder

Ø axle: 11 mm · Material: Aluminum · Color: gray · Thread type: MF10x1 (fine pitch thread) · 4-edge speedometer cable: 1.9 mm · Ø outside: 42 mm · Place of use: left · Wheel size [inch]: 16 " · Overall width outside: 48 mm · Total height: 52 mm · Ø mounting hole: 11.2 mm

OMG fuel tap vertical M12x1 labeled (with union nut) outgoing left

Manufacturer: OMG · Possible lever positions: open / closed / reserve · Material lever: Plastic · Filter type: Plastic net · Installation direction: vertical / vertical · Outlet direction: left · Mounting type: Union nut · Spare tube shape: straight · Thread type: MF12x1 (fine pitch thread) · Ø fuel hose connection: 6 mm · Reserve level: 50 mm

Rubber grommet side panel | Tomos

Manufacturer: Tomos · Material: Rubber · Color: black · Ø Cable bushing: 6 mm · Height: 7.5 mm · Clamping diameter: 10 mm

Tomos air filter connection

Manufacturer: Tomos · Material: Rubber · Color: black · Mounting type: Plug connection clamped · Tomos spare part no.: 229705

Gearbox cover gasket | Tomos

Manufacturer: Tomos · Material: Sealing paper · Number of fixing points: 9 pcs · Number of components: 1 pcs · Tomos spare part no.: 209083

Main stand spring | Tomos

Spring design: Tension spring · Total length: 86.6 mm · Length spring hook: 17.4 mm · Ø wire: 2.5 mm · Manufacturer: Tomos · Material: Spring steel · Surface: blue galvanized · Area of application: Original · Area of application: Standard · Ø inside: 9.8 mm · Ø outside: 14.5 mm · Tomos spare part no.: 200609
