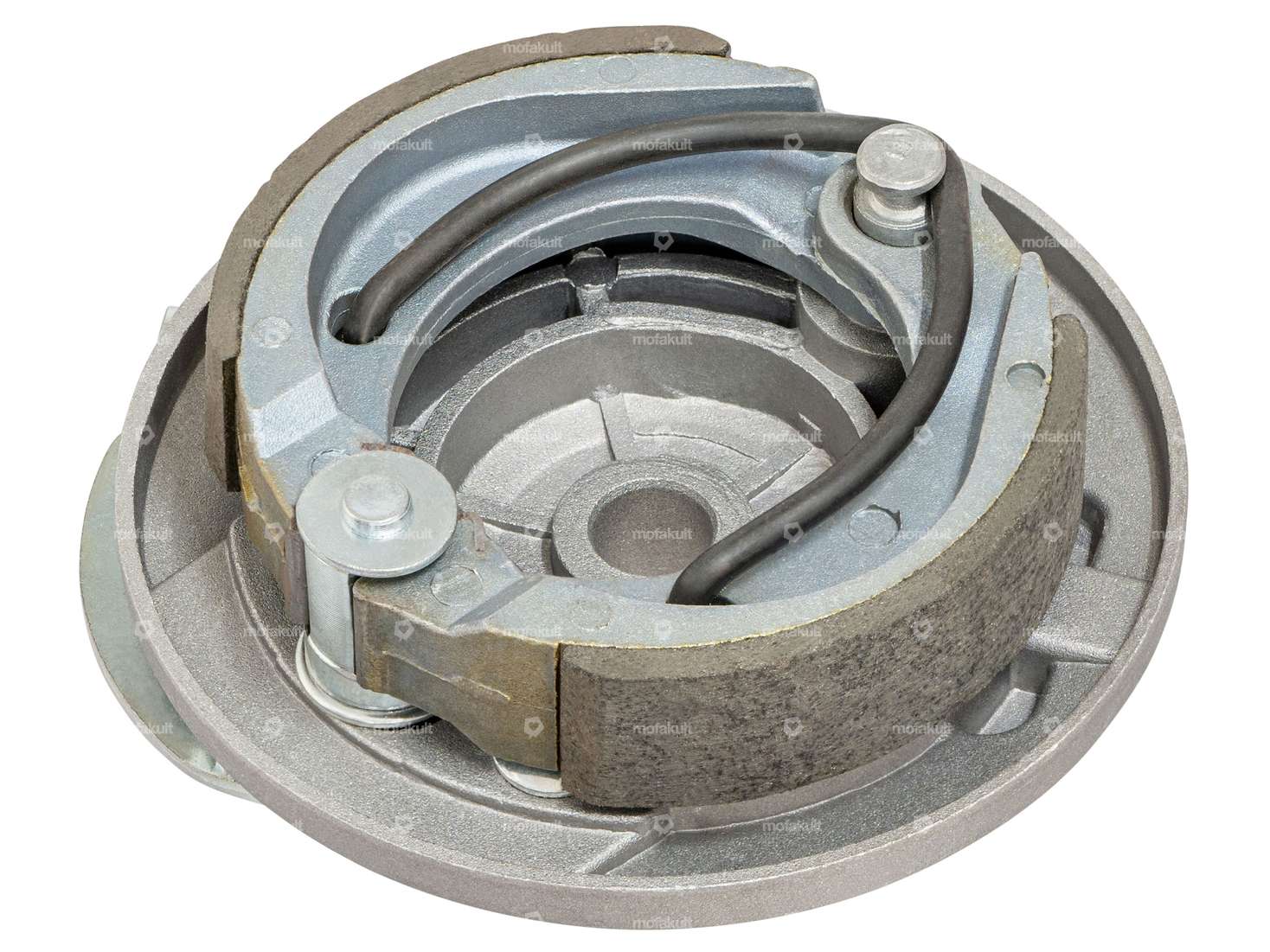

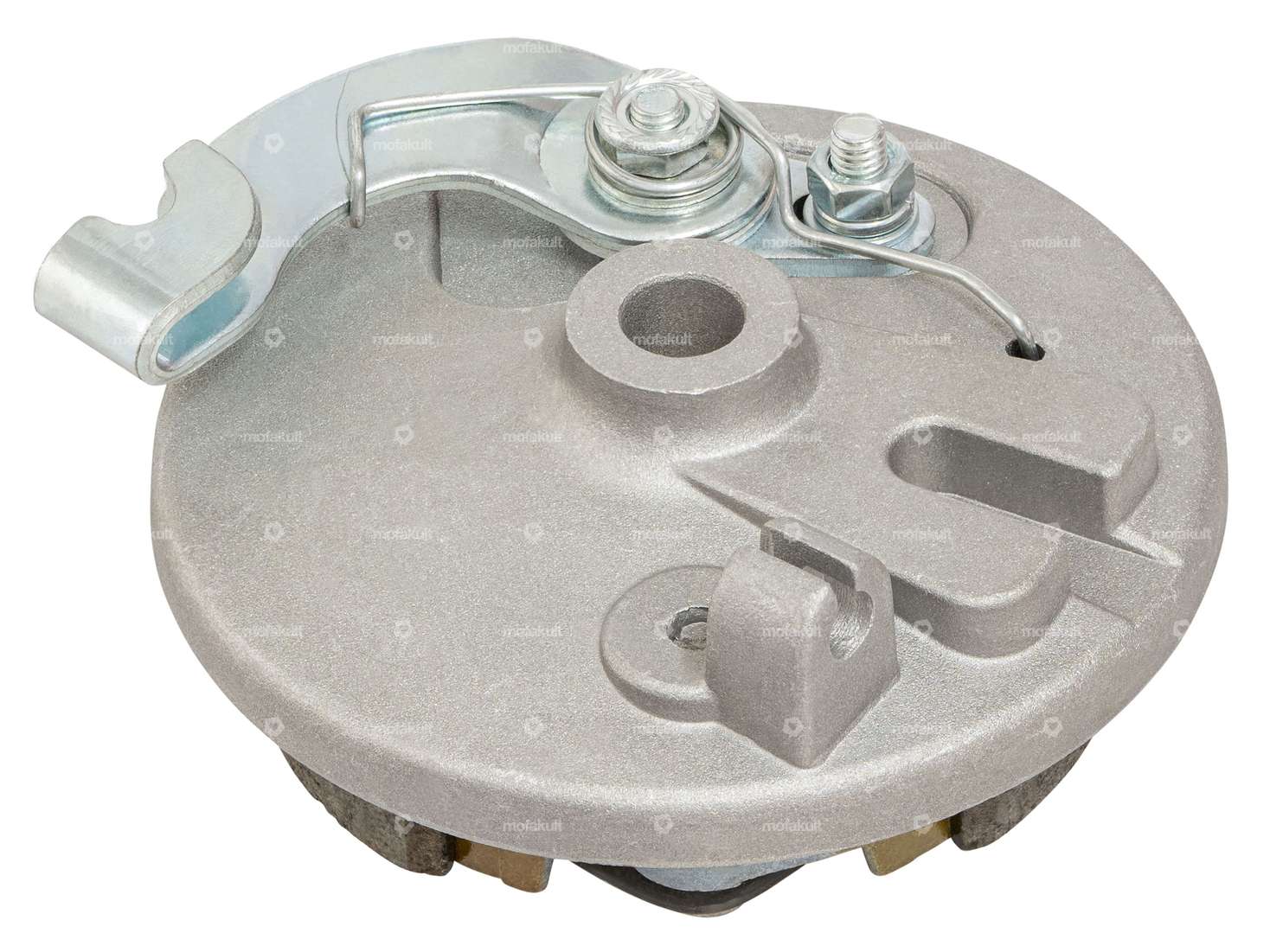

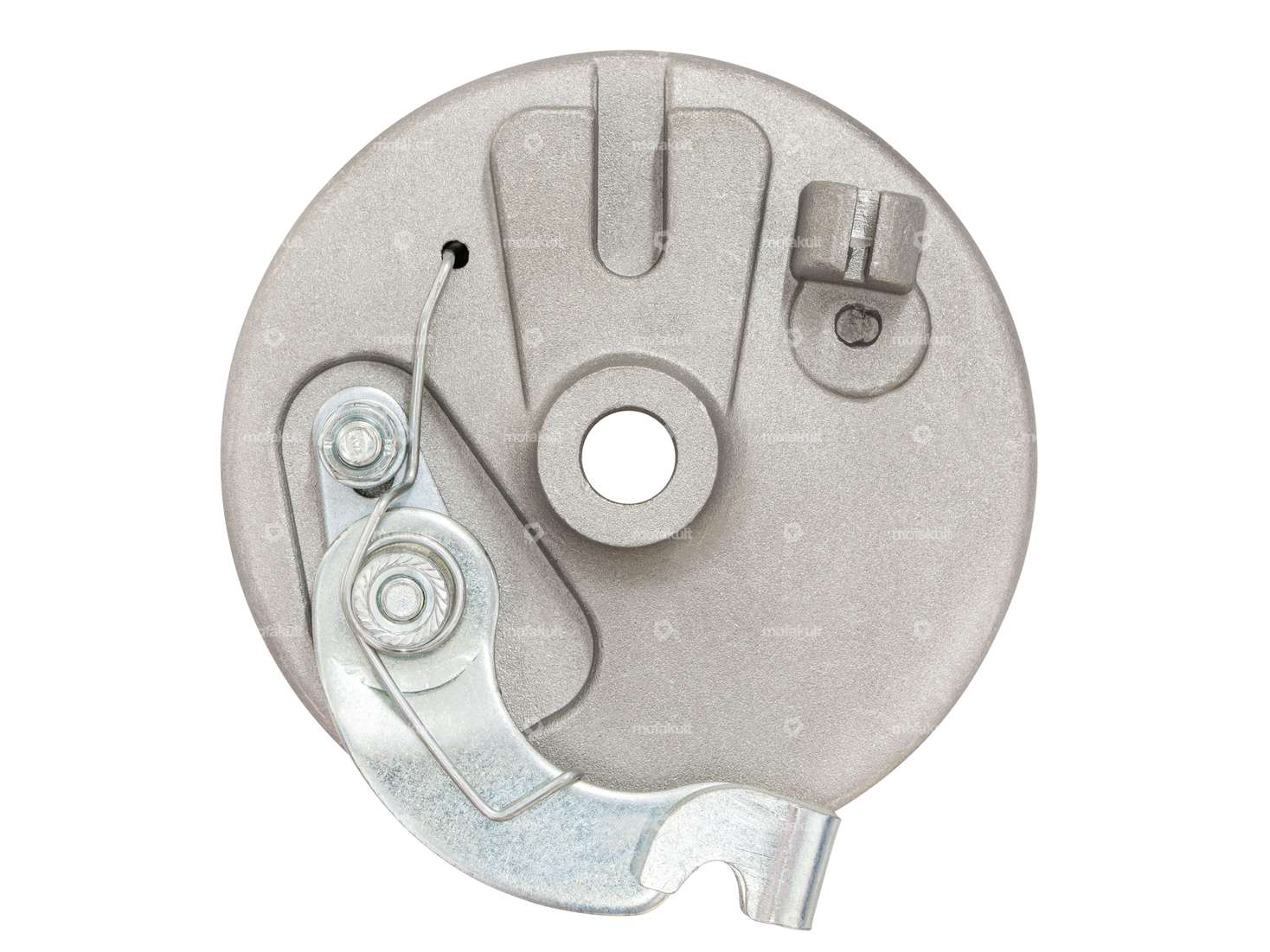

Complete brake anchor plate from the manufacturer Grimeca, including brake pads, suitable for the front brake of Peugeot 103 SP and MVL rims.
With a little skill, the brake plate can also be adapted for Puch bikes. To do this, the collar of the anchor plate and the mount of the locking cam of the fork must be milled off a little.
Ø outside brake shoes: 90 mm
Width brake shoes: 20 mm
Ø Bore for wheel axle: 12.2 mm
Ø outer brake plate: 110 mm
Height collar (from outer side of plate): 10 mm
Height mounting locking cam: 10 mm
Further accessories such as brake shoes or other brake anchor plates can be found in the accessories section.
| Ø bore | 12.2 mm |
| Material | Aluminum |
| Surface | sandblasted |
| Ø External brake pads | 90 mm |
| Ø axle | 12 mm |
| Ø outside | 110 mm |
| Puch |
| Peugeot |
