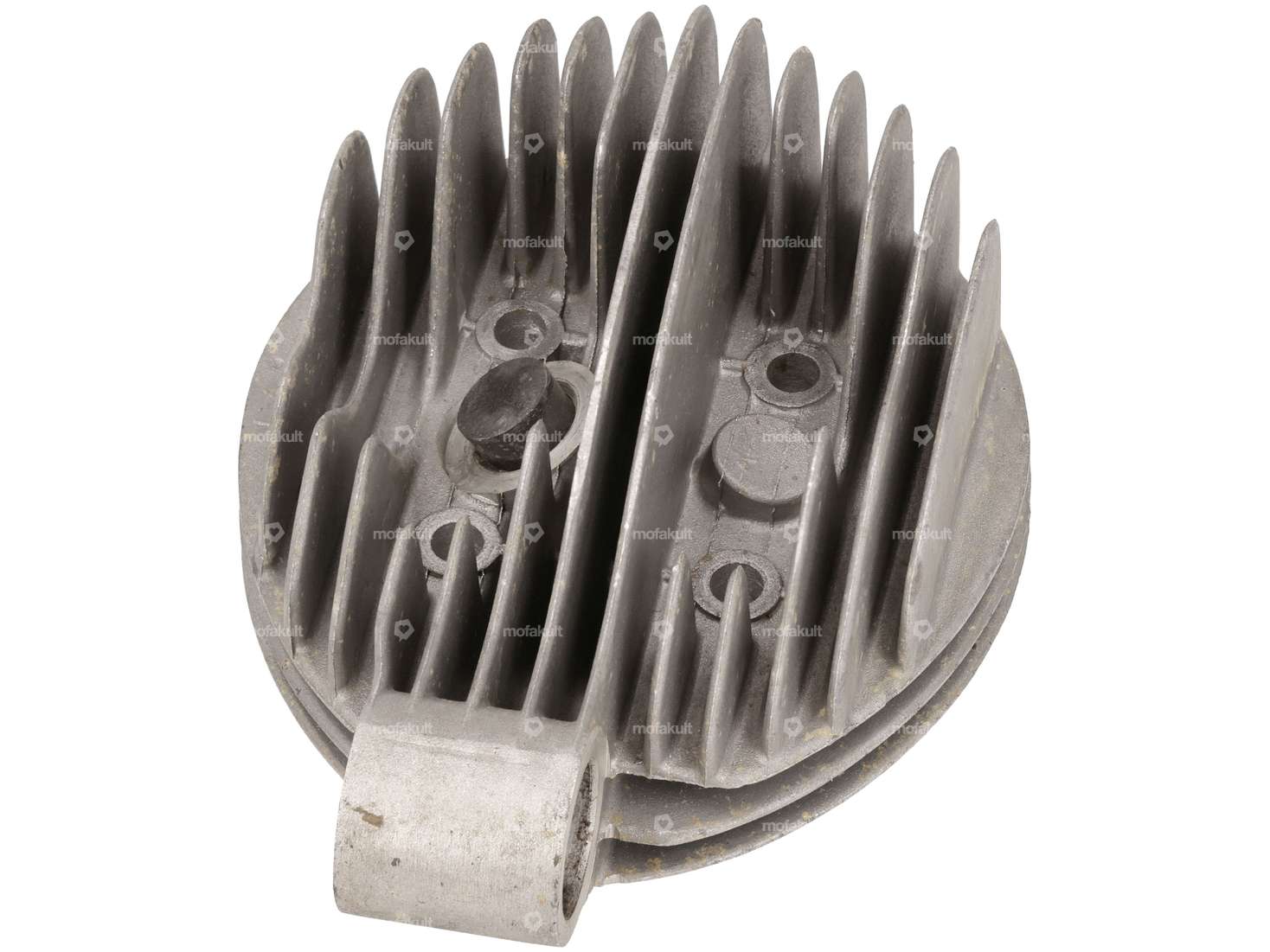

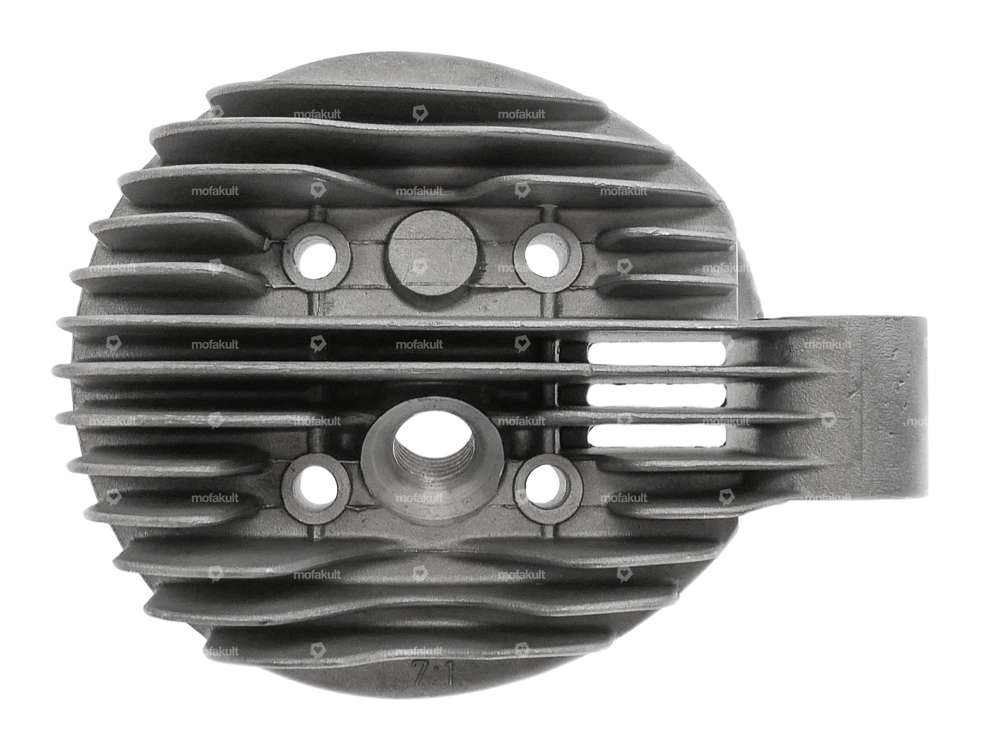

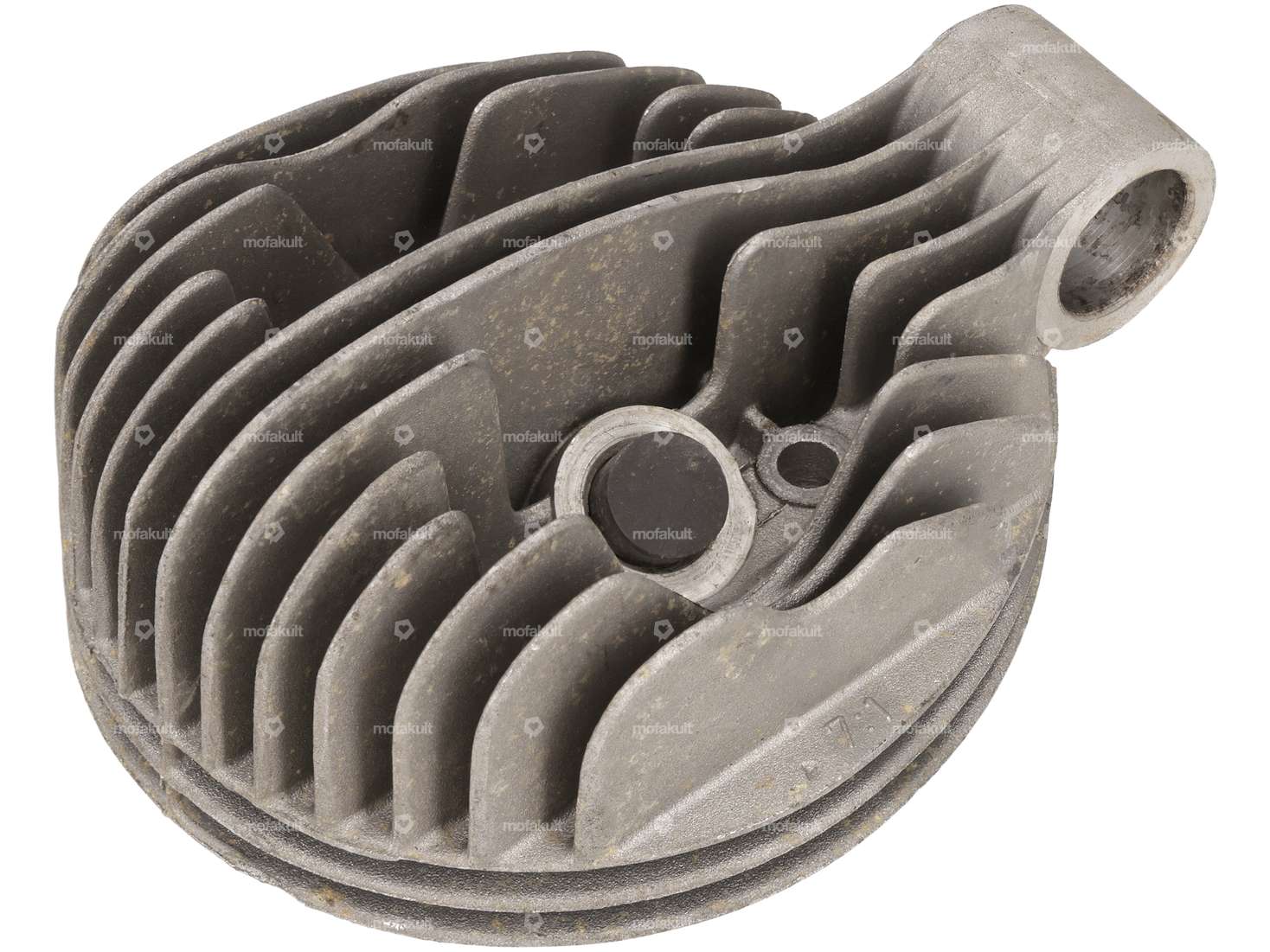

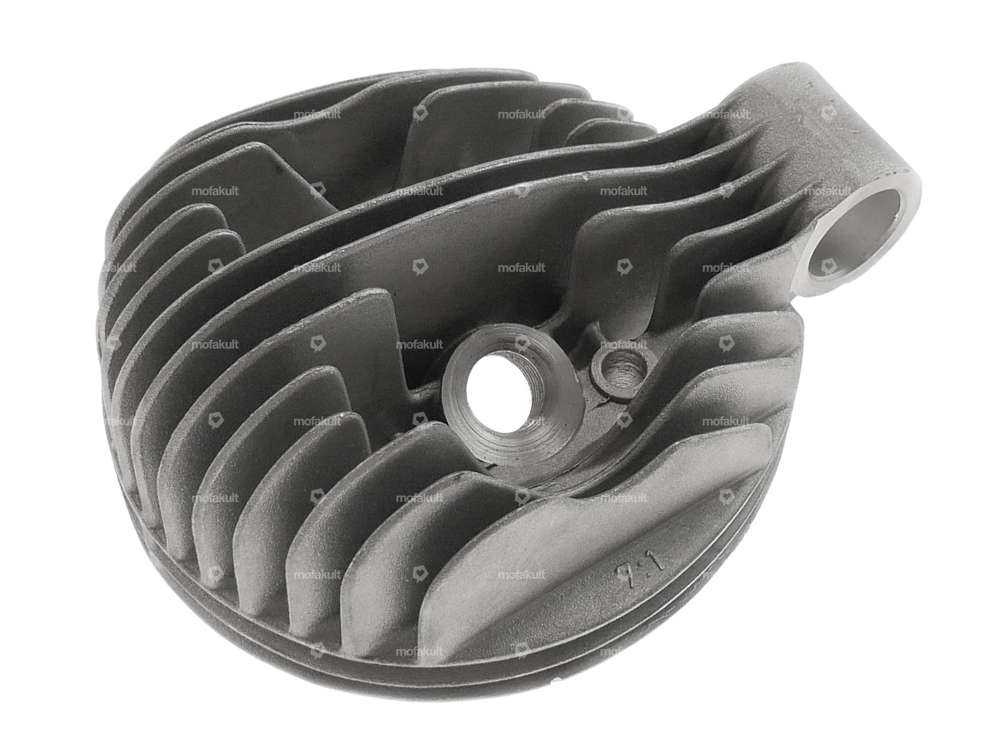

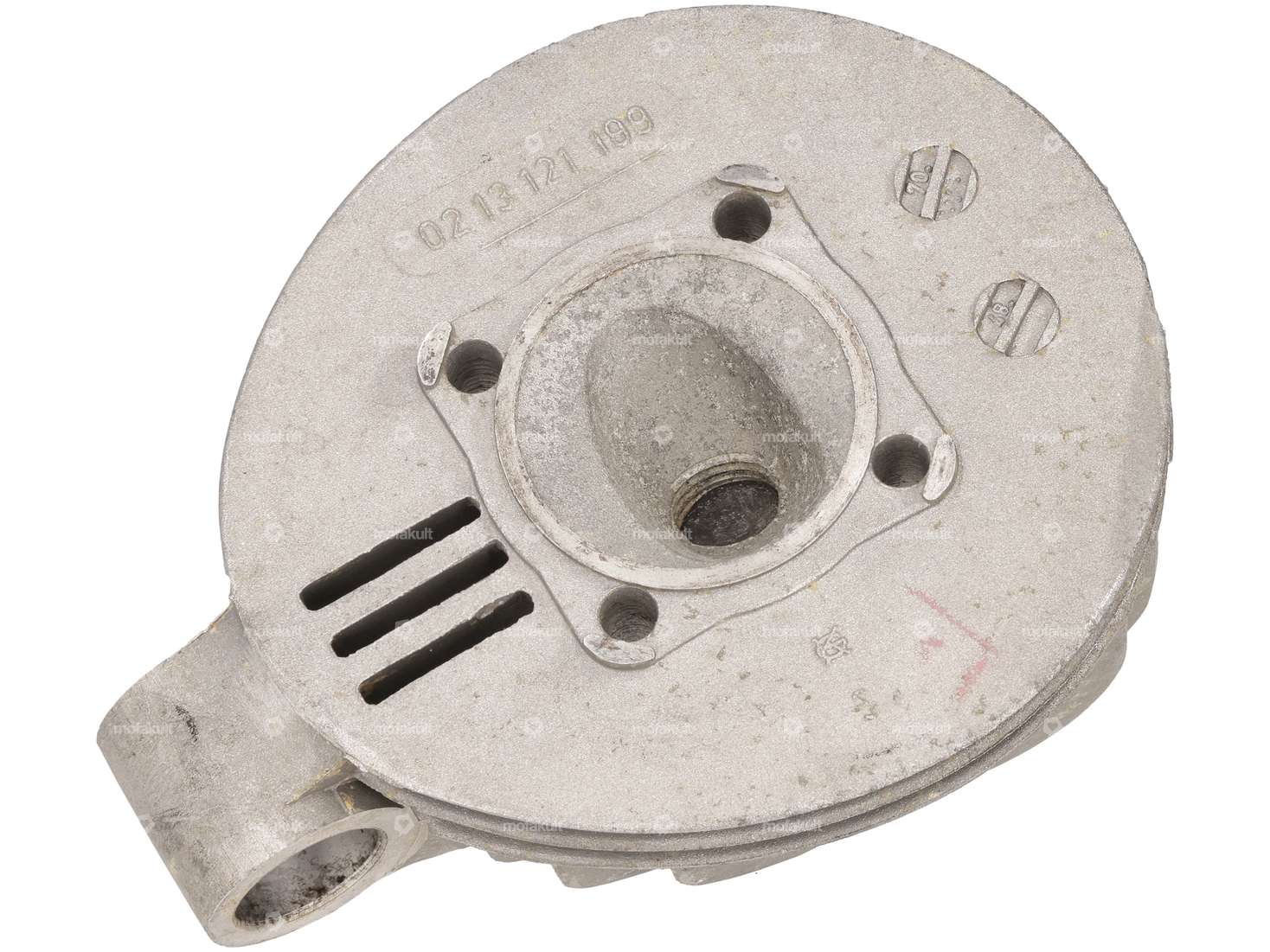

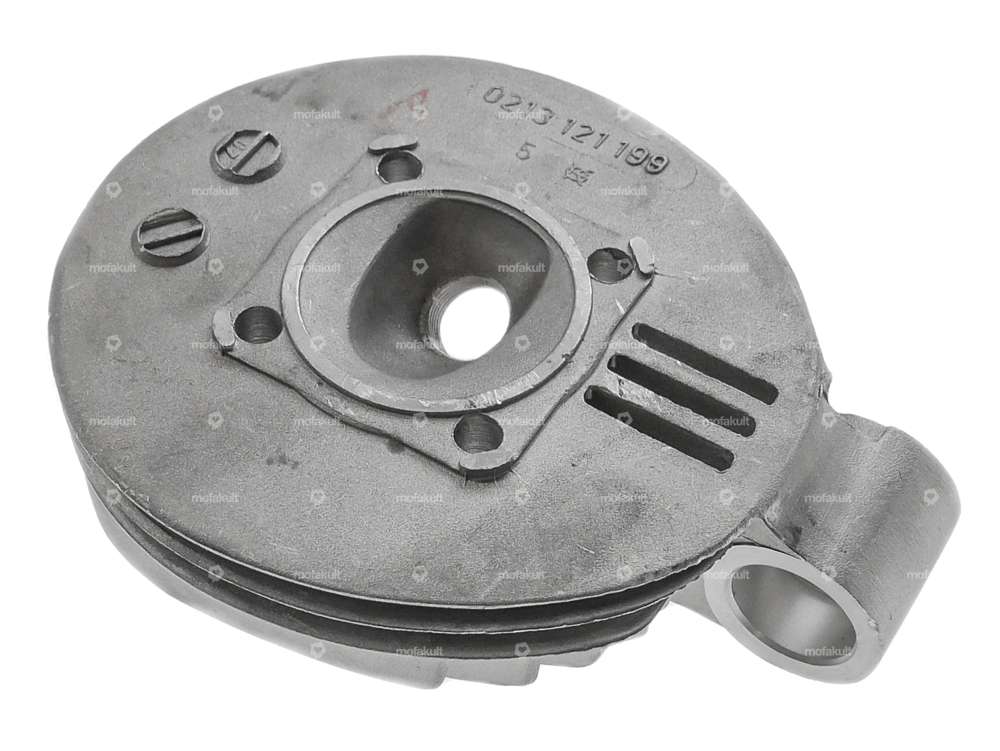

Cylinder head for windage Sachs 50/2 engines.
New from 40-year old stock. May therefore show slight signs of storage, but these do not affect the functionality in any way.
The cooling fins have a larger outer diameter than the traditional blown Swiss models.
(Outer diameter of ribs: 105 mm)
In order to be able to fit the cylinder to a Sachs 50/2 CH engine with blower cooling, adaptation work must be carried out.
Original Sachs spare part number: A1064/ 0213 033 003 / 0213 121 000
Details
| Manufacturer | Sachs |
| Area of application | Original |
| Ø outside | 105 mm |
| Pony spare part no. | A1064 |
| Alternative version of Sachs spare part no. | 0213 033 003 |
| Sachs spare part no. | 0213 121 105 |
Suitable for the following models
| Sachs | 50 (Fahrtwind, 1.25 / 1.5 PS, DE) 50/3 50/4 - MLFB (2.6 PS), LKH (4.5 PS) |
