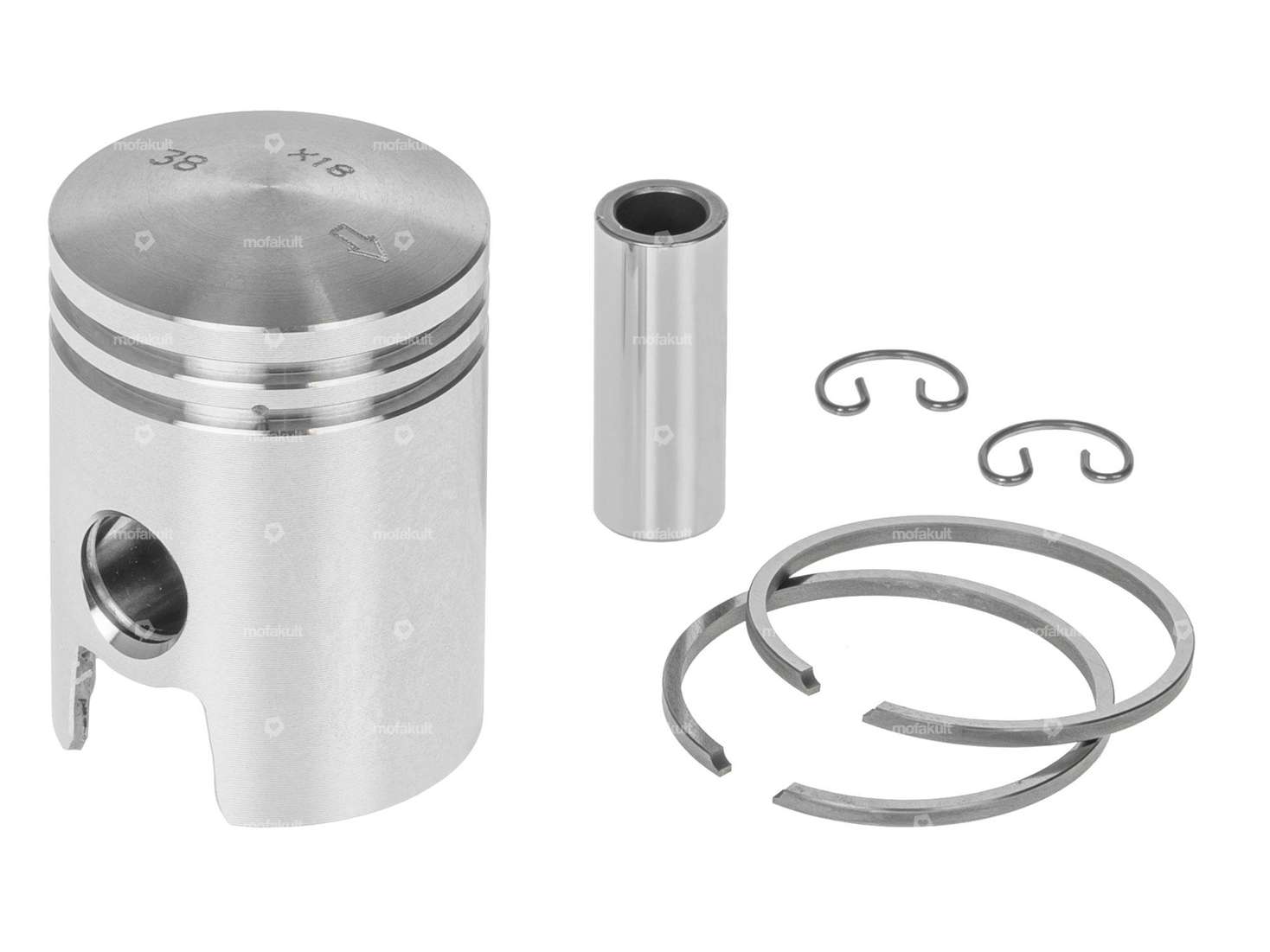

38.0 mm Meteor brand piston with two 2 mm rectangular piston rings with flank lock (FS) in original size, suitable for mopeds and mopeds with Sachs 502, 50/2, 503 2AL, AAL, 2BL, ABL CH engines.

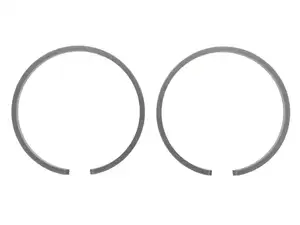

The detailed dimensions of the piston according to the technical drawing can be found in the details. You can also find out about the relevant piston rings, their positions and locking types on the legend in the images.
The piston kit contains piston pins, piston clips and piston rings.
Corresponding assembly tools, piston rings, piston pin retainers etc. can be found under accessories.
Original Sachs spare part number: A2772
Quality product from the Italian manufacturer Meteor.
Details
Manufacturer | Meteor |
Ø outside piston (A) | 37.95 mm |
Compression height (C) | 28 mm |
Curvature (D) | 3 mm |
Total piston height (E) | 53 mm |
Number of piston rings (F) | 2 pcs |
Nominal diameter | 38 mm |
Piston ring mold | Rectangular ring |
Piston ring impact | Flank safety device (FS) |
Piston ring height | 2 mm |
Thick piston ring | 1.6 mm |
Ø piston pin (B) | 12 mm |
Piston weight | 79 g |
Pony OEM number | A2772, A4358 |
Sachs OEM no. | 0286 377 010, 0286 378 005 |
Suitable for the following models
Sachs | 50 (Fahrtwind, 1.25 / 1.5 hp, DE) 502 (Saxonette) - AL, AML 50/2 - L CH (0.8 PS), ML CH (0.8 PS), MB (2.6 PS), MLB (2.6 PS) 503 - AAL, ABL, 2AL / 2BL |
Accessories & related products
Meteor piston 39.2 mm oversize | Sachs 50/2 & 503
Manufacturer: Meteor · Nominal diameter: 38 mm · Ø outside piston (A): 39.2 mm · Ø piston pin (B): 12 mm · Compression height (C): 28 mm · Curvature (D): 3 mm · Total piston height (E): 53 mm · Number of piston rings (F): 2 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Piston ring height: 2 mm · Piston weight: 88 g · Pony OEM number: A2776 · Sachs OEM no.: 0286 377 014
CHF 49.90
Meteor piston 39.5 mm oversize | Sachs 50/2 & 503
Manufacturer: Meteor · Nominal diameter: 38 mm · Ø outside piston (A): 39.45 mm · Ø piston pin (B): 12 mm · Compression height (C): 28 mm · Curvature (D): 3 mm · Total piston height (E): 53 mm · Number of piston rings (F): 2 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Piston ring height: 2 mm · Piston weight: 90 g
CHF 49.90
GPO piston pin extractor Ø 10, 12, 14 mm
Manufacturer: GPO · Material: Steel · Surface: burnished · Diameter: 10 mm · Diameter: 12 mm · Diameter: 14 mm · Number of components: 7 pcs · Total length: 130 mm · Width across flats SW: 10 mm · Width across flats SW: 17 mm · Area of application: (Dis)assembly tool
CHF 19.90
Meteor piston 39.0 mm oversize | Sachs 50/2 & 503
Manufacturer: Meteor · Ø outside piston (A): 38.95 mm · Compression height (C): 28 mm · Curvature (D): 3 mm · Total piston height (E): 53 mm · Number of piston rings (F): 2 pcs · Nominal diameter: 39 mm · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Ø piston pin (B): 12 mm · Piston ring height: 2 mm · Piston weight: 88 g
CHF 49.90
Moped fans like you also bought:
NSK E15 shoulder ball bearing 15/35/8 (A1149)
Bearing cage: Brass cage ball-guided · Inner ring width: 8 mm · Manufacturer: NSK · Bearing clearance: CN (standard) · Groove ring: No · Material: Brass · Material: Steel · Surface: blank · Stock number: E15 · Bearing type: Shoulder bearing · Width: 8 mm · Ø inside: 15 mm · Ball bearing closed: No · Ø outside: 35 mm · Area of application: Standard · Pony OEM number: A1149 · Sachs OEM no.: 0232 017 006
CHF 24.90
swiing® revival stud bolt M5 x 23 mm inlet (diaphragm) 10.9 | Sachs 50/2 (A3700)
Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Diameter: 4.9 mm · Total length: 23 mm · Thread length: 6 mm · Thread length: 12 mm · Thread type: M5x0.8 (standard thread) · Area of application: Standard · Pony OEM number: A3700 · Sachs OEM no.: 0640 016 101 · Sachs OEM no.: 0640 016 102
CHF 1.80

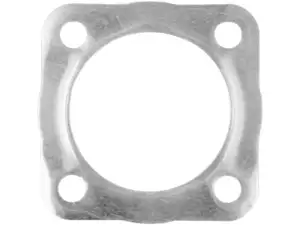

swiing® revival gasket cylinder head 38 mm cylinder | Sachs 503, 502, 50/2, 50/3, 50/4
