Disc brake system manufactured in small series incl. sandblasted 16” front wheel and CNC-milled brake caliper plate for your Piaggio Si moped / moped.
The aluminum milled base plate is mounted to the mounting points of the mudguard using the two screws supplied. The existing cam on the fork gives the bracket additional guidance and ensures stability. All relevant bolts are either fitted with lock nuts or already secured with medium-strength Loctite.
Contents of the disc brake set:
- 16” 4-star cast front rim incl. adapter ring for centering the brake disc and cover plate instead of the brake anchor plate
- Brake disk 220 mm
- Enclosed wheel bearing and wheel axle
- Brake calliper
- Brake cable 900 mm (length sufficient for original handlebars)
- Brake lever with reservoir for the brake fluid
- Bolts and nuts for fastening all parts
Installation instructions:
After fitting a tire, routing the cable and installing the new grip unit, the brake fluid reservoir must be filled and the system bled.
If you want to continue using the mudguard, the brake calliper plate still needs to be adjusted.
If you want to continue using the speedometer, the speedometer drive must be drilled out and the spacer turned off.
Use only fresh DOT4 brake fluid and bleed the system properly to ensure your safety.
Pay attention to cleanliness during assembly and clean the brake disk and brake shoes before commissioning.
General information:
The use on reproduction forks (e.g. from EBR) has not been tested by us.
This is a used, refurbished and newly powder-coated rim, which may have small imperfections.
You will find the complete disc brake system for the rear wheel along with threadlocker and brake fluid in the accessories section.
A quality product made in Italy.
Details
| Manufacturer | Made in Italy |
| Material | Aluminum, Steel |
| Surface | powder-coated |
| Color | black |
| Ø outside | 220 mm |
| Cable length | 900 mm |
Suitable for the following models
| Piaggio | Si |
Accessories & related products
Loctite 243 medium-strength threadlocker 10 ml
Temperature resistance (min.): -75 - 200 °C · Manufacturer: Loctite · Material to be used: Aluminum · Material to be used: Metal · Material to be used: Steel · Color: blue · Hazard warning: Causes serious eye irritation · Hazard warning: Causes skin irritation · Hazard warning: Harmful to aquatic organisms (with long-term effects) · Hazard warning: May cause allergic skin reactions · Hazard warning: May irritate the respiratory tract · Contents [ml]: 10 ml · Signal word: Attention · Hazard pictogram: GHS07 - Caution dangerous · Hazard pictogram: GHS09 - Hazardous to the aquatic environment · Area of application: Chemistry · Adhesion: medium strength · Gap dimension (max.): 0.01 mm · Type of application: 1K · Alignment time: 600 sec · Breakaway torque (according to material): 3 N/m · Breakaway torque (according to material): 12 N/m · Breakaway torque (according to material): 26 N/m
CHF 21.90
CHF 2’190.00/l
Continental 2.00 - 2.50 x 16" tube
Manufacturer: Continental · Tire width [inch]: 2 - 2.5 " · Tire width [mm]: 50.8 - 63.5 · Width [inch]: 2 · Width [inch]: 2 1/4 · Width [inch]: 2 1/2 · Tire height [%]: 100 · Wheel size [inch]: 16 " · Old designation: 20 x 2 · Old designation: 20 x 2.25 · Old designation: 20 x 2.5 · Valve type: TR6 car valve
CHF 14.40
Heidenau 2.25 x 16" tires M4 Allround
Manufacturer: Heidenau · Tire width [inch]: 2.25 " · Color: black · Width [inch]: 2 1/4 · Wheel size [inch]: 16 " · Old designation: 20 x 2.25 · Speed index: J = 100 km/h · Load capacity index: 38 = 132 kg · Profile type: M4 · Tire type: Allround · White wall: No · Tubeless (yes/no): Tubetype TT (requires hose)
CHF 42.90
Continental Go 2.25 x 16" Semi-Slick
Manufacturer: Continental · Tire width [inch]: 2.25 " · Tire width [mm]: 57.15 · Color: black · Width [inch]: 2 1/4 · Wheel size [inch]: 16 " · Old designation: 20 x 2.25 · Speed index: J = 100 km/h · Load capacity index: 38 = 132 kg · Profile type: ContiGo! · Tire type: Semi-slick · White wall: No · Tubeless (yes/no): Tubetype TT (requires hose)
CHF 51.90
Motorex brake fluid DOT4 250 ml
Manufacturer: Motorex · DOT class (brake fluid): DOT 4 (230°C) · Contents [ml]: 250 ml · Area of application: Standard · Hazard warning: Can harm the child in the womb · Hazard warning: Causes serious eye irritation · Signal word: Attention · Hazard pictogram: GHS07 - Caution dangerous · Hazard pictogram: GHS08 - Harmful to health
CHF 8.70
CHF 34.80/l
Brake line 0.9 - 1.9 m (selection) black 28 / 90° incl. banjo bolts
Material: Rubber · Material: Steel · Color: black · Cable length: 900 mm · Cable length: 1000 mm · Cable length: 1150 mm · Cable length: 1400 mm · Cable length: 1600 mm · Cable length: 1700 mm · Cable length: 1900 mm · Mounting type: Screws · Thread type: MF10x1.25 (fine pitch thread)
CHF 23.90
Moped fans like you also bought:
Magura gas cable clamp / deco cable clamp Ø 5 x 6 mm
Manufacturer: Magura · Material: Brass · Material: Steel · Surface: nickel-plated · Drive: Slot · Thread type: M4x0.7 (standard thread) · Total length: 6 mm · Ø Cable bushing: 1.6 mm · Screw head: Lens head · Thread length: 4 mm · Number of components: 2 pcs · Ø outside: 5 mm
CHF 2.00
Inner cable Ø 1.2 mm x 200 cm with barrel nipple Ø 6 mm
Ø nipple: 6 mm · Manufacturer: Made in Germany · Material: Brass · Material: Steel · Surface: galvanized (blue) · Ø Stranded wire: 1.2 mm · Cable length: 2000 mm · Nipple shape: Barrel (transverse) · Area of application: Standard · Number of components: 1 pcs · Nipple length: 5.5 mm
CHF 3.40
IMCA shock absorber 28 cm black
Ø outside: 45 mm · Manufacturer: IMCA · Material: Steel · Surface: varnished · Damping type: Spring · Color: black · Adjustable: Yes · Total length: 280 mm · Ø Fastening inside: 10 mm · Ø spars: 28 mm · Mounting type: Nuts & bolts · Number of fixing points: 2 pcs
CHF 50.90

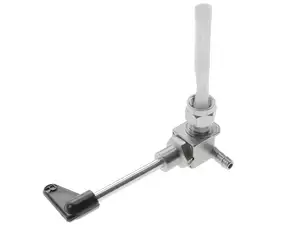

Fuel tap vertical M12x1 (with union nut) outgoing right | Piaggio SI
